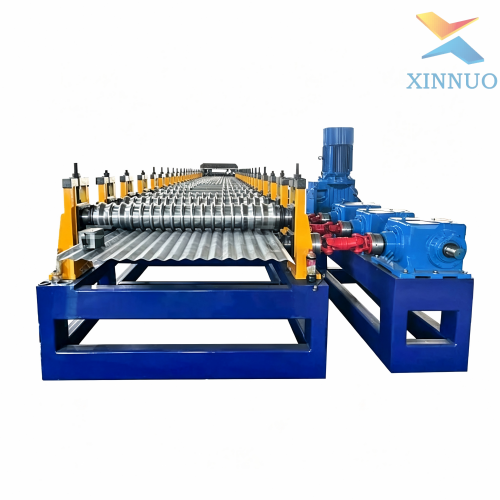

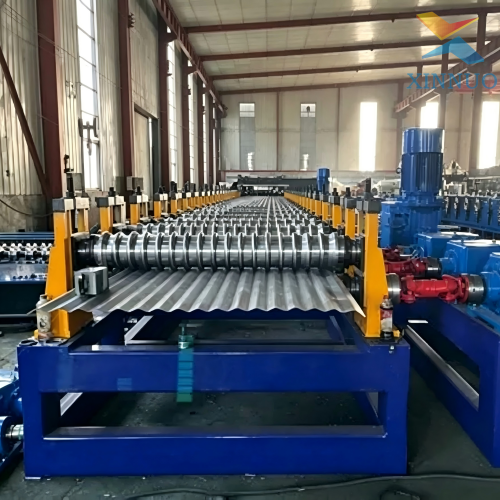

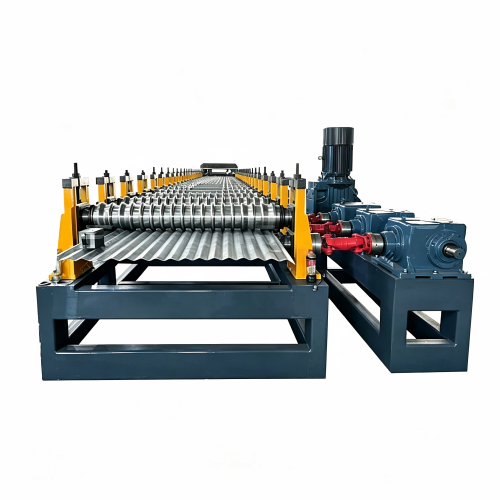

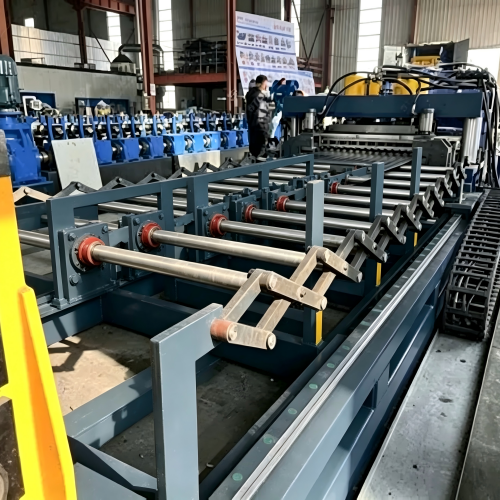

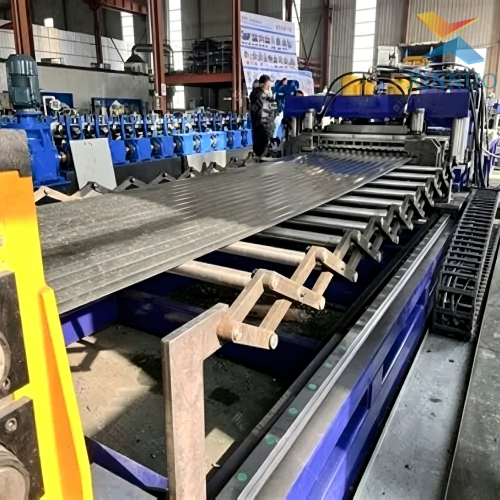

High Precision Grain Silo Corrugated Wall Panel Roll Forming Machine

High Precision Grain Silo Corrugated Wall Panel Roll Forming Machine：

Engineered Excellence for Modern Agricultural Storage The Grain Silo Wall Panel Roll Forming Machine from Hebei Xinnuo Roll Forming Machinery Co., Ltd. is a heavy-duty industrial solution designed to meet the rigorous demands of global agricultural storage infrastructure. Grain silos require wall panels that can withstand immense lateral pressure and environmental stressors. Our production line is specifically engineered to roll-form thick galvanized steel (up to 4.0mm) into high-precision corrugated profiles. The resulting panels provide superior structural integrity, ensuring that large-capacity silos remain stable and secure over decades of use. By integrating advanced forming technology with high-strength materials, Xinnuo provides a reliable foundation for modern grain preservation and logistics.

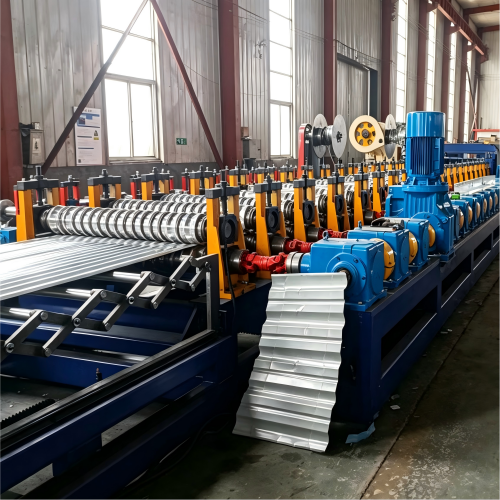

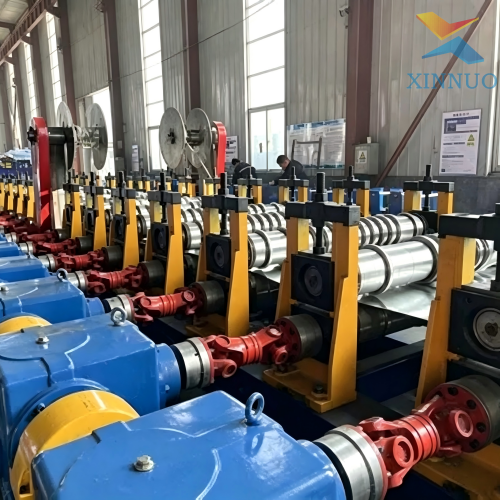

Superior Transmission: The Cardan Shaft Advantage A defining technical feature of the Xinnuo silo machine is its Cardan Shaft Drive (Universal Joint) transmission system. Traditional chain drives often struggle with the extreme torque requirements of roll-forming 3mm or 4mm thick steel. Our Cardan shaft system delivers uniform, high-torque power to every single forming station, ensuring synchronized rotation and preventing material slippage. This heavy-duty drive setup, combined with a 22-45 kW high-power gearbox, allows for continuous, smooth production of deep corrugated profiles that are perfectly uniform in pitch and depth. The robustness of this system significantly reduces maintenance downtime and extends the operational lifespan of the machine.

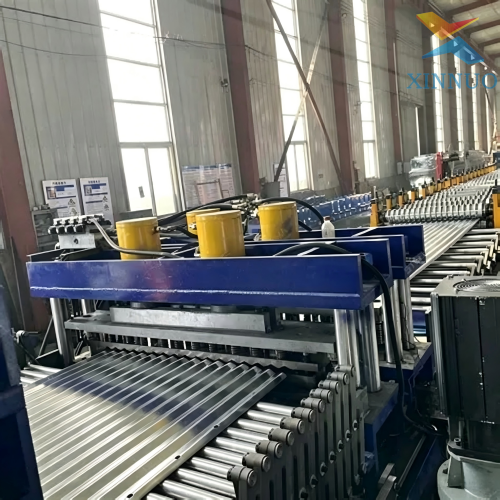

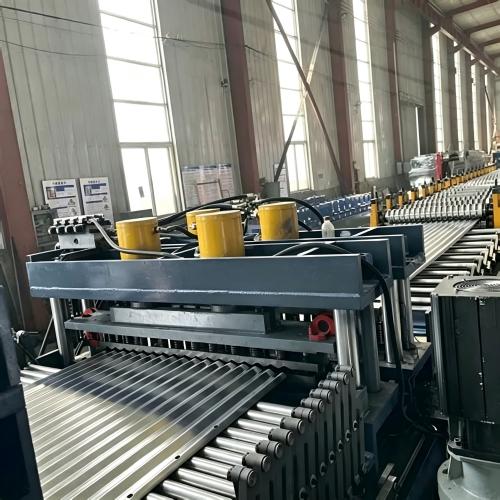

Integrated Precision Punching and Automation Assembly precision is non-negotiable for grain silos, as thousands of bolts must align perfectly during on-site construction. The XINNUO silo production line features a servo-controlled hydraulic punching module that creates bolt holes directly in the production process. This "online" punching system utilizes precision molds to ensure that every hole is accurately positioned relative to the corrugated crests and troughs. Controlled by a high-speed PLC system (available in Siemens or Delta), the entire line—from decoiling and leveling to punching, forming, and cutting—operates as a seamless, automated unit. This drastic reduction in secondary labor not only lowers production costs but also eliminates human error in hole alignment.

Global Standards and Comprehensive After-Sales Support Hebei Xinnuo understands that agricultural projects are often time-sensitive and location-dependent. Our grain silo machines are built to international safety and quality standards, using premium GCr15 quenched rollers and 400H steel frames to withstand the harshest factory environments. We provide a complete global service package, including remote technical diagnostics, detailed video installation tutorials, and prompt spare part logistics. With successful installations in major grain-producing regions across Europe, the Americas, and Southeast Asia, Xinnuo has established itself as a premier partner for silo manufacturers seeking efficiency, precision, and long-term reliability in their production equipment.
