Color Steel Arch Bending Machine
Color Steel Arch Bending Machine Color Steel Arch Bending Machine Color Steel Arch Bending Machine Color Steel Arch Bending Machine

Color Steel Arch Bending Machine

Profile :

Delivery time:50-60 days

Payment:30% T/T deposit,70% balance before shipping

Voltage:380V 50HZ 3Phase or based on customer’s need

Warranty:2 years for machinery warranty

Whatsapp: +86 18832797029

e-mail: yuankuoduan@gmail.com

Product Description

Color Steel Arch Bending Machine

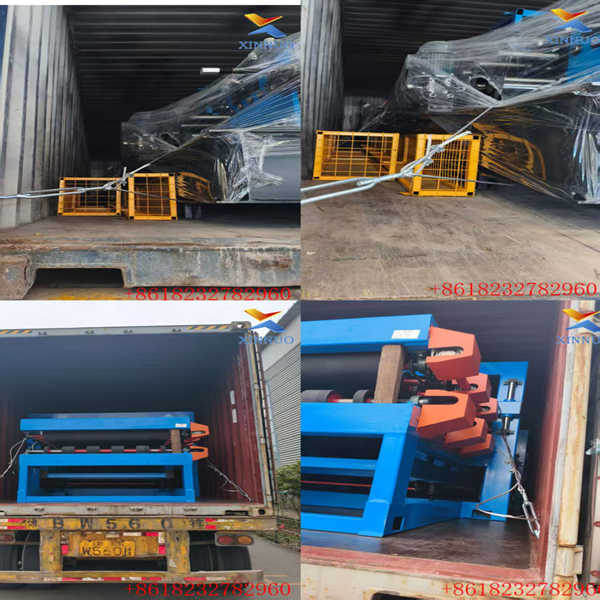

Roofing sheet crimping machine price package and shipment :

– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

– 2.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

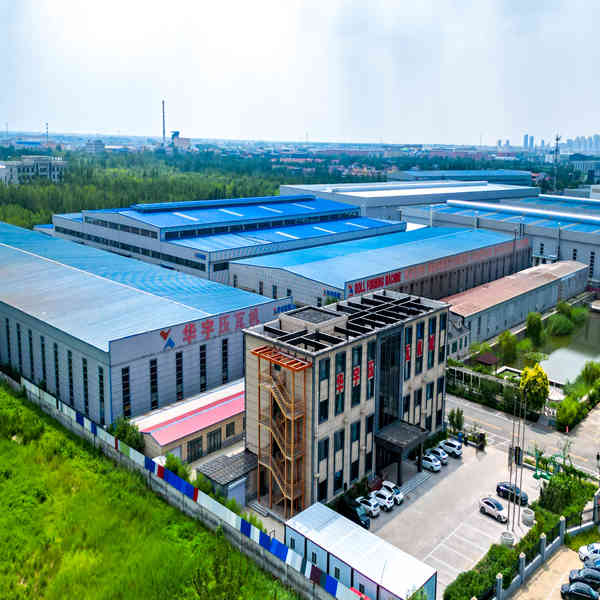

About us -HEBEI XINNUO

 We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !

This color steel arch bending machine is classified under Roof sheet crimping machine, special secondary forming equipment matched with roof tile roll forming machines. It hydraulically bends flat finished metal roof sheets into large-span beamless arched panels. Arched roofs feature fast drainage and unobstructed interior space without support columns, widely used for livestock farms, warehouses, grain depots, temporary workshops and greenhouses.

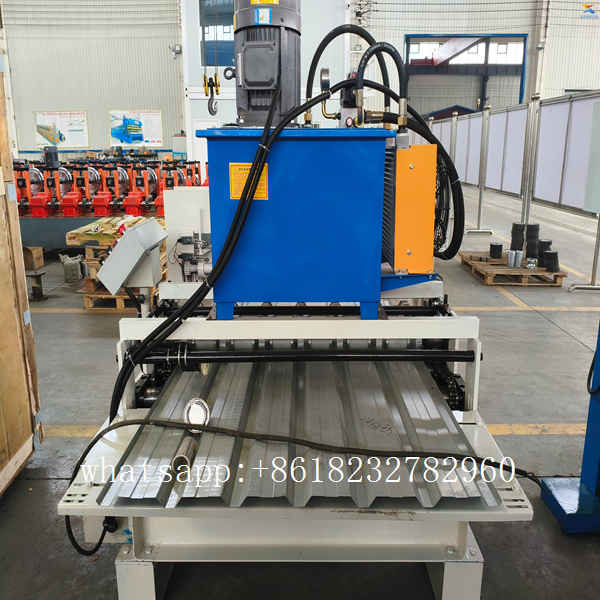

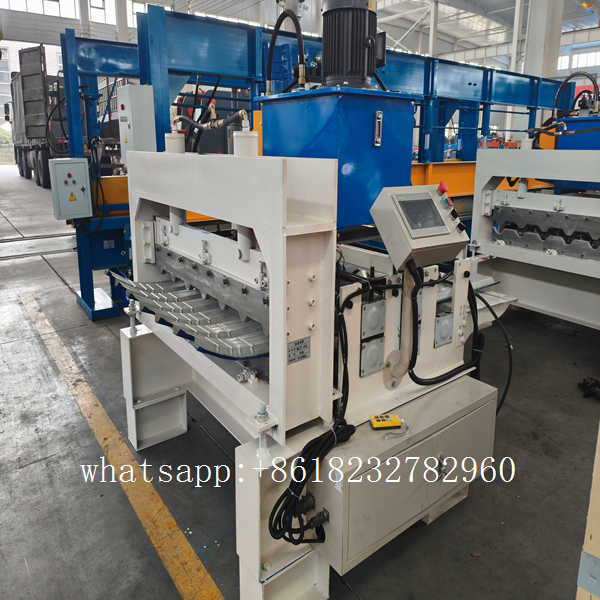

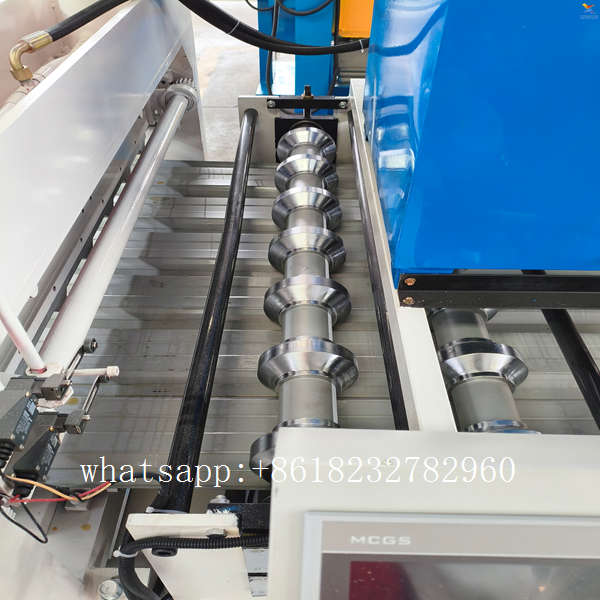

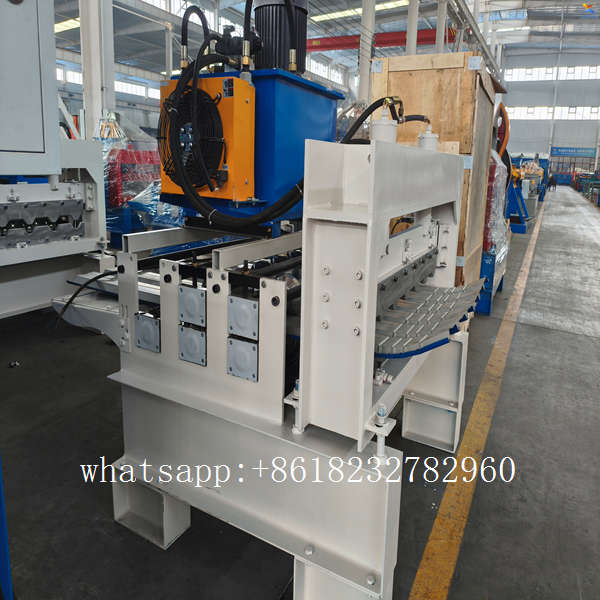

The machine frame is integrally welded with thick steel plates, equipped with high-pressure main hydraulic cylinder and multi-group synchronous bending dies to produce uniform arch curvature. Sheets are bent without cracks or spring-back deformation after forming. It fits all types of corrugated & glazed color steel tiles 0.4–0.8mm thick, arch radius digitally adjustable to match various building span designs. Front feeding support rollers deliver finished tiles smoothly to avoid surface scratches.
Independent PLC touch screen numerical control system stores preset arch depth and curve parameters, automatically completing feeding, positioning, hydraulic bending and discharging. Only one operator is required for mass production via touch panel operation. Hydraulic system with air cooling enables 24-hour continuous heavy-load operation. The whole machine is easy to move on-site, supporting portable on-location arch bending together with mobile roll formers to reduce transport damage of metal sheets. Running speed is stepless adjustable from 3 m/min to 12 m/min.
Every arch bending machine passes full-load arch forming endurance test before delivery to calibrate curve precision and hydraulic pressure. Spare bending dies, hydraulic sealing parts and bilingual operation manuals are supplied as standard accessories. Xinnuo provides a 2-year full machine warranty, delivery lead time 50–60 days, industrial voltage customized for all countries. Remote installation & debugging guidance is available for overseas buyers. This supporting arch forming equipment for large-span arched roofs receives consistent orders from agricultural and storage building material manufacturers.

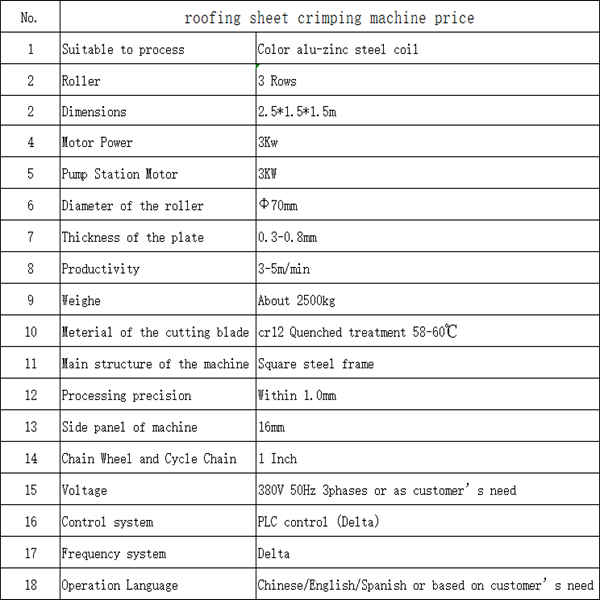

Parameter Item Specification
Model Name Color Steel Arch Bending Machine / Roof Sheet Crimping Arch Former
Category Roof sheet crimping machine
Applicable Sheets 0.4–0.8mm all finished color steel roof tiles
Adjustable Arch Radius Digital adjustable for various large-span roofs
Driving System High-power synchronous hydraulic bending
Control System Independent PLC touch screen NC, saved parameter one-click recall
Running Speed 3–12 m/min
Main Hydraulic Power 7.5kW
Compatible Profiles Corrugated tile, glazed tile, single-layer roof panels
Overall Dimension 3200×1100×1350mm
Total Machine Weight 2.8 Tons
Warranty Period 2 years full machine warranty
Delivery Lead Time 50–60 days
