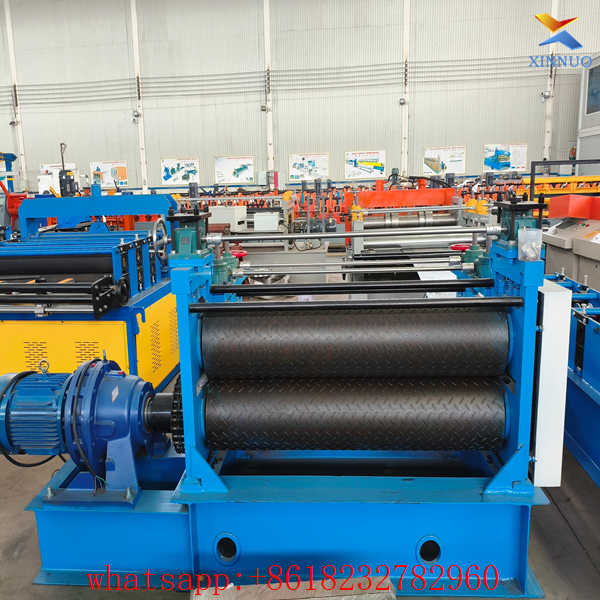

Metal Embossing Machine

Advantages of Metal Embossing Machine:

High embossing precision, clear pattern and stable molding

Hard chrome plated roller, wear-resistant and long service life

Frequency conversion speed regulation, energy saving and low noise

Simple structure, easy operation and low maintenance cost

One machine available for multiple patterns, wide application

•

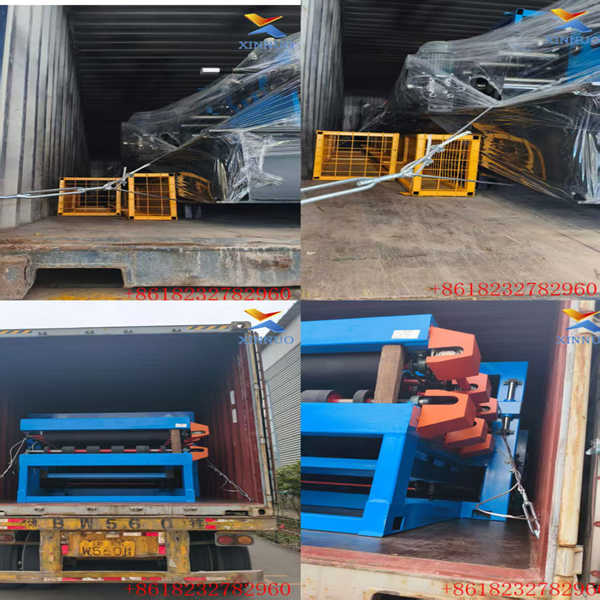

•                                                                                                                                                                                                                      Metal Embossing Machine Packing&Shipping

  – 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

  – 2.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

  – 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for
  exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

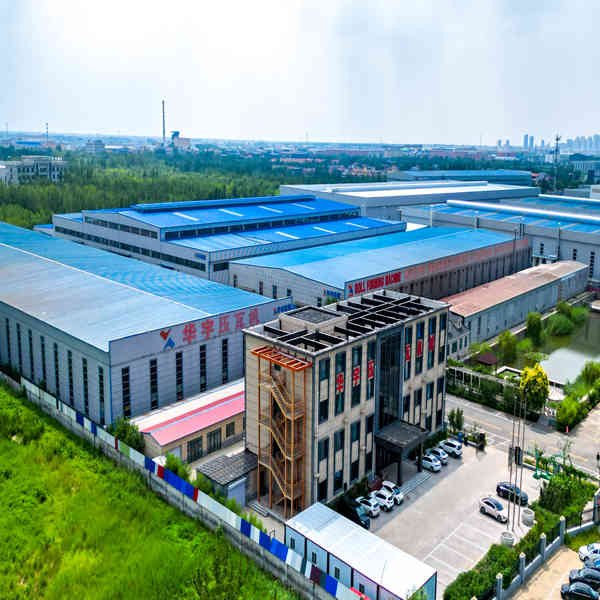

  – 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.                                                                                                                About us -HEBEI XINNUO

  We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !                                                                                                      Hebei Xinnuo Roll Forming Machinery Co., Ltd. specializes in R&D and production of various metal sheet deep processing equipment. This Metal Embossing Machine is classified under the Embossing Machine category. It is special equipment for surface texture processing of color steel sheets, galvanized plates, stainless steel and Al-Mg-Mn thin plates. It can emboss 3D concave-convex textures such as wood grain, orange peel texture, brick grain and marble grain on metal sheets in one pass. Finished embossed sheets are widely used for exterior wall decorative panels, security door panels, metal ceilings, home appliance shells and pre-processing of decorative keels. It can form a complete automatic production line together with feeding racks, levelers, slitting machines and keel forming machines, and is exported in bulk to Southeast Asia, the Middle East, Africa, South America and other building material markets all year round.

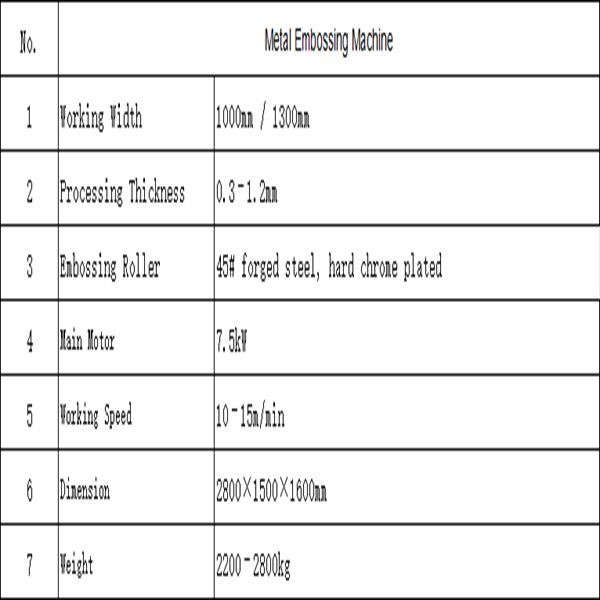

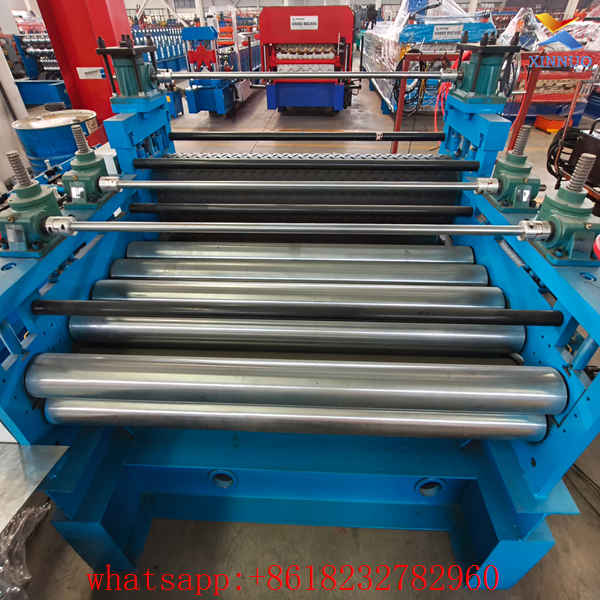

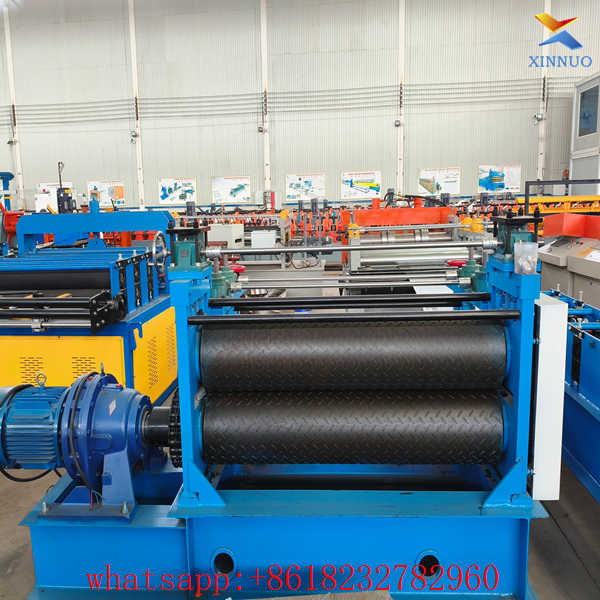

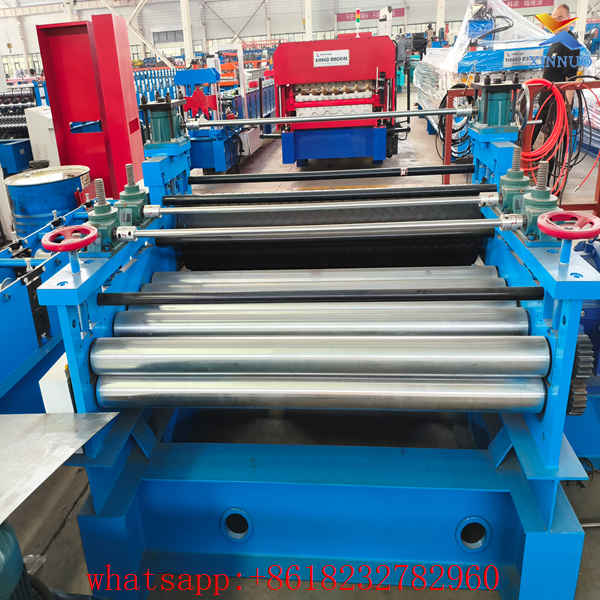

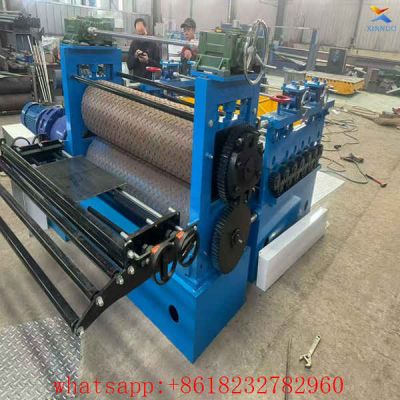

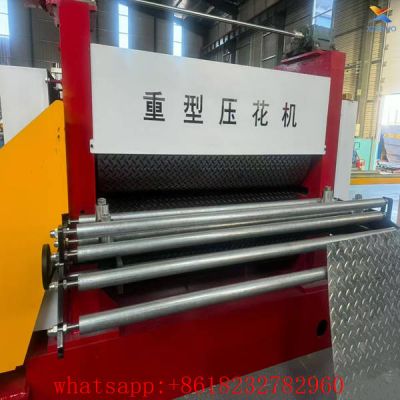

  The whole machine base is integrally welded with thick steel plates and treated by high-temperature stress relief annealing after welding, so there is no vibration or frame deformation during long-hour continuous embossing work. The core upper and lower engraved rollers are integrally forged from solid 45# carbon steel with precise CNC carved patterns, quenched and coated with thick hard chrome on the surface. The rollers feature high hardness, excellent wear and corrosion resistance, so patterns will not blur or fall off after long-term high-speed production. Synchronous double roller extrusion finishes pattern forming at one time with uniform depth and strong three-dimensional sense, without sheet stretching, tearing or coating peeling. It processes thin metal sheets from 0.2mm to 1.2mm thick with standard feeding width of 1250mm, and exclusive patterns and widened rollers can be customized according to buyers’ requirements.

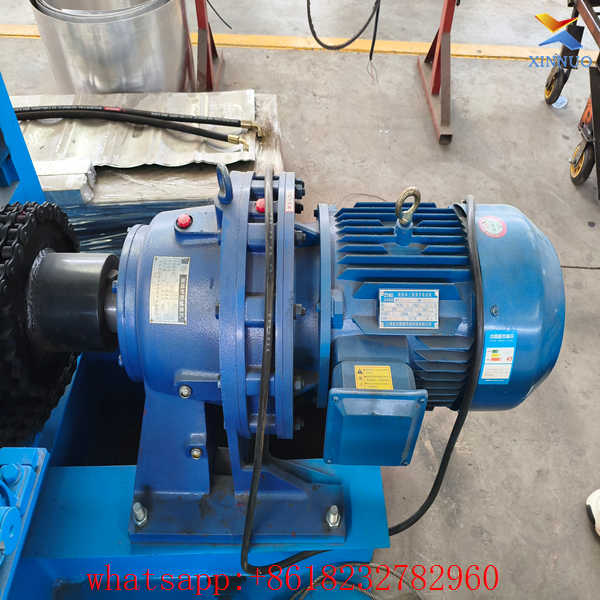

  Equipped with variable frequency speed regulating drive motor and heavy-duty synchronous gear transmission, the upper and lower engraved rollers rotate at fully consistent speed, and feeding speed can be steplessly adjusted from 5 m/min to 16 m/min. A guiding limit deviation-correcting support is installed at the feeding inlet to convey steel strips automatically centered and avoid incomplete patterns caused by sheet offset. A simple PLC control panel supports one-button start-stop, speed adjustment and product counting. Only one operator is required to realize 24-hour non-stop embossing production. Compared with traditional film coating and transfer printing crafts, roll embossed patterns have stronger adhesion and longer service life, greatly reducing defective rate and labor cost of decorative sheets.
  Every metal embossing machine undergoes a 72-hour continuous sheet embossing test before delivery to calibrate pattern forming precision and roller synchronization. Spare engraved roller parts, Chinese-English bilingual operation manuals and installation drawings are delivered as standard accessories. Xinnuo offers a 1-year full machine warranty. Overseas buyers are provided with remote technical debugging and on-site installation training by professional engineers. Stable and durable performance brings repeat orders and positive feedback from decorative metal sheet manufacturers all over the world.
