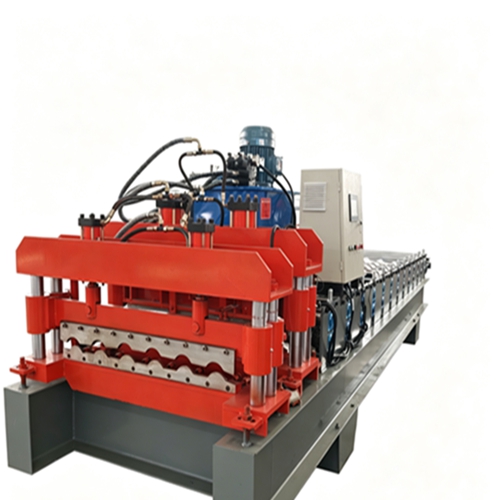

glazed tile making machine

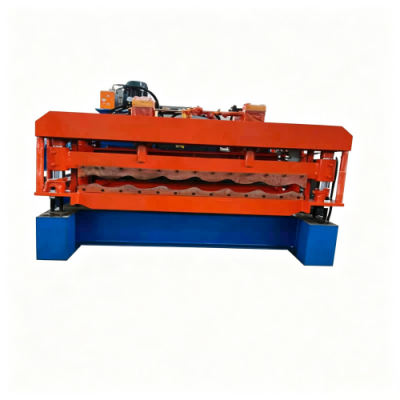

This glazed tile roll forming machine is a premium cold forming equipment professionally manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd. It is specially engineered for producing antique-style metal glazed roof tiles that combine traditional architectural aesthetics with modern steel structure durability. Different from ordinary flat roof panel machines, this equipment forms elegant wave-shaped glazed tiles with rich three-dimensional layering, making it an ideal choice for high-end residential and commercial roofing projects.

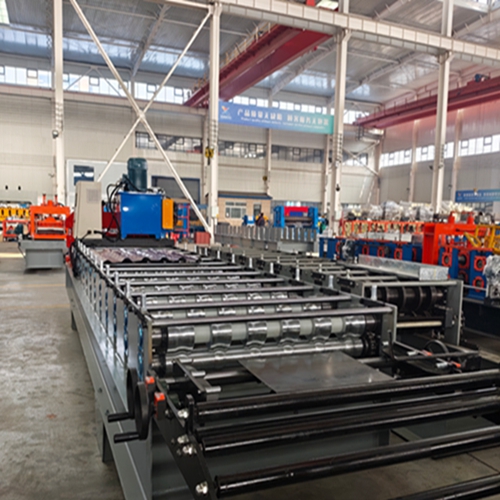

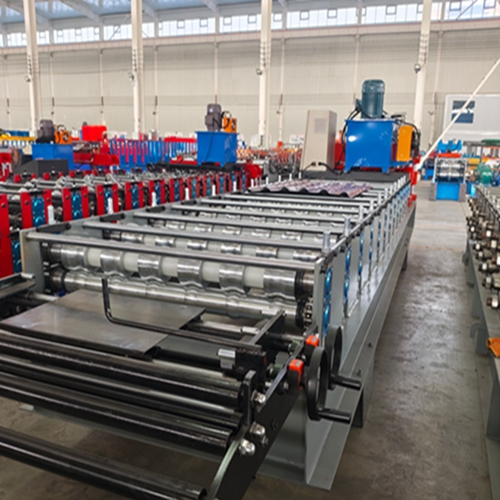

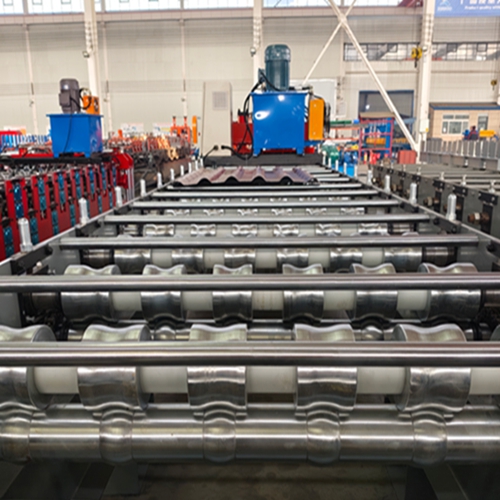

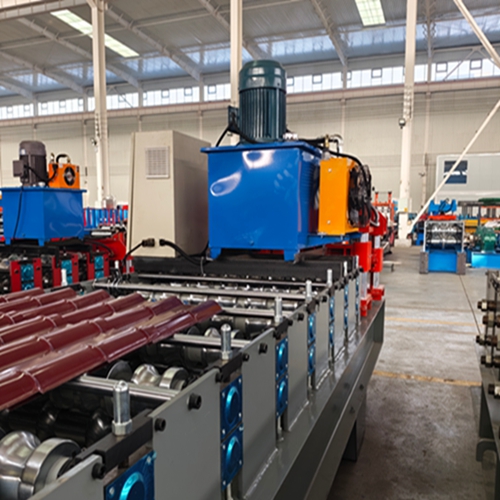

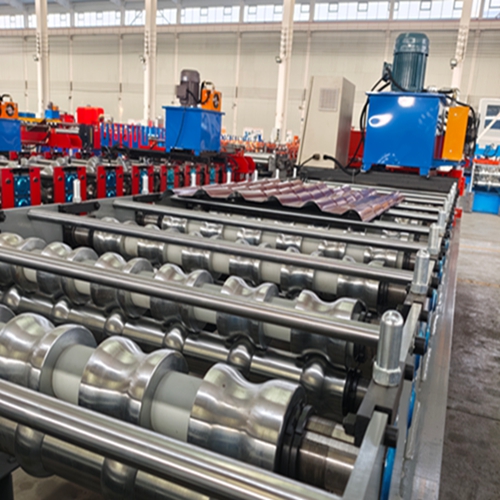

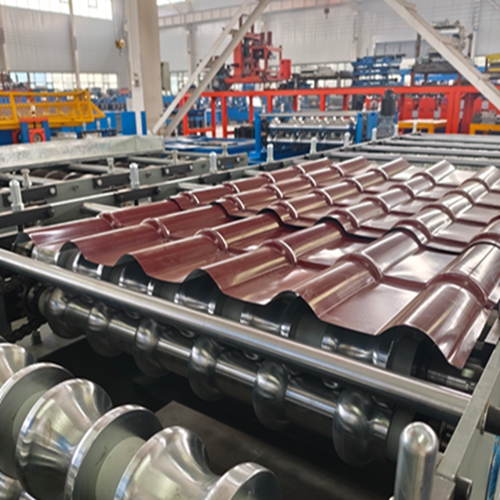

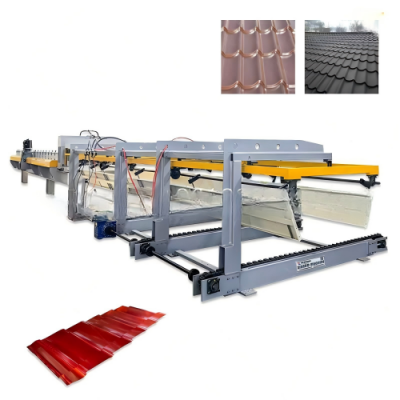

The entire production line consists of a manual or hydraulic decoiler, a feeding guide platform, a multi-station forming roller section, a hydraulic cutting system, a product receiving table, and a PLC electrical control cabinet. The forming rollers are precisely machined from high-quality 45# forged steel and undergo hard chrome plating treatment on the surface, reaching a hardness of HRC 58-62. This ensures long-term wear resistance and guarantees scratch-free and deformation-free panel surfaces even after years of continuous high-speed production.
The machine frame adopts heavy-duty welded steel structure with overall stress relief annealing treatment, effectively eliminating internal welding stress and preventing frame deformation during long-term operation. The transmission system adopts high-precision gearbox or double-row chain drive, matched with a 5.5kW three-phase asynchronous motor, providing stable and powerful power output. The forming speed can be adjusted from 8 to 12 meters per minute according to actual production requirements.

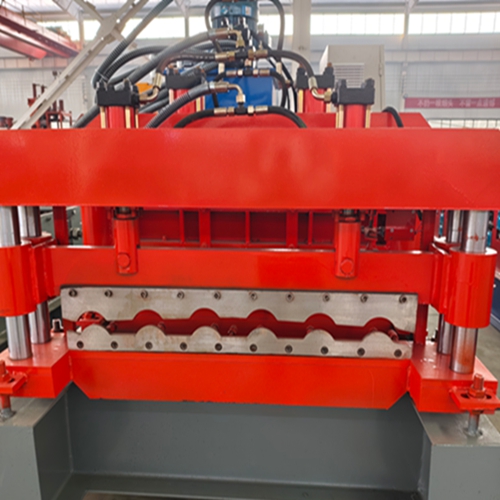

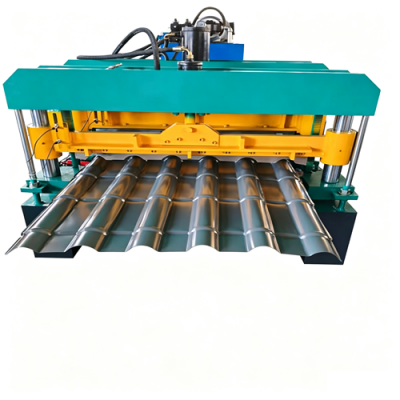

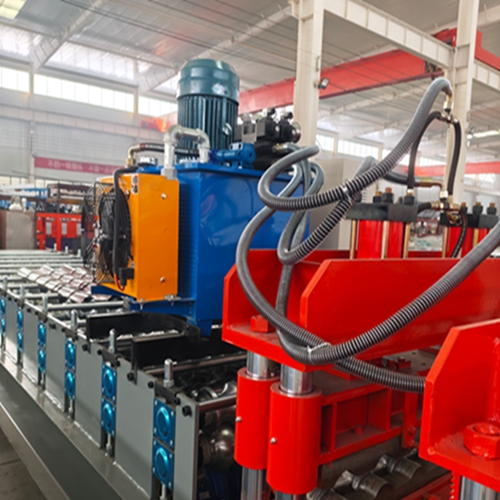

The hydraulic cutting unit is equipped with a high-pressure hydraulic cylinder and precision guide pillars, ensuring smooth and stable vertical cutting movement. The cutting die is custom-machined to perfectly match the glazed tile profile, delivering clean, burr-free and non-deformed cutting edges without any secondary trimming work. The hydraulic station adopts well-known brand hydraulic components, featuring stable pressure, low noise and long service life.

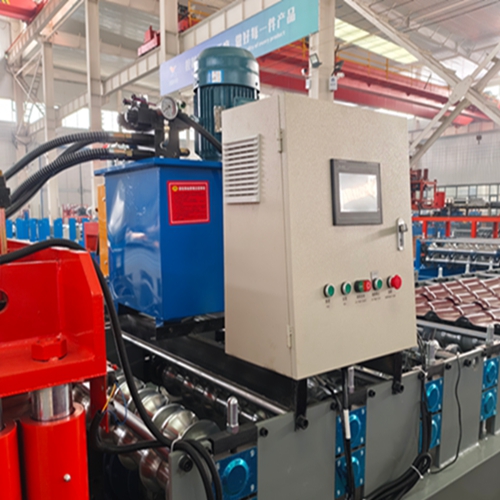

This machine is equipped with an advanced PLC intelligent control system with a user-friendly color touch screen interface. Operators can easily set production parameters such as panel length, production quantity and cutting mode. The system automatically completes feeding, forming and fixed-length cutting processes, realizing fully automatic continuous production with minimal manual intervention. The control system also features fault self-diagnosis function, which can display fault information in real time for easy maintenance.
Our glazed tile forming machine can process various metal materials including color coated steel coils, galvanized steel coils, aluminum coils and aluminum-zinc coated coils, with a thickness range of 0.3mm to 0.8mm. We offer multiple standard tile profiles and can also customize special tile shapes, effective widths and wave heights according to customers' specific requirements and local building standards.
The produced metal glazed tiles are widely used in villa roofs, scenic area buildings, antique commercial streets, new countryside residential projects, temples, pavilions, garden buildings and resort hotels. Compared with traditional ceramic glazed tiles, metal glazed tiles are lighter in weight, faster to install, more earthquake-resistant and have a longer service life, making them increasingly popular in the modern construction market.
In terms of after-sales service, we provide a 2-year whole machine warranty and lifelong technical support. Before placing an order, our professional engineering team can provide free solution design and CAD drawing confirmation. The standard delivery time is 50-60 working days after receiving the 30% T/T deposit, with the remaining 70% balance paid before shipment. We can also customize the equipment voltage and frequency according to the local power supply standards of different countries.
Our machines have been exported to over 80 countries and regions including Southeast Asia, the Middle East, Africa, South America and Eastern Europe, winning wide recognition from global customers for stable quality and reliable performance. We also provide complete production line supporting solutions including hydraulic decoilers, leveling machines, stackers and other auxiliary equipment to offer customers one-stop purchasing service.
