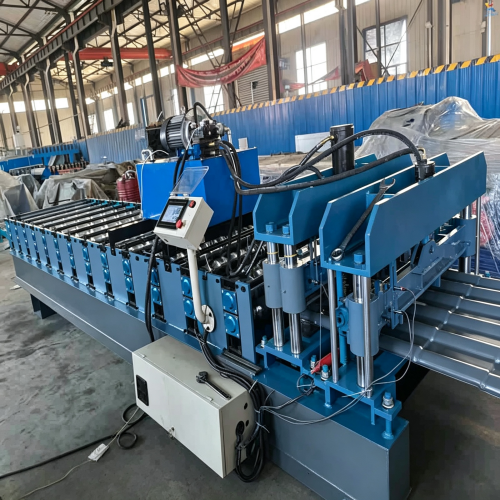

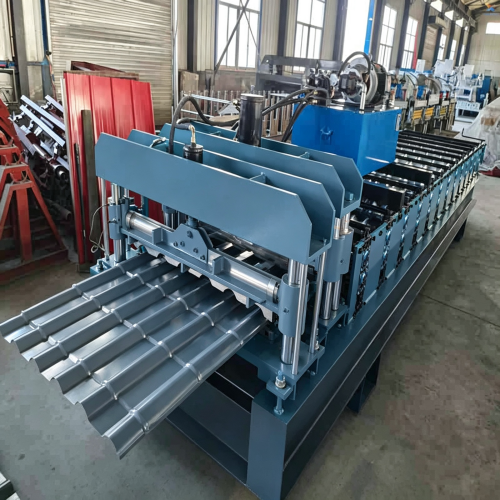

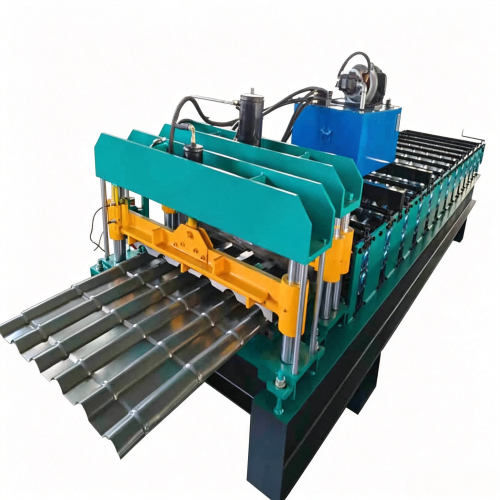

800 Imitated Resin Tile Roll Forming Machine
This 800 imitated resin tile roll forming machine belongs to glazed tile roll forming machine subcategory under roof panel roll forming machine series, dedicated cold bending equipment for antique Chinese style imitated resin color steel roof tiles. The finished tile copies the 3D curved texture of synthetic resin tiles, combining waterproof, durable & maintenance-free metal sheet performance with antique Chinese decorative aesthetics. Widely used in cultural tourist scenic spots, ancient-style villages, farm homestays, Chinese villas and ancient building renovation roof waterproof & decoration projects.
Compatible with 0.3–0.7mm printed color coated steel coils and color galvanized steel strips. It can work as a single independent unit or match trapezoidal tile rollers to form a double-layer integrated machine.

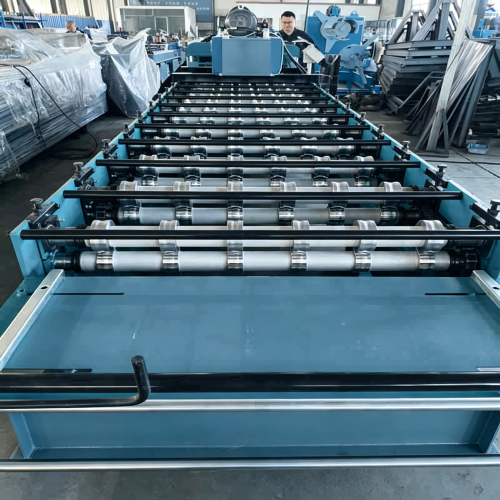

The machine base is integrally welded with heavy standard channel steel and treated by high-temperature stress relief annealing to eliminate welding internal stress. Multi-pass curved roller forming delivers full smooth tile arcs and clear three-dimensional antique texture, no deformation or offset during long-term high-speed continuous forming. All forming rollers are precision turned solid 45# carbon steel with full hard chrome plating after quenching for outstanding wear and rust resistance, scratch-free forming for printed decorative sheets. Multi-group progressive antique wave bending roller stands fully complete undulating imitated resin tile patterns in one feeding stroke with minimal bending spring-back. Tight interlock between tiles provides excellent roof rain seepage prevention performance. Effective tile width, arc radian and matching ridge cap profiles can be customized by replacing roller sets per customers’ construction drawings.

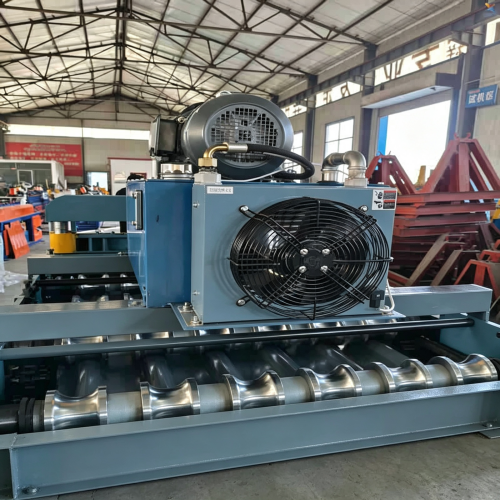

Equipped with variable frequency synchronous chain transmission system, running smoothly with low noise, forming speed steplessly adjustable from 7 m/min to 20 m/min. Manual deviation correction mechanism at feeding inlet ensures printed strips feed centrally and uniformly to avoid pattern misalignment and surface scratch. Vertical hydraulic cutting unit at the tail adopts special blades suitable for thin printed color steel sheets, delivering clean burr-free cut ends, finished fixed-length dimensional tolerance ≤±1mm. Separate PLC touch screen control system stores multiple antique resin tile profile parameter recipes for one-click production switch, automatically completing feeding, antique curve roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop continuous production.
Every 800 imitated resin tile forming machine undergoes a 72-hour endurance test with printed coils before delivery to calibrate curved pattern arc, sheet width and cutting tolerance. Complete spare forming rollers, cutting blades, hydraulic sealing parts and bilingual machine operation & maintenance manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, customized three-phase industrial voltage available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This Chinese antique decorative roof tile forming equipment receives bulk orders from cultural tourism and steel structure building material manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
800 Imitated Resin Tile Roll Forming Machine / Antique Chinese Style Glazed Color Steel Roof Tile Forming Equipment |
| Category |
Roof Panel Roll Forming Machine > Glazed Tile Roll Forming Machine |
| Processable Materials |
Printed color coated steel coil, color galvanized steel strip |
| Applicable Sheet Thickness |
0.3–0.7mm |
| Standard Forming Coverage Width |
800mm (custom antique curved pattern) |
| Roller Material |
45# carbon steel, precision turned + full quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
18–26 roller stations |
| Speed Control Mode |
Variable frequency independent synchronous stepless speed regulation |
| Forming Running Speed |
7–20 m/min |
| Main Motor Power |
5.5kW |
| Cutting System |
Vertical hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
PLC touch screen full-automatic NC, multiple antique resin tile recipes stored for one-click switch |
| Overall Dimension |
6600×1030×1300mm |
| Total Machine Weight |
2.3 Tons |
| Warranty Period |
2 years full machine warranty |
| Delivery Lead Time |
50–60 days |
