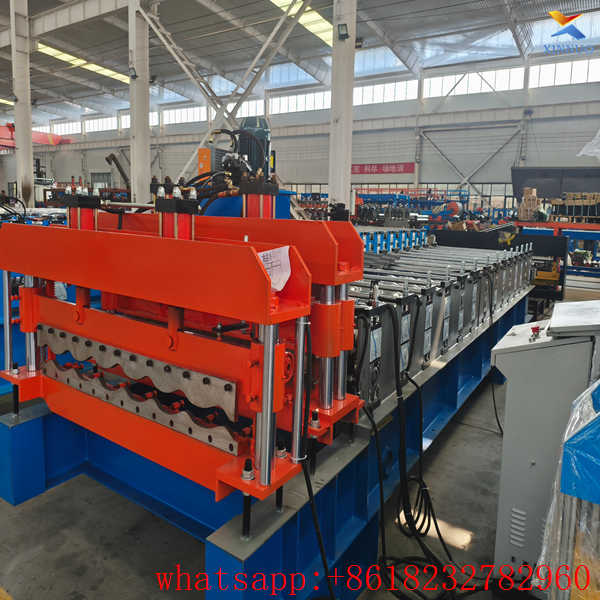

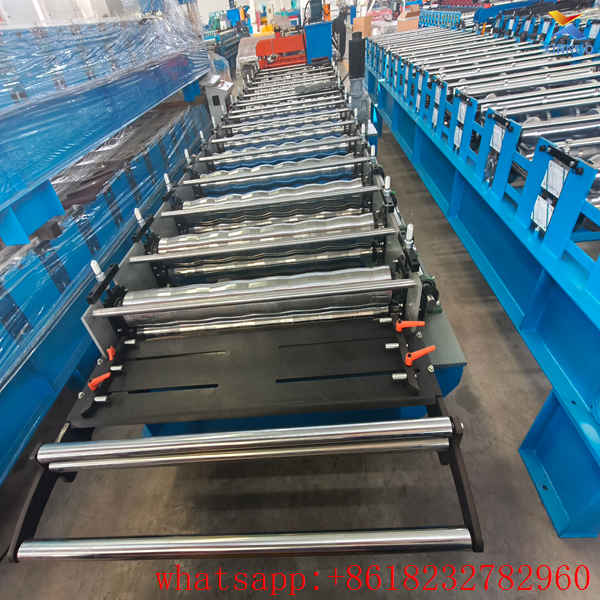

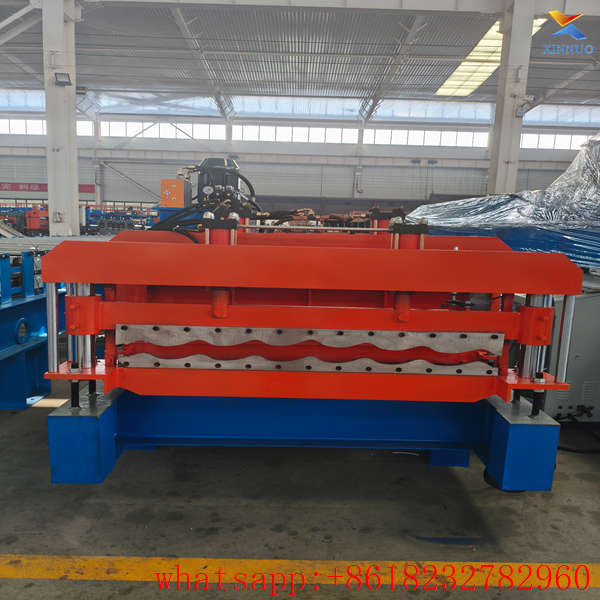

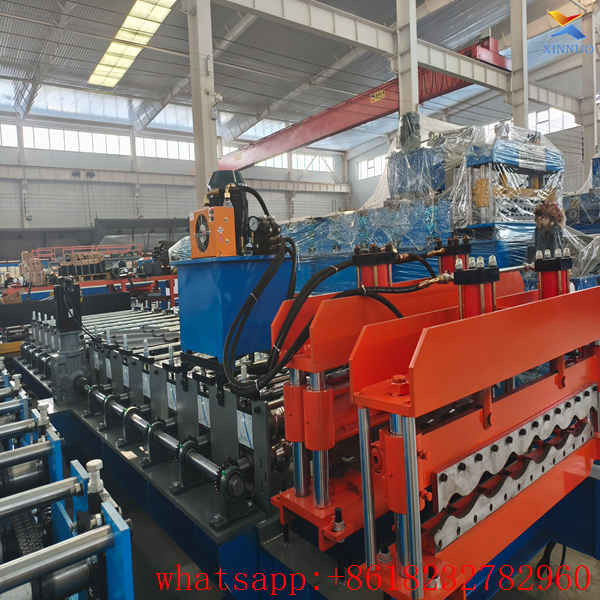

1000 Glazed Tile Roll Forming Machinephotos showing :
1000 Glazed Tile Roll Forming MachinePacking&Shipping :
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

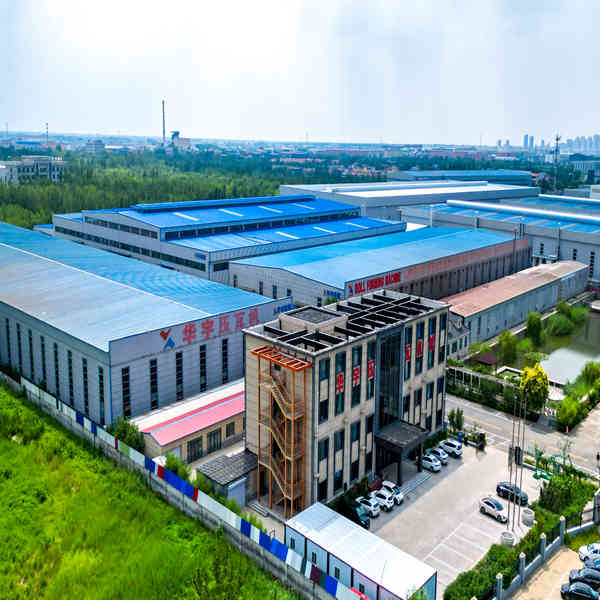

About us -HEBEI XINNUO
We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !
Hebei Xinnuo Roll Forming Machinery Co., Ltd. specializes in manufacturing various roof cold roll forming machines. The 1000 Glazed Tile Roll Forming Machine is classified under Glazed Tile Roll Forming Machine category. It produces antique glazed color steel tiles with retro arc patterns, featuring beautiful vintage appearance, excellent waterproof and anti-corrosion performance. Finished tiles are widely applied for rural houses, scenic ancient-style buildings, antique workshops and cultural tourism supporting constructions. It is a popular model in domestic and overseas antique building material markets, and can form a full automatic production line matched with 1000mm wide feeding rack.
The whole machine base frame is integrally welded with thick steel plates and treated by high-temperature stress relief annealing, so it maintains vibration-free stable performance without deformation during long-hour high-speed continuous production. All forming rollers are precisely machined from solid 45# carbon steel with quenched thick hard chrome plating, high hardness and wear resistance without scratching color steel coating. Multi-stage progressive rolling forms smooth antique wave patterns in one pass, with uniform arc profiles and tight interlocking joints for reliable rainproof effect. It processes color coated steel coils from 0.3mm to 0.7mm thick with raw material feeding width 1000mm, finished effective coverage width 800/840mm, and pattern depth can be customized as buyers’ local market demands.
Equipped with variable frequency main drive motor and heavy-duty synchronous chain transmission, the machine runs smoothly with low noise, and forming speed can be steplessly adjusted from 7 m/min to 15 m/min. Multiple guiding limit rollers and manual adjusting handwheels are installed at feeding inlet to automatically correct steel strip position and avoid defective sheets caused by offset. An independent hydraulic flying shear cutting unit at the tail delivers stable oil pressure, smooth burr-free cutting surfaces with dimensional tolerance limited within ±1mm. The suspended cantilever PLC touch screen control system allows operators to preset finished length and output quantity. The machine automatically completes feeding, antique pattern roll forming, fixed-length cutting and counting without extra labor. Only one worker can realize 24-hour non-stop continuous production, greatly reducing labor cost and raw material waste.
Every 1000 glazed tile forming machine undergoes a 72-hour full-coil test before delivery to calibrate forming arc precision and cutting tolerance. A full set of spare forming rollers, hydraulic sealing parts, Chinese-English bilingual operation drawings and manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty. Overseas buyers can access remote technical debugging and on-site installation training by professional engineers. Attractive and durable antique tile equipment gains consistent orders from antique building material manufacturers worldwide.
