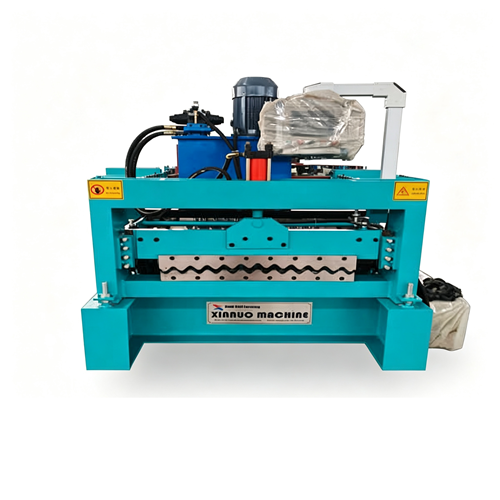

Corrugated Sheet Machine
This corrugated sheet machine falls under Corrugated Sheet Roll Forming Machine subcategory of Roof Panel Roll Forming Machine series, single-layer cold bending equipment for arc wave metal sheets. It produces fine continuous wave color steel panels with good flexibility, tight overlap and smooth drainage performance, widely used for factory underlayment, wall fencing, simple sheds and roof waterproof underlayment. Compact and cost-effective, it is basic supporting forming equipment for building material factories.
The machine base is integrally welded with thick channel steel and stress-relieved by high-temperature annealing after welding to eliminate welding deformation stress, running vibration-free with uniform regular arc waves and stable effective coverage width. All forming rollers are precision turned solid 45# carbon steel with hard chrome plating after surface quenching for superior wear and rust resistance, processing color coated & thin galvanized strips 0.3–0.7mm thick. Multi-stage progressive arc bending roller stands form continuous fine waves in one pass, scratch-free sheet surface without bending cracks, tight interlock for reliable water seepage prevention. Wave height and sheet width can be fully customized per client drawings.

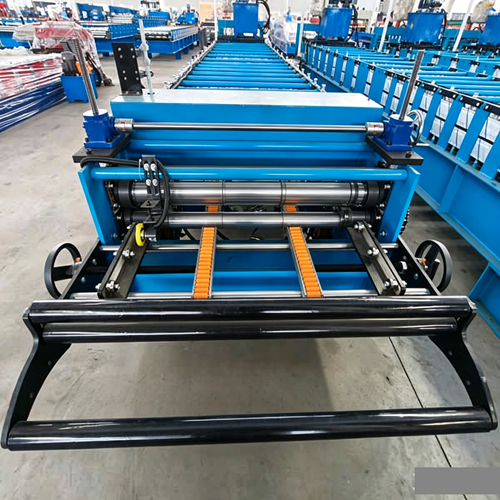

Equipped with variable frequency main motor and synchronous chain transmission, the machine operates smoothly with low noise, forming speed steplessly adjustable from 8 m/min to 22 m/min. Manual deviation correction bracket at feeding inlet easily centers steel strips to reduce edge waste. Integral hydraulic cutting unit at tail delivers clean burr-free cuts, finished length tolerance ≤±1mm. Suspended cantilever PLC touch screen control system stores multiple standard tile length programs, automatically completing feeding, corrugation roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop mass production.
Every corrugated sheet forming machine undergoes a 72-hour full-coil continuous endurance test before delivery to calibrate wave arc, sheet width and cutting tolerance. Complete spare forming rollers, cutting blades, hydraulic sealing parts and bilingual operation manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customization available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This compact high-efficiency corrugated sheet machine receives consistent supporting orders from small & medium building material manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Corrugated Sheet Machine / Single Layer Corrugated Wave Metal Sheet Roll Former |
| Category |
Roof Panel Roll Forming Machine > Corrugated Sheet Roll Forming Machine |
| Processable Materials |
Color coated steel coil, thin galvanized steel strip |
| Applicable Sheet Thickness |
0.3–0.7mm |
| Standard Forming Coverage Width |
840/850/900mm (custom corrugation size) |
| Roller Material |
45# carbon steel, precision turned + quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
16–20 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
8–22 m/min |
| Main Motor Power |
5.5kW |
| Cutting System |
Integral hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
Suspended cantilever full-automatic PLC touch screen control with multi-size recipes stored |
| Overall Dimension |
6000×980×1200mm |
| Total Machine Weight |
1.9 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
