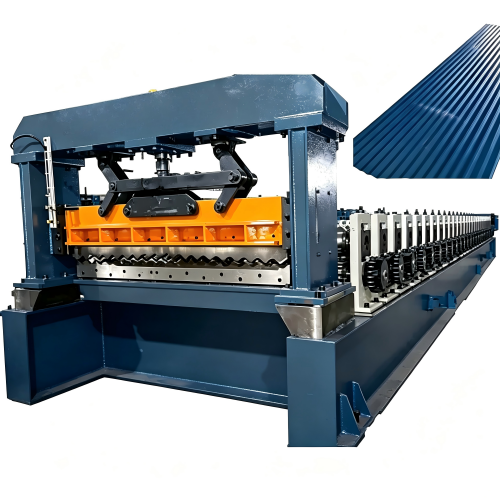

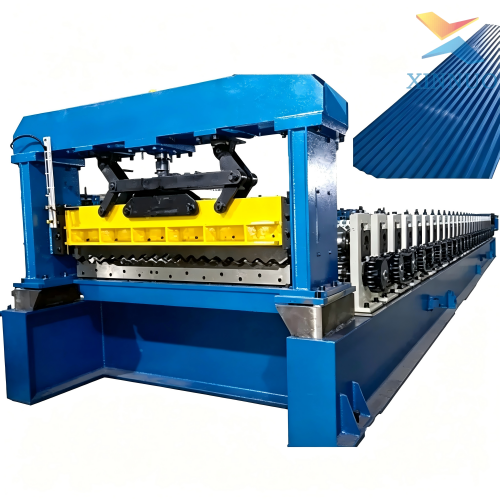

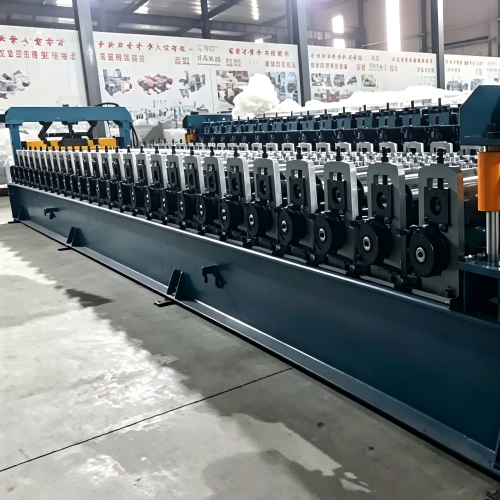

Automatic Sinusoidal Wave Corrugated Roof Panel Roll Forming Machine

Automatic Sinusoidal Wave Corrugated Roof Panel Roll Forming Machine：

Technical Superiority of XINNUO Sinusoidal Wave Forming Technology The XINNUO automatic sinusoidal (corrugated) roll forming machine represents a blend of classical aesthetics and modern engineering excellence. The wave-shaped profile, characterized by its smooth arcs and high structural rigidity, remains one of the most versatile materials for both residential roofing and industrial wall cladding. XINNUO’s equipment is specifically engineered to ensure the perfect smoothness of every wave peak and valley, achieved through precise mathematical calculation of the roller geometry. In today’s competitive international market, our machines guarantee that the final products meet stringent global standards, ensuring consistent metal thickness and pitch accuracy across the entire length of the sheet, which is critical for seamless overlapping during installation.

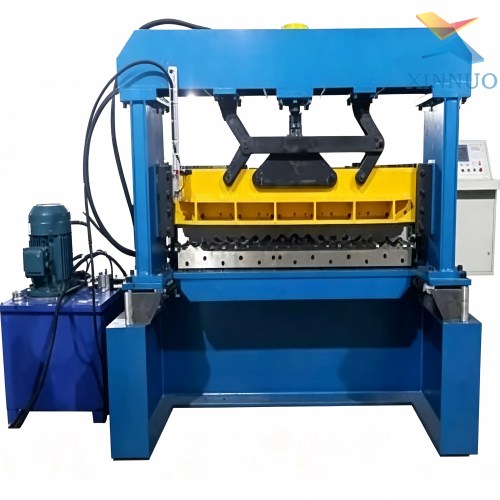

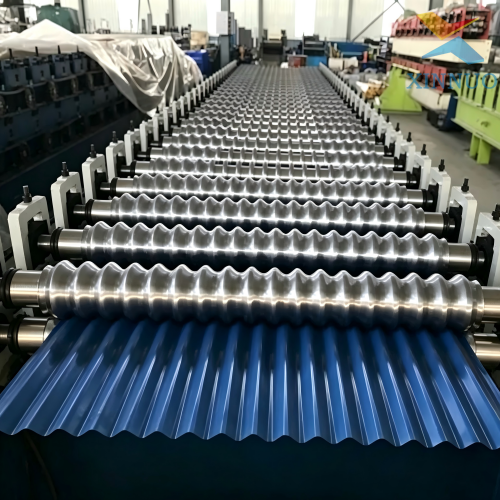

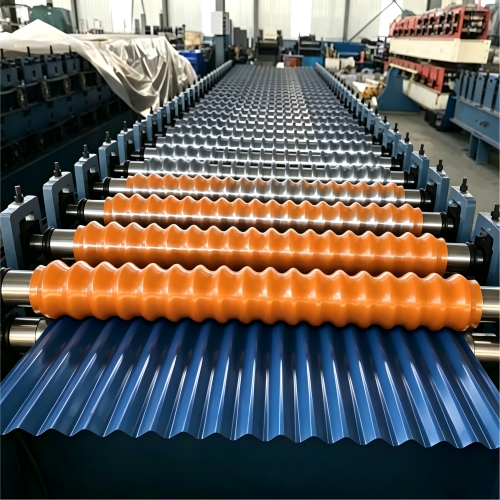

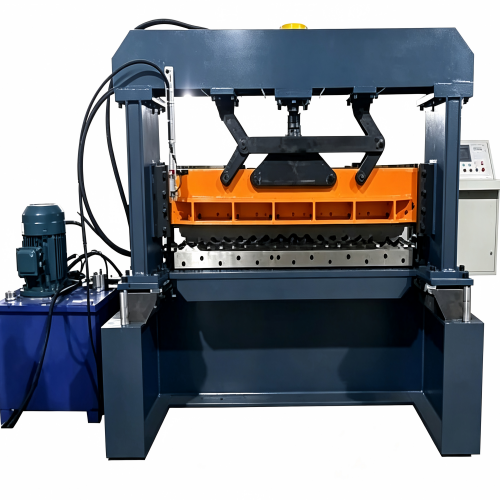

Heavy-Duty Frame Construction and Precision Shaft Engineering The foundation of every XINNUO machine is a heavy-duty steel frame, which undergoes a rigorous thermal stabilization process to eliminate internal stresses. This prevents any structural deformation even after years of continuous high-volume production. Special emphasis is placed on the shafts, which are manufactured from solid 45# steel, precision-turned and finished with hard chrome plating. The forming rollers are processed using advanced CNC machinery to achieve an impeccable sinusoidal profile without damaging the delicate polymer coating of the pre-painted steel. The powerful hydraulic cutting system provides a clean, burr-free cut that perfectly matches the wave shape, significantly simplifying on-site assembly and ensuring a professional finish.

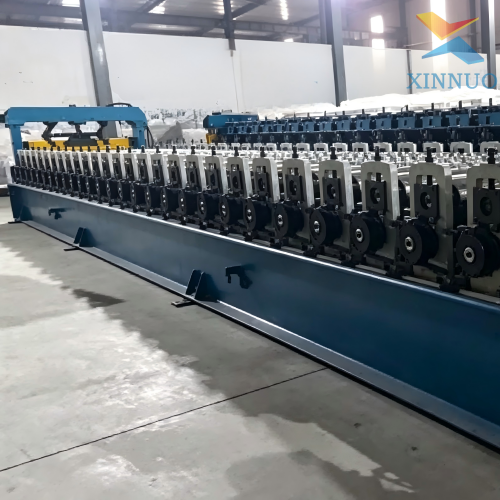

Advantages of the XINNUO Corrugated Profile in Global Construction Sheets produced by XINNUO equipment possess unique structural characteristics. The wave shape provides optimal load distribution, allowing for wider spans between purlins without compromising strength. The absence of sharp angles in the profile geometry minimizes the risk of localized corrosion and facilitates rapid water drainage. XINNUO engineers have optimized the drive system to ensure the smooth passage of the metal through 18-24 forming stations, eliminating any "memory effect" or spring-back in the metal. This technology is ideal for producing premium facade panels, fencing, and high-end roofing materials that demand both durability and visual appeal.

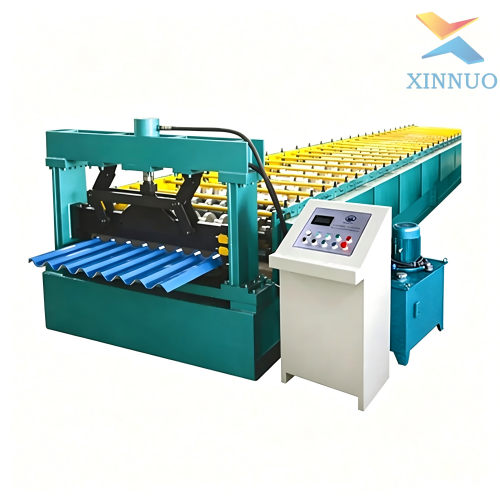

Intelligent Automation and Comprehensive Support Services Every XINNUO production line is equipped with an advanced PLC-based control system (Delta or Siemens) featuring a user-friendly multi-language interface. The system allows for real-time monitoring of production speed, batch quantity, and cutting length precision (accurate to ±1.0 mm per 10 meters). XINNUO provides full global technical support, including remote diagnostics and rapid spare parts delivery. Our machines are designed for maximum serviceability and ease of maintenance, allowing them to operate reliably in the most demanding environments. By choosing XINNUO, you are securing a quality guarantee from a leading global manufacturer of cold roll forming technology.
