corrugated roof machine

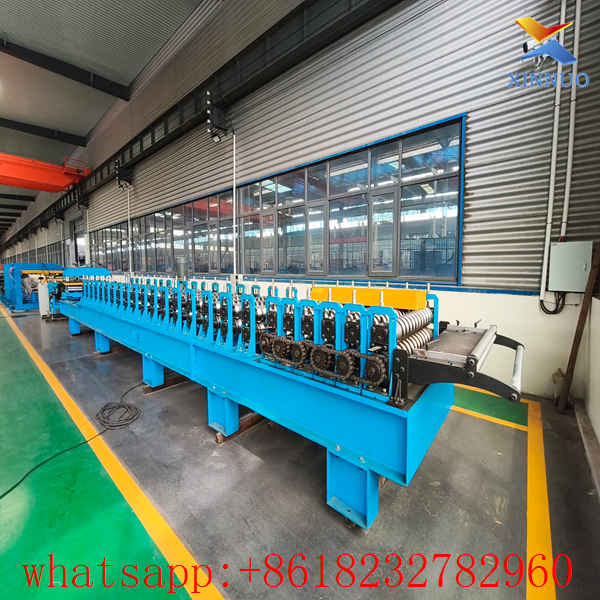

This corrugated roof machine is classified under Corrugated Sheet Machine of Roof Panel Roll Forming Machine category. It manufactures circular arc corrugated metal roof sheets with smooth flexible waves and low cost. It is extremely popular simple roofing material for Africa, Southeast Asia and South America, widely used for rural houses, warehouses, breeding sheds, temporary workshops and market stalls. It can be used as single machine matched with uncoiler or combined with IBR trapezoidal double layer machine for overseas shipment.

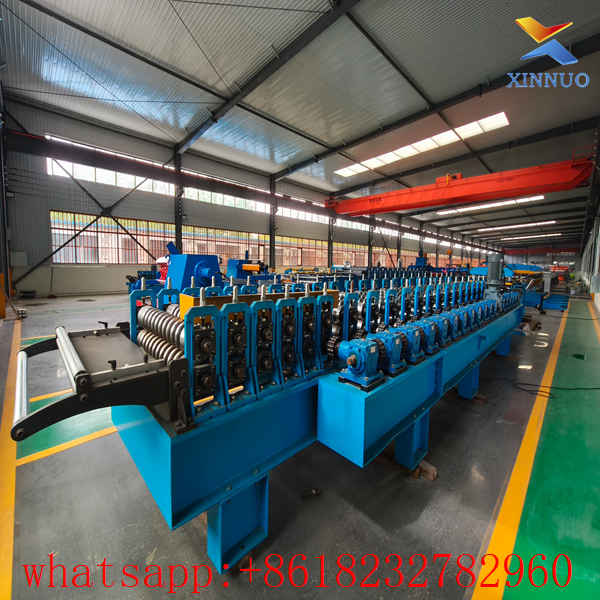

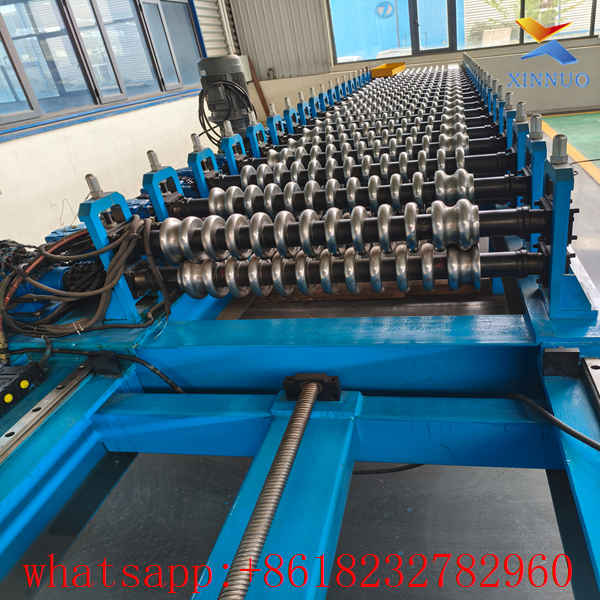

The machine base frame is integrally welded with thick steel plates and treated by high-temperature stress relief annealing to avoid deformation under long-term low-speed heavy-load production. Compact structure saves workshop space and is easy for sea container shipment. All forming rollers are precisely made of solid 45# carbon steel with quenched thick hard chrome plating, wear & rust resistant without scratching color steel, galvanized or aluzinc sheet coating. Multi-stage progressive arc rolling forms smooth wave patterns in one pass, sheets bend evenly without cracks and connect tightly for good rainproof effect. It processes thin metal coils from 0.28mm to 0.7mm thick, standard feeding width 1000/1250mm, wave height and coverage width can be customized to fit local market demands.

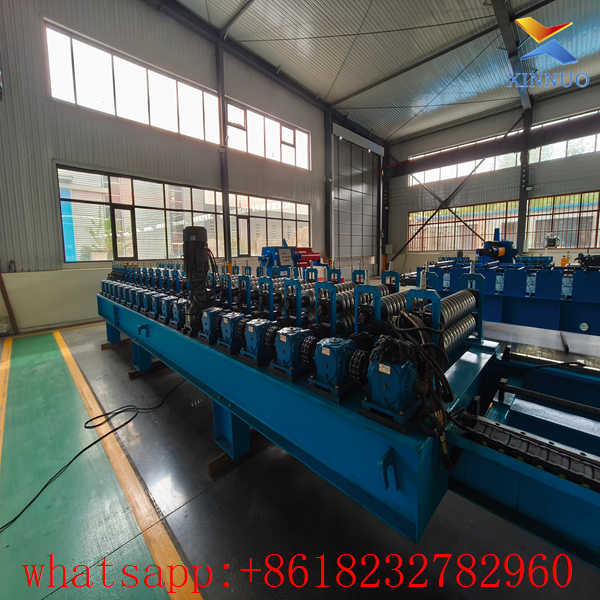

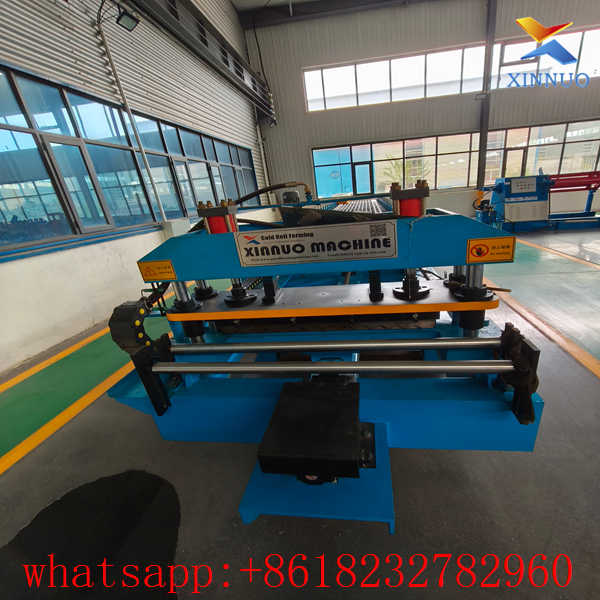

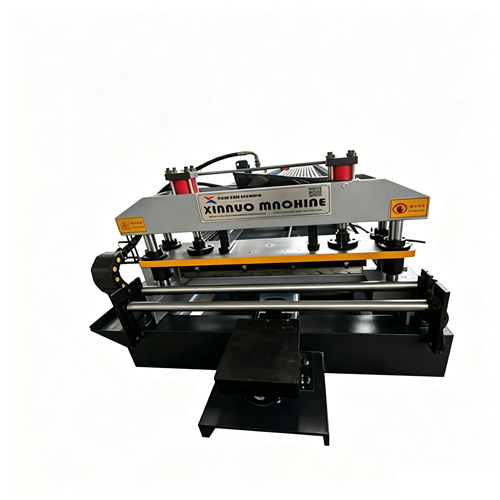

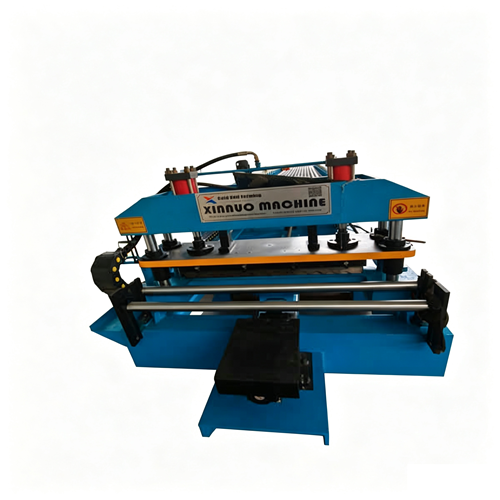

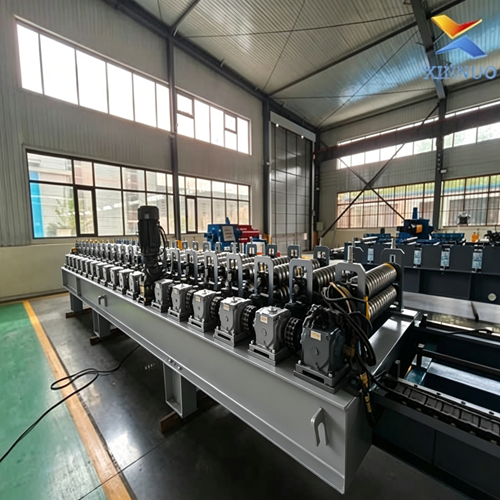

Equipped with variable frequency motor and synchronous chain transmission, the machine runs smoothly with low noise, forming speed adjustable steplessly from 7 m/min to 15 m/min. Side limit baffles at feeding inlet restrict horizontal strip offset to reduce defective products. Hydraulic flying shear cutting unit at the tail provides stable oil pressure for clean burr-free cuts with dimensional tolerance within ±1mm. PLC touch screen control system allows presetting sheet length and batch quantity. The machine automatically completes feeding, corrugation forming, fixed-length cutting and counting, only one operator needed for 24-hour non-stop production.
Every corrugated roof machine undergoes a 72-hour full-coil test before delivery to calibrate wave arc and cutting tolerance. Spare forming rollers, hydraulic seals and bilingual operation manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty, voltage customization available for different countries. Remote installation & debugging support is provided for overseas buyers. This cost-effective, easy-operated small roofing machine wins wide recognition from small & medium metal sheet manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Corrugated Roof Machine / Corrugated Sheet Roll Forming Machine |
| Category |
Roof Panel Roll Forming Machine > Corrugated Sheet Machine |
| Processable Materials |
Color coated steel, galvanized iron, aluzinc alloy coil |
| Applicable Sheet Thickness |
0.28–0.7mm |
| Raw Material Feeding Width |
1000/1250mm (customizable) |
| Profile Type |
Circular arc corrugated roof sheet, custom wave size available |
| Forming Roller Material |
45# carbon steel, quenched & thick hard chrome plated |
| Number of Forming Stands |
16–20 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
7–15 m/min |
| Main Motor Power |
5.5kW |
| Cutting Type |
Hydraulic flying shear fixed-length cutting |
| Cutting Dimensional Tolerance |
≤±1mm |
| Control System |
Full-automatic PLC touch screen control |
| Overall Dimension |
6200×1280×1400mm |
| Total Machine Weight |
3.2 Tons |
| Warranty Period |
2 years for complete machine |
