Corrugated Steel Sheet Roll Forming Machine

Corrugated Steel Sheet Roll Forming Machine：

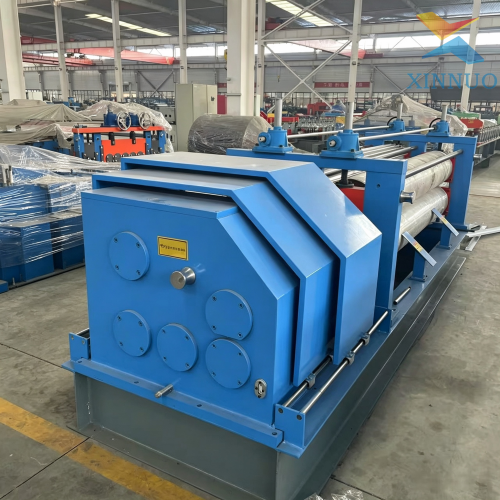

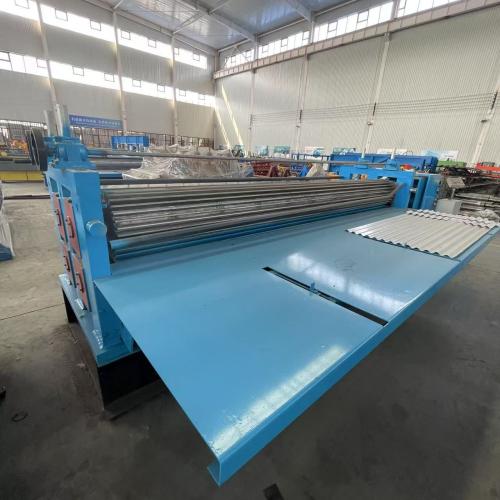

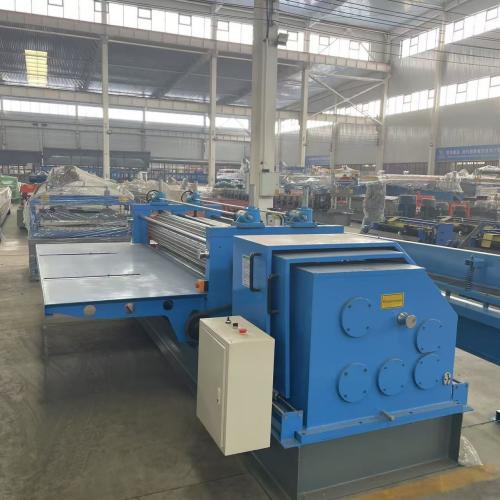

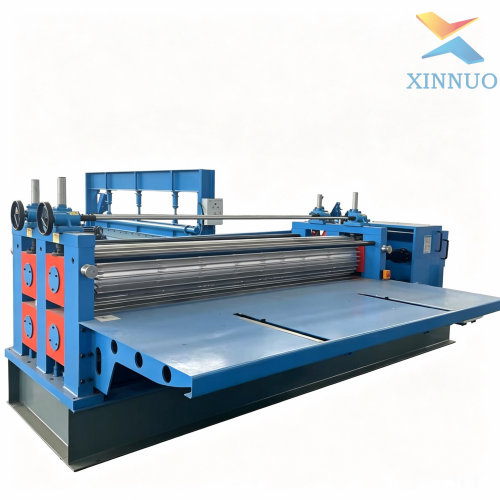

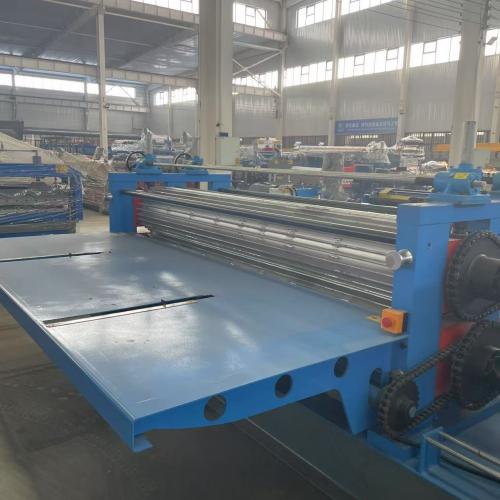

The XINNUO Corrugated Steel Sheet Roll Forming Machine is designed for continuous cold forming of corrugated metal roofing and wall panels. It processes a prepared steel coil through a sequence of precision forming stations, gradually developing the required corrugated or sinusoidal profile while maintaining stable material guidance and consistent panel geometry. The machine shown in the supplied images is configured for long-sheet production and includes a robust forming body, a powered drive section, a control cabinet, and an extended output platform for receiving finished panels.

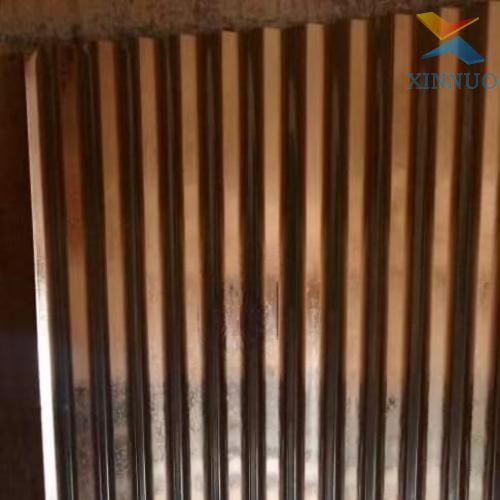

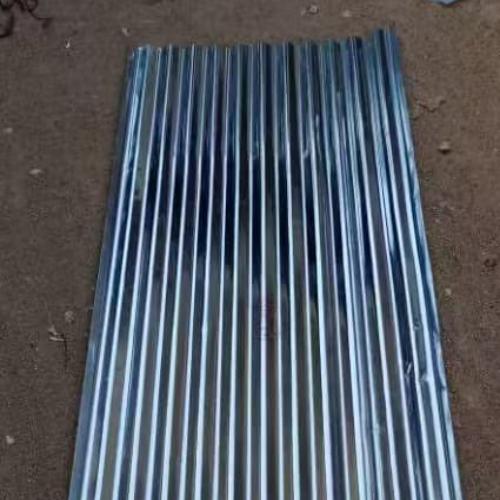

Corrugated steel sheets are widely used because their repeated ribs improve structural stiffness without requiring a flat sheet of equivalent mass. They are suitable for industrial buildings, warehouses, agricultural structures, workshops, commercial roofing, wall cladding, temporary buildings, and modular construction. By selecting the correct profile drawing, material specification, effective width, and cutting arrangement, the line can be configured for a specific market or construction application.

The forming section is the core of the equipment. Each roller station performs a controlled forming step rather than forcing the steel into its final shape in a single operation. This progressive process helps reduce excessive deformation, supports a clean corrugated appearance, and improves repeatability from one panel to the next. The roller layout, shaft arrangement, station quantity, and forming tolerances are engineered according to the confirmed customer profile. This approach is important for corrugated sheets because the wave pitch, rib height, edge condition, and effective coverage width directly influence installation and overlap performance.

The machine is suitable for commonly used coated or galvanized steel coils, subject to confirmation of the material grade, thickness range, coil width, and yield strength before production. The entry section is designed to guide the coil into the forming path, while the transmission system synchronizes the forming rollers during continuous operation. A stable frame and properly aligned shafts help maintain smooth running and reduce profile deviation during extended production. The final drive, chain or gearbox arrangement, roller material, and motor rating should be finalized from the approved technical proposal rather than inferred from product photographs.

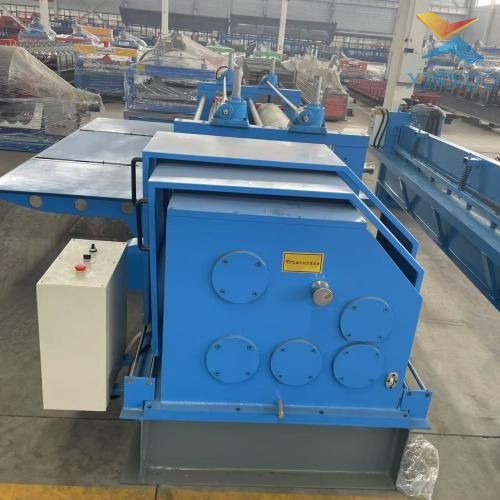

A control cabinet coordinates the operating sequence and provides a practical interface for start, stop, speed adjustment, length setting, and production monitoring. The exact PLC, HMI, encoder, sensor, and automatic length-control configuration should be selected according to the customer’s automation requirements. If a flying-cut or stop-to-cut unit is required, the cutting method and blade specification should also be confirmed with the final profile drawing. The finished panel can then be collected on the output table and transferred to packaging, installation, or the next fabrication process.

XINNUO supports profile-based customization for different roofing and wall-panel requirements. Customers can submit a cross-sectional drawing or a sample panel for engineering review. The technical team can then assess the effective width, feeding width, wave geometry, edge design, overlap condition, material thickness, and required production speed. This prevents the common error of selecting a machine by nominal width alone. A complete proposal should always match the machine design with the actual coil and the intended installation system.

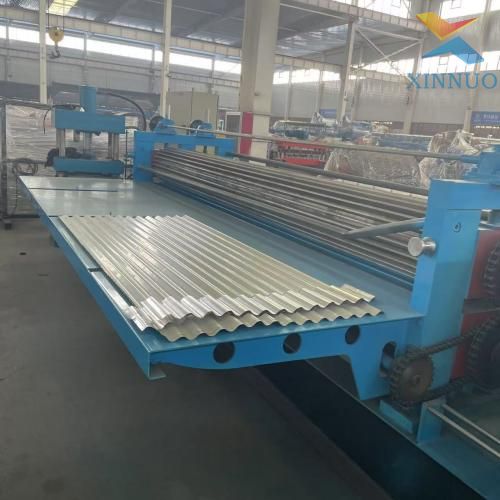

The equipment is also suitable for manufacturers that need a repeatable in-house supply of corrugated panels. Producing panels on demand can improve scheduling flexibility, reduce dependence on external suppliers, and support local construction projects with customized lengths. The line can be arranged with coil-handling, forming, cutting, and collection sections according to the available workshop layout and production plan. For a final quotation, XINNUO will confirm the profile drawing, raw material information, machine model, forming stations, drive system, cutting solution, electrical standard, machine dimensions, weight, delivery scope, and commissioning requirements.

Hebei Xinnuo Roll Forming Machinery Co., Ltd. provides engineering communication, machine configuration support, installation guidance, commissioning assistance, and after-sales technical service for international customers. Before production, each unconfirmed parameter should be completed in the technical confirmation sheet. This ensures that the supplied Corrugated Steel Sheet Roll Forming Machine is aligned with the customer’s material, profile, output requirements, and local electrical conditions.
