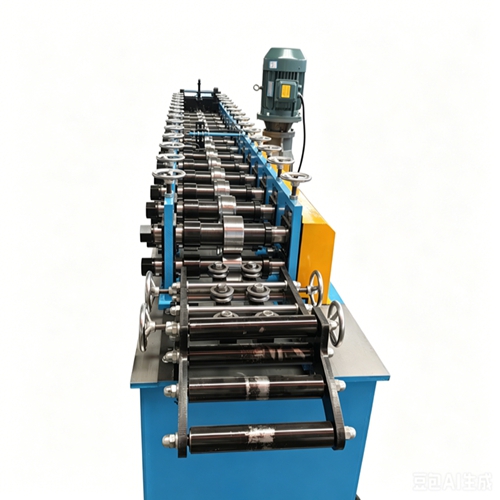

light gauge steel roll forming machine
Hebei Xinnuo Roll Forming Machinery Co., Ltd. has specialized in R&D, production and overseas export of cold roll forming equipment for over ten years. This automatic light gauge steel roll forming machine is core equipment for interior decoration and prefabricated buildings. It produces metal stud and track for drywall partitions, suspended ceilings and light steel house interior frames. The machine is widely exported to Southeast Asia, the Middle East, Africa, South America and other regions with huge demand for building materials. It can be matched with feeding racks and sheet levelers to form a full automatic production line.

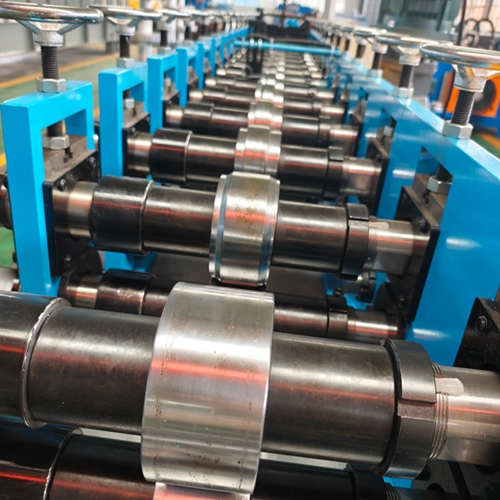

The whole machine base frame is integrally welded with thick steel plates and treated by high-temperature stress relief annealing, so it maintains stable vibration-free performance under long-hour heavy-load operation without deformation. All core forming rollers are precisely machined from solid 45# carbon steel with quenched thick hard chrome plating on the surface, which brings excellent wear and rust resistance. Multi-stage progressive bending technology ensures uniform bending angles and neat profiles without sheet stretching or scratches. It processes hot-dip galvanized steel strips from 0.3mm to 1.0mm thick, and custom cross-section sizes of light steel keels are available as per buyers’ requirements.

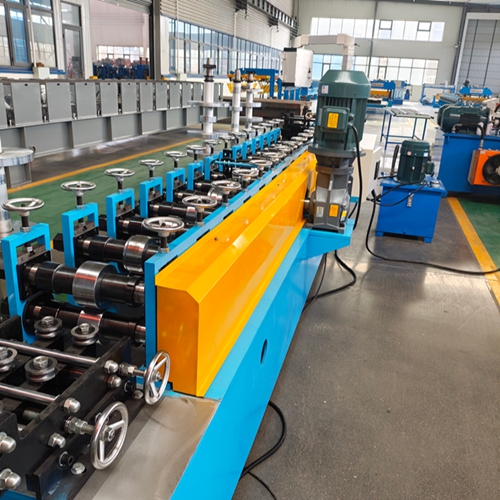

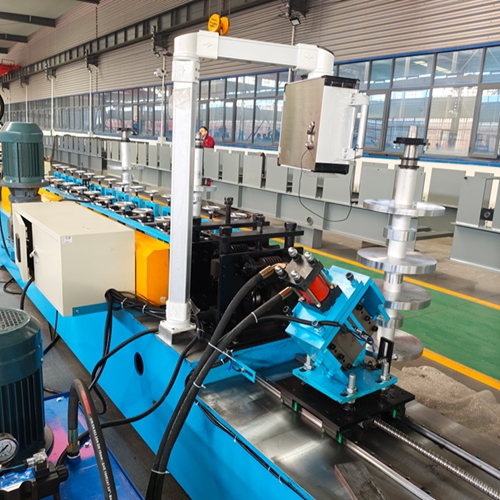

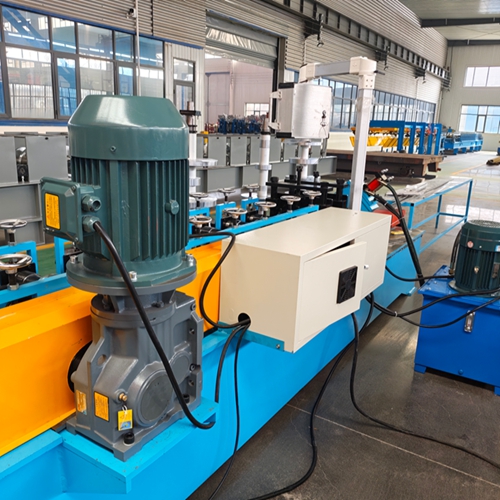

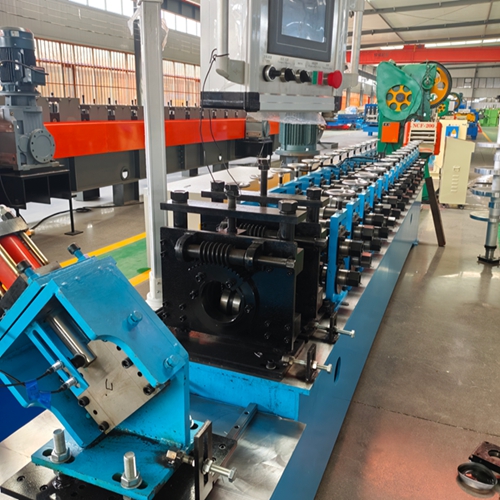

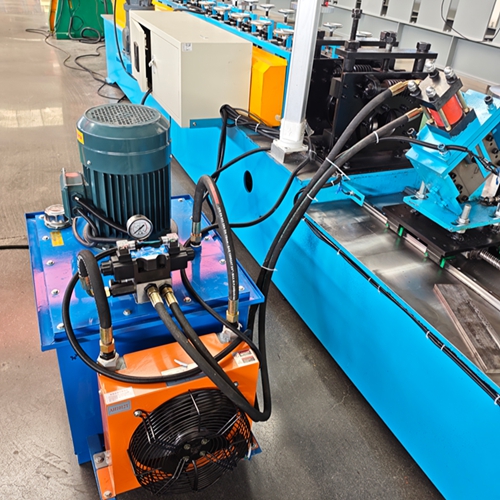

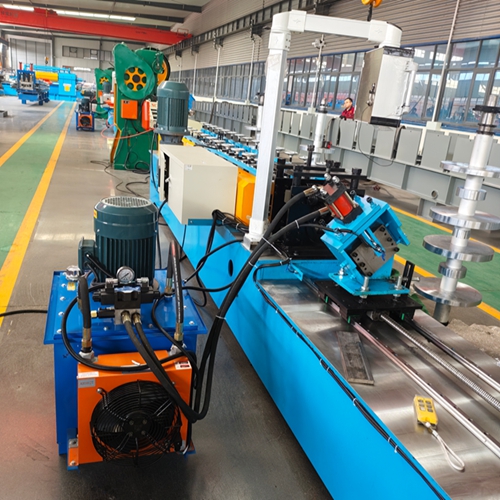

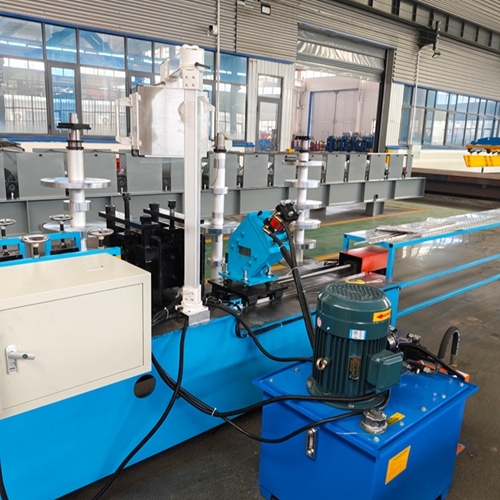

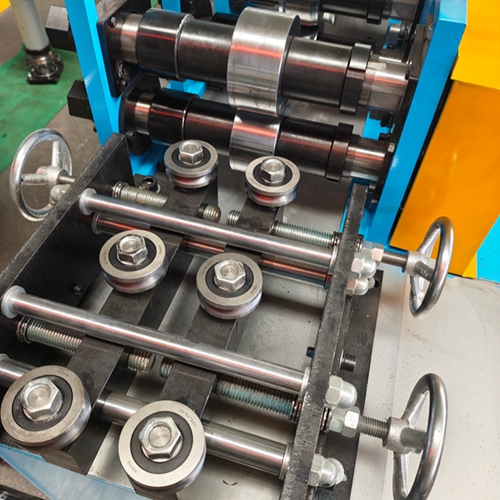

Equipped with variable frequency main motor and heavy-duty synchronous chain drive system, the machine runs smoothly with low noise and energy consumption. Multiple guiding limit rollers and manual adjusting handwheels are installed at the feeding inlet to automatically correct strip deviation. An independent air-cooled hydraulic cutting unit is mounted at the tail, providing stable oil pressure and burr-free smooth cutting surface via flying shear design, with dimensional tolerance limited within ±1mm. The suspended cantilever PLC touch screen control system allows operators to preset finished length and output quantity. The machine automatically completes feeding, roll forming, fixed-length cutting and product counting without manual intervention. Only one worker is required to realize 24-hour non-stop production, effectively cutting labor cost and raw material waste.
Every light gauge steel forming machine undergoes a 72-hour continuous coil loading test before delivery to calibrate forming precision and cutting tolerance. A full set of spare forming rollers, hydraulic sealing parts, Chinese-English bilingual operation drawings and manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty. Overseas buyers can access remote technical support and on-site installation & training by professional engineers. Reliable and durable equipment performance has gained consistent repeat orders and positive feedback from decorative building material manufacturers worldwide.
| Parameter Item |
Specification |
| Core Keywords |
Light Gauge Steel Roll Forming Machine, Metal Stud Roll Forming Machine, False Ceiling Channel Making Machine |
| Processable Raw Material |
Hot-dip galvanized steel strip, galvanized color steel sheet |
| Applicable Sheet Thickness |
0.3–1.0mm |
| Standard Feeding Width |
1250mm (custom size available) |
| Forming Roller Material |
45# carbon steel, quenched & hard chrome plated |
| Number of Forming Stands |
16–20 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
10–25 m/min |
| Main Motor Power |
7.5kW |
| Cutting Type |
Independent air-cooled hydraulic flying shear cutting |
| Cutting Dimensional Tolerance |
≤±1mm |
| Control System |
Suspended cantilever full-automatic PLC touch screen control |
| Overall Dimension |
7200×1400×1550mm |
| Total Machine Weight |
4.2 Tons |
| Warranty Period |
2 years for complete machine |
