Keel Roll Forming Machine

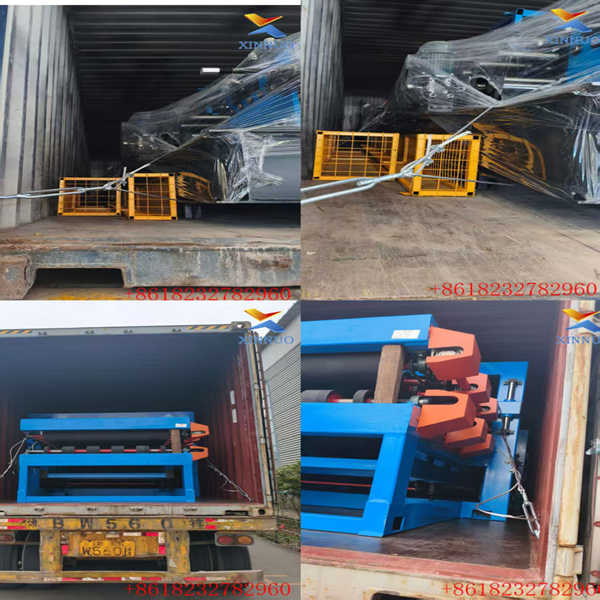

Price of light steel pressing machine, packaging and shipping details:
-
The corrugated C-channel light steel machine and uncoiler are nude packed. If required, we can also pack them with waterproof plastic film.
-
The PLC control system and motor pump are wrapped with waterproof paper, and spare parts are packed in carton boxes.
-
One set of the machine requires a 20ft container for shipment.
-
- Company philosophy: technological innovation, customer-centricity, and win-win cooperation.
- Thank you for your trust and choice. We will provide you with the best service support and help you achieve greater success.
- We look forward to further cooperation with new and long-term partners from all over the world.Welcome to cooperate with us for mutual benefit and joint development!
-

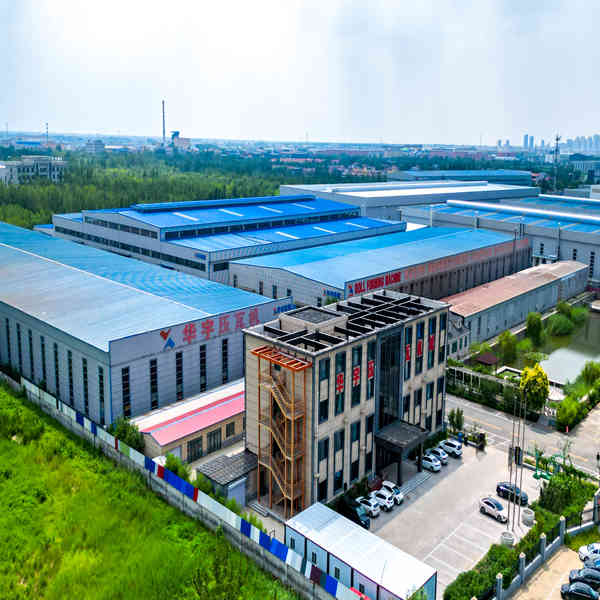

About us -HEBEI XINNUO
We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !
-
-

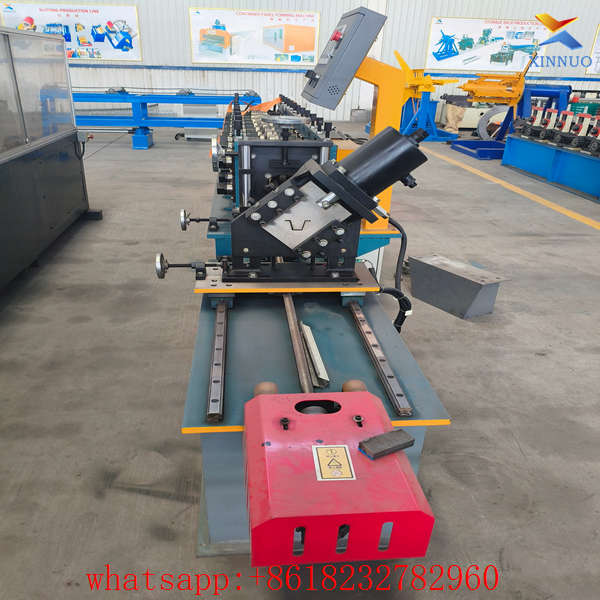

This keel roll forming machine is categorized under Light Gauge Steel Roll Forming Machine, dedicated cold bending equipment for light steel profiles. It automatically produces light steel keels for ceiling and partition walls, including main keels, cross keels, U-type & hat-type partition keels. Finished profiles feature standard dimensions, high flatness and easy assembly, widely applied for indoor ceiling and partition projects of office buildings, shopping malls, residential houses and factories. It is core production equipment for decorative material factories, and can form a full automatic line matched with mini metal coil uncoiler.

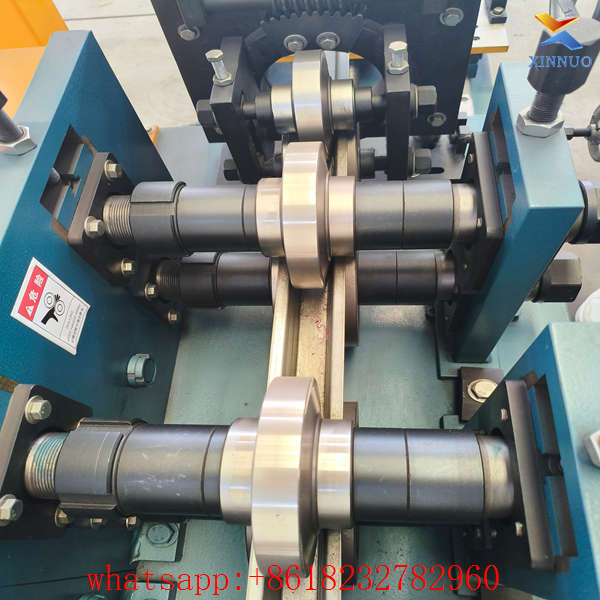

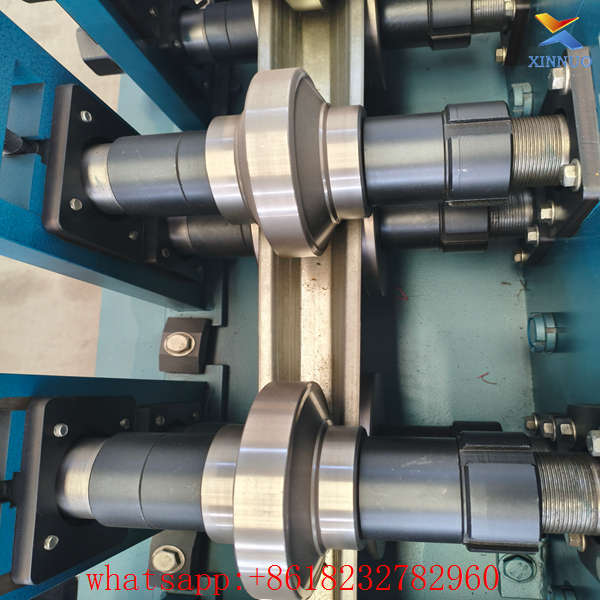

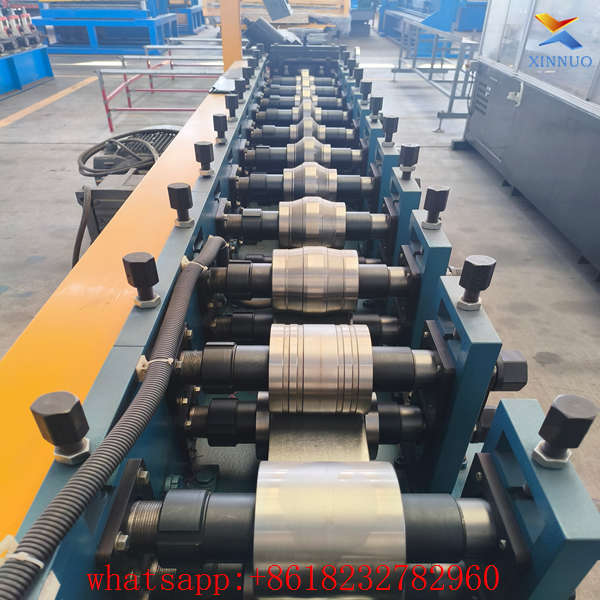

The machine base frame is integrally welded with thick channel steel and steel plates, treated by high-temperature stress relief annealing after welding to eliminate internal welding stress. The slender frame runs vibration-free without deformation during long-term continuous high-speed forming, guaranteeing consistent straightness and cross-section size of keels. All forming rollers are precisely machined from solid 45# carbon steel with quenched thick hard chrome plating, wear and rust resistant without damaging anti-corrosion coating of 0.4–1.2mm galvanized & aluzinc strips. Multi-stage progressive bending roller stands form standard keel snap grooves in one pass with high interlock precision for firm assembly on construction sites. Keel width and height can be quickly adjusted to produce various universal keel sizes for residential and commercial decoration.
Equipped with variable frequency main motor and synchronous chain transmission, the machine runs smoothly with low noise, forming speed steplessly adjustable from 8 m/min to 20 m/min. Manual deviation correction bracket at feeding inlet easily centers steel strips to reduce defective waste. Hydraulic cutting unit at the tail delivers stable cutting force for burr-free smooth cuts, finished length tolerance controlled within ±1mm. Suspended cantilever PLC touch screen control system allows presetting keel length and total output quantity. The machine automatically completes feeding, roll forming, fixed-length cutting and counting without extra labor. Only one worker can realize 24-hour non-stop continuous production, greatly cutting labor cost.
Every keel forming machine undergoes a 72-hour full-coil continuous test before delivery to calibrate forming section and cutting tolerance. A full set of spare forming rollers, hydraulic sealing parts, Chinese-English bilingual operation drawings and manuals are provided as standard accessories. Xinnuo offers a 12-month full machine warranty, electrical system voltage customization available for all countries, delivery lead time 25–35 days. Remote technical debugging guidance is accessible for overseas buyers. This compact high-efficiency light steel keel machine gains wide recognition from global decorative building material manufacturers.
