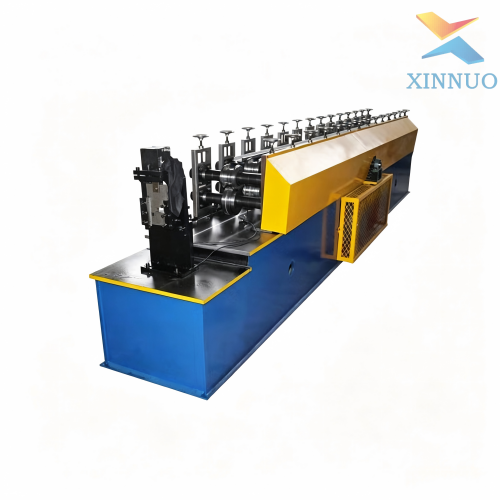

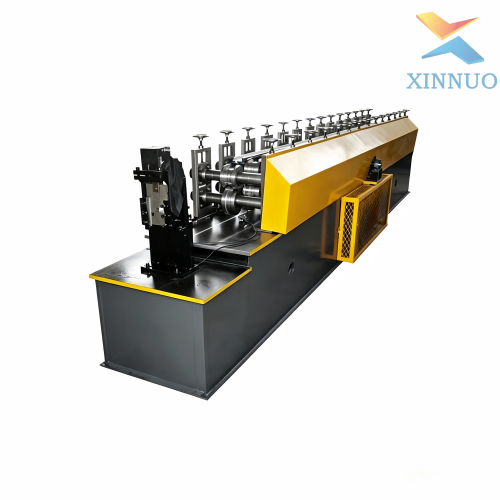

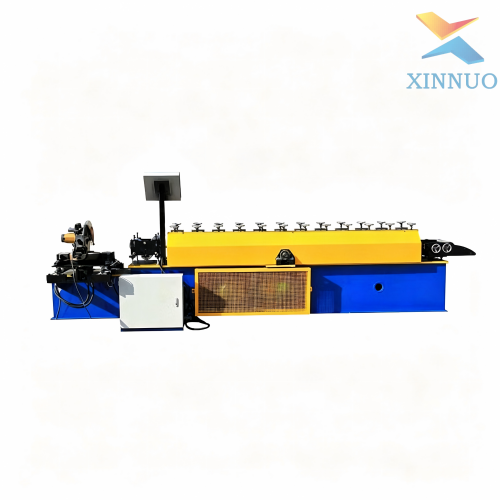

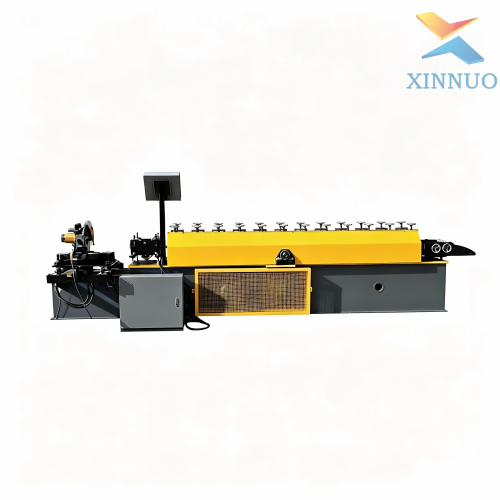

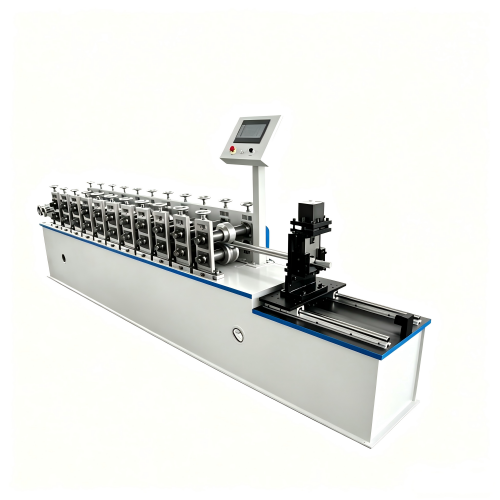

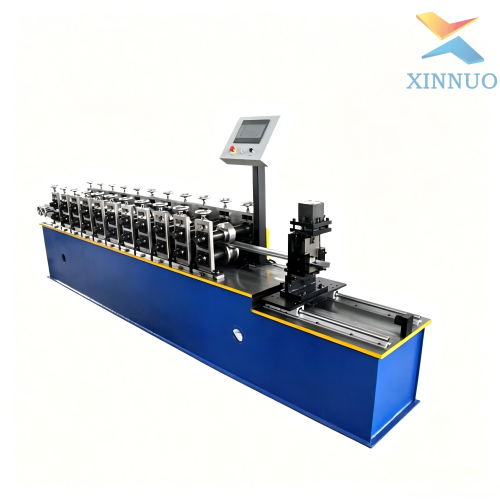

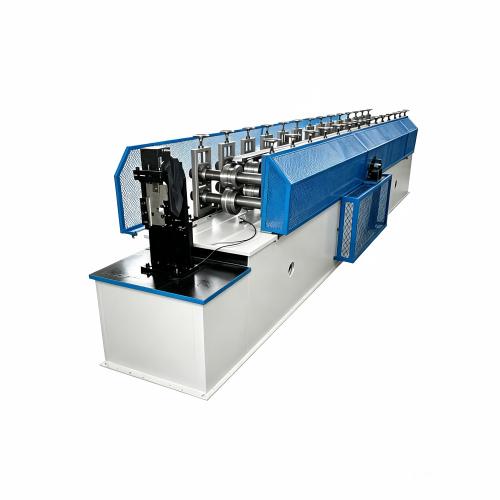

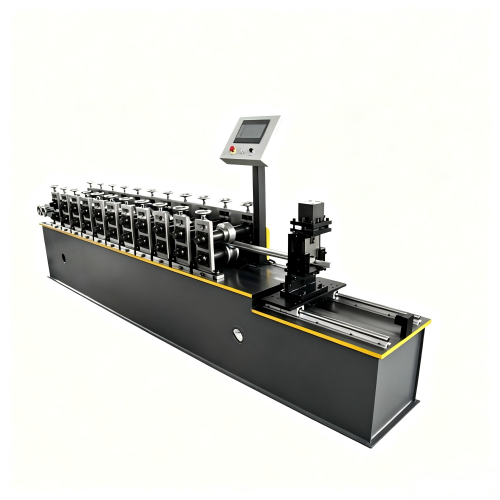

Automatic Furring Channel Hat Shape Omega Profile Machine

Automatic Furring Channel Hat Shape Omega Profile Machine：

I. Structural Innovation for High-Performance Furring Channels

English: The Automatic Furring Channel Hat Shape Omega Profile Machine by Hebei Xinnuo Roll Forming Machinery Co., Ltd. is the ultimate engineering solution for the global interior construction market. The "Furring Channel," also widely recognized as the "Hat Shape" or "Omega Profile," serves as the structural backbone for ceiling systems and wall partition cladding. Our machine is built upon a massive 350# H-beam steel base, precision-welded and stress-relieved to ensure long-term structural rigidity. This heavy-duty frame eliminates micro-vibrations during high-speed production cycles, ensuring that the critical bending radii of the omega profile remain perfectly consistent. By integrating a modular design, this production line allows for rapid adjustments to accommodate various market-specific dimensions, providing contractors with the precision required for high-end architectural finishes.

II. Roller Precision and Advanced Material Integrity

English: In the production of furring channels, the surface finish and dimensional accuracy are paramount. Xinnuo’s Omega Profile Machine utilizes forming rollers crafted from premium GCr15 bearing steel or 45# high-carbon steel. Every roller station is subjected to precision CNC turning and a specialized vacuum quenching process, achieving a surface hardness of HRC58-62. To ensure that the zinc coating of galvanized steel or the surface of pre-painted coils remains pristine, each roller is coated with a 0.05mm layer of industrial hard chrome. All main shafts are made from solid 45# steel, quenched and tempered to prevent any deflection under load. This meticulous attention to roller engineering ensures a service life exceeding 15 years, consistently producing profiles with zero scratches and superior structural integrity.

III. Intelligent Automation and Synchronized PLC Control

English: Productivity is maximized through our state-of-the-art automation suite. The Furring Channel Machine is equipped with a world-class PLC control system from Delta or Siemens, offering an intuitive HMI touch screen that supports multiple languages. This system allows operators to program variable lengths and batch quantities with ease. Utilizing high-speed rotary encoders, the machine monitors the real-time line speed to synchronize the hydraulic post-cutting unit. The cutting blades are manufactured from heat-treated Cr12Mov mold steel, ensuring every hat channel is cut clean, flat, and burr-free with a length tolerance within ±0.5mm. The integrated hydraulic station features an advanced cooling system, enabling stable 24/7 continuous operation for large-scale industrial orders.

IV. Global Market Versatility and Industrial Applications

English: Our Hat Shape Omega Profile Machine is engineered to serve diverse international building standards, particularly in regions like Latin America, India, the Middle East, and Southeast Asia. The profiles produced are essential for suspended ceilings, dry-lining wall systems, and metal roofing battens in residential villas, shopping malls, and industrial warehouses. The machine efficiently processes raw materials such as galvanized steel, Alu-zinc coils, and stainless steel with thicknesses ranging from 0.4mm to 1.2mm. Its compact footprint and energy-efficient design make it an ideal addition to any manufacturing facility, providing building material suppliers with a high-output production line that delivers high ROI and consistent, market-ready quality.

V. Hebei Xinnuo’s Global Support and Performance Guarantee

English: Partnering with Hebei Xinnuo means choosing a verified manufacturer with ISO 9001 and CE international certifications. We stand behind every Furring Channel Machine with a 24-hour factory trial run using actual raw materials before dispatch, ensuring "plug-and-play" reliability upon arrival. We offer an industry-leading 2-year comprehensive warranty and lifetime technical consultancy. Our professional service package includes detailed layout drawings, electrical schematics, and instructional operation videos. Whether you need remote technical assistance via live video or on-site commissioning by our expert engineers, Hebei Xinnuo is committed to ensuring your light steel keel production line remains a high-performance, profit-generating asset for your business.
