roof forming machine

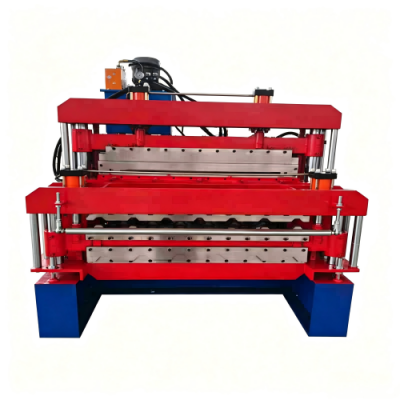

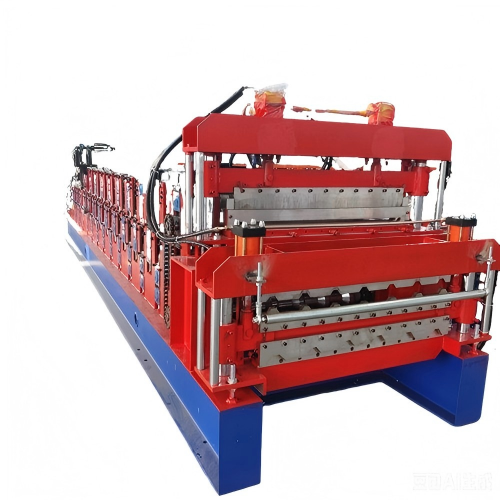

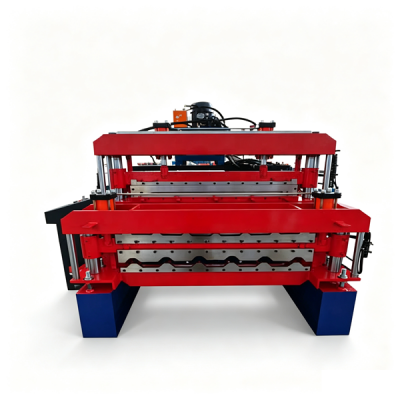

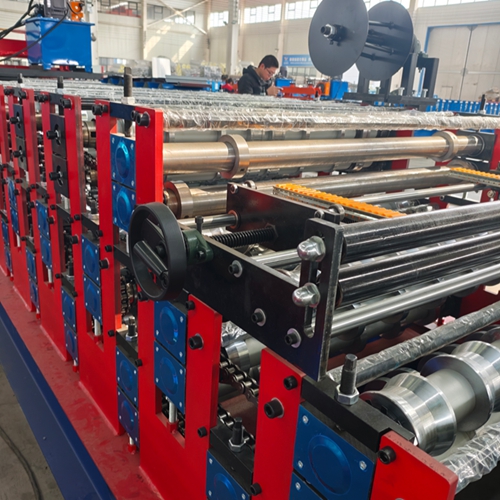

Hebei Xinnuo Roll Forming Machinery Co., Ltd. is a professional manufacturer integrating R&D, production and sales of cold roll forming equipment. Our independently developed Integrated Three-layer Roof Panel Roll Forming Machine falls under the category of Roof Panel Roll Forming Machine with Integrated Three-layer Design, solving the problem of purchasing multiple separate forming machines for metal panel manufacturers. This all-in-one machine carries three independent forming tracks inside one unit, which can produce three different metal profiles separately or simultaneously, effectively cutting factory land occupation and total procurement costs. Our forming machines have been exported to more than 140 countries around the world, widely applied in steel structure workshops, storage warehouses, prefabricated houses, rural villas and enclosure construction projects.

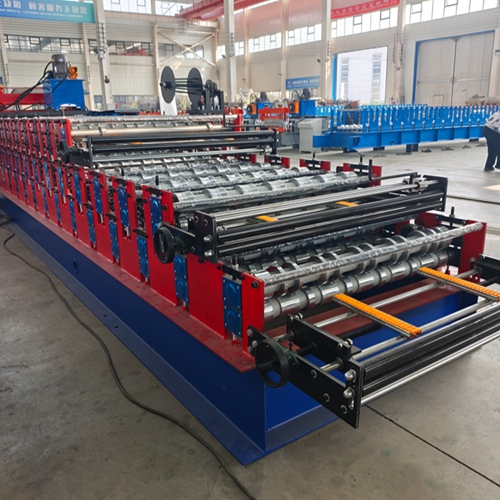

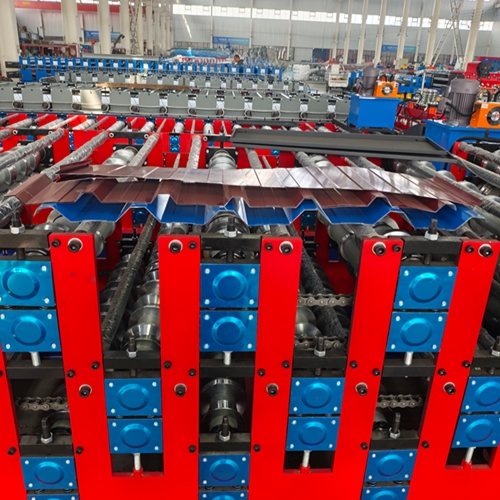

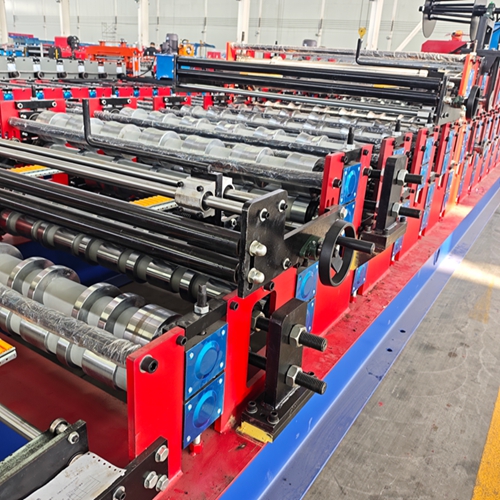

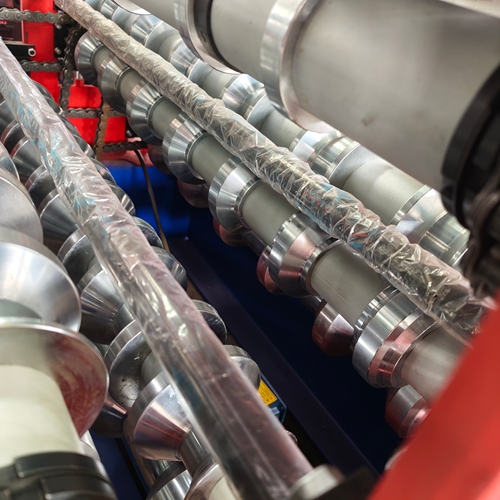

The standard matching profiles include 840 trapezoidal roof sheets, 900 wall panels and glazed tiles. It supports processing metal sheets ranging from 0.2 mm to 0.8 mm, compatible with color coated steel, hot-dip galvanized steel and aluminum-magnesium-manganese alloy sheets. We accept customized special cross-section profiles according to customers’ drawings and technical requirements. The main frame adopts thickened 300 H-beam with full penetration welding technology, offering excellent structural rigidity and stable continuous operation without vibration or deformation under long-hour heavy workload. All forming rollers are made of high-quality solid steel, processed by precise CNC lathes and surface treated with hard chrome plating. The finished metal panels are smooth without scratches, and all dimensional indicators maintain high consistency.

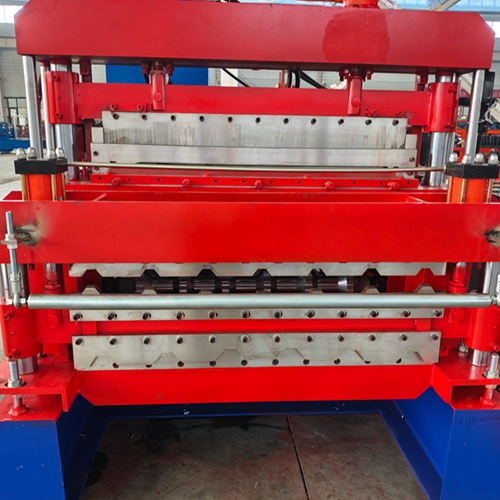

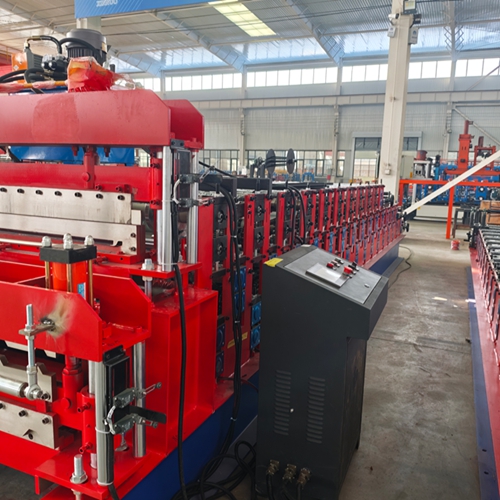

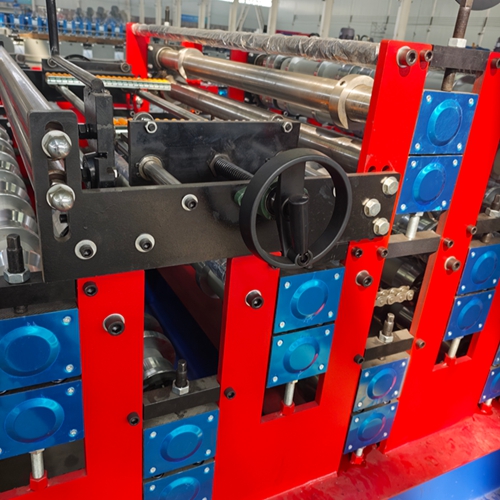

The whole machine is equipped with an intelligent PLC touch screen automatic control system and independent hydraulic cutting mechanism. The cutting length tolerance is strictly controlled within ±1 mm to guarantee uniform finished panels. Customers can select the variable frequency drive device as an upgrade, which raises the maximum forming speed up to 19 meters per minute to meet mass production demands. Each of the three forming layers is equipped with an independent clutch transmission system, allowing operators to start or stop any single layer separately for flexible production scheduling without interfering other working tracks.

We provide one-stop technical service for global buyers. Before production, our technical team designs exclusive profile molds based on clients’ demands. Every complete machine undergoes strict running inspection and test forming before delivery. For overseas customers, we supply door-to-door installation, commissioning and professional operator training. The whole machine enjoys a 2-year official warranty, and we maintain stable spare parts supply throughout the whole service life of the equipment to eliminate after-sales worries for all partners.

Item	Specification
Machine Name	Integrated Three-layer Roof Panel Roll Forming Machine
Available Standard Profiles	840 trapezoidal roof sheet, 900 wall sheet, glazed tile
Applicable Sheet Thickness	0.2–0.8 mm
Applicable Raw Materials	Color coated steel, galvanized steel, Al-Mg-Mn alloy sheet
Control System	Full-automatic PLC touch screen intelligent control system
Cutting Precision	±1 mm
Maximum Forming Speed	19 m/min (variable frequency drive optional)
Main Frame Structure	Thickened 300 H-beam, full welded integral frame
Forming Roller Craft	High-precision CNC machining + hard chrome surface plating
Independent Control Mode	Three layers with separate clutch, single-layer independent start & stop
Official Warranty Period	2 years whole machine warranty
Comprehensive Service	Custom profile design, pre-delivery machine testing, overseas on-site installation & commissioning, operator training, lifelong spare parts supply
