Automatic Triple Layer Roof Tile Roll Forming Machine

Automatic Triple Layer Roof Tile Roll Forming Machine：

Technical Specification

I. Triple-Layer Innovation: Maximum Versatility in Minimum Space

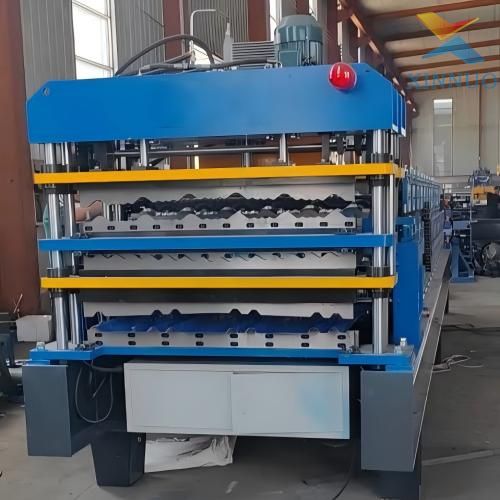

The Automatic Triple Layer Roll Forming Machine by Hebei Xinnuo Roll Forming Machinery Co., Ltd. represents a breakthrough in industrial space optimization. In modern manufacturing, floor space is a premium asset. Our triple-layer design integrates three independent sets of forming rollers into a single, robust H-beam steel structure. This engineering marvel allows manufacturers to produce three distinct profiles—such as trapezoidal, corrugated, and glazed tile—alternately on one machine. By consolidating three production lines into one, you save up to 60% of factory space and significantly reduce the initial capital expenditure on infrastructure and power systems.

II. Engineering Precision and Structural Integrity

Reliability is forged into the very frame of Xinnuo machinery. The machine base is constructed from 400# H-beam steel, precisely welded and stress-relieved to ensure zero deformation under the heavy loads of continuous triple-layer production. The forming rollers are the heart of the precision process; we utilize premium forges of 45# steel or GCr15 bearing steel, processed via high-precision CNC machining. Each roller undergoes a rigorous quenching heat treatment to reach a hardness of HRC58-62, followed by a 0.05mm hard chrome plating. This ensures the surface remains mirror-smooth, preventing any scratches on pre-painted steel sheets while maintaining a service life exceeding 15 years in demanding environments.

III. Intelligent PLC Automation and Synchronized Control

Efficiency is driven by intelligence. Our triple-layer machine is equipped with world-class PLC control systems from brands like Delta or Siemens. The multi-language HMI (Human-Machine Interface) provides an intuitive platform for operators to manage each of the three layers independently. Integrated with high-resolution rotary encoders, the system monitors line speed in real-time, ensuring the hydraulic post-cutting unit operates with a length tolerance of just ±1.0mm. The cutting blades are made of heat-treated Cr12Mov mold steel, delivering a clean, burr-free cut every time. This automation minimizes material waste and allows for rapid production cycles with minimal manual intervention.

IV. Strategic Advantages for the Global Construction Market

The Xinnuo Triple Layer Machine is highly sought after in regions with diverse construction needs, including Southeast Asia, Africa, and Latin America. Having the ability to switch between producing industrial warehouse panels, agricultural roofing, and residential luxury tiles on a single workstation provides an unparalleled competitive edge. The equipment is compatible with galvanized steel, PPGI, and Alu-zinc coils with thicknesses ranging from 0.3mm to 0.8mm. This flexibility allows factory owners to respond instantly to market demand fluctuations, ensuring that the production line remains profitable by serving multiple high-volume sectors of the building industry.

V. Hebei Xinnuo’s Global Support and Performance Guarantee

Purchasing a Xinnuo machine is an investment in long-term excellence. As an ISO 9001 and CE certified manufacturer, we subject every triple-layer unit to a 24-hour continuous fatigue test using actual raw materials before dispatch. We provide an industry-leading 24-month warranty and lifetime technical support. Our comprehensive service package includes detailed foundation layouts, electrical schematics, and instructional operation videos. Whether you require remote technical guidance via real-time video or on-site commissioning by our engineering team, Hebei Xinnuo ensures that your investment is protected and your production goals are met with precision and speed.
