standing seam metal roof machine
This standing seam metal roof roll forming machine is a professional cold roll forming equipment independently developed and manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd., specially designed to produce hidden fastener standing seam roof panels widely used in large steel structure buildings. Different from traditional exposed screw roof sheets, the metal panels produced by this machine adopt a vertical lock edge design without penetrating screws on the surface, which greatly enhances the overall waterproof and wind resistance performance of the roof system, making it the preferred roofing material for factories, exhibition halls, stadiums, photovoltaic support projects and commercial buildings.

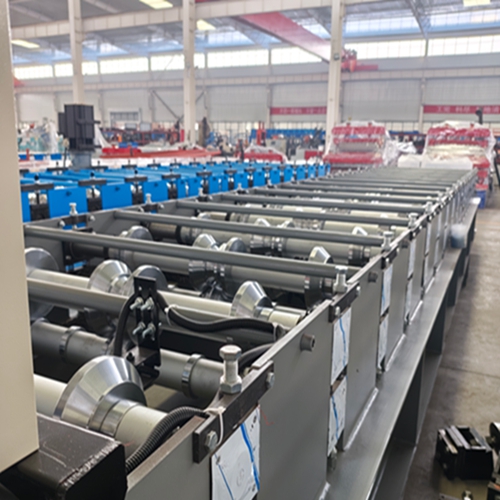

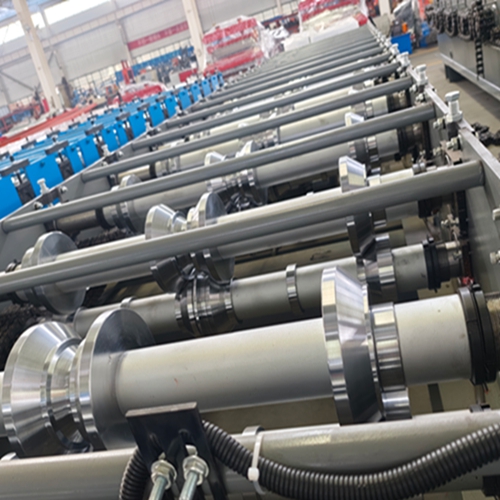

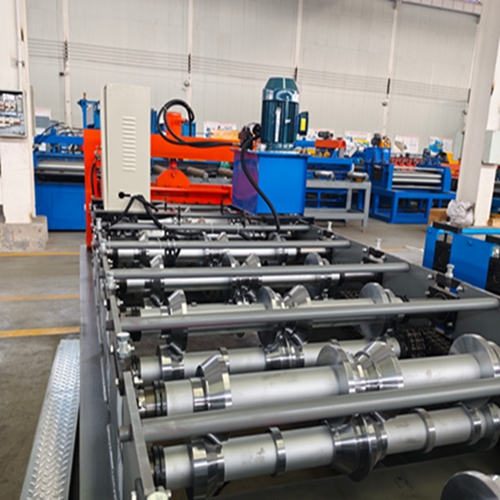

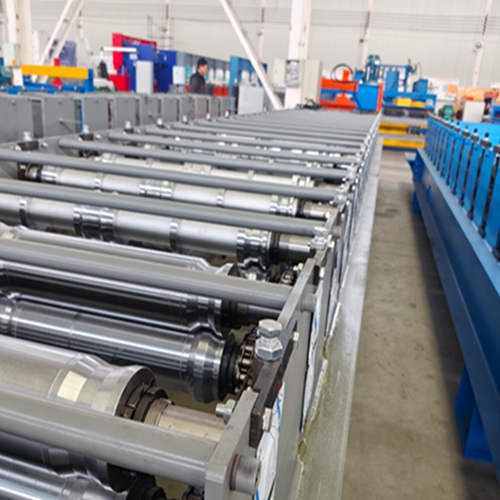

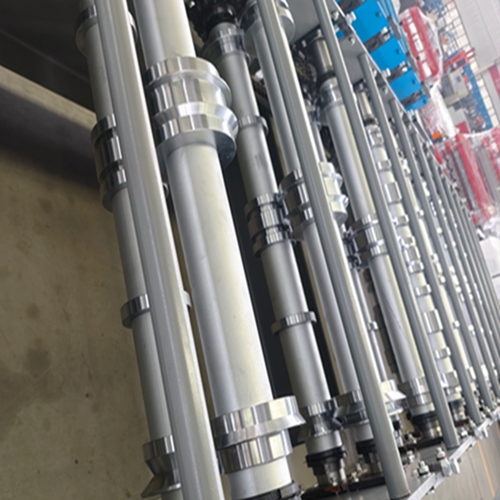

The whole production line consists of feeding rack, multi-pass forming roller section, hydraulic cutting system, PLC numerical control cabinet and driving motor assembly. The forming rollers are forged with high-quality 45# steel and finely chrome-plated after precision CNC machining, featuring high surface hardness, strong wear resistance and stable forming effect, which effectively avoids scratches and deformation on the surface of color steel, galvanized and aluminum-magnesium-manganese coils during continuous processing. The thickened welded machine base effectively reduces vibration during high-speed operation, ensuring long-term stable running of the equipment.

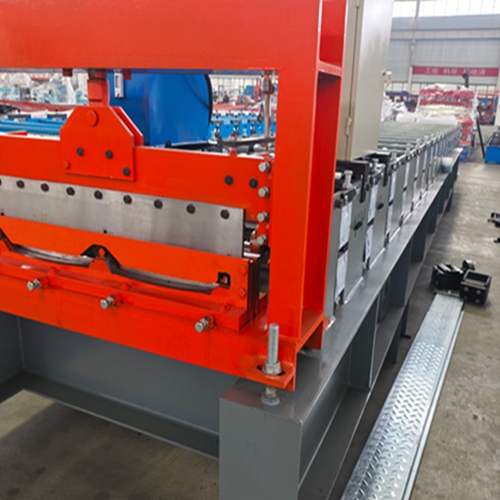

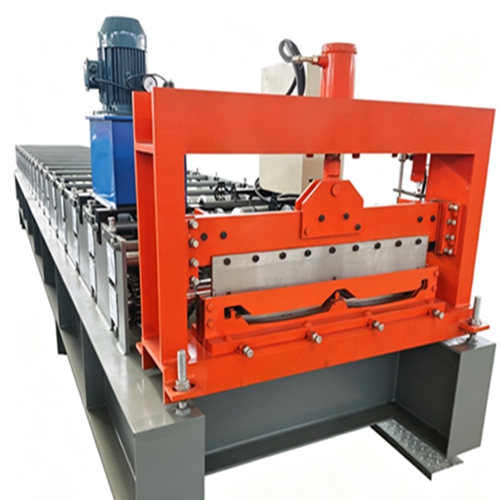

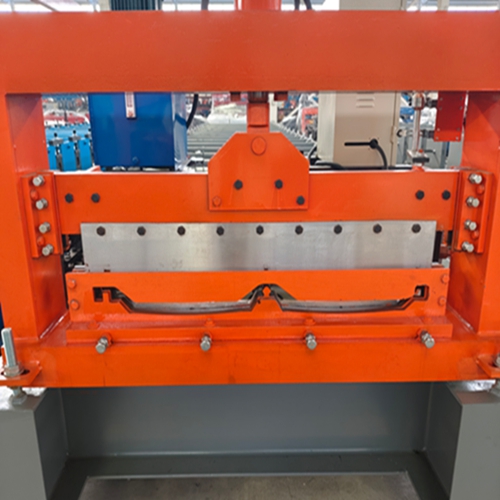

The hydraulic cutting frame painted orange in the picture is the core cutting part of the machine. It is equipped with a high-pressure hydraulic cylinder, and the cutting die is customized according to the standing seam panel profile. When the coil reaches the preset length set by the numerical control system, automatic shearing will be completed instantly, with smooth and burr-free cutting edges, no secondary trimming required. The whole machine adopts fully automatic PLC intelligent control, and operators only need to input parameters such as plate length and production quantity on the touch screen to realize unattended continuous production, which greatly saves labor cost and improves production efficiency.

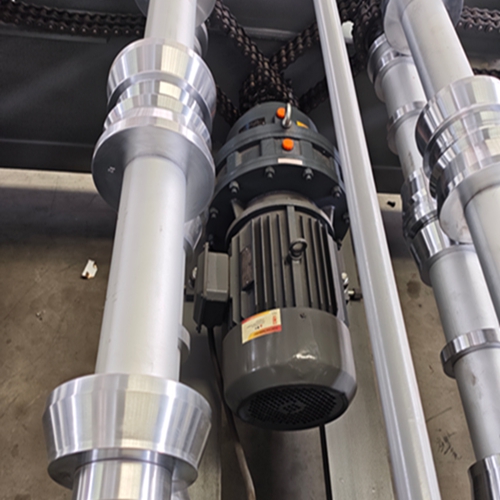

This standing seam roof forming machine supports processing raw materials with thickness ranging from 0.4mm to 1.2mm, and we can customize the effective width and lock height of finished panels according to customers’ local building standards. The transmission system adopts double-row chain synchronous drive, matching standard three-phase industrial motor, with adjustable forming speed from 8 to 15 meters per minute to meet different output demands.
In terms of after-sales service, we provide a 2-year full machine warranty, free technical consultation and drawing design before order confirmation. Our delivery cycle is 50 to 60 working days after receiving the 30% T/T deposit, and the remaining 70% balance shall be paid before shipment. The standard working voltage of the equipment is 380V 50Hz three-phase, and we can customize voltage and frequency according to the power supply standards of different countries around the world.
All our machines have been exported to more than 80 countries and regions including Southeast Asia, the Middle East, Africa and Latin America. We have rich experience in overseas project matching, and can provide customers with one-stop complete production line supporting schemes including decoiler, leveling machine, NC servo punching machine and automatic stacker. If you have any demand for metal roof forming equipment, please contact us via WhatsApp: +86 18832797029 or email: yuankuoduan@gmail.com, we will offer you the most cost-effective solution.
