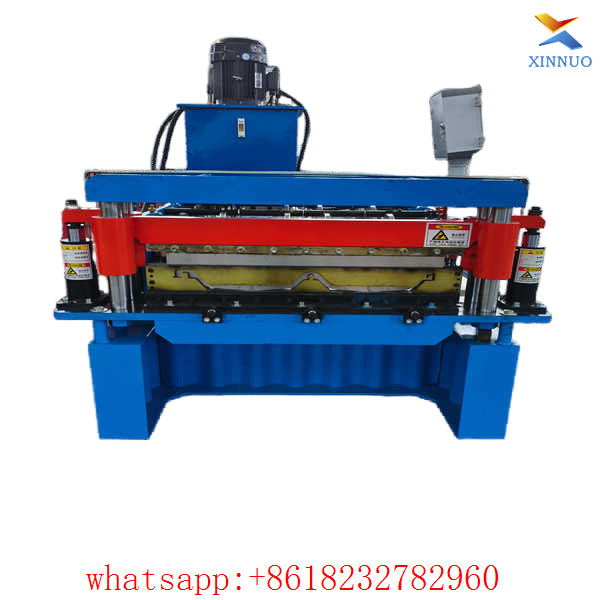

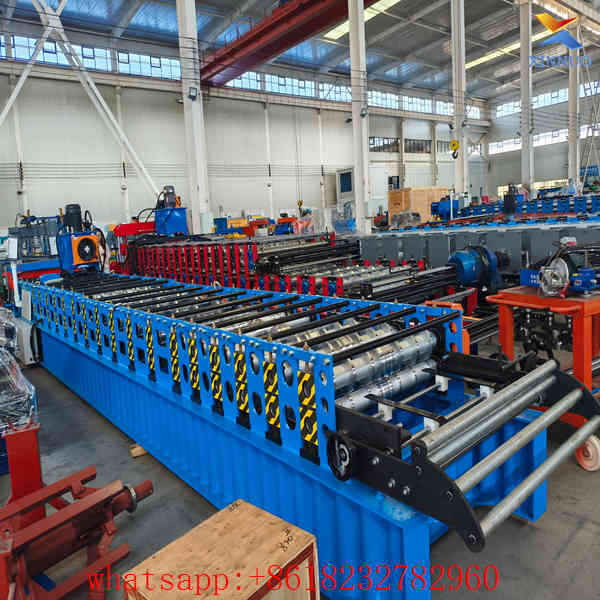

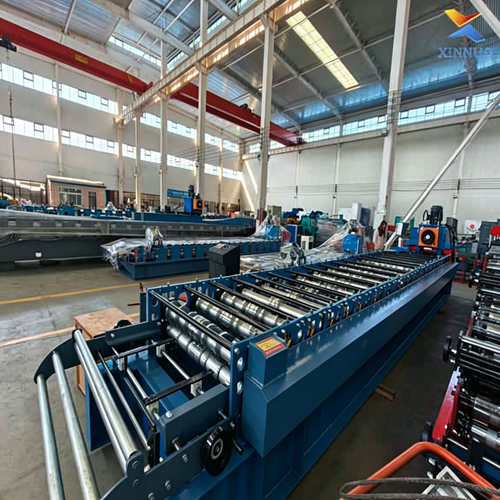

Seam lock roll forming machine
Hebei Xinnuo Roll Forming Machinery Co., Ltd. has focused on R&D and overseas export of cold roll forming roof equipment for more than ten years. This seam lock roll forming machine belongs to roof panel forming equipment category. It manufactures 430, 470, 500 standing seam metal roof panels. The side edges of finished sheets form interlocking seam lock structure. No exposed screws are needed after installation, bringing excellent waterproof and wind resistance performance. It is widely used for steel roofs of large factories, stadiums, railway stations, logistics warehouses and exhibition centers, exported in bulk to Southeast Asia, the Middle East, Europe, America, Africa and other regions all year round.

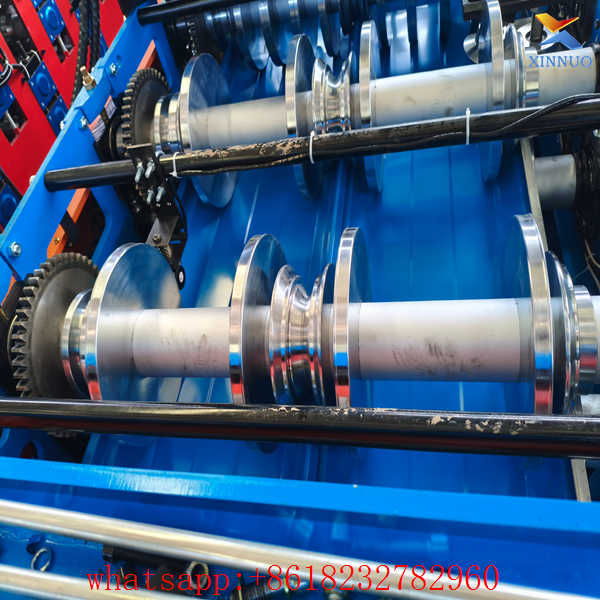

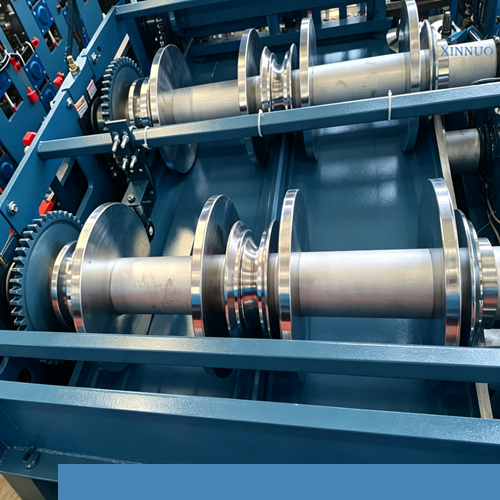

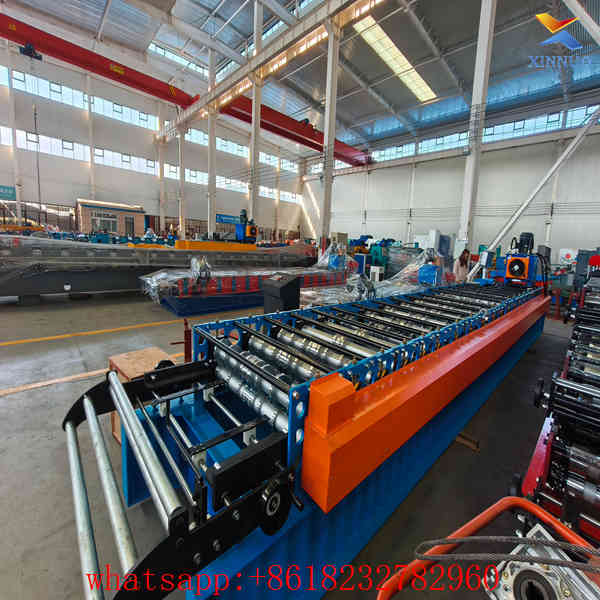

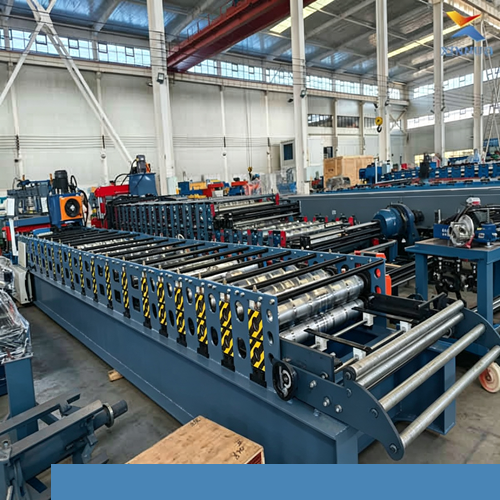

The whole machine frame is integrally welded with thick H-beam steel and processed by high-temperature stress relief annealing, ensuring stable vibration-free operation without deformation during long-time high-speed continuous production. All forming rollers are precisely machined from solid 45# carbon steel with thick quenched hard chrome plating, featuring high hardness and great wear resistance without scratching the coating of color steel or aluminum sheets. Multi-stage progressive roll forming forms interlocking seam locks in one pass, delivering flat sheets with uniform seam depth, standard profiles and tight waterproof joints. It processes color coated coils and Al-Mg-Mn alloy sheets from 0.4mm to 0.8mm thick, and machines with different effective covering widths can be customized as buyers’ demands.

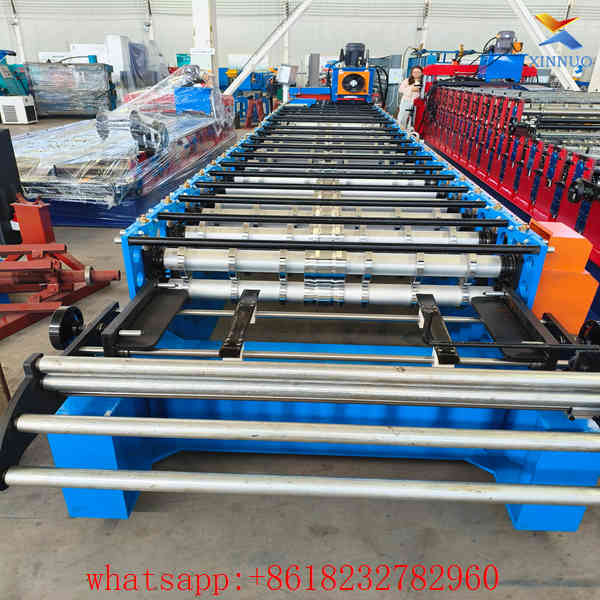

Equipped with variable frequency speed regulating main drive system and heavy-duty synchronous chain transmission, the machine runs smoothly with low noise, and the forming speed ranges from 8 m/min to 18 m/min. A guiding limit bracket is installed at the feeding inlet to center steel strips automatically and avoid material offset. A hydraulic fixed-length cutting unit is arranged at the tail with stable oil pressure, delivering smooth burr-free cutting surfaces and dimensional tolerance controlled within ±1mm. A separate PLC touch screen control cabinet allows operators to preset sheet length and output quantity. The machine automatically completes feeding, seam lock forming, fixed-length cutting and counting without manual operation. Only one worker can realize 24-hour non-stop continuous production, greatly improving roof tile processing efficiency and reducing raw material waste.
Every seam lock roll forming machine undergoes a 72-hour continuous coil loading test before delivery to calibrate seam forming precision and cutting tolerance. A full set of spare forming rollers, hydraulic sealing parts, Chinese-English bilingual operation drawings and manuals are delivered as standard accessories. Xinnuo provides a 1-year full machine warranty. Overseas buyers can get remote technical debugging and on-site installation & operation training by professional engineers. Reliable and durable equipment performance gains continuous repeat orders and positive feedback from global steel structure building material manufacturers.
| Parameter Item |
Specification |
| Product Name |
Seam lock roll forming machine / Standing Seam Roof Panel Machine |
| Category |
Roof Panel Roll Forming Machine > Standing Seam Roll Forming Machine |
| Processable Materials |
Color coated steel sheet, Al-Mg-Mn plate, galvanized coil |
| Applicable Sheet Thickness |
0.4–0.8mm |
| Standard Panel Profiles |
430/470/500 standing seam roof panel (custom available) |
| Forming Roller Material |
45# carbon steel, quenched & thick hard chrome plated |
| Number of Forming Stands |
18–22 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
8–18 m/min |
| Main Motor Power |
7.5kW |
| Cutting Type |
Hydraulic fixed-length cutting |
| Cutting Dimensional Tolerance |
≤±1mm |
| Control System |
Full-automatic PLC touch screen numerical control |
| Overall Dimension |
6800×1350×1480mm |
| Total Machine Weight |
4.0 Tons |
| Warranty Period |
2 years for complete machine |
