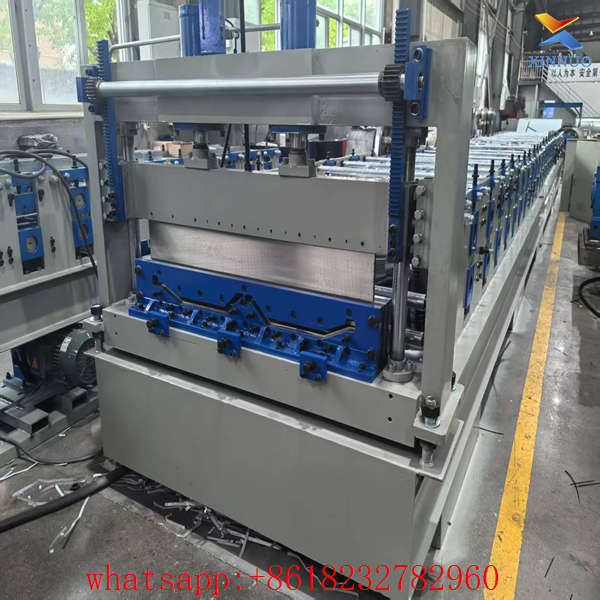

Photovoltaic Roof Panel Photos:

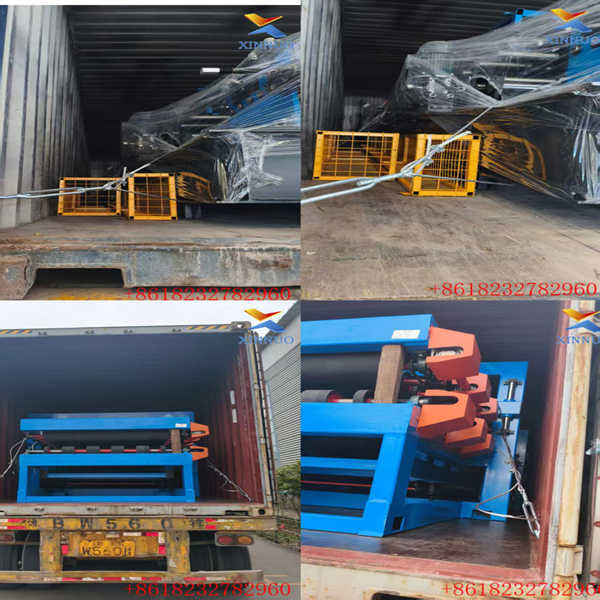

Photovoltaic Roof Panel Packing&Shipping :
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

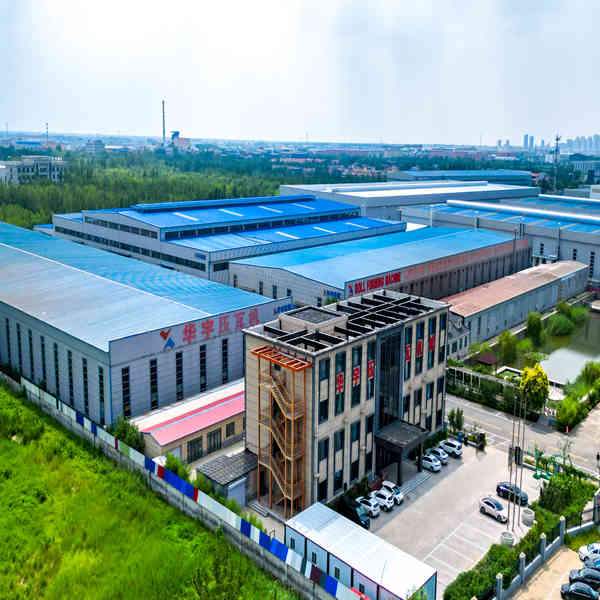

About us -HEBEI XINNUO
We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !

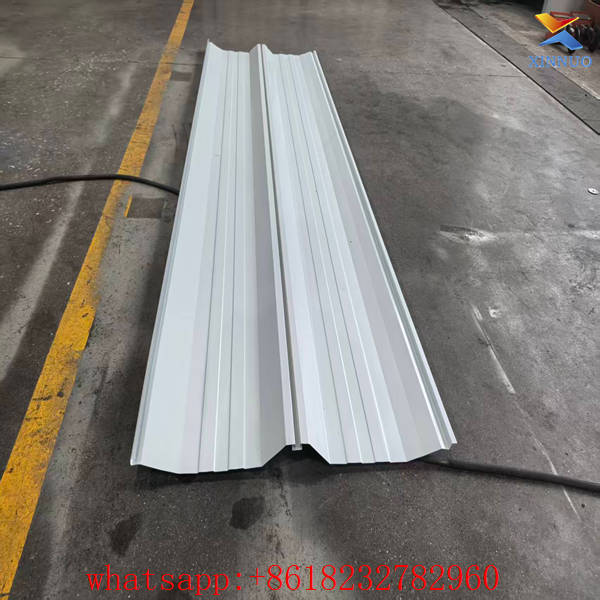

This photovoltaic roof panel machine belongs to Standing Seam Roll Forming Machine under Roof Panel Roll Forming Machine category, specially designed to manufacture standing seam metal roof sheets for photovoltaic power stations. The high vertical leg interlock profile achieves self-waterproof performance without sealant, featuring strong wind uplift resistance. It is widely applied for large photovoltaic workshops, distributed solar roofs, new energy charging stations and steel buildings, with panels directly mounted with PV brackets. It acts as core forming equipment for new energy material factories, and can form full automatic production line matched with metal coil uncoiler.
The machine base frame is integrally welded with thick H-beam steel and treated by high-temperature stress relief annealing to eliminate welding internal stress. The long frame runs vibration-free without deformation during long-term high-speed continuous forming, ensuring consistent vertical leg height and sheet flatness. All forming rollers are precisely machined from solid 45# carbon steel with quenched thick hard chrome plating, wear and rust resistant without scratching anti-corrosion coating of Al-Mg-Mn, galvanized and color steel coils. Multi-stage progressive bending roller stands form high standing interlock seams in one pass, tight male-female joint delivers excellent rain leakage prevention and wind resistance. It processes Al-Mg-Mn alloy coils from 0.6mm to 1.2mm thick, forming coverage width customizable as per solar project drawings, standard sizes 400/430/470/500mm.
Equipped with high-power variable frequency main motor and heavy-duty synchronous chain transmission, the machine runs smoothly with low noise, forming speed steplessly adjustable from 6 m/min to 15 m/min. Servo automatic deviation corrector at feeding inlet realigns steel strips to reduce waste. Servo hydraulic flying shear at the tail provides stable cutting force for burr-free smooth cuts, finished length tolerance controlled within ±0.5mm. Suspended cantilever PLC touch screen control system allows presetting sheet length and total output quantity. The machine automatically completes feeding, multi-pass vertical seam forming, fixed-length cutting and counting without extra labor. Only one operator can realize 24-hour non-stop continuous production, ideal for mass sheet orders of photovoltaic projects.
Every standing seam PV roof panel machine undergoes a 72-hour full-coil load test before delivery to calibrate vertical leg height, interlock precision and cutting tolerance. Complete spare forming rollers, hydraulic sealing parts and bilingual operation manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customization available for all countries, delivery lead time 50–60 days. Remote CNC debugging and on-site installation training by professional engineers are accessible for overseas buyers. This high waterproof & wind-resistant solar roof machine gains consistent repeat orders from global new energy & steel structure manufacturers.
