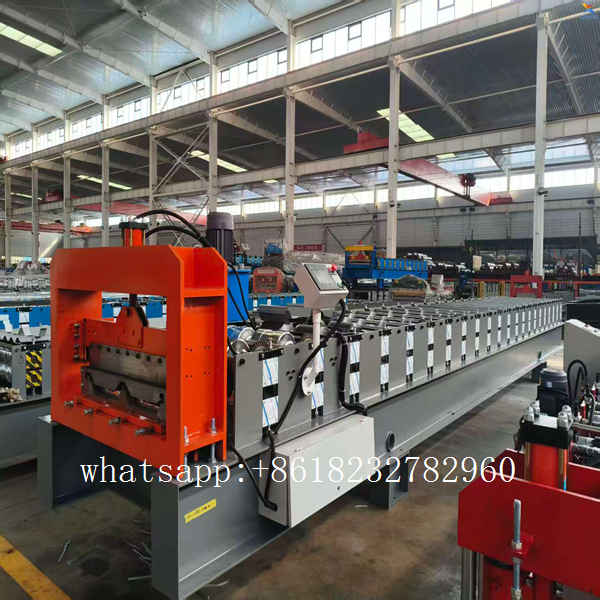

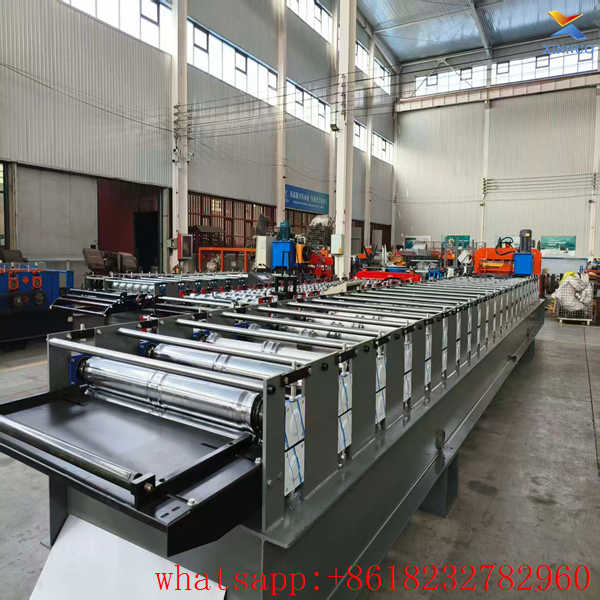

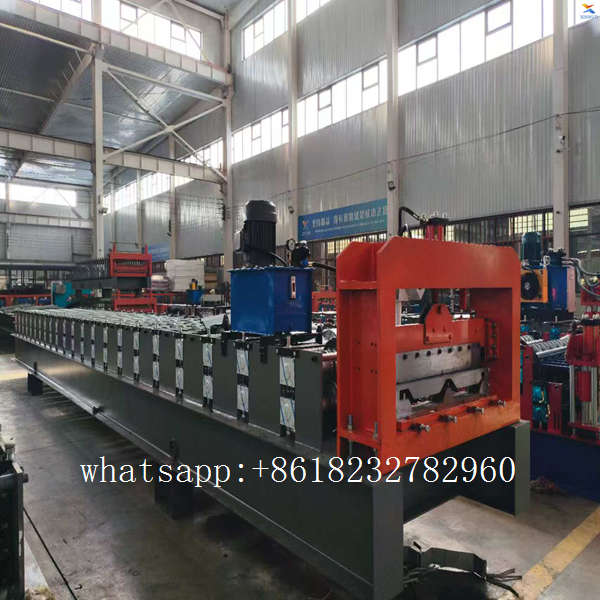

760 Standing Seam Machine photos showing :

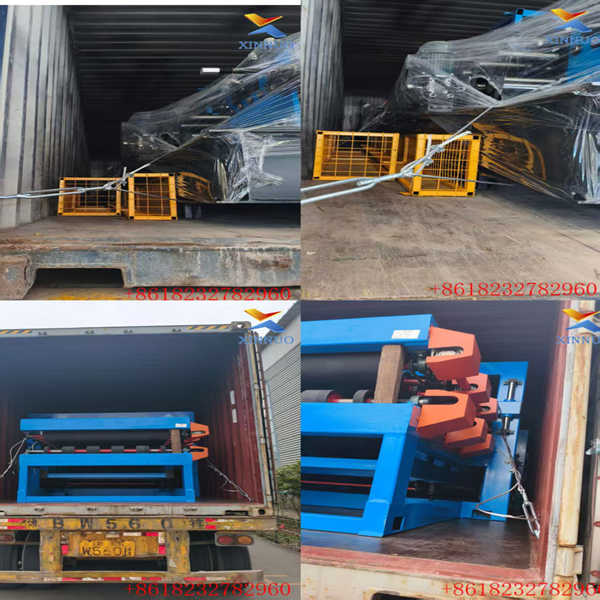

760 Standing Seam Machine Packing&Shipping :
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

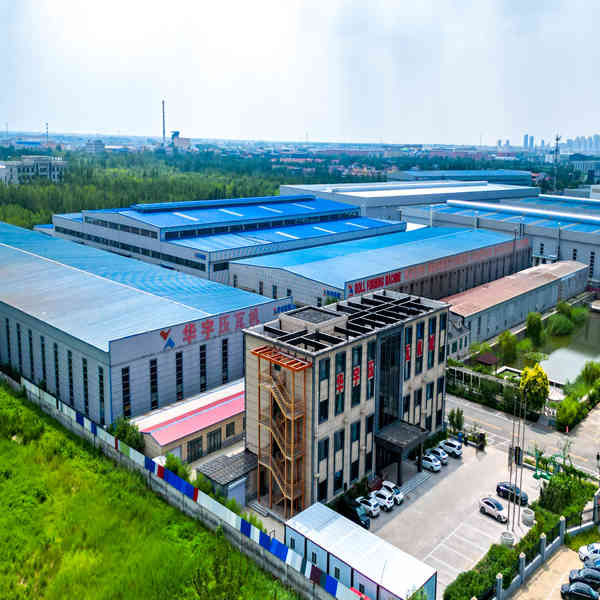

About us -HEBEI XINNUO
We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !
Hebei Xinnuo Roll Forming Machinery Co., Ltd. focuses on R&D and global export of large roof cold roll forming equipment. The 760 Standing Seam Machine belongs to subcategory Standing Seam Roll Forming Machine under Roof Panel Roll Forming Machine. It specially manufactures 760 type standing seam metal roof sheets. The interlocking seam lock structure is integrally formed on sheet edges, no exposed screws after installation, delivering outstanding waterproof, wind-resistant and thermal expansion performance. It is widely used for high-end construction projects such as high-speed railway stations, stadiums, exhibition centers, large logistics warehouses and high-rise steel structure roofs, compatible with Al-Mg-Mn alloy, color coated and galvanized metal coils.

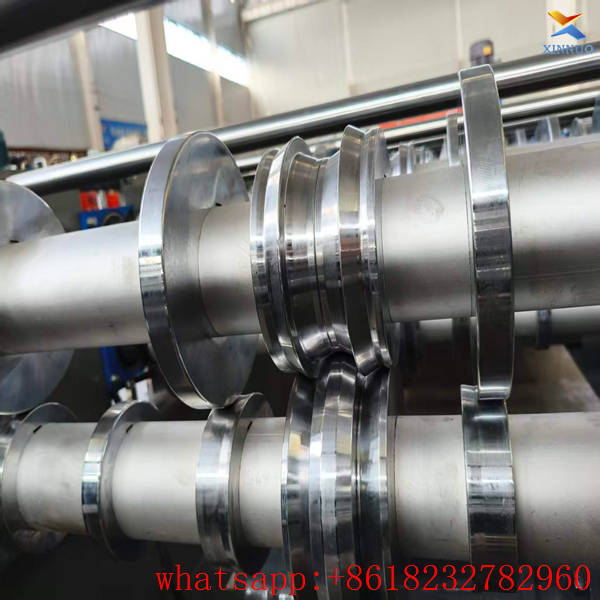

The whole machine base frame is integrally welded with thick H-beam steel and treated by high-temperature stress relief annealing, so there is no vibration or frame deformation during long-hour heavy-load high-speed operation. All forming rollers are precisely machined from solid 45# carbon steel with quenched thick hard chrome plating, featuring high hardness and wear resistance without scratching the surface of Al-Mg-Mn sheets. Multi-stage progressive rolling forms standard standing seam lock grooves in one pass, with flat smooth sheets, uniform seam depth and tight waterproof joints. It processes Al-Mg-Mn alloy and color steel coils from 0.4mm to 0.9mm thick, raw material feeding width 1000mm, finished effective coverage width 760mm.

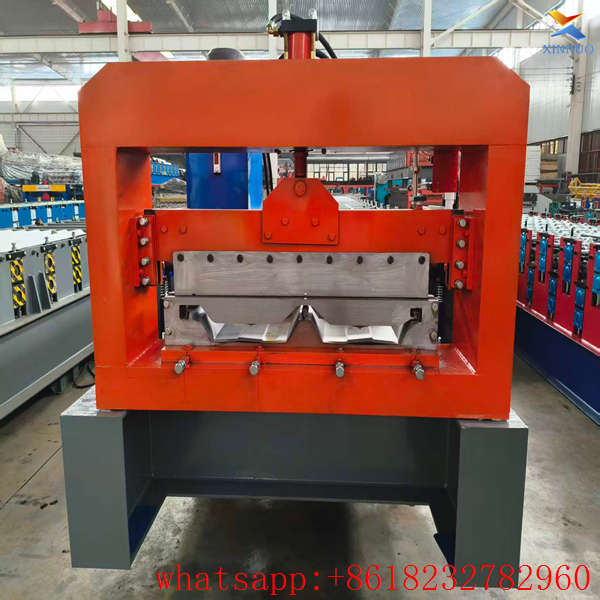

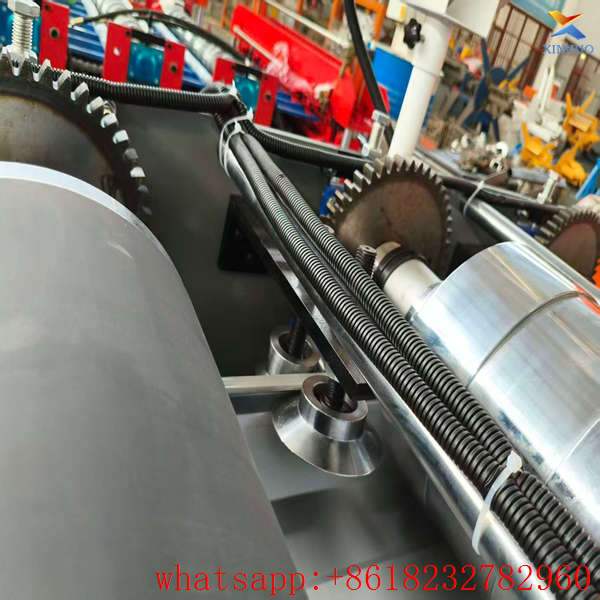

Equipped with variable frequency main drive and heavy-duty synchronous chain transmission, the machine runs smoothly with low noise, and forming speed can be steplessly adjusted from 8 m/min to 16 m/min. Multiple guiding limit rollers are installed at feeding inlet to automatically correct steel strip deviation. An independent hydraulic flying shear cutting unit with large oil cylinder provides stable oil pressure, delivering burr-free smooth cutting surfaces with dimensional tolerance limited within ±1mm. The suspended cantilever PLC touch screen control system allows operators to preset sheet length and total output quantity. The machine automatically completes feeding, seam lock forming, fixed-length cutting and counting without extra labor. Only one worker can realize 24-hour non-stop continuous production, greatly improving processing efficiency of high-end roof sheets.
Every 760 standing seam machine undergoes a 72-hour full-coil test before delivery to calibrate seam forming precision and cutting tolerance. A full set of spare forming rollers, hydraulic sealing parts, Chinese-English bilingual operation drawings and manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty. Overseas buyers can get remote technical debugging and on-site installation & training by professional engineers. Reliable high-end roof forming equipment gains consistent recognition from global steel structure engineering manufacturers.
