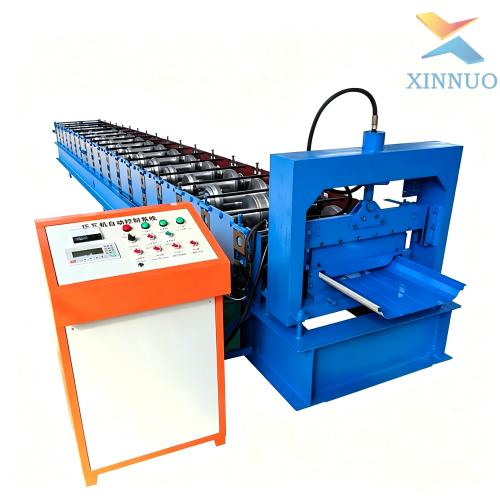

Automatic Standing Seam Klip-Lok Roof Roll Forming Machine

Automatic Standing Seam Klip-Lok Roof Roll Forming Machine：

I. Structural Innovation for Leak-Proof Roofing Solutions

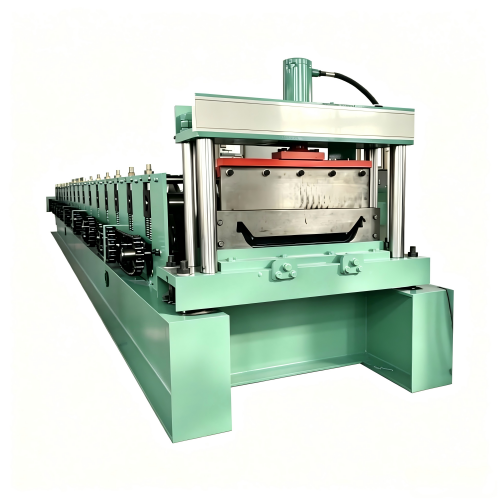

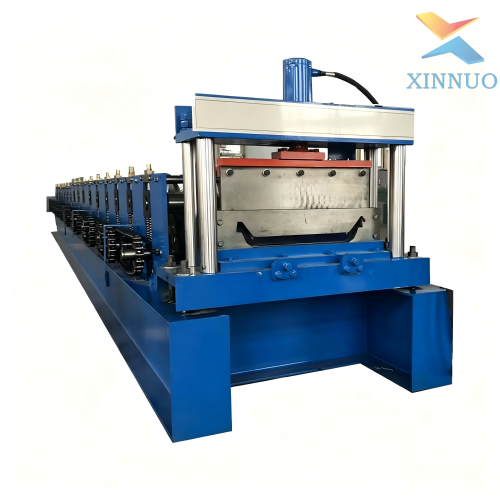

The Automatic Standing Seam Klip-Lok Roof Roll Forming Machine by Hebei Xinnuo Roll Forming Machinery Co., Ltd. is the premier engineering choice for the high-end industrial and commercial construction sectors. The "Standing Seam" or "Klip-Lok" profile is distinguished by its concealed fastener technology, which eliminates the need for exposed screws that pierce the roofing sheet. Our machine is built on a heavy-duty 400# H-beam steel base, precision-welded and stress-relieved to provide ultimate structural rigidity. This robust foundation ensures that the machine remains stable during continuous operation, preventing the misalignment of complex locking ribs. By producing profiles with a high vertical rib, this machine delivers a roofing solution that offers superior water tightness and thermal expansion capabilities, making it indispensable for large-span factory roofs and regions with high precipitation.

II. High-Precision Roller Engineering and Surface Protection

Achieving a perfect watertight interlocking joint requires extreme precision in the forming roller design. Xinnuo’s Standing Seam Machine utilizes rollers precision-machined from high-grade 45# forged steel or GCr15 bearing steel using advanced CNC centers. Each roller station undergoes a rigorous vacuum quenching heat treatment, reaching a surface hardness of HRC58-62. To ensure that the protective coating of PPGI or Al-Zn coils remains undamaged during the multi-stage forming process, all rollers are coated with a 0.05mm layer of hard industrial chrome. This mirror-like finish reduces friction and prevents surface scuffing. Furthermore, all main shafts are made from solid, high-strength 45# steel, quenched and tempered to ensure long-term dimensional accuracy and a service life exceeding 15 years in high-volume production environments.

III. Intelligent Automation and Synchronized PLC Integration

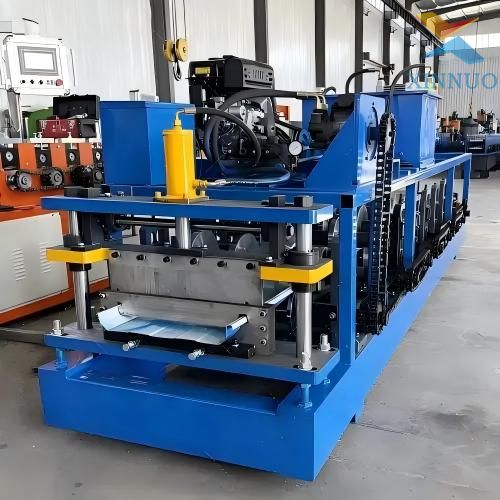

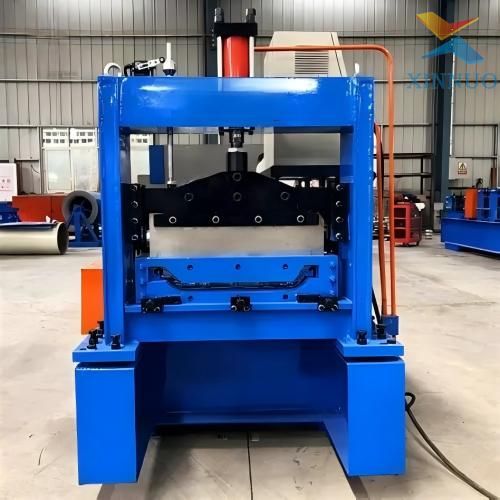

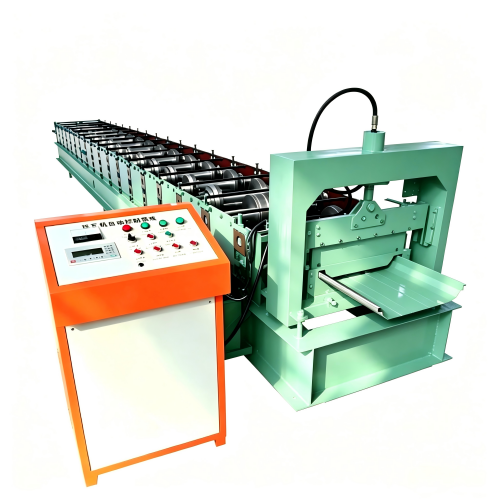

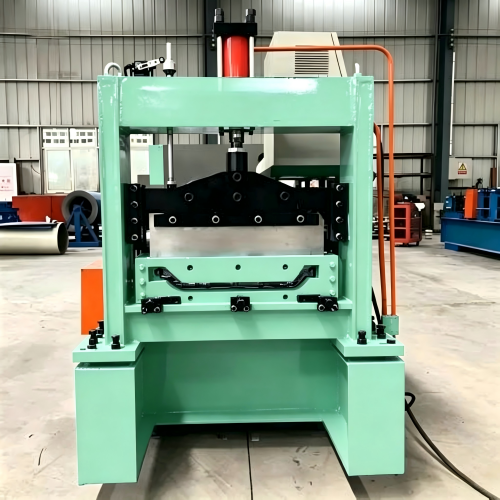

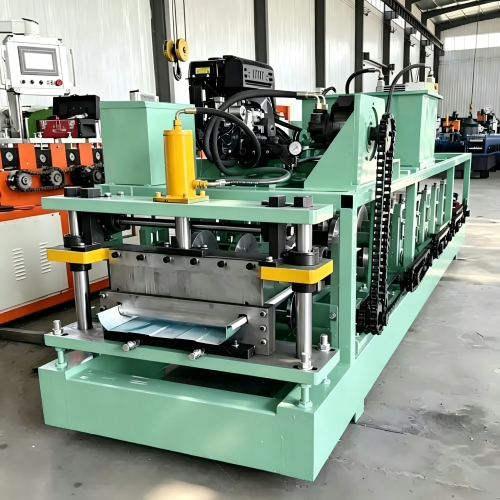

Efficiency in the Xinnuo Klip-Lok production line is driven by a sophisticated automation suite. Equipped with world-class PLC systems from Delta or Siemens, the machine features an intuitive HMI touch screen supporting multiple languages, including English and Portuguese. Operators can easily program production batches, defining lengths and quantities with millimetric accuracy. The system integrates high-resolution rotary encoders that monitor line speed in real-time to synchronize the hydraulic post-cutting unit. The cutting blades are manufactured from Cr12Mov mold steel, heat-treated to ensure a clean, burr-free cut that maintains the integrity of the locking profile. The integrated hydraulic station includes an advanced cooling system, allowing the machine to maintain consistent pressure for 24/7 continuous industrial production, significantly reducing labor costs and material waste.

IV. Global Applications in Modern Architecture

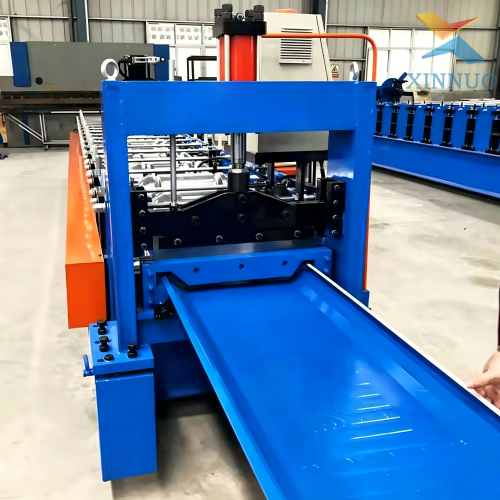

The Standing Seam and Klip-Lok profiles produced by our machines are global standards for large-scale roofing projects, including airports, stadiums, logistics warehouses, and high-end residential villas. Its "Hidden Fix" design provides a sleek, modern aesthetic while offering the highest level of wind resistance and leak protection in the industry. Our machine efficiently processes various raw materials, such as galvanized steel, Alu-zinc steel, and aluminum alloys, with thicknesses ranging from 0.4mm to 0.8mm. The versatility of the equipment allows it to serve diverse markets, from the demanding weather conditions of Southeast Asia to the high-end industrial standards of Europe and Latin America. This high-output production line ensures that building material suppliers can deliver premium-grade roofing solutions with a rapid return on investment (ROI).

V. Hebei Xinnuo’s Global Performance Guarantee

Choosing Hebei Xinnuo means partnering with a verified manufacturer holding ISO 9001 and CE certifications with over 25 years of industry expertise. We understand that reliability is the foundation of your production; therefore, every Standing Seam machine undergoes a rigorous 24-hour factory trial run with actual materials before dispatch to ensure zero-defect performance. We provide an industry-leading 24-month comprehensive warranty and lifetime technical support. Our professional service package includes detailed installation videos, electrical diagrams, and foundation layouts tailored to your requirements. Whether through remote real-time video guidance or on-site commissioning by our expert engineers, Hebei Xinnuo is committed to ensuring that your metal roofing production line remains a world-class, profit-generating asset for your business.
