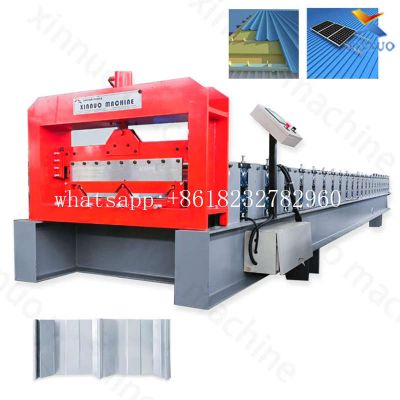

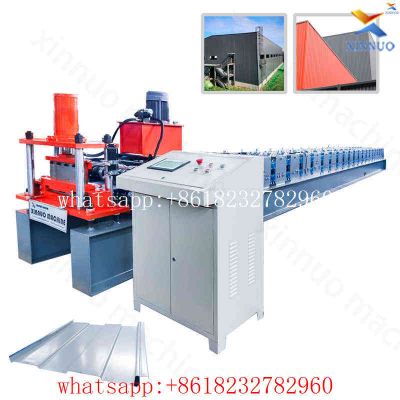

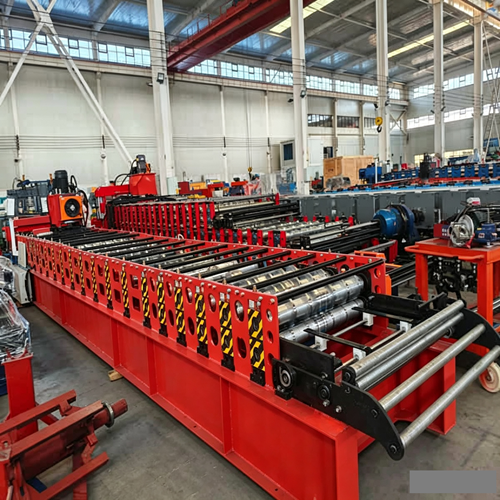

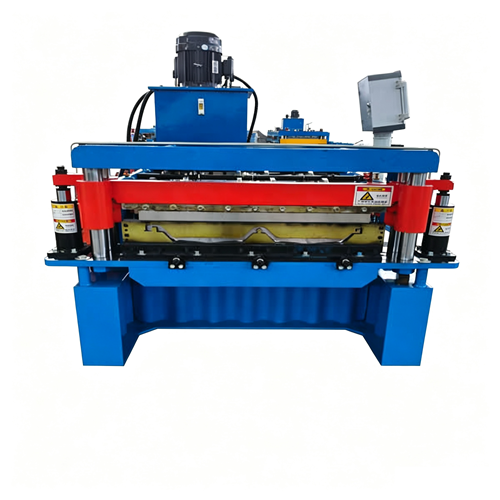

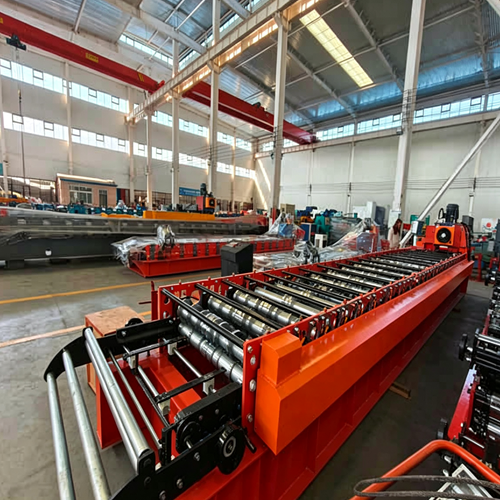

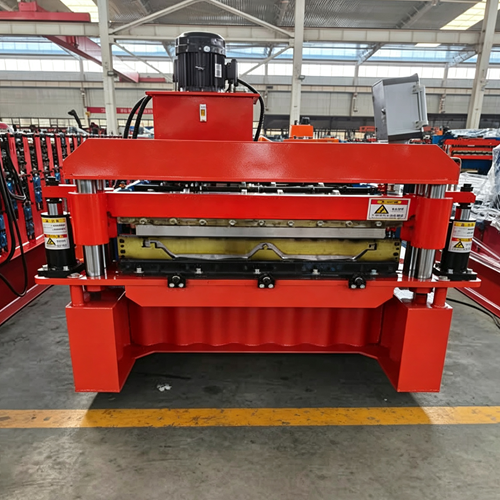

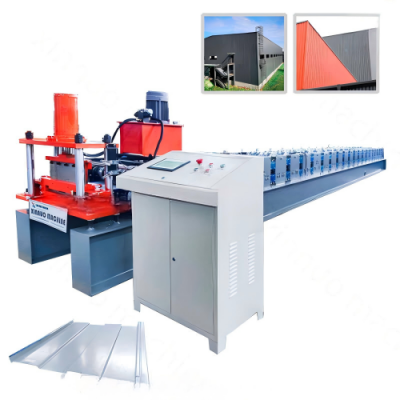

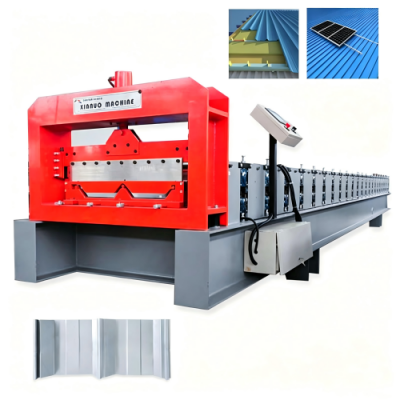

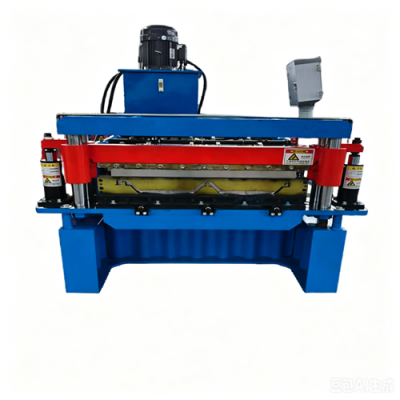

Standing Seam Roll Forming Machine
This standing seam roll forming machine belongs to Standing Seam Roll Forming subcategory of Roof Panel Roll Forming Machine series, dedicated cold bending equipment for concealed fastener aluminum magnesium manganese roof panels. Finished high vertical seam roof sheets feature no exposed screws, integral waterproof performance and excellent wind uplift resistance, widely applied to public and high-end residential roof systems such as high-speed railway stations, airports, exhibition centers, stadiums, villas and cultural tourism antique-style buildings, compatible with Al-Mg-Mn alloy, color coated and galvanized steel.

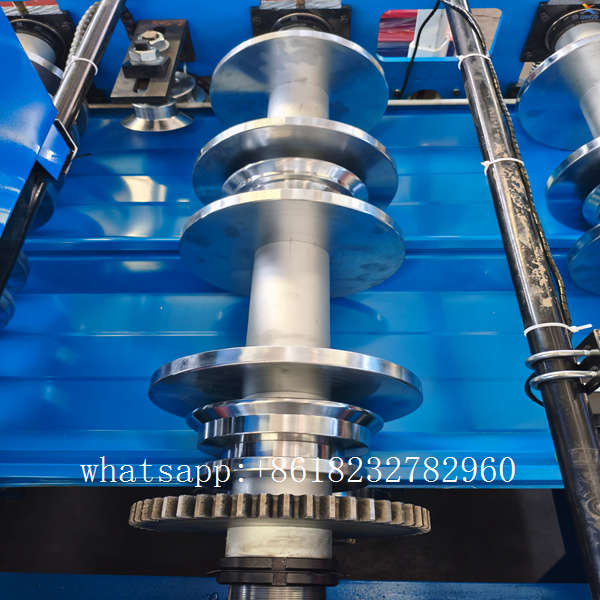

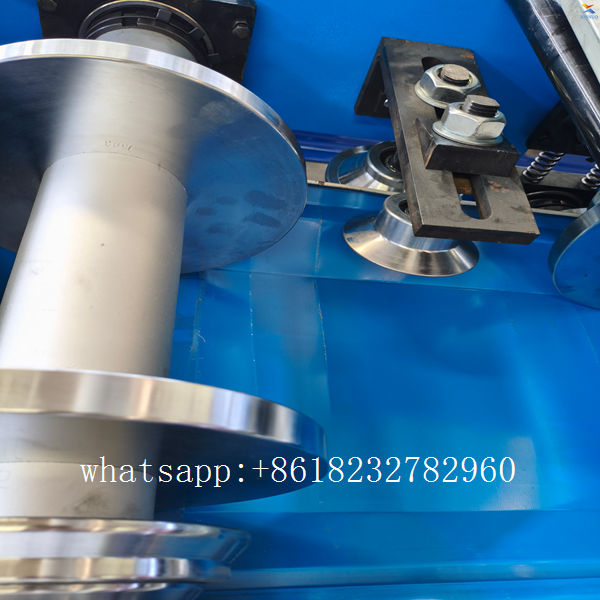

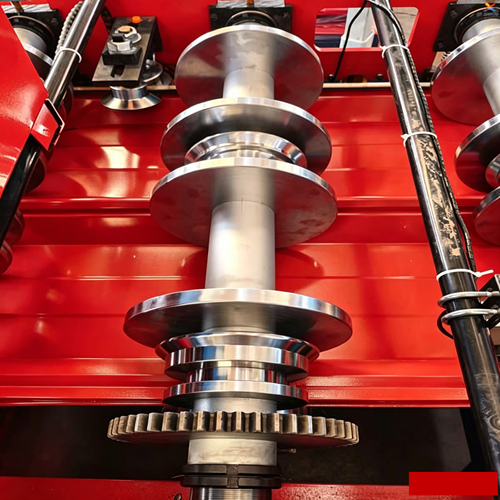

The machine frame is integrally welded with heavy square tube gantry structure and stress-relieved by high-temperature annealing after welding to eliminate deformation stress, delivering precise stable vertical seam dimensions without vibration offset during high-speed forming. All forming rollers are precision turned from 45# steel with hard chrome plating after quenching for outstanding wear & rust resistance, processing Al-Mg-Mn alloy, color coated and galvanized strips 0.6–1.2mm thick. Multi-pass progressive vertical interlock bending roller stands fully form high ribs and concealed buckle grooves in one feeding stroke, scratch-free sheet surface without spring-back. Panels can be electrically interlocked on construction site to form fully leak-proof roof systems, vertical rib height and effective coverage width fully customizable per architectural waterproof drawings.

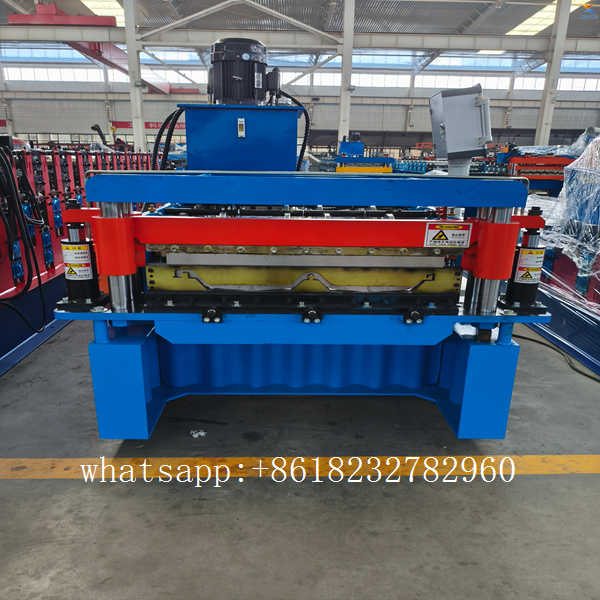

Equipped with variable frequency synchronous chain transmission, the machine adapts to various sheet thicknesses, running smoothly with low noise, forming speed steplessly adjustable from 6 m/min to 16 m/min. High-precision manual deviation corrector at feeding inlet keeps soft metal strips centered without scratch or offset. Heavy vertical hydraulic cutting unit at tail with thickened blades fits Al-Mg-Mn alloy, producing clean burr-free cuts, finished length tolerance ≤±0.8mm. PLC touch screen control system stores multiple standing seam profile parameter recipes, automatically completing feeding, vertical seam roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop continuous production.
Every standing seam forming machine undergoes a 72-hour endurance test with Al-Mg-Mn coils before delivery to calibrate vertical rib height, interlock groove dimension and cutting tolerance. Matching forming rollers, thickened cutting blades, hydraulic sealing parts and bilingual machine operation & maintenance manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, customized three-phase voltage available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This high-end waterproof standing seam equipment receives consistent bulk orders from curtain wall, steel structure and cultural tourism construction manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Standing Seam Roll Forming Machine / Concealed Fastener Metal Roof Panel Former |
| Category |
Roof Panel Roll Forming Machine > Standing Seam Roll Forming |
| Processable Materials |
Al-Mg-Mn alloy coil, color coated steel coil, galvanized steel strip |
| Applicable Sheet Thickness |
0.6–1.2mm |
| Standard Forming Coverage Width |
400/430/500/650mm (custom vertical rib height) |
| Roller Material |
45# carbon steel, precision turned + quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
22–30 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
6–16 m/min |
| Total Main Motor Power |
7.5kW |
| Cutting System |
Heavy vertical hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±0.8mm |
| Control System |
PLC touch screen full-automatic NC, multiple standing seam recipes stored for one-click switch |
| Overall Dimension |
7300×1150×1400mm |
| Total Machine Weight |
3.6 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
