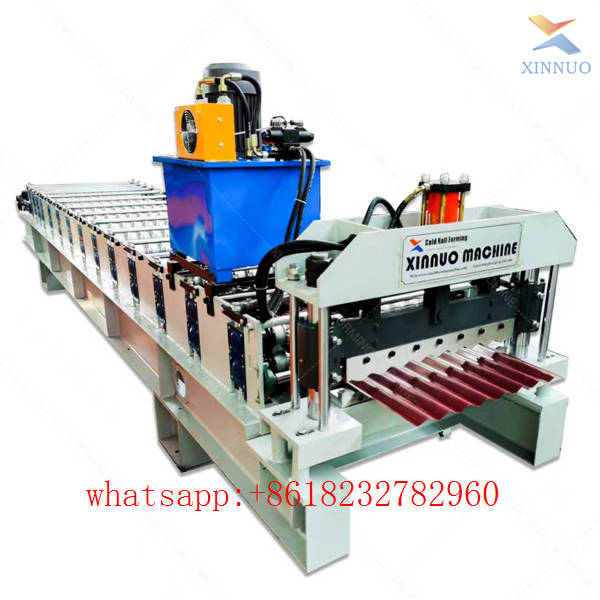

Corrugated sheet making machine

Profile :

Delivery time:50-60 days

Payment:30% T/T deposit,70% balance before shipping

Voltage:380V 50HZ 3Phase or based on customer’s need

Warranty:2 years for machinery warranty

Whatsapp: +86 18832797029

e-mail: yuankuoduan@gmail.com

Product Description

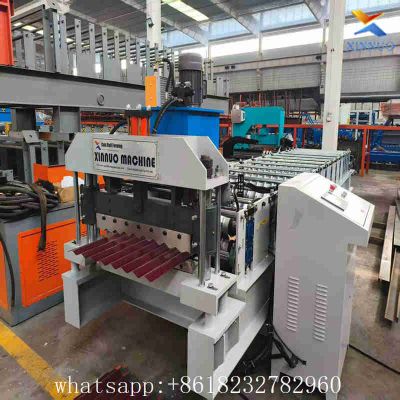

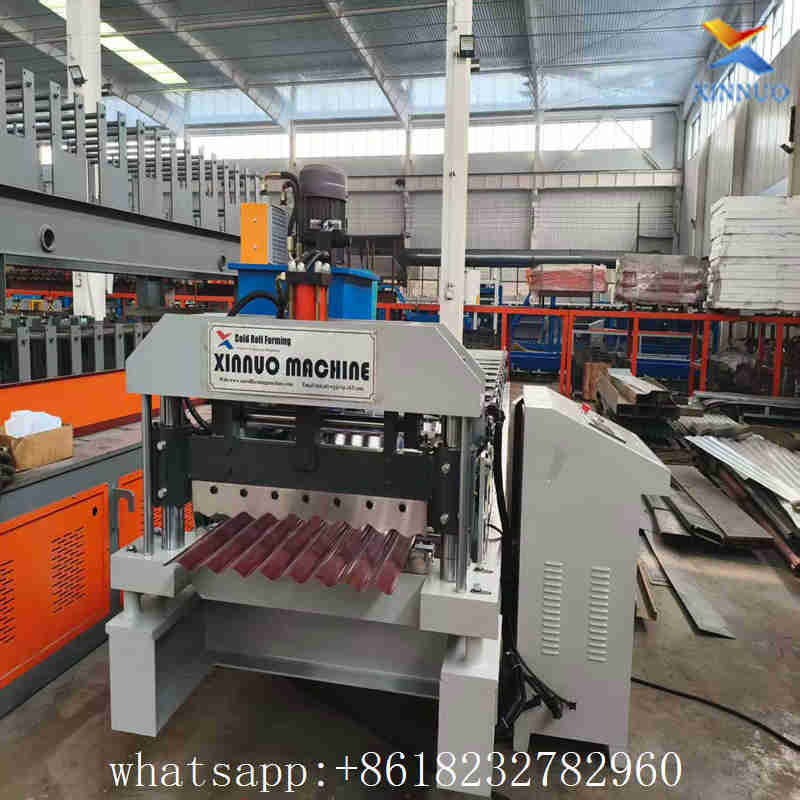

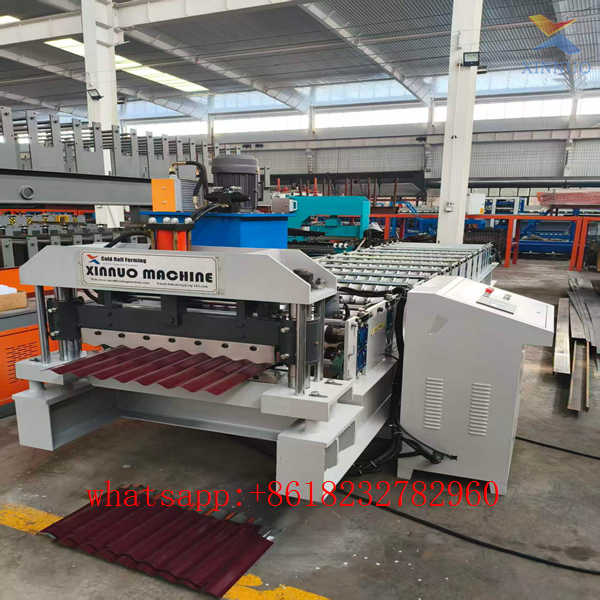

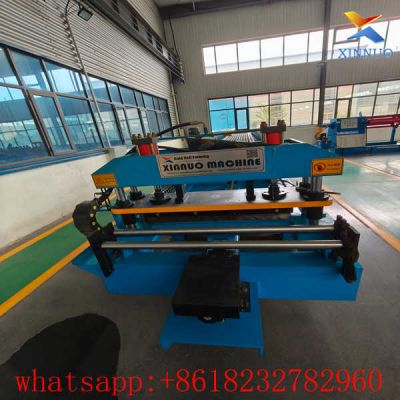

Corrugated roof sheet making machine

corrugated roof sheet making machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet.The roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

Advantage of corrugated roof sheet making machine

One machine for multiple function
Economical and easy to operate
Operating language can be customized
360 degree rotation of the console

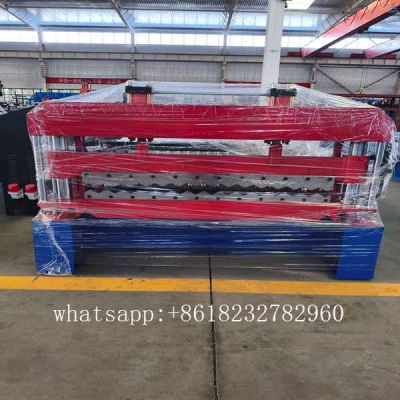

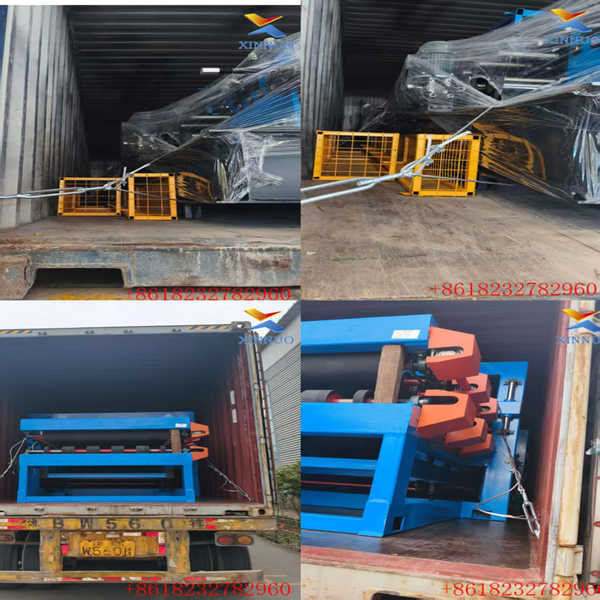

corrugated roof sheet making machine Packing&Shipping

– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

– 2.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

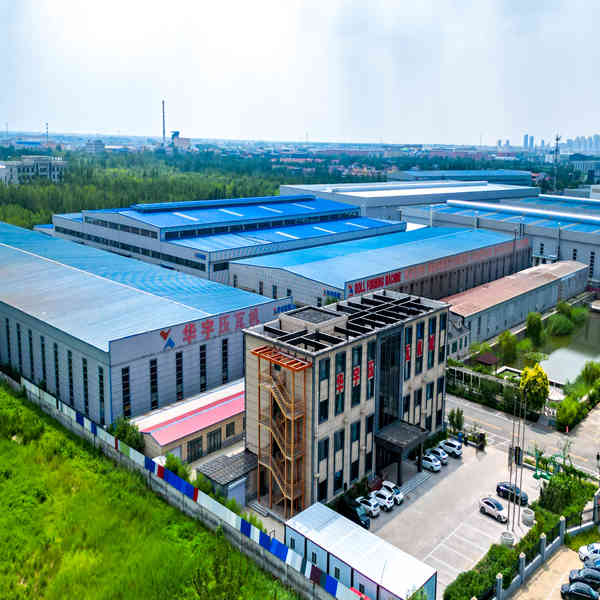

About us -HEBEI XINNUO

We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !

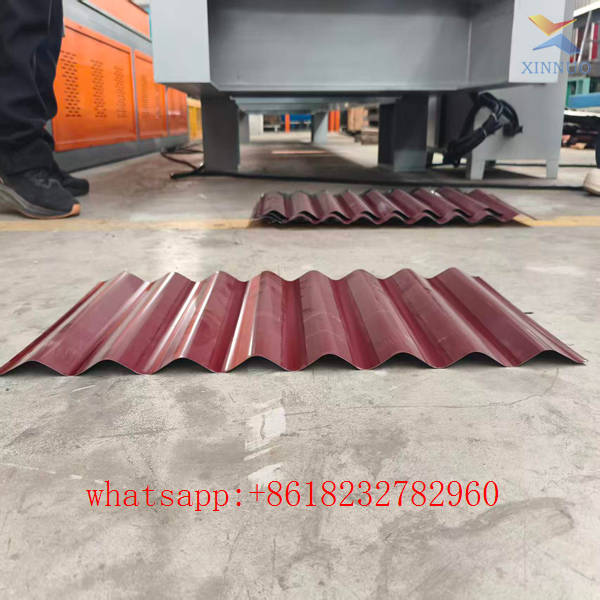

This corrugated sheet making machine falls under Corrugated Sheet Roll Forming branch of Roof Panel Roll Forming Machine series, single-layer cold bending equipment for corrugated metal roof tiles. It produces standard 840/850/900 series corrugated color steel sheets with neat wave texture and excellent drainage & waterproof performance, widely applied for factory rooftops, warehouse roofs, rural house renovation and simple steel structure roof cladding. Matched with metal coil uncoiler, it forms full automatic single tile production line, a hot-selling basic forming machine for building material factories.

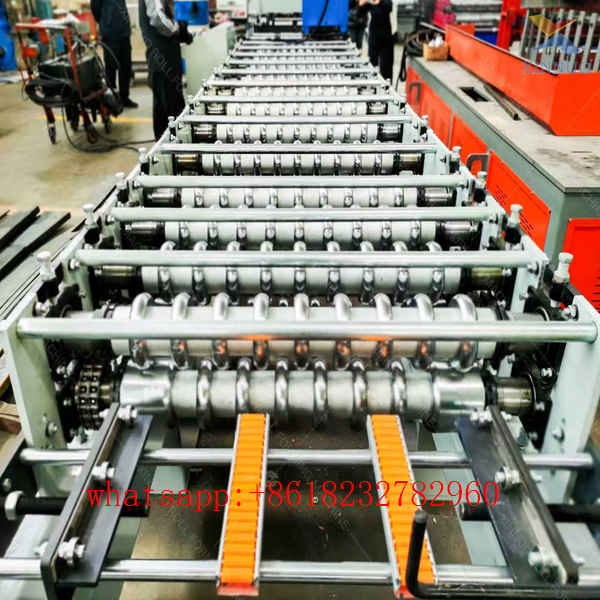

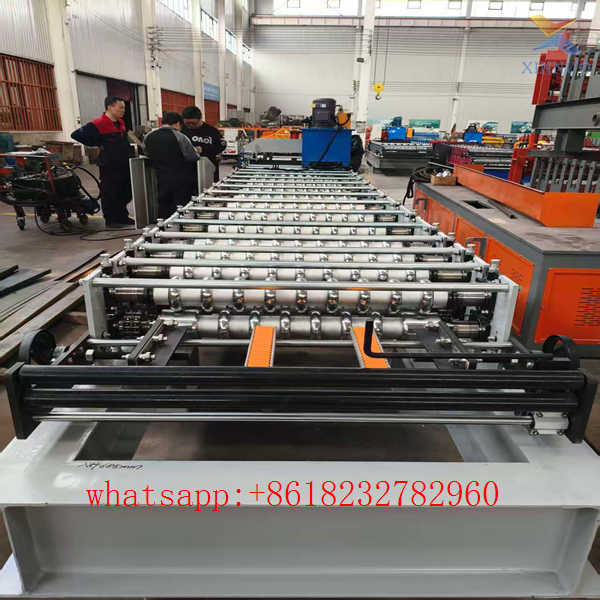

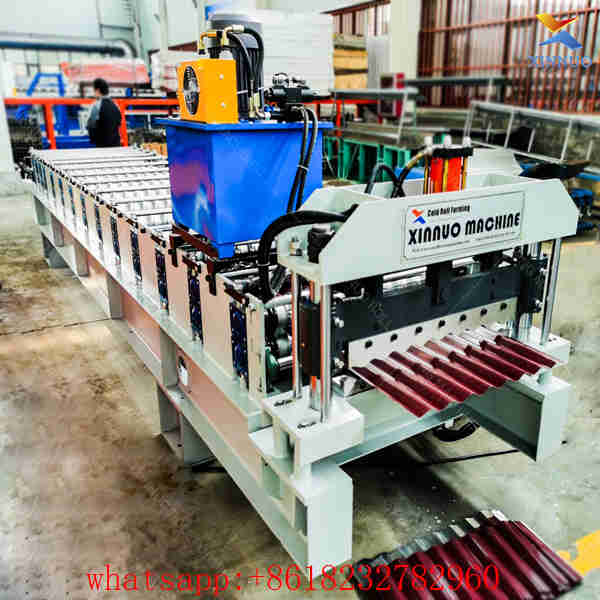

The machine base is integrally welded with thick channel steel and treated by high-temperature stress relief annealing to eliminate welding internal stress. The long frame runs vibration-free without deformation during long-term high-speed continuous forming, ensuring consistent wave height and sheet width precision. All forming rollers are precision turned solid 45# carbon steel with hard chrome plating after surface quenching for superior wear and rust resistance, processing color coated & galvanized coils 0.3–0.8mm thick. Multi-stage progressive wave bending roller stands form standard arc corrugations in one pass, scratch-free surface without bending cracks, tight overlap between sheets for reliable roof waterproofing. Wave height and effective coverage width can be customized per client drawings.

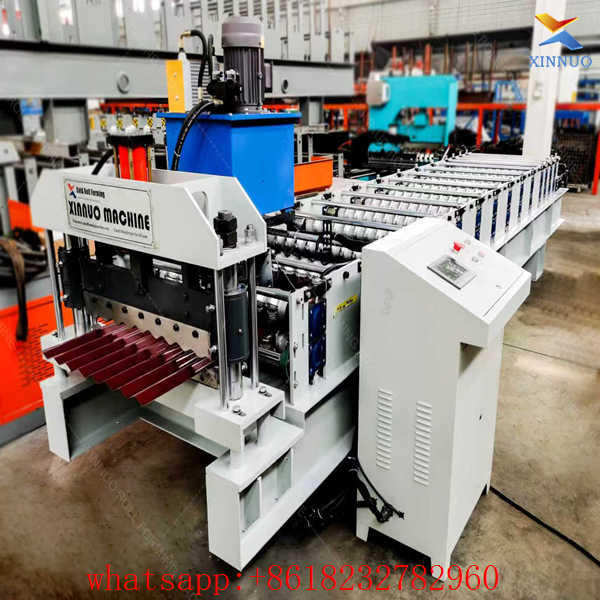

Equipped with variable frequency main motor and synchronous chain transmission, the machine operates smoothly with low noise, forming speed steplessly adjustable from 8 m/min to 22 m/min. Manual deviation correction bracket at feeding inlet easily centers steel strips to reduce edge waste. Integral hydraulic cutting unit at tail delivers clean burr-free cuts, finished length tolerance ≤±1mm. Suspended cantilever PLC touch screen control system stores multiple standard tile length programs, automatically completing feeding, corrugation roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop mass production.

Every corrugated tile forming machine undergoes a 72-hour full-coil continuous test before delivery to calibrate wave arc, sheet width and cutting tolerance. Complete spare forming rollers, cutting blades, hydraulic sealing parts and bilingual operation manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customization available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This compact high-efficiency single corrugated tile machine gains consistent repeat orders from small & medium building material manufacturers worldwide.
