Single Layer Arc Roof Panel Roll Forming Machine

Single Layer Arc Roof Panel Roll Forming Machine

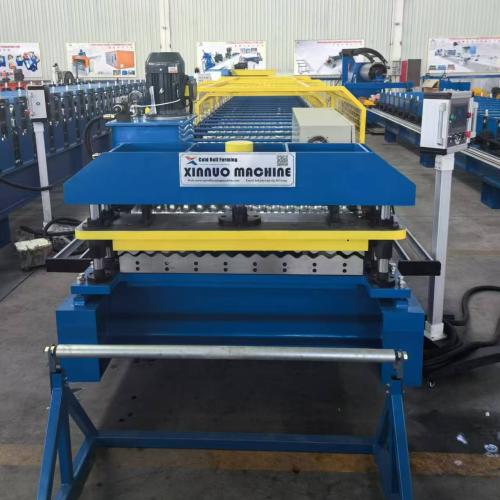

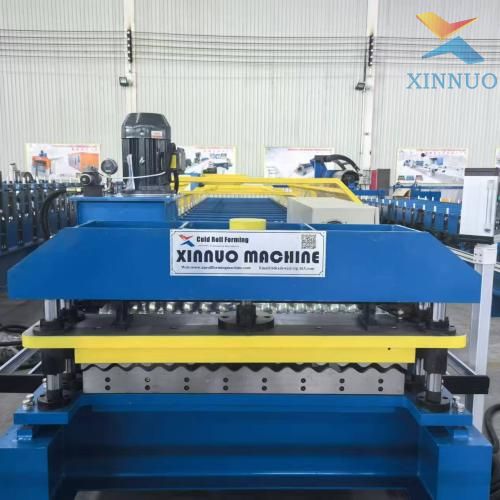

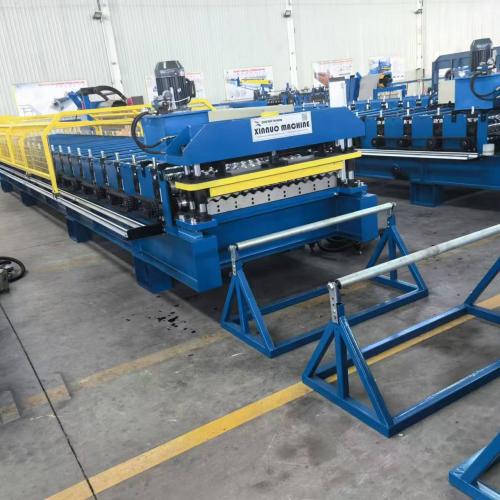

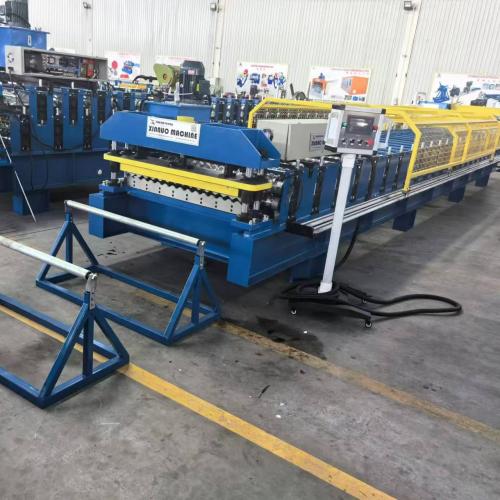

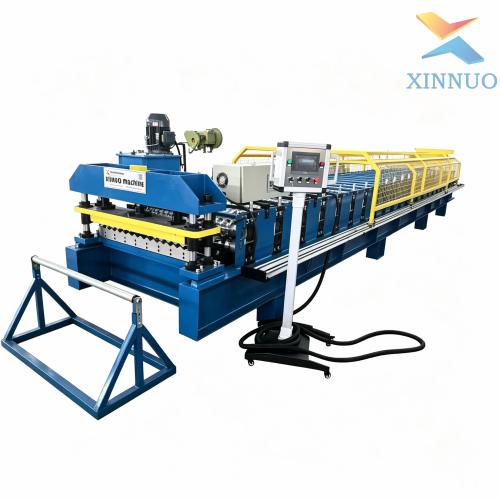

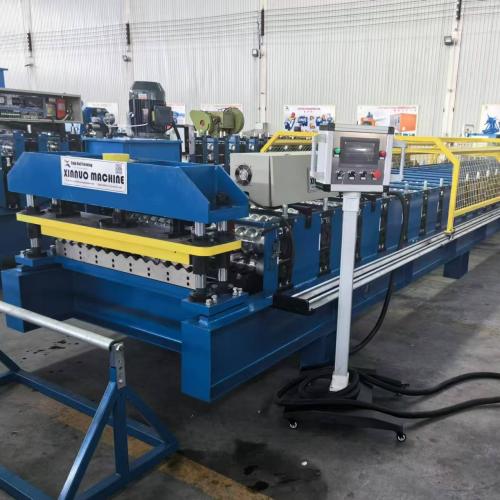

The XINNUO Single Layer Arc Roof Panel Roll Forming Machine is designed for continuous cold forming of curved or sinusoidal metal roofing panels from prepared steel coils. The machine shown in the supplied images features an extended forming body, multiple roller stations, a guided entry section, a powered transmission system, a hydraulic cutting area, and an independent electrical control cabinet. This configuration is suitable for manufacturers producing arc-shaped roofing sheets for industrial, agricultural, commercial, and customized architectural projects.

Unlike a glazed tile roll forming machine, this equipment is designed for continuous arc or wave formation. The finished sheet presents a regular curved or sinusoidal surface without repeated pitch-stamped tile sections. This distinction is important when selecting the correct machine because the roller design, profile dimensions, cutting method, and control system must match the required panel appearance and installation method.

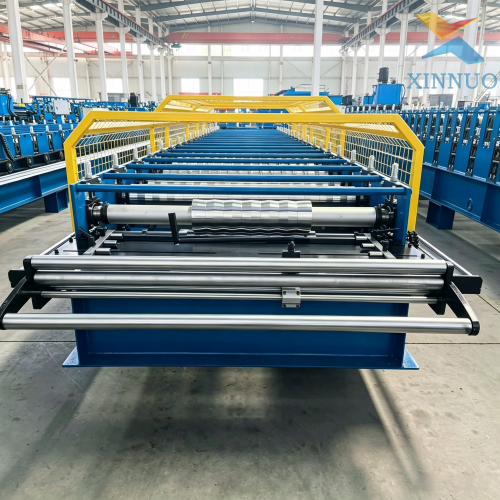

The forming unit adopts a progressive cold roll forming process. After entering the guide section, the steel coil passes through a series of calibrated forming rollers. Each station gradually changes the flat strip into the required arc-shaped profile. This forming method helps reduce excessive deformation, maintain consistent wave geometry, and improve the dimensional stability of finished panels.

The roller arrangement, shaft alignment, forming station quantity, and production tolerances are engineered according to the confirmed profile drawing. Important design factors include effective width, feeding width, wave pitch, arc height, edge structure, material thickness, and yield strength. Customers are advised to provide a cross-sectional drawing or a physical sample before production so that the machine can be accurately configured.

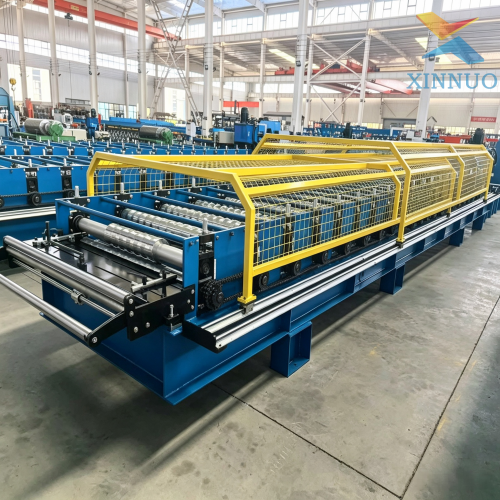

The extended machine body supports continuous production of long roofing panels and provides a clear forming path. The side transmission system synchronizes the forming stations during operation. Depending on the confirmed technical design, the machine may use chain transmission, gearbox transmission, or a combined drive system. The roller material, shaft diameter, motor rating, reducer, and protective structure should be finalized in the technical proposal.

The machine can be configured for galvanized steel, pre-painted steel, or other compatible coil materials after the material grade, thickness, width, and yield strength have been confirmed. The entry section should be matched with the selected decoiler and coil specifications to maintain stable feeding. Accurate material guidance is especially important for long curved panels because it helps reduce edge deviation and maintain consistent overlap during installation.

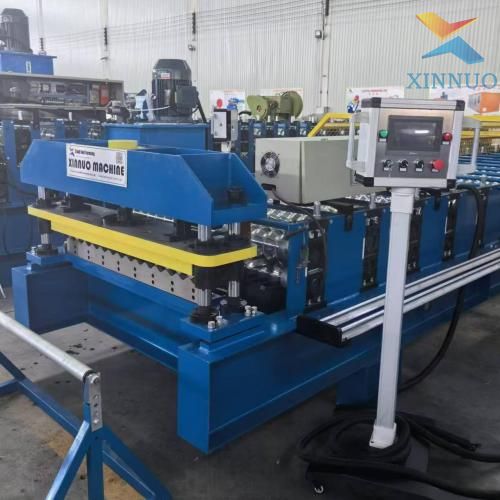

The electrical control cabinet provides a centralized interface for machine operation. The final configuration may include PLC control, a touch-screen HMI, encoder-based length measurement, sensors, and automatic cutting coordination. The cutting system should be selected according to the panel length, production mode, profile edge, and required length tolerance. The final cutting method must be confirmed by the approved technical drawing.

This single-layer arc roof panel machine is suitable for warehouses, workshops, agricultural buildings, storage facilities, commercial structures, modular buildings, and customized curved roof systems. It can also be integrated with coil handling, forming, cutting, and finished-panel collection equipment to create a complete production workflow.

Hebei Xinnuo Roll Forming Machinery Co., Ltd. provides profile-based machine configuration, technical communication, installation guidance, commissioning assistance, operation instructions, and after-sales technical support for international customers. Before production, the approved technical confirmation sheet should specify the profile, raw material, machine configuration, cutting method, electrical standard, machine dimensions, weight, delivery scope, and service terms.
