corrugated sheet rolling machine

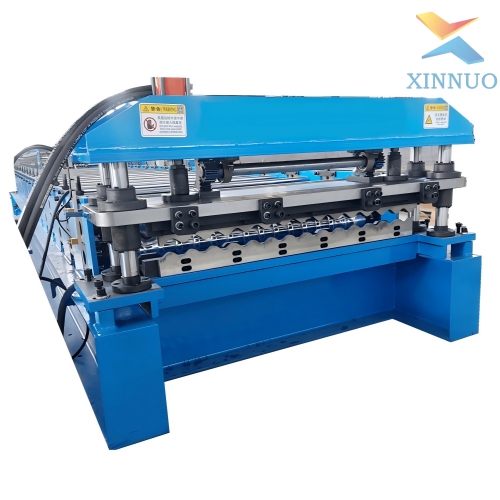

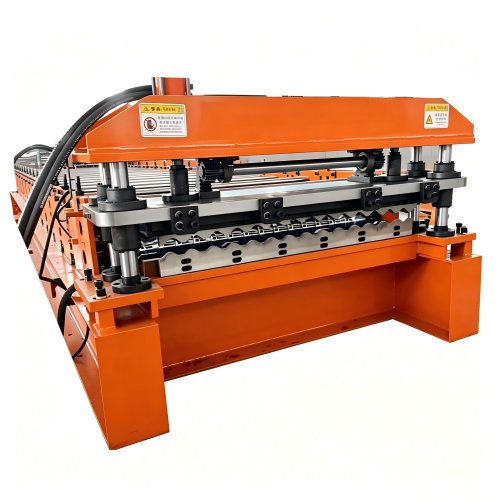

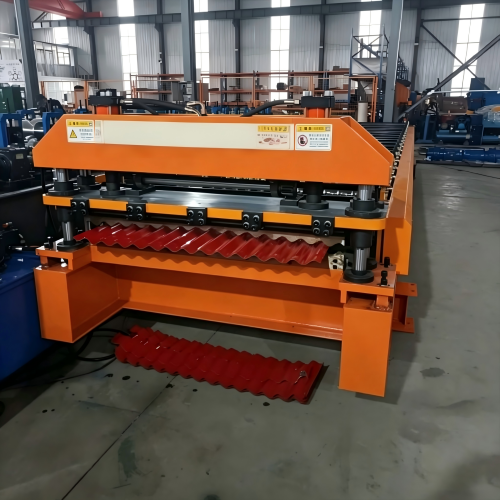

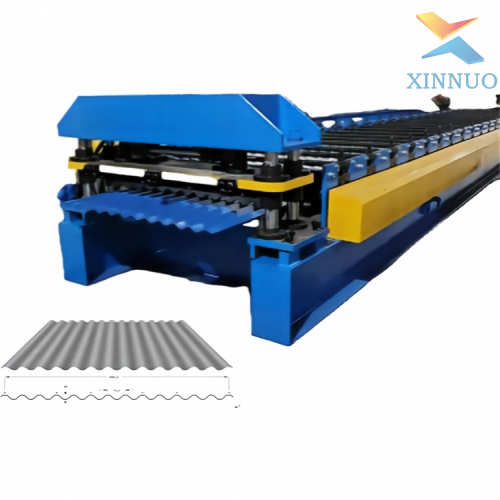

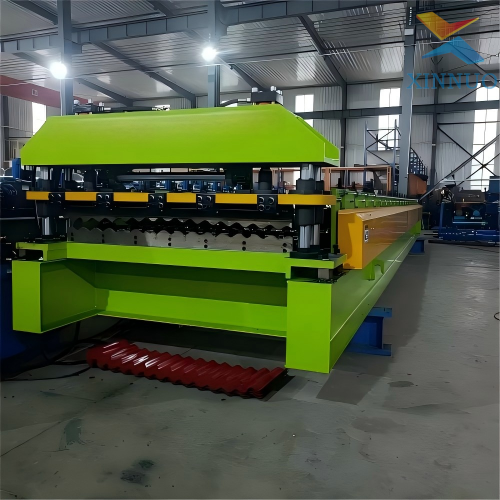

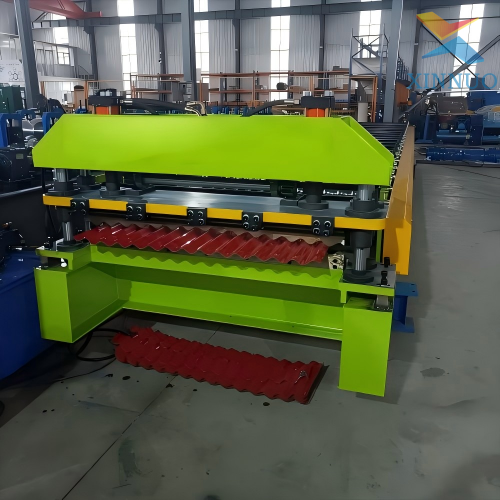

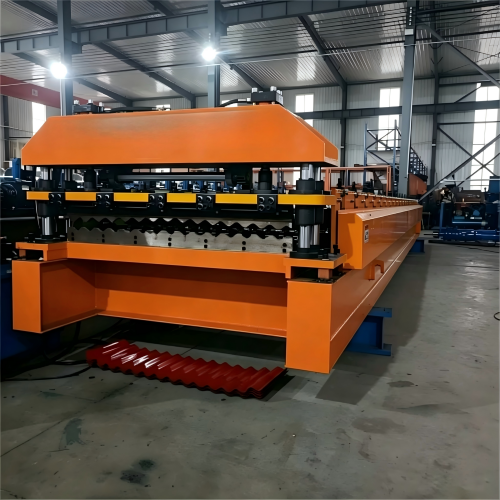

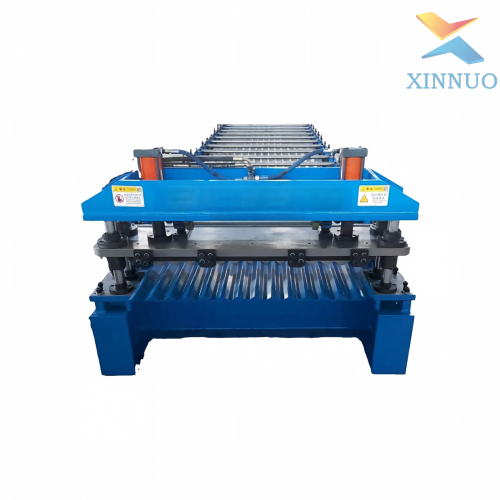

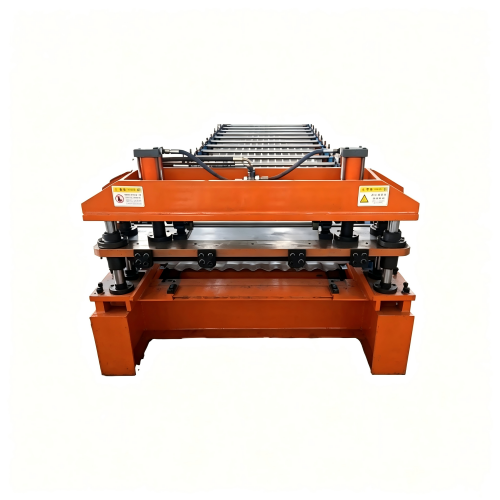

The corrugated sheet rolling machine, independently designed and manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd., is a high‑efficiency cold roll‑forming equipment specially used for producing metal corrugated roof sheets. This machine can process galvanized steel, PPGI, PPGL and aluminum coils into continuous wave‑shaped roof panels. Finished corrugated sheets feature smooth surface, uniform wave height, high strength and outstanding anti‑corrosion performance, which are widely adopted for factory workshops, warehouses, farm buildings, simple steel‑structure houses and various roofing renovation projects. It is also popular for wall cladding, temporary construction shelters and agricultural poultry house roofing across global markets.
Adopting multi‑stand cold roll forming technology, the whole production workflow includes decoiling, feeding, leveling, roll forming, hydraulic cutting and finished‑part output. The whole line runs automatically under PLC control. Operators only need to set target length and quantity on the touch‑screen panel, then the machine completes the whole manufacturing process without frequent manual intervention. It effectively reduces labor cost and keeps every finished panel with consistent dimension, avoiding errors caused by manual operation.
The main frame of our corrugated sheet rolling machine applies heavy‑duty welded steel structure for long‑term heavy‑load operation. Forming rollers are made of high‑strength GCr15 bearing steel with quenching treatment, good wear resistance and long service life. Hydraulic shearing device guarantees neat burr‑free cutting surface. All electrical components adopt well‑known brand parts to stabilize continuous running for 24‑hour production. Customized service is available for different sheet width, wave height and material thickness according to customers’ local market requirements. We can also match different decoiler and stacker to realize fully‑automatic feeding and collecting finished sheets, further improving overall production efficiency.
| Item |
Specification |
| Applicable material |
Galvanized steel, PPGI, PPGL, Aluminum |
| Material thickness |
0.3‑0.8mm |
| Effective width of finished sheet |
840‑1000mm(Customized) |
| Forming stands |
12‑18 stations |
| Main motor power |
7.5‑11kw |
| Hydraulic power |
3‑4kw |
| Working speed |
8‑12 m/min |
| Voltage |
380V 50HZ 3Phase or customized |
| Control system |
PLC automatic control |
| Warranty period |
2 years |
Before shipment, every machine will be fully assembled and strictly tested inside our factory to make sure all functions work well. Each unit will go through continuous running test and sample trial production before packing. We provide complete operation manual, electric schematic diagram and long‑term online technical support. If necessary, we can arrange overseas engineer guidance for machine installation and training. Our delivery cycle is 50‑60 working days after receiving deposit. Payment term is 30% T/T deposit, 70% balance before shipment. Hebei Xinnuo has rich experience in exporting roll‑forming equipment to many countries. We strictly control every production procedure from raw material purchasing to finished‑machine inspection. We sincerely welcome global customers to visit our factory and discuss cooperation.
