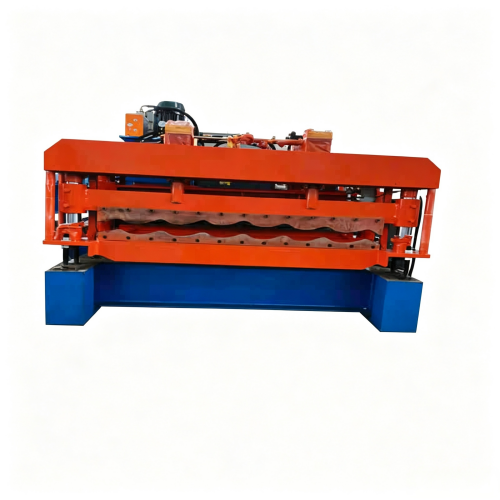

Glazed Tile Roll Forming Machine
This glazed tile roll forming machine belongs to Glazed Tile Roll Forming subcategory of Roof Panel Roll Forming Machine series, dedicated cold bending equipment for antique imitation glazed metal roof tiles. Finished tiles feature classical curved antique appearance imitating traditional clay glazed tiles, combining durable waterproof metal performance with vintage decorative effect, widely used for roof waterproof & decoration of villas, homestays, scenic ancient-style buildings, new rural houses and antique commercial shops.

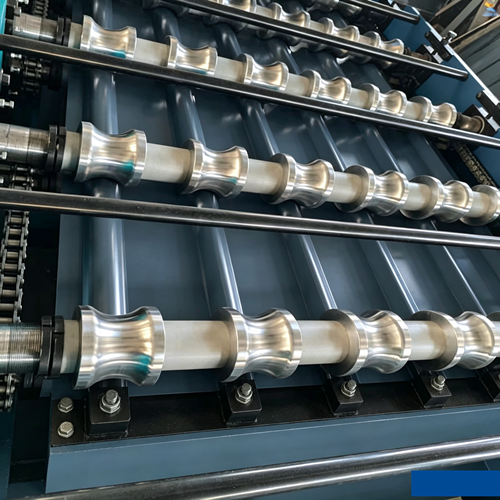

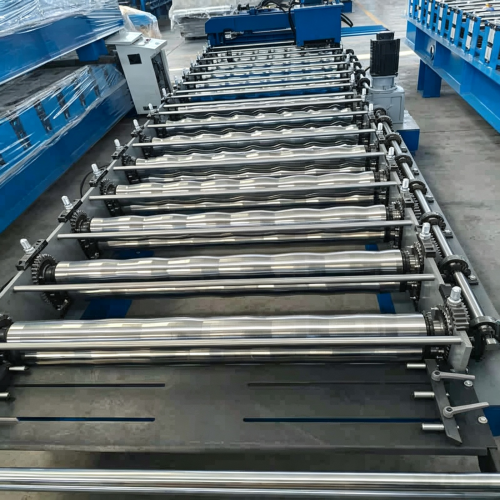

The machine base is integrally welded with thick channel steel and treated by high-temperature stress relief annealing to eliminate deformation stress, maintaining stable antique curve radius and effective coverage width without vibration during high-speed forming. All forming rollers are precision turned solid 45# carbon steel with full hard chrome plating after surface quenching for superior wear & rust resistance, processing color coated steel coils 0.3–0.8mm thick. Multi-group progressive antique wave bending roller stands form smooth vintage tile profiles in one single pass, scratch-free sheet surface without bending cracks. Tight interlock between adjacent tiles prevents rain leakage, antique pattern, rib height and sheet width fully customizable per client drawings.

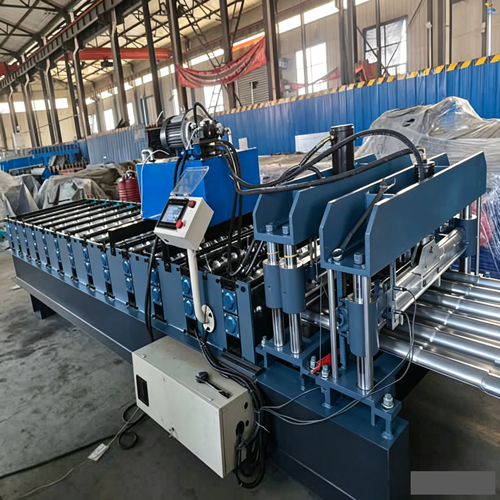

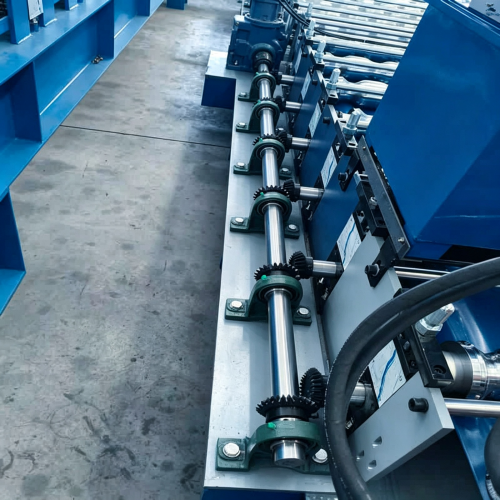

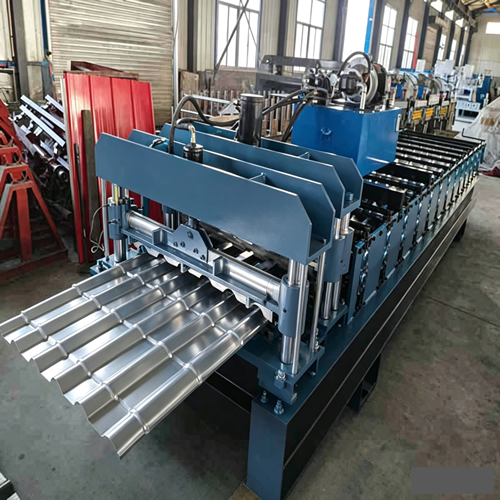

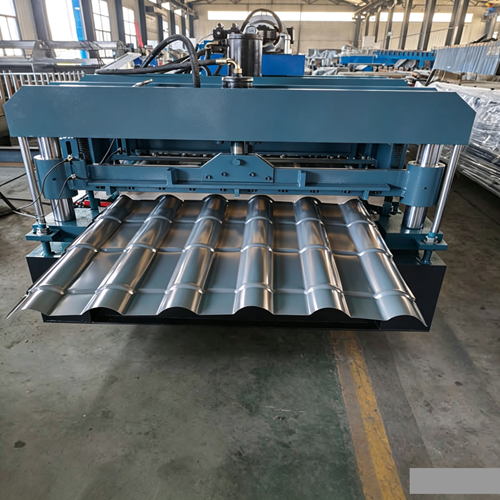

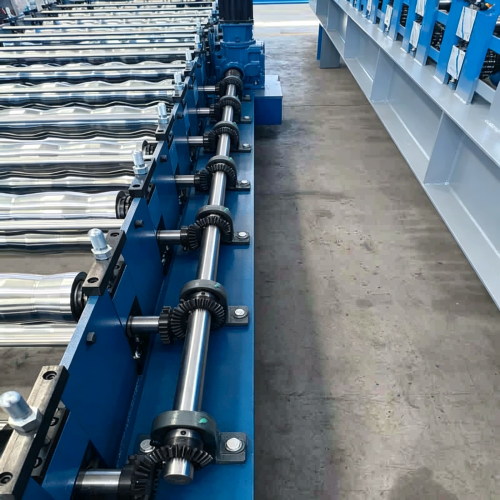

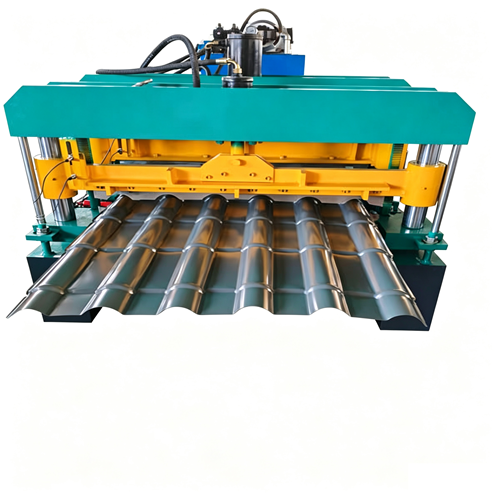

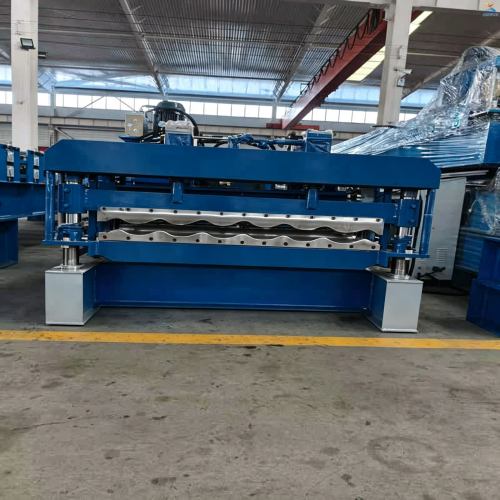

Equipped with variable frequency main motor and synchronous chain transmission, the machine operates smoothly with low noise, forming speed steplessly adjustable from 7 m/min to 20 m/min. Manual deviation correction bracket at feeding inlet easily centers steel strips to reduce edge waste. Integral hydraulic cutting unit at tail delivers clean burr-free cuts, finished fixed-length tolerance ≤±1mm. Suspended cantilever PLC touch screen control system stores multiple standard antique tile length programs, automatically completing feeding, vintage pattern roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop mass production.
Every antique glazed tile forming machine undergoes a 72-hour full-coil continuous endurance test before delivery to calibrate antique wave arc, sheet width and cutting tolerance. Complete spare forming rollers, cutting blades, hydraulic sealing parts and bilingual machine operation & maintenance manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customized for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This decorative antique glazed tile equipment receives bulk orders from cultural tourism and rural construction building material manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Glazed Tile Roll Forming Machine / Antique Metal Glazed Roof Tile Former |
| Category |
Roof Panel Roll Forming Machine > Glazed Tile Roll Forming |
| Processable Materials |
Color coated steel coil |
| Applicable Sheet Thickness |
0.3–0.8mm |
| Standard Forming Coverage Width |
800/828/1050mm (custom antique pattern size) |
| Roller Material |
45# carbon steel, precision turned + surface quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
20–26 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
7–20 m/min |
| Main Motor Power |
5.5kW |
| Cutting System |
Integral hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
Suspended cantilever full-automatic PLC touch screen control with multi-size tile recipes stored |
| Overall Dimension |
6600×1050×1300mm |
| Total Machine Weight |
2.3 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
