Hydraulic Arch Curving Machine for Curved Metal Roof Panels

The XINNUO Arch Curving Machine is designed to bend formed metal roof panels into controlled curved sections for arched roofing structures. The equipment supports the production of curved roofing components used where a conventional straight panel cannot provide the required roof geometry. By applying controlled forming pressure through a dedicated bending assembly, the machine helps convert a flat or previously formed metal panel into an arc suitable for curved roofs, agricultural buildings, industrial structures, warehouses, and other architectural applications.

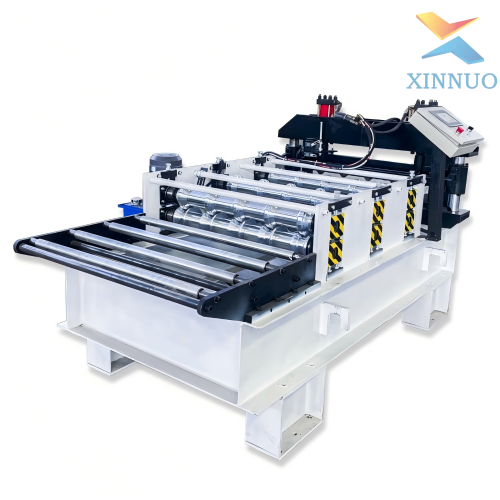

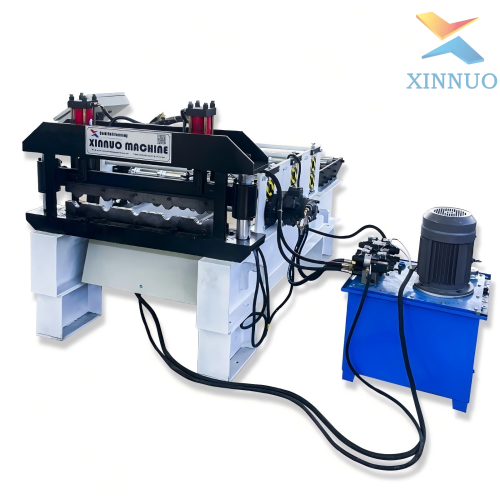

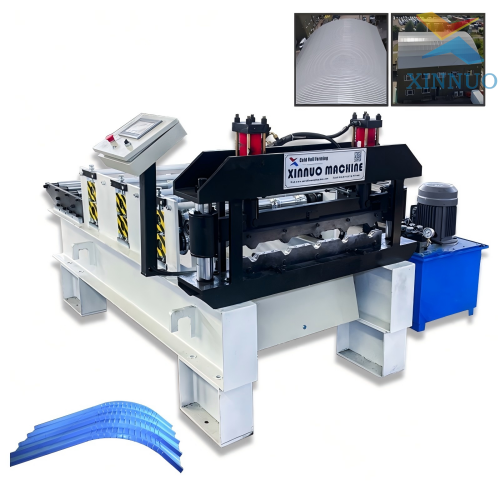

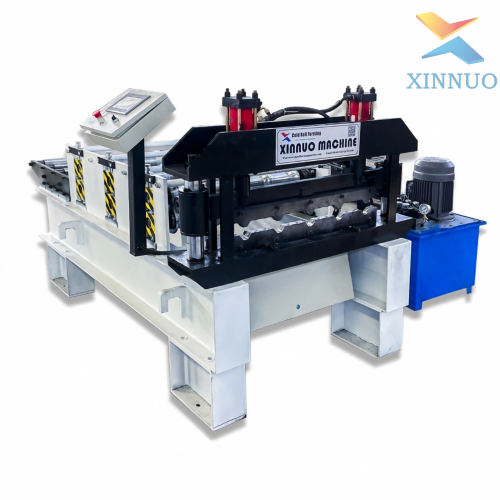

The supplied images show a compact industrial machine with a welded white frame, a black working assembly, multiple upper hydraulic cylinders, a roller-based bending section, a separate hydraulic power station, and an electrical control cabinet. The images also show examples of curved roofing panels and an arched building application. These visual features indicate an independent hydraulic arch-curving configuration rather than a complete in-line roof-panel roll former. The machine is therefore presented under the broad commercial name Arch Curving Machine while its technical description clearly identifies the independent hydraulic bending structure.

During operation, the operator positions a suitable formed metal panel in the working section. The panel is guided through the roller and support arrangement, while hydraulic pressure is applied in a controlled sequence to create the required curvature. The bending result depends on the panel profile, material grade, thickness, width, forming direction, and target radius. For this reason, the final profile drawing and production requirements must be reviewed before the roller arrangement, hydraulic configuration, and control parameters are approved. The process can be configured for different project requirements, but the exact working range must be confirmed for each order.

One important advantage of an independent arch-curving machine is its ability to extend the product range of a workshop that already produces straight roof panels. Instead of replacing the complete panel-forming line, the customer can add a dedicated bending process for curved roof applications. This can support customized building designs, arched warehouses, agricultural shelters, workshops, storage facilities, and other projects requiring continuous curved roofing. The machine can also help manufacturers organize curved-panel production separately from standard panel production, improving workflow planning and order flexibility.

The hydraulic power unit and upper cylinder arrangement provide the foundation for controlled bending force. The working rollers and support components must be matched to the selected panel profile to maintain stable contact during the bending operation. The control cabinet provides a centralized interface for operating the line, while the frame supports the working assemblies during repeated production. Exact hydraulic pressure, motor power, cylinder specification, roller dimensions, and control functions are not stated from the photographs and should be confirmed in the approved technical proposal.

XINNUO can support the configuration process by reviewing a panel drawing, sample, target radius, finished width, material thickness, and expected production method. Before manufacturing, the technical team should confirm whether the customer requires a standard curved panel, a special arc, a variable-radius solution, or a dedicated profile adaptation. The same review should define the feeding direction, working sequence, electrical standard, machine layout, and safety requirements. This engineering confirmation helps reduce the risk of selecting a bending system that does not match the customer’s panel geometry.

The Arch Curving Machine is suitable for metal roofing manufacturers, steel-structure contractors, building-material suppliers, prefabricated construction companies, and fabrication workshops. It is particularly relevant for customers who need curved roof panels but want a dedicated hydraulic solution rather than a full in-line forming and arching line. By combining a stable frame, guided working section, hydraulic power, and centralized control, the machine provides a practical platform for expanding curved-roof production. Final performance depends on the confirmed profile, material, tooling, and operating parameters.

XINNUO provides technical support for installation, commissioning, operation, maintenance, and spare-part identification according to the contracted configuration. The final commercial and technical documents should specify the machine model, compatible panel profile, working width, material range, bending radius, hydraulic system, electrical standard, dimensions, weight, warranty, and spare-parts package. Share your roof panel drawing or project requirements with XINNUO to receive a confirmed configuration and technical quotation.
