Meter Bending Machine
Meter Bending Machine Meter Bending Machine Meter Bending Machine Meter Bending Machine Meter Bending Machine

Meter Bending Machine

Profile :

Delivery time:50-60 days

Payment:30% T/T deposit,70% balance before shipping

Voltage:380V 50HZ 3Phase or based on customer’s need

Warranty:2 years for machinery warranty

Whatsapp: +86 18832797029

e-mail: yuankuoduan@gmail.com

Product Description

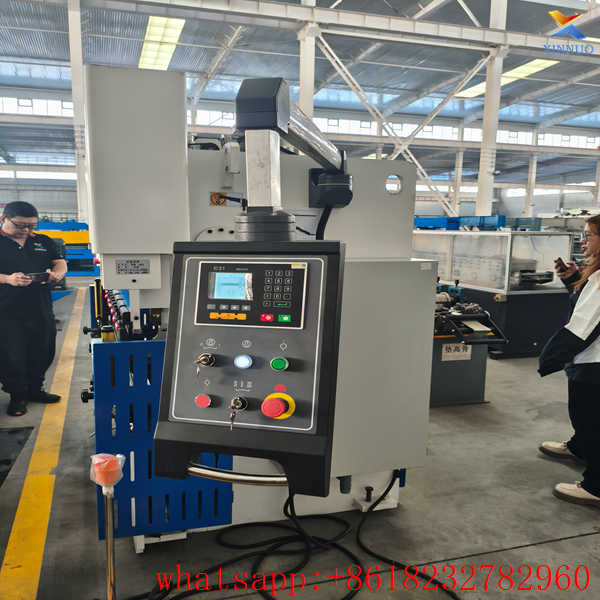

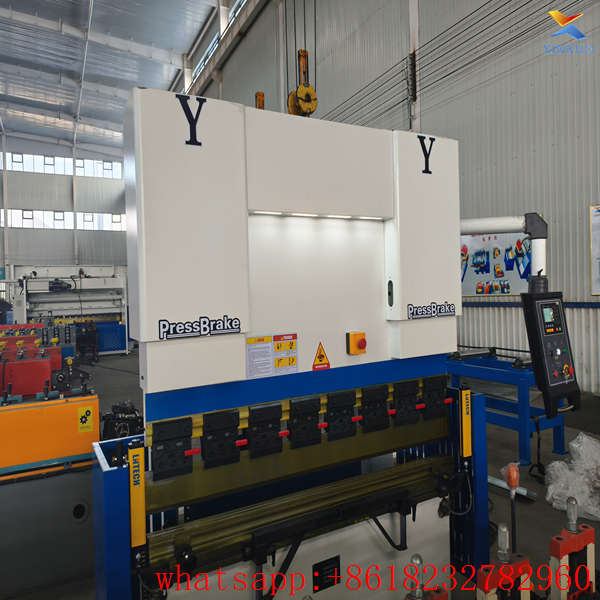

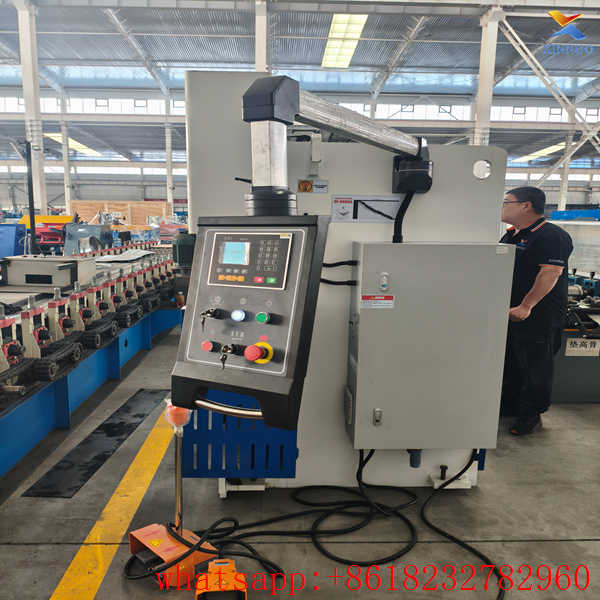

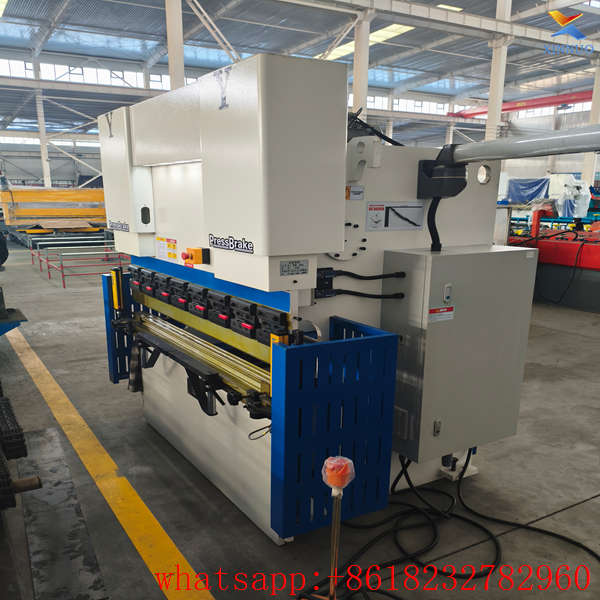

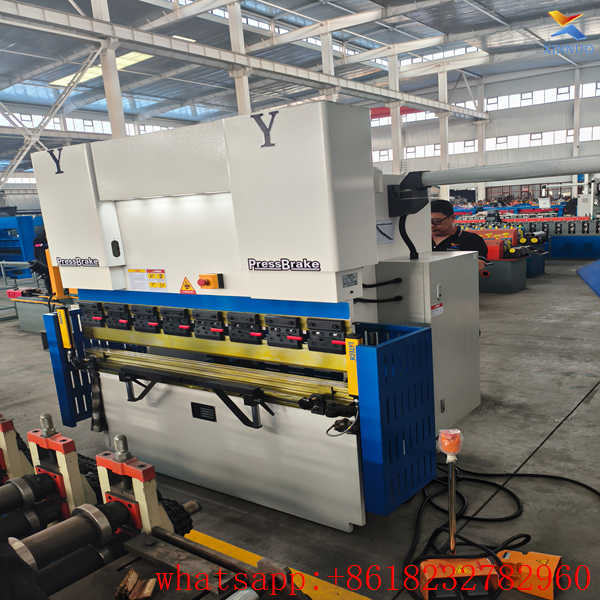

1.6-Meter Bending Machine photos:







1.6-Meter Bending Machine Packing&Shipping :

– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

– 2.This producing line is maintained free of charge for 12months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for

exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.



About us -HEBEI XINNUO

We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !



This machine is classified under Sheet Metal Bending Machine category, a CNC hydraulic press brake dedicated to deep processing of metal sheets. It is widely matched with color steel roll forming lines, light steel keel factories, steel structure workshops, door & window and metal decoration factories. It can bend galvanized sheet, color steel, carbon steel, stainless steel and aluminum sheet into various precise angles, used for gutters, fascia trim, edge flashing, light keels, cabinets and door frames.
The machine frame is integrally welded with thick steel plates and treated by high-temperature stress relief annealing to remove internal welding stress, so it will not deform under long-term heavy bending work, featuring high rigidity and stable straight bending lines. Equipped with dual synchronous hydraulic cylinders and balance valve to distribute even pressing force on both sides, sheets won’t shift or twist during bending. Standard quenched & tempered bending dies with high hardness and wear resistance are supplied, and custom non-standard dies are available for special workpieces. The CNC system stores multiple bending programs, enabling one-click parameter recall for mass production without repeated setting.
Servo 3-axis back gauge with adjustable front-back, up-down and left-right movement delivers positioning accuracy within 0.05mm to minimize dimensional error. Slide pressing force and stroke are digitally adjustable: low pressure prevents scratches on thin sheets while high pressure fully shapes thick metal plates. Side safety guardrails, infrared light curtain and foot switch form a complete safety protection system. Bending length and machine tonnage can be customized, common sizes cover 1600/2500/3200/4000mm, tonnage from 40T to 200T, meeting production demands of small, medium and large factories.



Every bending machine passes full-load endurance bending test and precision calibration before delivery. Reliable brand hydraulic valves and CNC controllers greatly reduce failure rate. Standard bending dies, maintenance tools and bilingual operation manuals are included as standard accessories. Xinnuo offers a 2-year full machine warranty. Remote CNC programming guidance and long-term original spare parts supply are available for overseas buyers. This high-precision and durable bending machine is well recognized by sheet metal and building material manufacturers worldwide.
