roof sheet bending machine
Manufacturer: Hebei Xinnuo Roll Forming Machinery Co., Ltd.

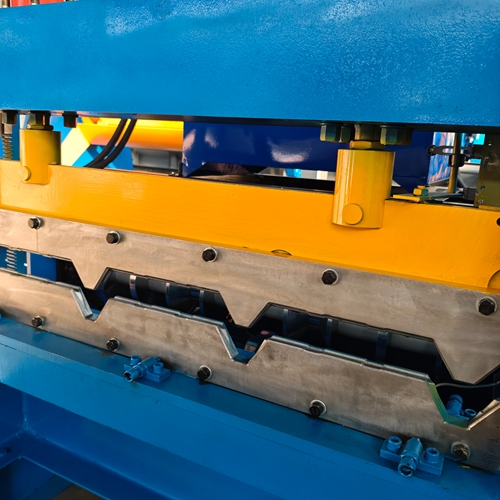

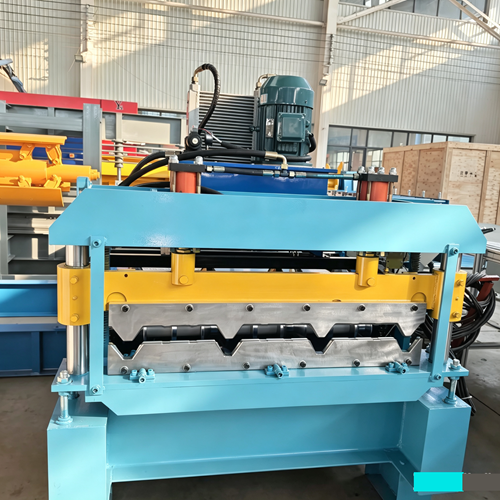

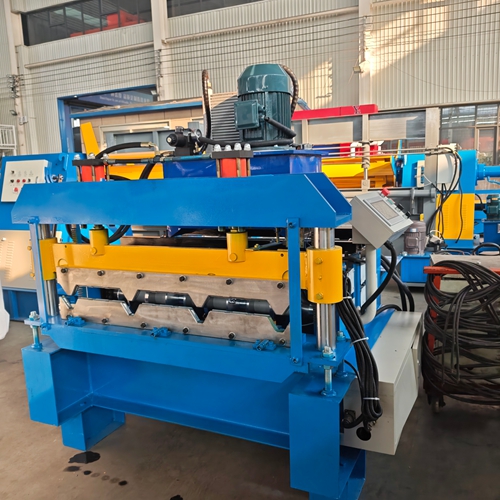

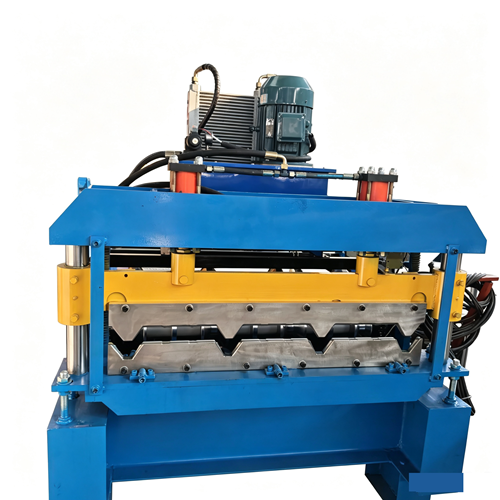

The roof sheet crimping machine, also widely known as roof sheet bending machine or color steel arch bending machine, is a special hydraulic auxiliary equipment designed for arch processing of prefabricated trapezoidal metal roof panels. After the trapezoidal roof panel roll forming machine produces straight metal roof sheets, this crimping equipment can bend flat roof sheets into curved arch sheets efficiently. The finished arched panels are extensively applied in arched steel structure workshops, storage barns, livestock breeding houses, temporary arched canopies and large-span agricultural buildings.

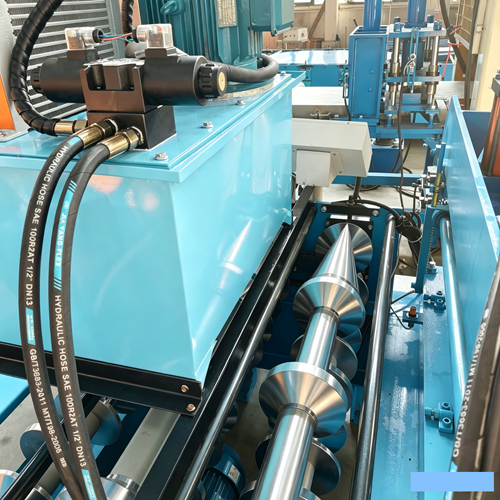

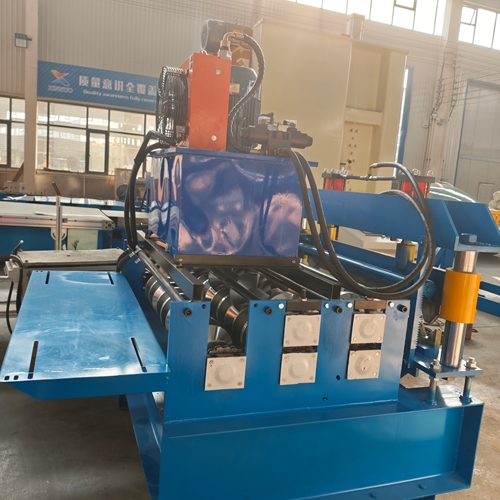

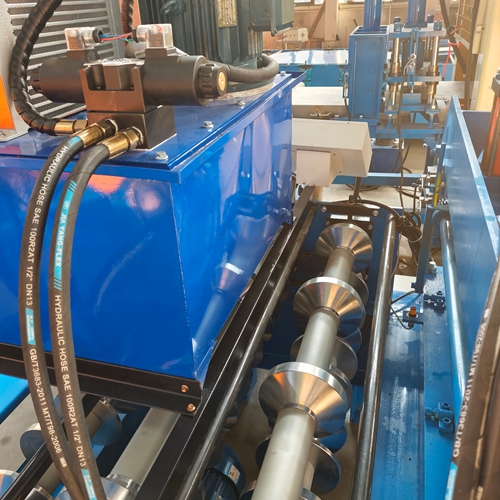

Our roof sheet crimping machine adopts fully hydraulic driving system and four-column vertical guiding structure. The hydraulic power unit provides stable extrusion force to guarantee uniform bending radian along the whole sheet length. Customers can freely adjust the arch radian according to project requirements without secondary cutting or surface damage on the color steel sheet coating. The whole machine is equipped with an independent cooling system for the hydraulic station, effectively preventing hydraulic oil overheating during long-time continuous operation, which extends the service life of hydraulic components.

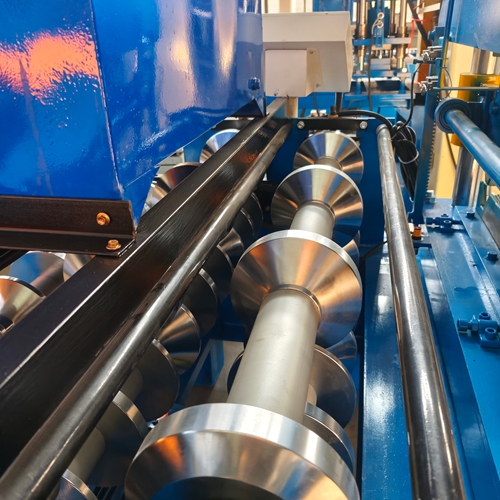

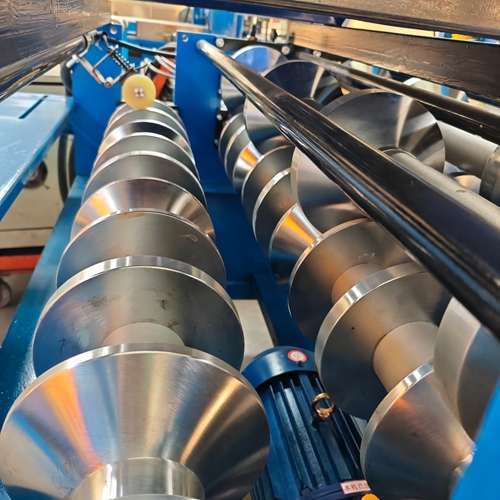

The control system adopts mature PLC automatic control with digital parameter setting. Operators only need to set target radian data on the touch screen, and the machine will complete automatic positioning and bending circulation. The operation threshold is low, and workers can master operating procedures within short training time. All roller dies are processed by CNC lathe with quenching treatment, featuring high surface hardness, anti-wear performance and long service cycle.
All steel structural parts of the machine are treated by sand blasting before painting to enhance paint adhesion and achieve strong rust resistance in humid factory or outdoor environment. We support customized working width, maximum bending thickness and hydraulic pressure parameters to match different specifications of trapezoidal roof sheets such as 840 type, 900 type and other mainstream roof panels.
Compared with traditional manual bending tools, our hydraulic crimping machine greatly improves production efficiency. The operating speed reaches 12–18 meters per minute, and the bending precision error can be controlled within ±1.5mm. Stable processing quality effectively reduces material waste caused by uneven radian.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. focuses on developing and manufacturing all kinds of metal cold roll forming equipment. Every set of machine will pass strict running test before delivery to eliminate hidden mechanical faults. We provide 2-year global warranty for the whole machine, lifelong technical consultation and spare parts supply service. Our professional engineering team can offer remote technical guidance and on-site installation training as required.
Delivery cycle of roof sheet crimping machine is 50–60 working days after receiving customer deposit. Our standard payment term is 30% T/T deposit, 70% balance settled before shipment. The standard voltage configuration is 380V, 50Hz, 3 phases. We support customized voltage standards adapting to markets in Southeast Asia, Africa, South America and Europe. If you have personalized arch bending demands for metal roof panels, welcome to contact us for technical scheme and factory quotation.
| Item |
Specification |
| Applicable sheet |
Trapezoidal color steel roof panel (840,900 model) |
| Working speed |
12–18 m/min |
| Driving mode |
Hydraulic drive |
| Control system |
PLC + Touch screen |
| Main motor power |
4 kw |
| Bending precision |
±1.5 mm |
| Voltage |
380V 50Hz 3Phase (customizable) |
| Warranty period |
2 years |
| Delivery time |
50–60 working days |
| Payment term |
30% T/T deposit,70% balance before shipment |
