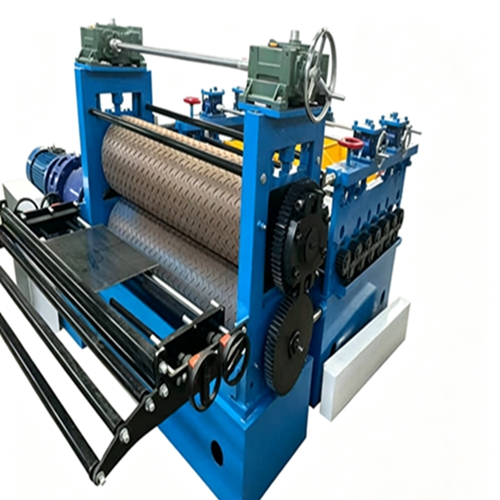

Roll Embossing Machine

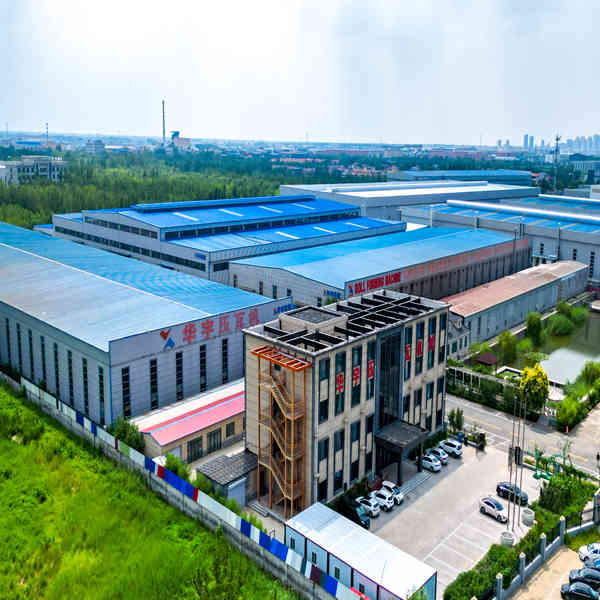

About us -HEBEI XINNUO
We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !
This roll embossing machine is categorized under Embossing Machine, dedicated surface embossing equipment for carbon steel, galvanized, aluminum and thin stainless steel sheets. It presses anti-slip diamond pattern, orange peel pattern, cobblestone pattern and other textures onto metal surfaces. Embossed sheets feature excellent anti-slip performance and decorative effect, widely used for stair treads, factory anti-slip floor, equipment platform, truck chassis, security doors and decorative curtain walls. It can form a full automatic production line matched with slitter, leveler and cutting machine for anti-slip plate manufacturing.

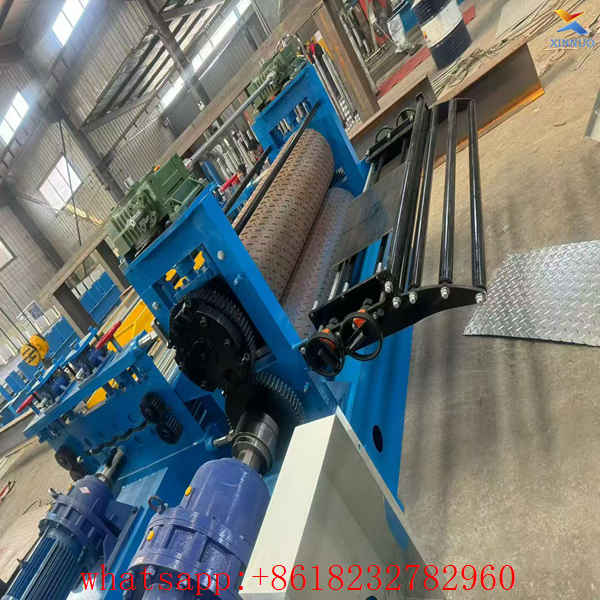

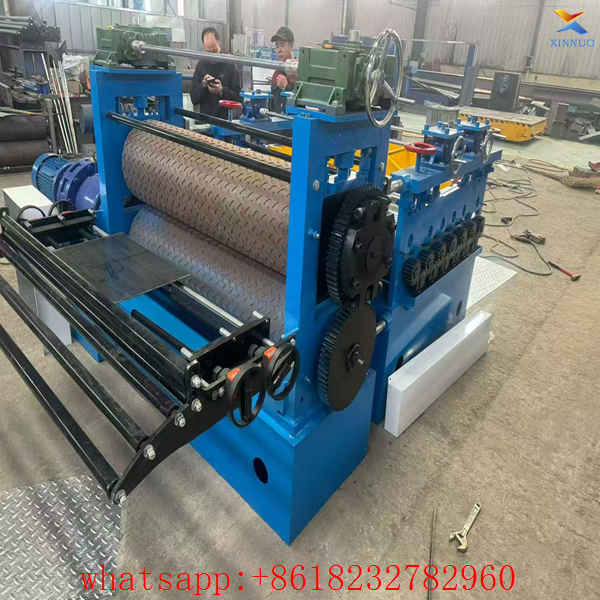

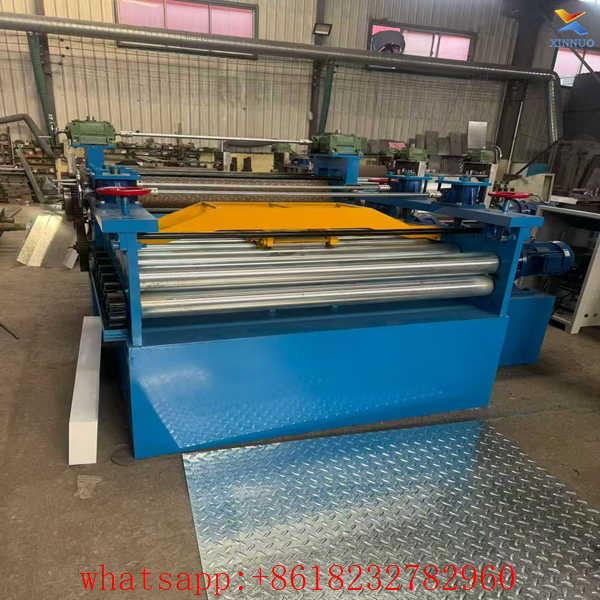

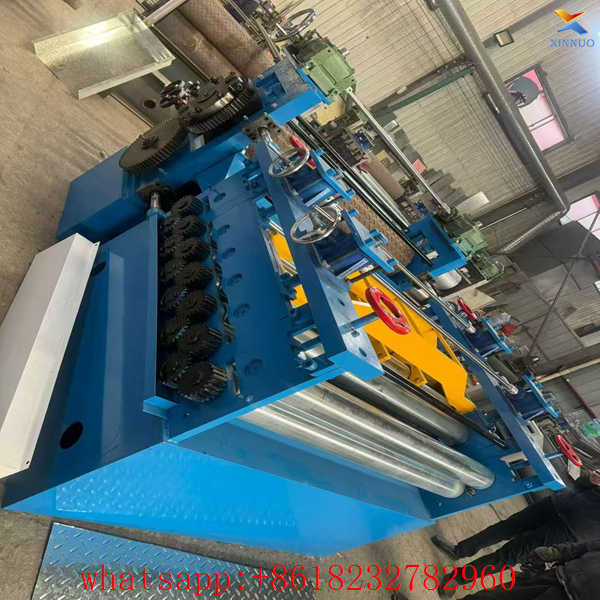

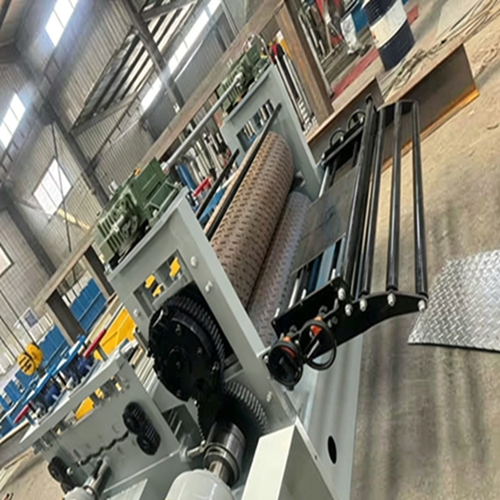

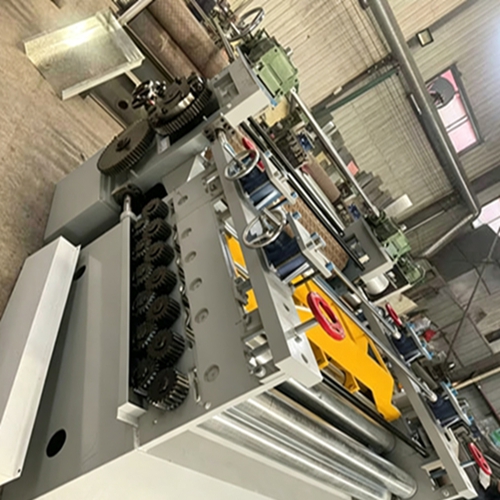

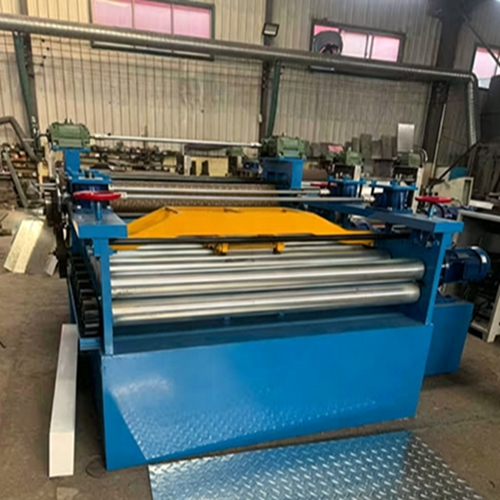

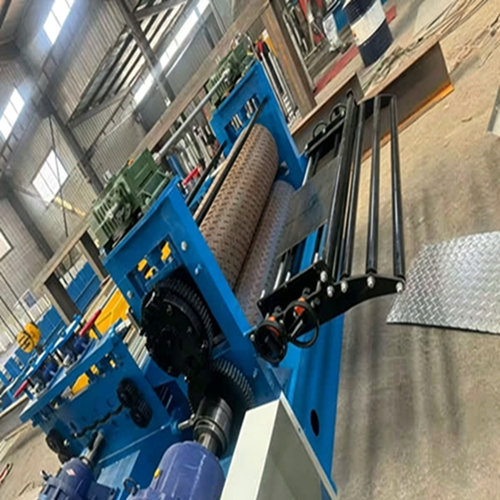

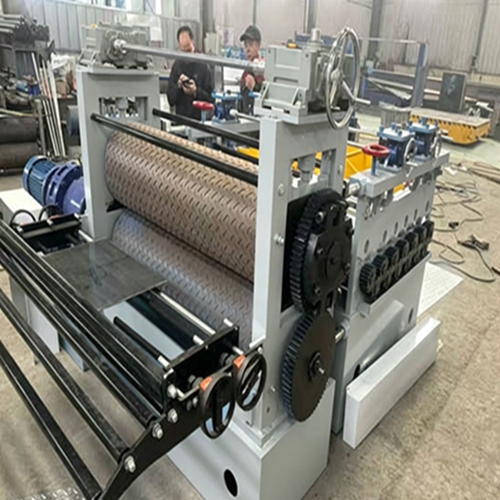

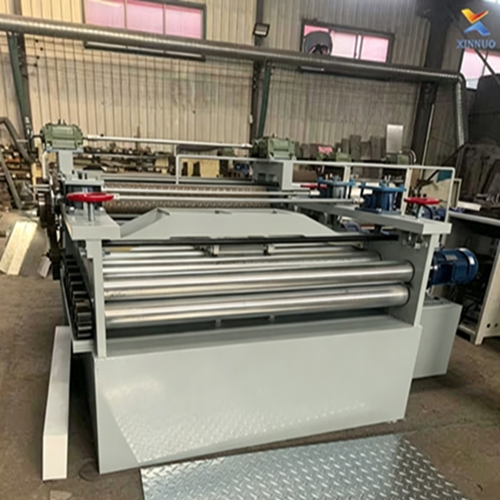

The machine frame is integrally welded with thick steel plates and stress-relieved after welding, maintaining stable rigidity without deformation under long-time heavy embossing work. A pair of upper & lower embossing rollers are integrally forged from 40Cr alloy steel with CNC engraved patterns, quenched and precision ground for high hardness, long-lasting clear texture and strong wear resistance. Roller gap is electrically adjustable to fit metal sheets from 0.3mm to 3.0mm thick, feeding width customizable at 1000/1250mm. Multi-group leveling rollers installed in front straighten warped sheets before embossing to ensure uniform pattern depth and flat finished surface.

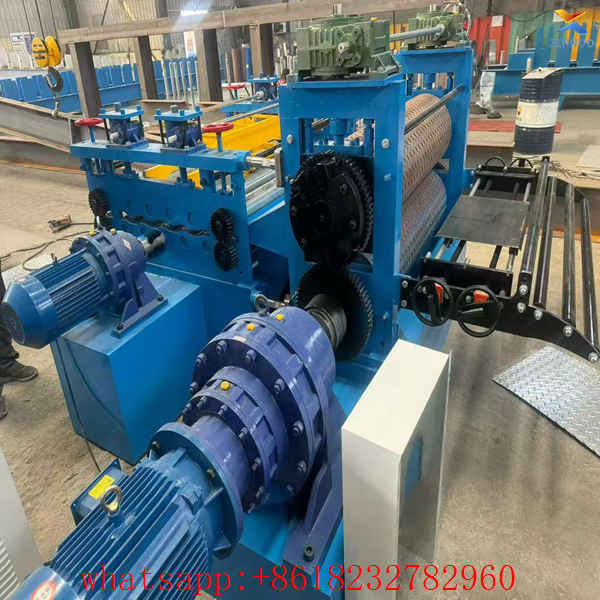

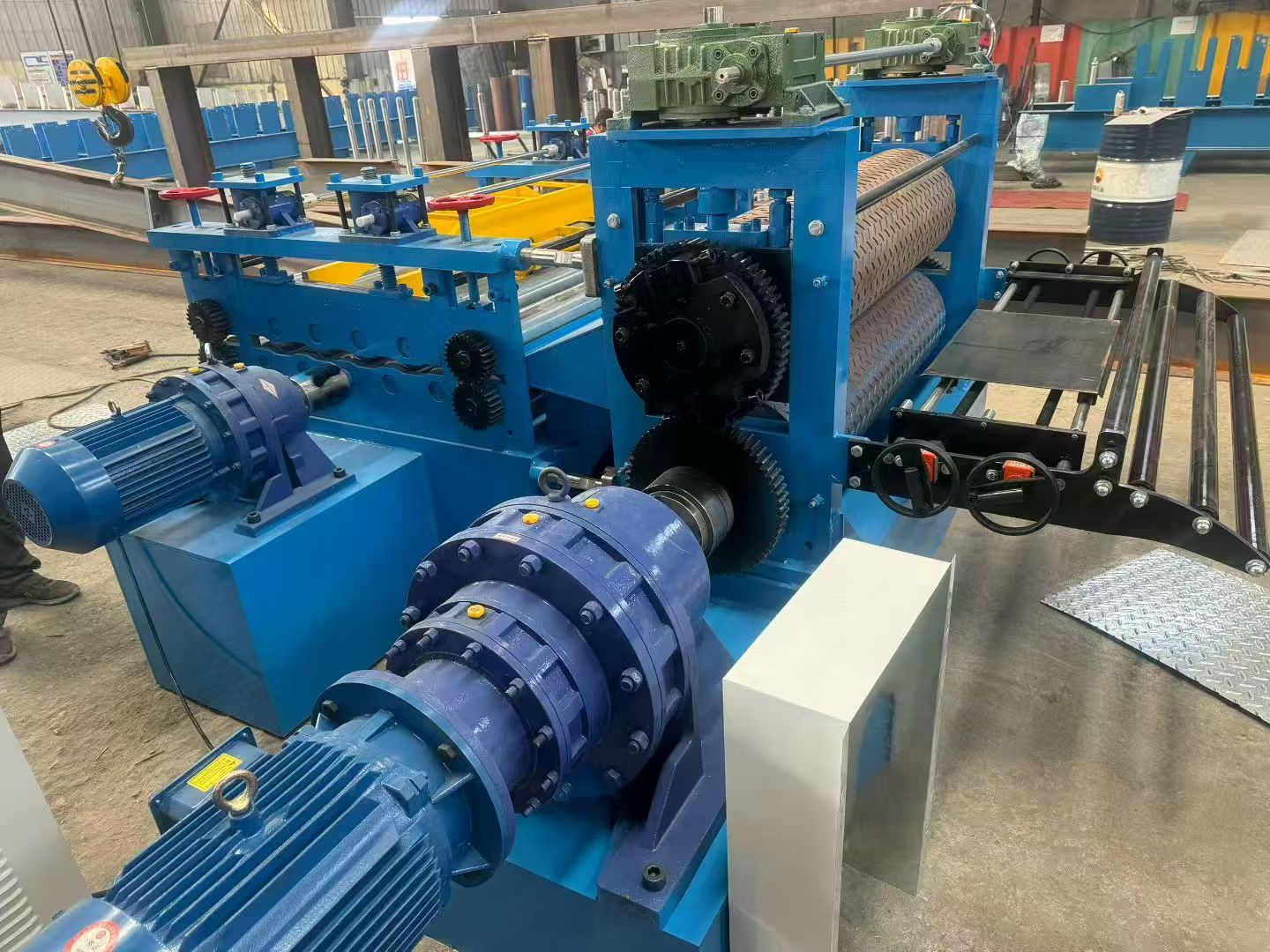

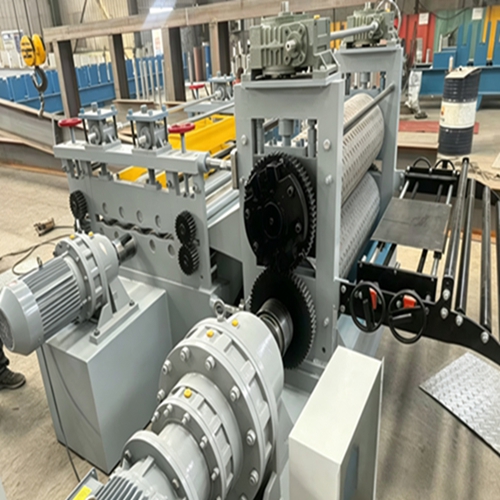

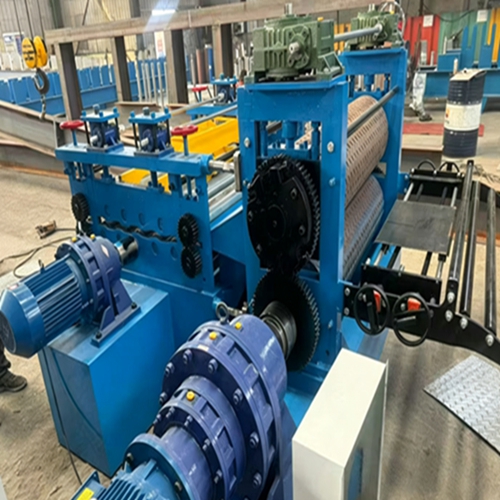

Equipped with variable frequency drive and heavy-duty synchronous gear transmission, the machine runs smoothly, embossing speed steplessly adjustable from 4 m/min to 18 m/min. Bidirectional hydraulic pressing unit firmly clamps sheets to avoid offset and wrinkling during embossing. Simple PLC electric control panel with intuitive operation supports synchronous start-stop with front leveling and rear cutting machines for continuous automatic embossing production. Compact body design saves workshop space and is convenient for sea container shipment, ideal for small & medium sheet metal and building material factories.
Every metal embossing machine passes full-coil embossing endurance test before delivery, wear-resistant original embossing rollers and hydraulic seals are standard configuration. Complete spare embossing rollers, adjusting tools and bilingual operation manuals are included in delivery package. Xinnuo offers a 2-year full machine warranty, remote installation & debugging guidance available for overseas buyers. This cost-effective anti-slip plate embossing machine gains wide recognition from global metal sheet supporting manufacturers.

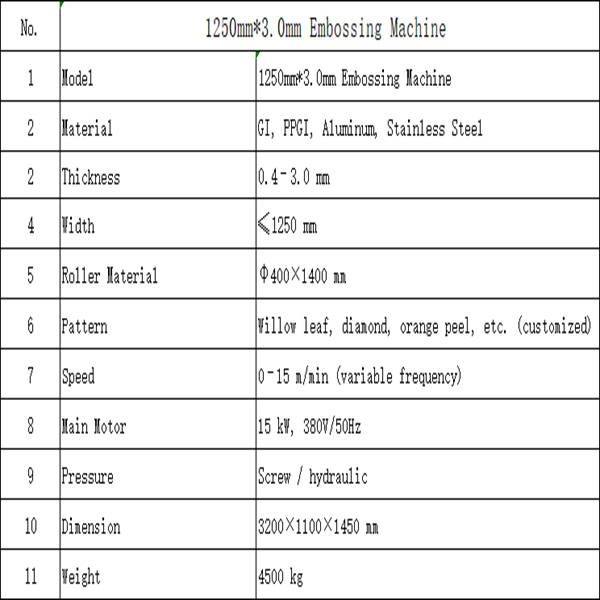

| Parameter Item |
Specification |
| Model Name |
Roll Embossing Machine / Metal Sheet Embossing Machine |
| Category |
Embossing Machine |
| Processable Materials |
Carbon steel, galvanized coil, aluminum sheet, thin stainless steel |
| Applicable Sheet Thickness |
0.3–3.0mm |
| Max Feeding Width |
1000/1250mm (customizable) |
| Embossing Roller Material |
40Cr alloy steel, CNC engraved pattern, quenched wear-resistant treatment |
| Optional Pattern |
Diamond anti-slip, orange peel, cobblestone and customizable textures |
| Flattening System |
Front multi-group leveling rollers to eliminate sheet warp |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Embossing Running Speed |
4–18 m/min |
| Main Motor Power |
7.5–11kW (selected by coil width) |
| Pressing System |
Bidirectional hydraulic pressing to prevent offset & wrinkling |
| Control System |
Simple PLC interlock electric control |
| Overall Dimension |
3600×1450×1400mm (varies by coil width) |
| Total Machine Weight |
3.2–4.5 Tons |
| Warranty Period |
2 years for complete machine |
