Edge Folding Machine
This edge folding machine falls under Customized Roll Forming Machine category, non-standard customized cold bending equipment for metal edge trim and wrapping profiles. It is widely used to produce color steel window & door frame edges, container guard edges, fence edge caps, door frames and decorative trim strips. The machine forms multi-layer interlocking folded edges in one continuous pass for galvanized and color coated sheets, finished trims used for sheet joint sealing, waterproof edge closing and decorative protection, cross-section fully customizable per clients’ architectural hardware drawings.

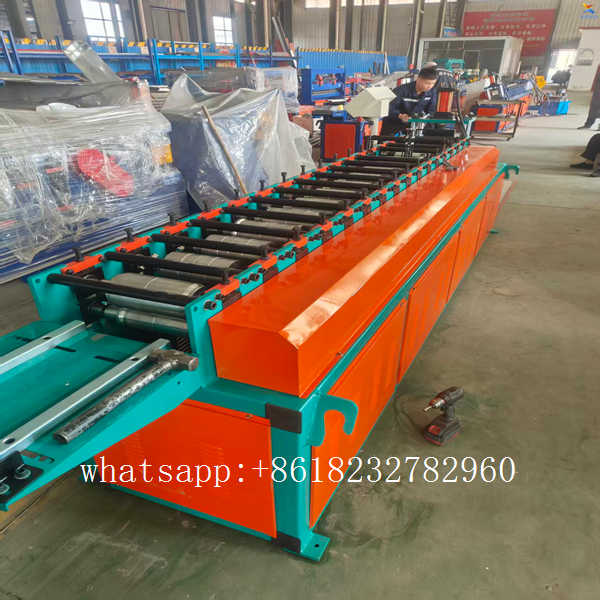

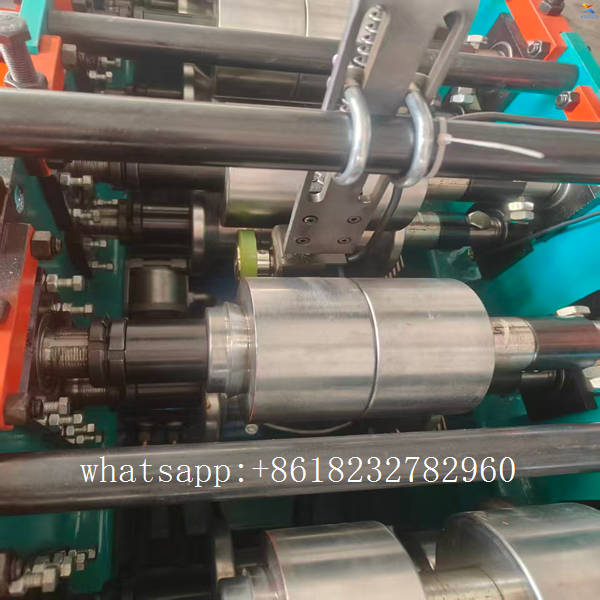

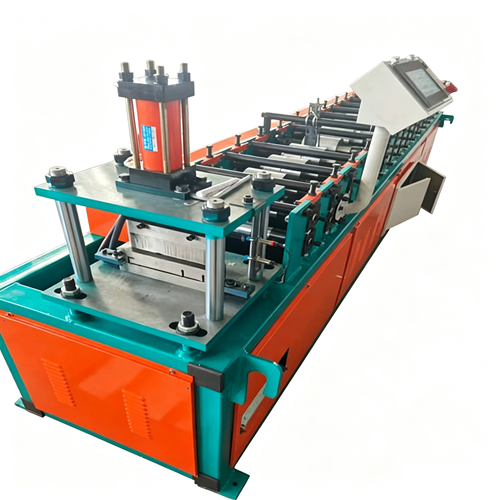

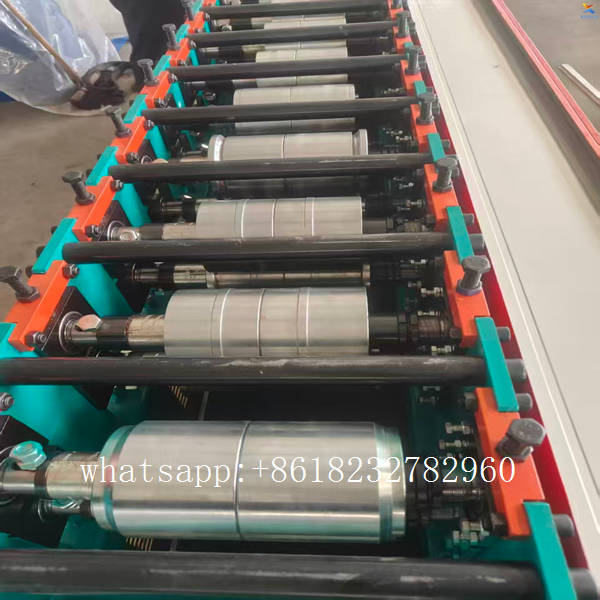

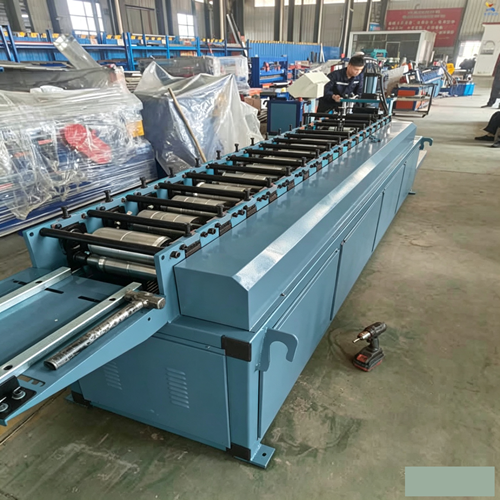

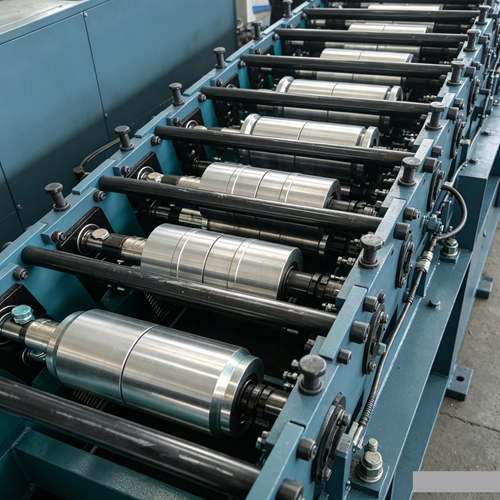

The machine frame is integrally welded with channel steel and stress-relieved by annealing after welding to eliminate deformation stress. Multi-pass progressive roller bending delivers consistent folding angle without spring-back, folding layer count, height and interlock groove size digitally adjustable. All forming rollers are precision turned from 45# steel with hard chrome plating after surface quenching for superior wear and rust resistance, processing color coated, cold rolled and galvanized strips 0.4–0.9mm thick. The line integrates feeding, multi-stage edge bending, top hydraulic punching and tail fixed-length cutting, completing all edge profiles in one feeding stroke, scratch-free sheet surface with uniform folding gaps and tight interlock for reliable waterproof performance.

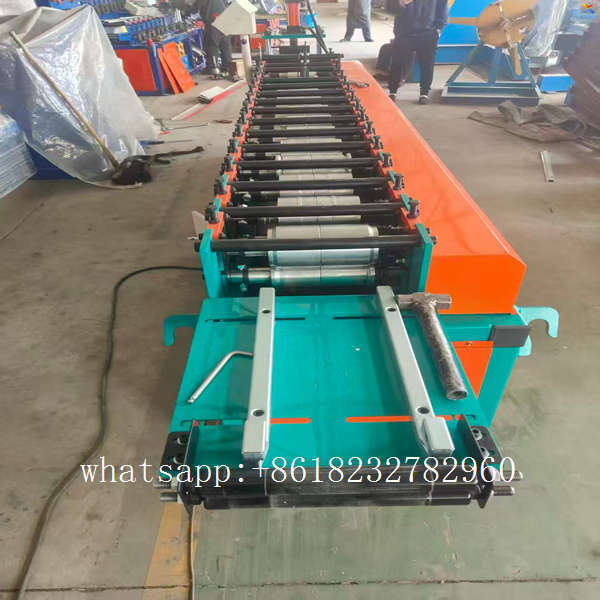

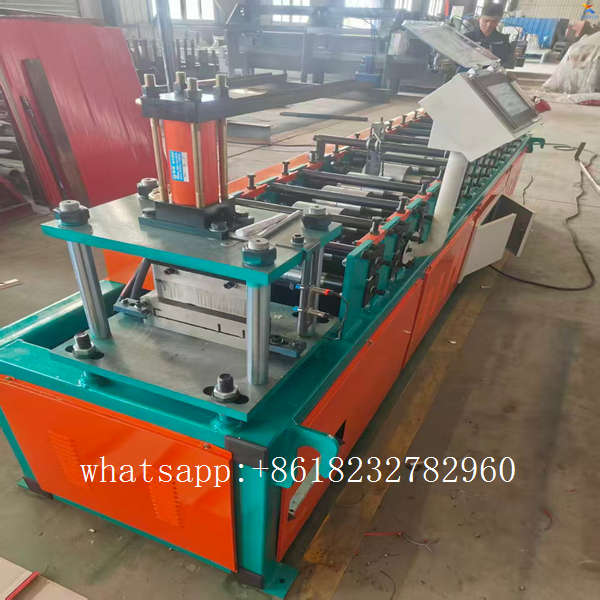

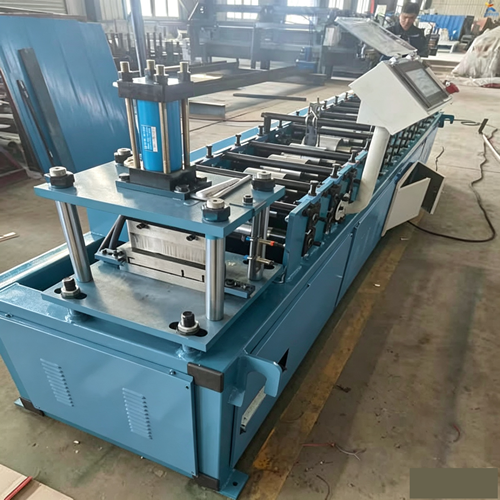

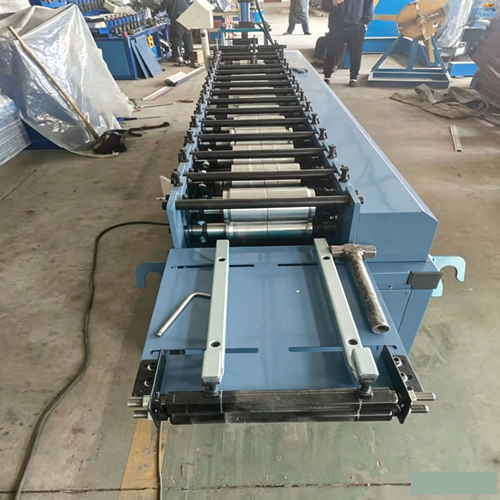

Equipped with variable frequency synchronous chain transmission, the machine runs smoothly with low noise, forming speed steplessly adjustable from 7 m/min to 19 m/min. Manual deviation corrector at feeding inlet easily centers steel strips to reduce edge waste. Independent top hydraulic punching station drills mounting holes on demand, vertical hydraulic cutting unit at tail produces clean burr-free cuts, finished length tolerance ≤±1mm. Compact PLC touch screen control system stores multiple sets of edge trim parameter recipes, automatically completing feeding, edge roll forming, punching, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop mass production.
Every edge folding trim former undergoes a 72-hour full-coil endurance test before delivery to calibrate folding angle, cross-section dimension and cutting tolerance. Matching forming rollers, punching dies, cutting blades, hydraulic sealing parts and bilingual operation manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customization available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This custom edge trim roll forming machine receives consistent supporting orders from door & window, container and fence material manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Edge Folding Machine / Custom Metal Edge Trim Roll Forming Machine |
| Category |
Customized Roll Forming Machine |
| Processable Materials |
Color coated steel coil, cold rolled strip, thin galvanized sheet |
| Applicable Sheet Thickness |
0.4–0.9mm |
| Finished Profiles |
Door & window wrapping edge, container guard trim, roof edge cap, fence decorative strip (custom cross-section) |
| Roller Material |
45# carbon steel, precision turned + quenched hard chrome plating wear-resistant treatment |
| Integrated Functions |
Multi-pass edge folding + optional hydraulic punching + hydraulic cutting all-in-one |
| Number of Forming Stands |
16–22 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
7–19 m/min |
| Main Motor Power |
4kW |
| Optional Punching |
Independent top hydraulic synchronous punching station |
| Cutting System |
Vertical hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
Compact PLC touch screen full-automatic NC with multiple trim recipes stored |
| Overall Dimension |
5900×920×1180mm |
| Total Machine Weight |
1.7 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
