Heavy Knurling Machine

Profile :

Delivery time:50-60 days

Payment:30% T/T deposit,70% balance before shipping

Voltage:380V 50HZ 3Phase or based on customer’s need

Warranty:2 years for machinery warranty

Whatsapp: +86 18832797029

e-mail: yuankuoduan@gmail.com

Product Description

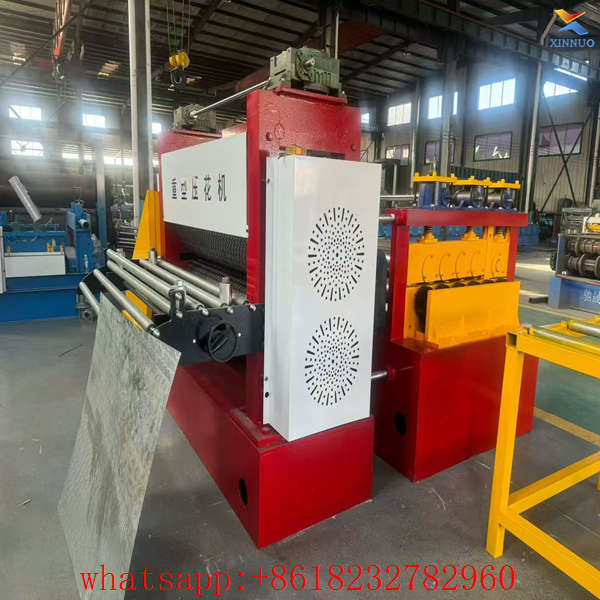

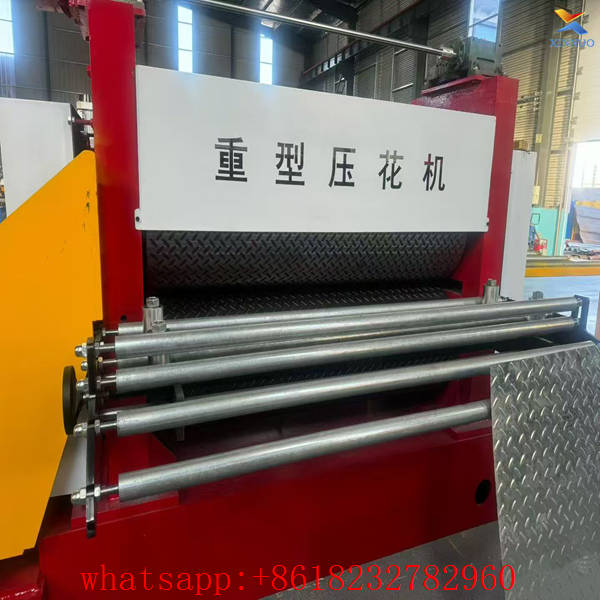

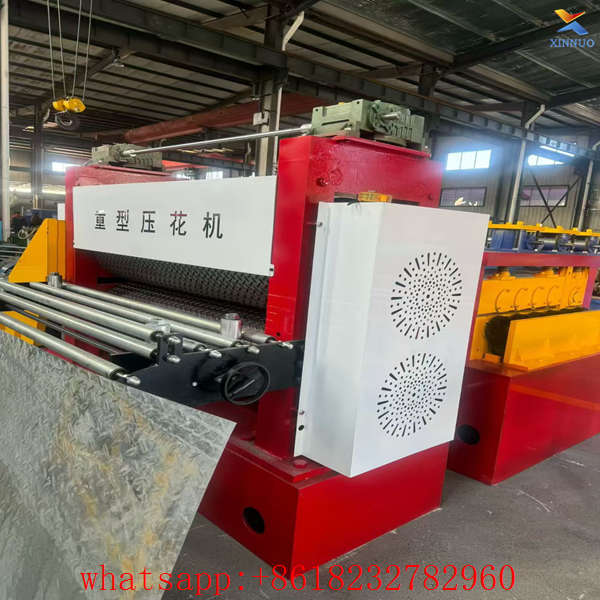

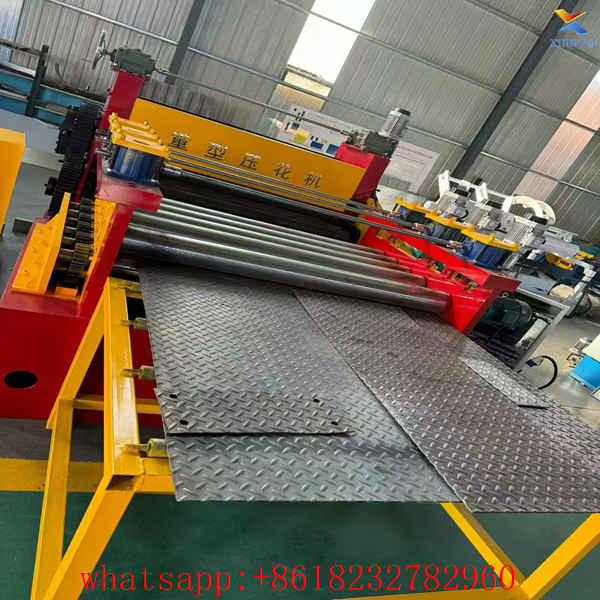

Heavy Knurling Machine Photos:

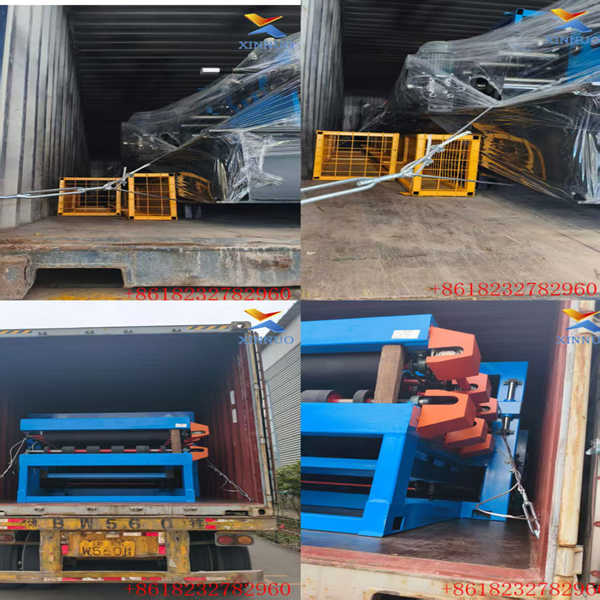

Embossing Machine Packing&Shipping :

– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

– 2.This producing line is maintained free of charge for 12months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for

exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

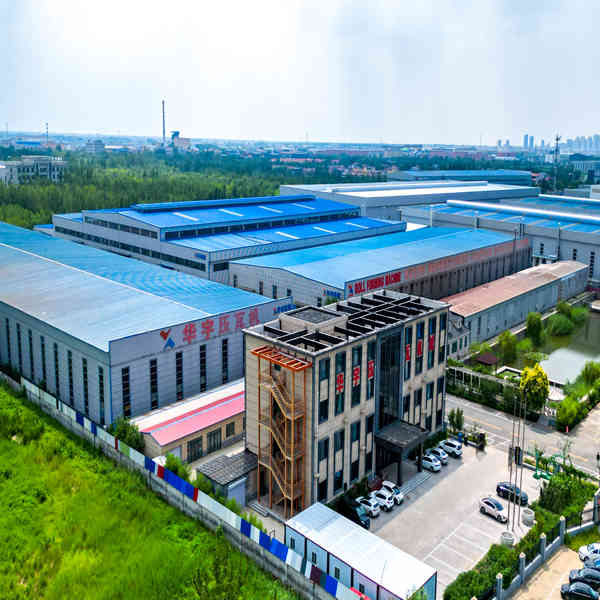

About us -HEBEI XINNUO

We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !

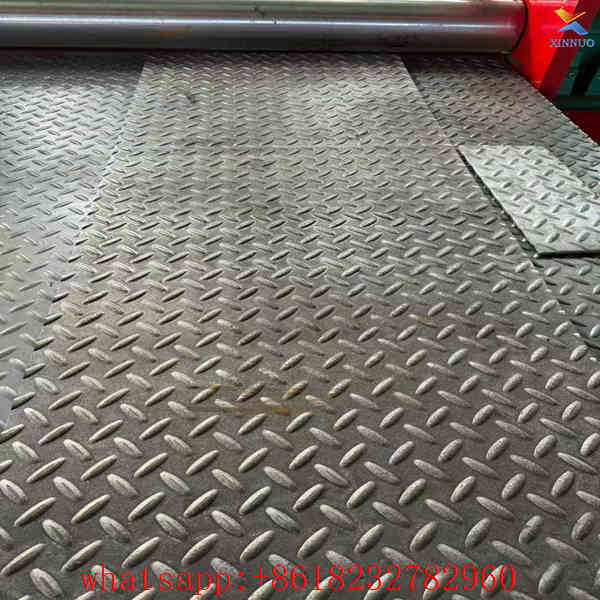

This heavy knurling machine is classified under Embossing Machine, heavy-duty metal sheet embossing equipment specially designed for thick anti-slip plate processing. It rolls diamond anti-slip patterns, orange peel textures and other concave-convex grains on carbon steel, galvanized, aluminum and stainless steel sheets. Embossed plates feature superior wear resistance, anti-slip performance and strong load capacity, widely applied for heavy factory anti-slip platforms, truck chassis floors, steel stair treads, construction machinery pedals and industrial security door panels. It can form full automatic anti-slip plate production line matched with uncoiler, leveler and cutting machine.

The machine frame is integrally welded with extra thick heavy steel plates and stress-relieved by high-temperature annealing after welding, capable of long-term heavy-load embossing for thick sheets without frame deformation or unstable operation. Upper and lower main embossing rollers are integrally forged from 40Cr alloy steel, with CNC engraved anti-slip patterns, deep quenching and precision grinding treatment for high hardness, clear long-lasting textures and strong wear resistance. Roller gap is electrically and accurately adjustable to fit medium & thick metal sheets from 0.5mm to 4.0mm thick, standard feeding width 1000/1250mm, custom patterns available per clients’ drawings. Multiple front & rear leveling support rollers hold and straighten sheets during feeding & discharging to eliminate warp and wrinkle of thick plates, ensuring uniform pattern depth.

Equipped with high-power variable frequency main motor and heavy herringbone gear synchronous transmission system, the machine delivers large torque for high-strength embossing of thick sheets, running speed steplessly adjustable from 3 m/min to 15 m/min. Dual-side hydraulic clamping mechanism holds steel strips fully to avoid offset and wrinkling during processing. Independent PLC numerical control cabinet with intuitive operation supports synchronous start-stop with upstream and downstream equipment for continuous unattended automatic embossing production. Solid load-bearing structure enables 24-hour non-stop heavy production, ideal for mass processing in large sheet metal factories.

Every heavy knurling machine undergoes a 72-hour thick-coil heavy-load endurance test before delivery to calibrate roller gap parallelism and pattern forming precision. Spare embossing rollers, hydraulic sealing parts and bilingual operation manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty, local voltage customization service available for all countries. Remote installation debugging and on-site operation training by professional engineers are accessible for overseas buyers. This heavy-duty durable embossing machine gains consistent recognition from global industrial sheet metal manufacturers.

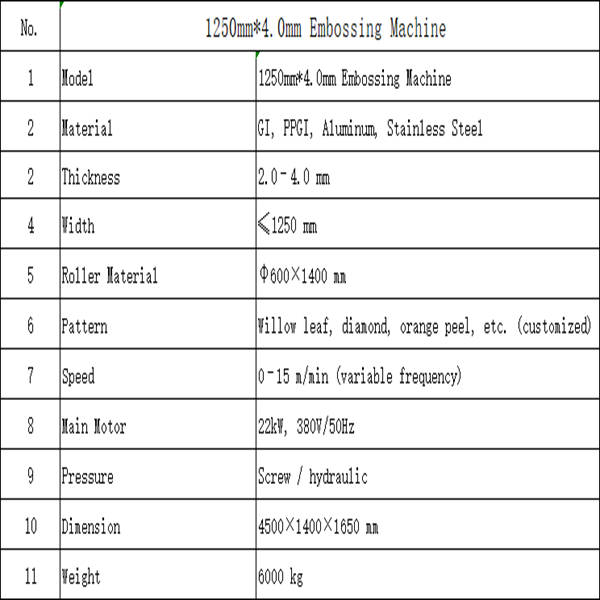

Parameter Item	Specification
Model Name	Heavy Knurling Machine / Heavy Duty Metal Sheet Embossing Machine
Category	Embossing Machine
Processable Materials	Carbon steel, galvanized coil, aluminum sheet, medium & thick stainless steel
Applicable Sheet Thickness	0.5–4.0mm
Standard Feeding Width	1000/1250mm (custom wider size available)
Embossing Roller Material	Integrally forged 40Cr alloy steel, CNC carved pattern, deep quenching wear-resistant treatment

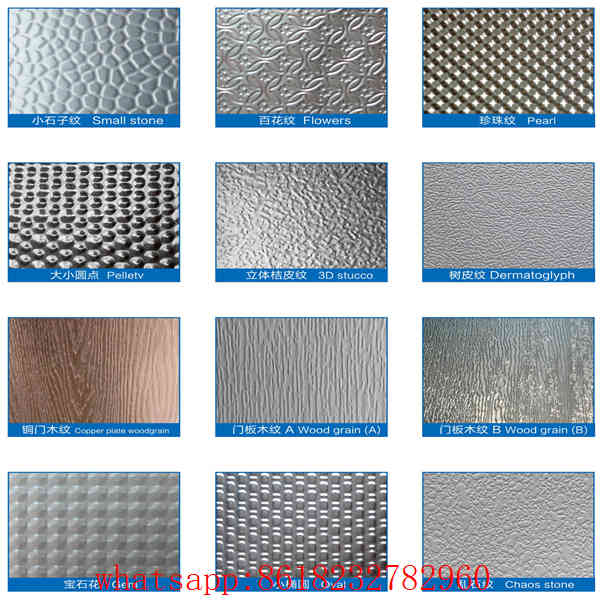

Optional Patterns	Diamond anti-slip grain, orange peel, cobblestone and custom textures
Leveling System	Front & rear heavy support rollers to prevent thick sheet warp & wrinkle
Speed Control Mode	High-power variable frequency stepless speed regulation
Embossing Running Speed	3–15 m/min
Main Motor Power	11–15kW heavy load configuration
Clamping System	Dual-side synchronous hydraulic clamping to avoid sheet offset & wrinkle
Control System	Independent full-automatic PLC touch screen interlock electric control
Overall Dimension	4000×1500×1620mm (varies by coil width)
Total Machine Weight	4.8–6.0 Tons
Warranty Period	2 years for complete machine
