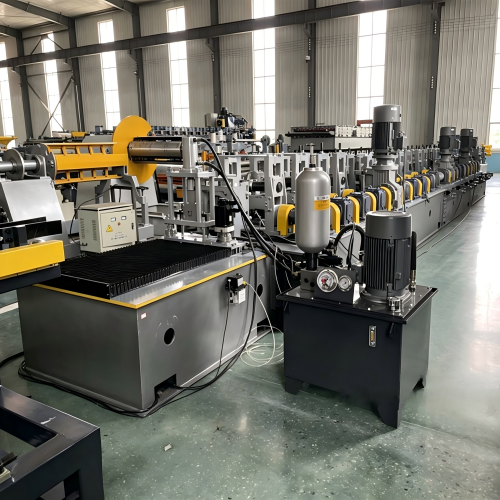

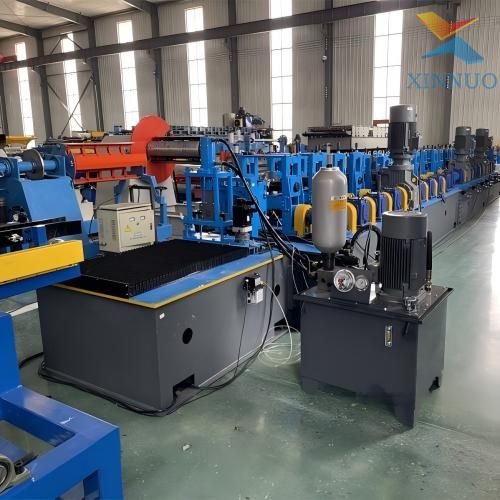

Fully Automatic Solar Mounting Bracket Unistrut Channel Roll Forming Machine

Fully Automatic Solar Mounting Bracket Unistrut Channel Roll Forming Machine：

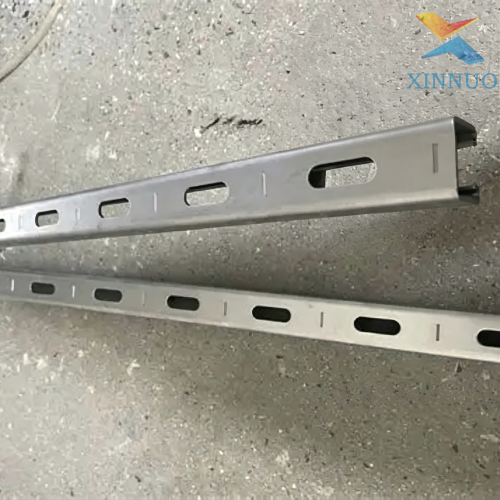

Engineering Excellence in Solar Mounting Infrastructure The XINNUO fully automatic solar mounting bracket roll forming machine represents the pinnacle of industrial engineering for the renewable energy sector. As global demand for solar energy infrastructure continues to surge, the requirement for high-precision, heavy-duty mounting systems has become paramount. Our equipment is specifically designed to produce professional-grade Unistrut-style C and U channels, which serve as the structural backbone for large-scale solar farms and residential rooftop installations. The XINNUO system integrates advanced cold roll forming technology with high-speed automated processes, ensuring that every bracket produced possesses the structural integrity and dimensional accuracy required to withstand extreme environmental loads, including high wind speeds and seismic activities.

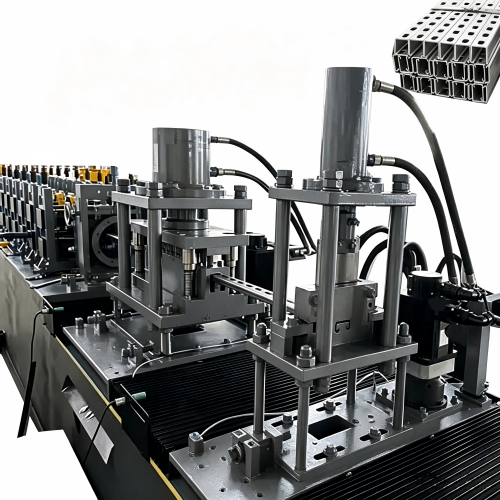

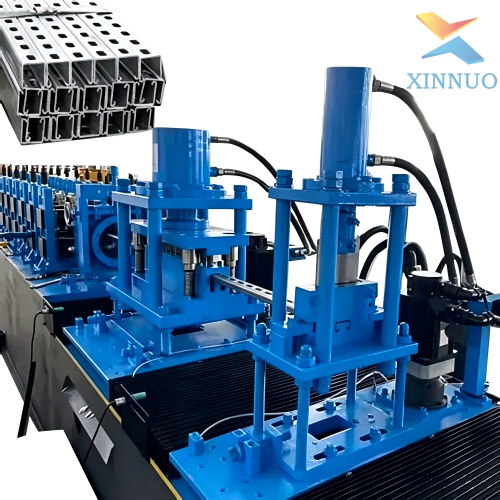

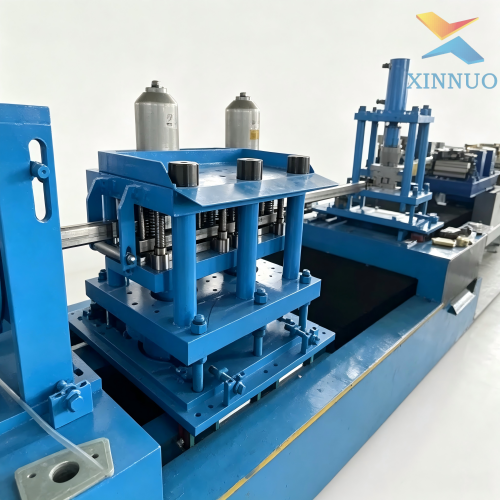

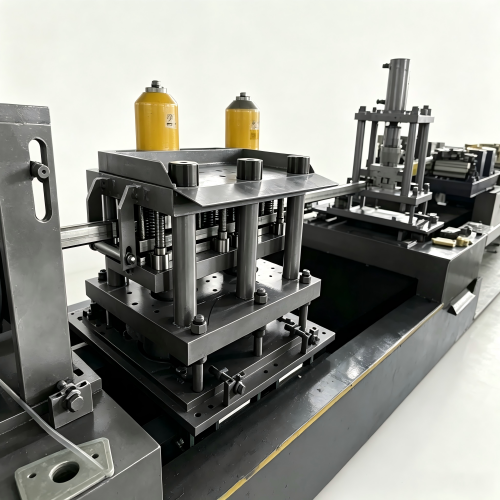

Integrated Multi-Station Hydraulic Punching System A standout feature of the XINNUO solar bracket production line is the sophisticated integrated multi-station hydraulic punching unit. Unlike traditional methods that require separate drilling or offline processing, our machine performs high-speed online punching before or during the forming process. This ensures that the slot patterns and holes are perfectly aligned with the final profile geometry. The punching system is powered by a high-pressure hydraulic station, allowing it to penetrate heavy-duty galvanized steel with ease. The precision of the punching unit is controlled by an advanced encoder system, ensuring that hole spacing remains consistent throughout thousands of meters of production, which is essential for the rapid assembly of solar racking systems on-site.

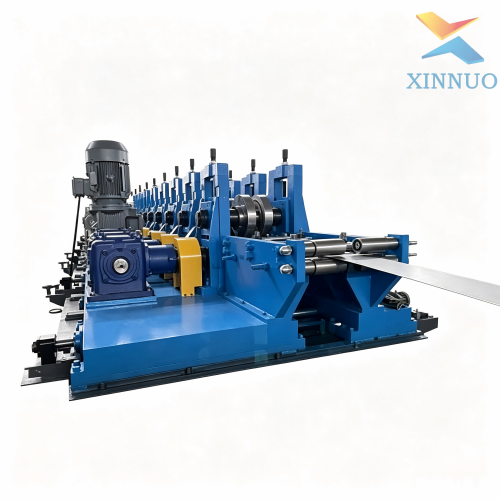

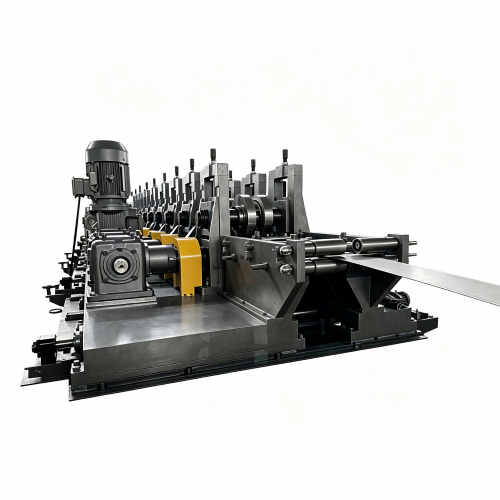

Heavy-Duty Construction and Precision Roller Design To handle the high-strength materials required for solar mounting, the XINNUO machine features a reinforced archway-style frame or thick cast-iron stands. This structural rigidity minimizes vibration during operation, ensuring long-term reliability and surface quality of the finished products. The forming rollers are the heart of the machine; they are manufactured from superior 45# or GCr15 bearing steel, undergoing multi-stage heat treatment and precision CNC grinding. Each roller is finished with a hard chrome coating exceeding 0.05mm in thickness, which protects the rollers from wear and prevents scratching the pre-galvanized coating of the steel. This attention to detail guarantees that the finished solar brackets maintain their anti-corrosive properties, which is vital for outdoor solar installations intended to last for over 25 years.

Intelligent PLC Control and Global Compatibility Every XINNUO solar bracket line is equipped with a state-of-the-art PLC control system, typically sourced from global leaders like Delta or Siemens. The intuitive touch-screen interface supports multiple languages, allowing operators to easily set production parameters such as bracket length, hole quantities, and batch sizes. The system includes real-time diagnostic capabilities and can be integrated into factory-wide monitoring networks. Furthermore, the XINNUO design is highly adaptable; the machine can be configured to produce various profile sizes (e.g., 41x41, 41x21, 41x62) with minimal changeover time. This flexibility enables solar bracket manufacturers to respond quickly to diverse international project requirements and evolving engineering standards in the PV industry.
