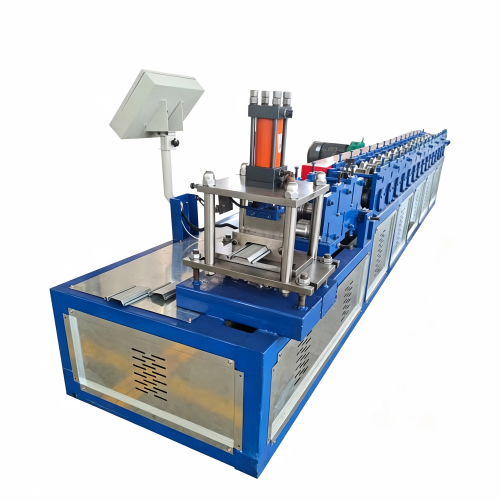

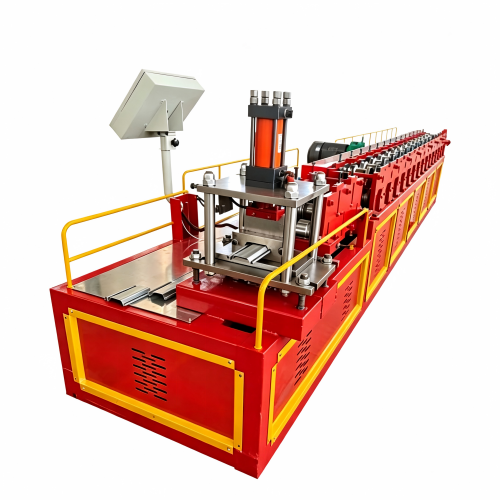

rolling shutter machine
Manufactured by Hebei Xinnuo Roll Forming Machinery Co., Ltd., this full‑automatic rolling shutter machine is specialized equipment for mass‑producing metal shutter slats for industrial, commercial and residential rolling shutter doors. It completes the whole workflow from coil feeding, multi‑station roll forming, hydraulic punching to servo fixed‑length cutting in one continuous process, greatly improving production efficiency for door‑making factories.
This rolling shutter machine adopts heavy‑duty welded steel base frame to guarantee stable running under long‑time continuous production condition. The forming rollers are processed with high‑precision grinding and heat‑treatment, ensuring slat surface smoothness and consistent profile dimension with low tolerance. Equipped with mature PLC touch‑screen control system, operators only need to set target length and production quantity on the human‑machine interface; the machine will automatically finish feeding, forming, punching and cutting without frequent manual adjustment, lowering labor cost and operation error rate.
Compatible raw materials include galvanized steel, color coated steel and aluminum coils. It can process material thickness from 0.6 mm to 1.2 mm. The production speed can reach 8‑15 meters per minute according to different material and profile requirements. The hydraulic cutting station uses Cr12 mould steel blade, featuring long service life and neat cutting edge without burr. Customers can get finished shutter slats directly after cutting, ready for subsequent assembly of rolling shutter doors used in shops, warehouses, garages and workshops.
Our factory supports personalized customization. We can adjust feeding width, roller profile, punching hole position and quantity based on clients’ local shutter‑door market demand. Voltage configuration can also be modified to fit different‑country power grid standards. All machines are strictly inspected before delivery to guarantee every unit works well.
For after‑sales service, we provide 2‑year machinery warranty. Overseas technical support is available, including operation manual, remote guidance and spare‑parts supply. Delivery lead time is normally 50‑60 working days after receiving deposit. Our payment term accepts 30% T/T deposit and 70% balance before shipment.
With rich export experience, Hebei Xinnuo Roll Forming Machinery Co., Ltd. has supplied roll‑forming machines to dozens of countries. This rolling shutter machine has won recognition from global purchasers for its stable performance, reasonable price and reliable after‑sales service. It is an ideal investment choice for enterprises engaged in metal rolling‑shutter door manufacturing.
Technical Parameters Table
| Item |
Specification |
| Applicable Raw Material |
Galvanized steel, color steel, aluminum coil |
| Material Thickness |
0.6‑1.2 mm |
| Working Speed |
8‑15 m/min |
| Control Mode |
PLC + Touch Screen |
| Cutting Type |
Hydraulic automatic fixed‑length cutting |
| Main Motor Power |
7.5 KW |
| Voltage |
380V 50Hz 3‑Phase (customizable) |
| Warranty Period |
2 years |
| Delivery Time |
50‑60 days |
| Payment Term |
30% T/T deposit,70% balance before shipment |
