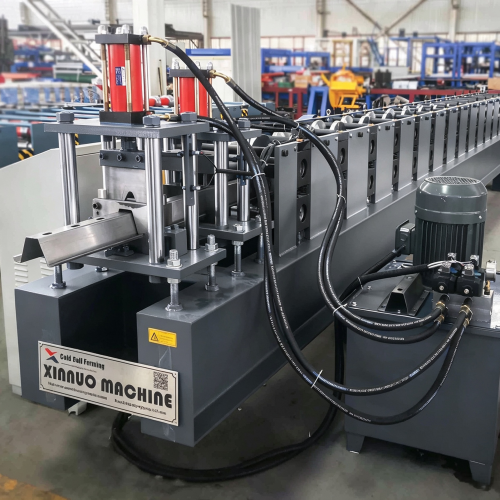

High-Performance 16-Station Hat Purlin Roll Forming Machine

High-Performance 16-Station Hat Purlin Roll Forming Machine：

Precision Engineering for Industrial Steel Structures: The XINNUO 16-Station Hat Purlin Machine

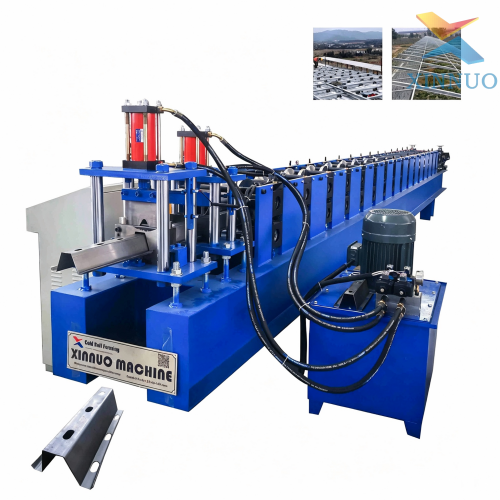

In the global industrial construction sector, the integrity of secondary structural components is paramount. Hebei Xinnuo Roll Forming Machinery Co., Ltd. presents its flagship 16-Station Hat Purlin Roll Forming Machine, a specialized solution designed to produce high-precision hat-shaped profiles (Omega purlins) used extensively as wall linings, roof insulation supports, and interior framing. This machine represents the pinnacle of cold roll forming technology, balancing high-speed production with the structural rigidity required for consistent profile accuracy.

Enhanced Stability through 16-Station Forming The complexity of the hat profile, characterized by its unique "hat-like" cross-section with a wide top and flared flanges, requires a progressive forming approach. Xinnuo’s 16-station design ensures that the stress on the raw material is distributed evenly across sixteen individual roller groups. This multi-stage process minimizes material stretching and thinning at the corners, resulting in a finished purlin with superior load-bearing capacity and dimensional consistency. Whether processing galvanized steel or high-tensile cold-rolled coils, the 16-station configuration guarantees a flat, twist-free output.

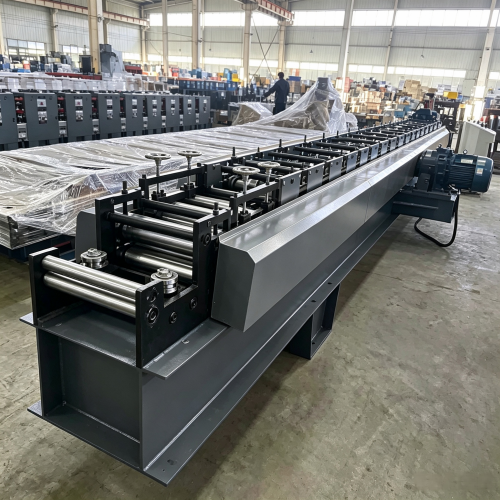

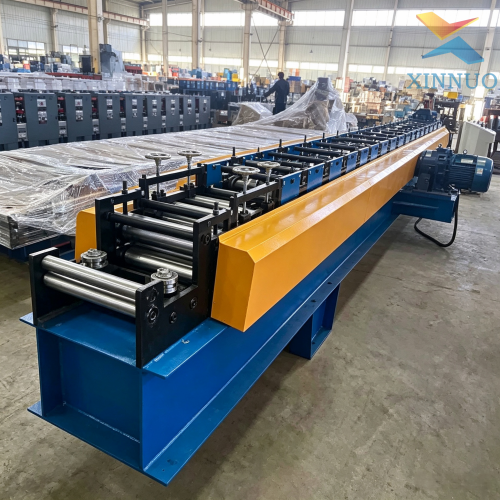

Industrial Build Quality and Technological Superiority Adhering to the Xinnuo Standard, the machine is constructed on a heavy-duty 300H industrial steel frame. The rollers are manufactured from high-quality 45# steel, subjected to rigorous CNC machining and hard-chrome plating to ensure a long service life and prevent surface damage to the profiles. The shafts, with a diameter of Φ75mm, provide the necessary torque for consistent forming even at high speeds. Driven by a robust 7.5KW or 11KW main motor, the system supports a production speed of up to 15 meters per minute, making it ideal for high-volume manufacturing environments.

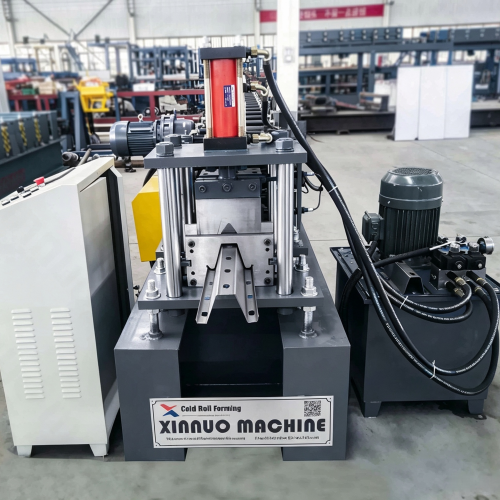

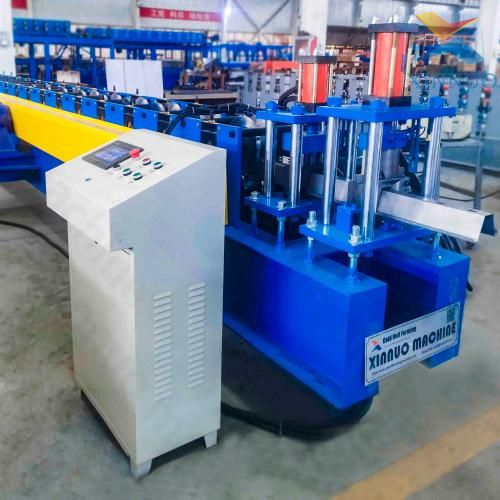

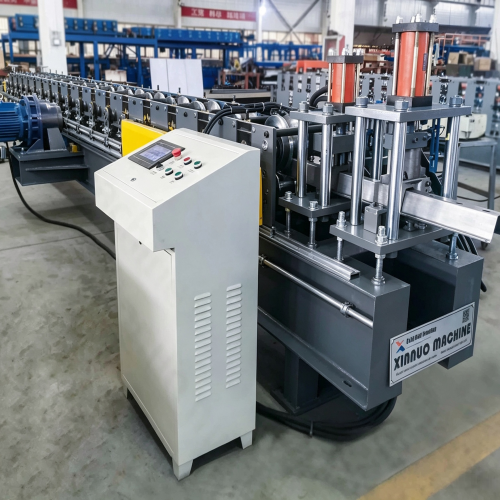

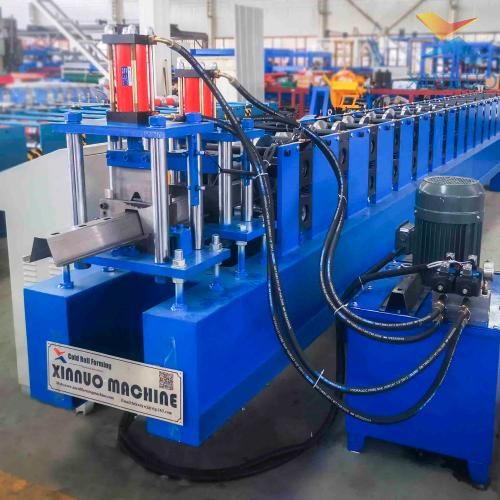

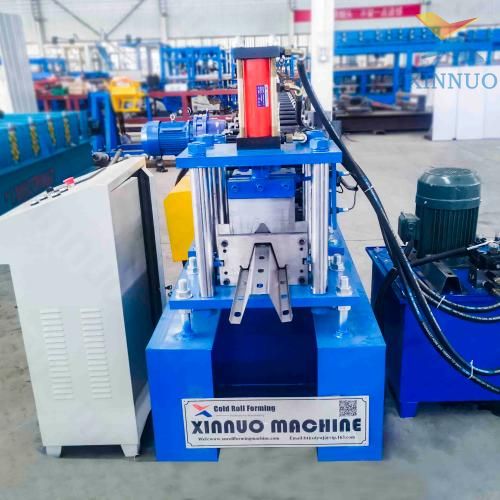

Advanced Automation and Safety Features Efficiency is coupled with precision through our integrated PLC control system (available with Delta or Siemens components). Operators can manage the entire production cycle from a centralized touch-screen interface, allowing for rapid adjustments to panel lengths and quantities. The hydraulic cutting system employs a specialized Cr12 mould steel blade, vacuum-quenched for maximum sharpness and durability. This ensures clean, burr-free cuts that align perfectly with modern construction assembly requirements. Safety sensors and emergency stop mechanisms are standard, ensuring a secure working environment for all personnel.

Global Support and After-Sales Excellence Choosing Xinnuo means partnering with a veteran of the roll forming industry. With over 25 years of expertise and a footprint in more than 30 countries, we provide comprehensive after-sales support, including factory layout planning, remote technical guidance, and a one-year warranty on core components. The 16-Station Hat Purlin Machine is not just a tool; it is a long-term investment in quality and efficiency for your steel structure business.
