cable tray making machine

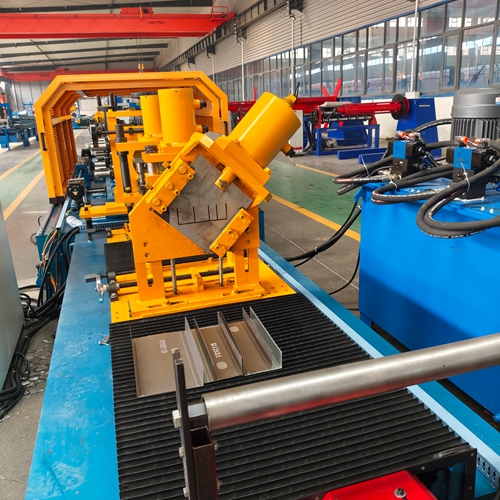

This cable tray making machine is a fully automatic cold roll forming line independently developed by Hebei Xinnuo Roll Forming Machinery Co., Ltd. The equipment is specially designed to produce side rails for ladder-type cable trays. It completes metal feeding, continuous roll forming, online hydraulic punching and fixed-length cutting in one automatic workflow without manual transfer of semi-finished products. Compared with traditional separate processing methods, our machine greatly improves production efficiency and ensures consistent dimensional accuracy of finished profiles, effectively reducing labor costs and material waste for manufacturers.
Adopting high-quality GCr15 bearing steel for forming rollers with quenching treatment, the machine features strong wear resistance and long service life. All roller surfaces are finely polished to avoid scratching the surface of raw metal strips. The frame of the whole machine adopts thickened welded steel plate, with strong rigidity and stable operation during long-term high-speed production. The whole line is controlled by mature PLC touch screen system; operators can set production length, punching interval and running speed easily. The hydraulic cutting unit uses high hardness integral cutter, realizing smooth cutting surface without burrs and secondary polishing. All core electrical components adopt well-known international brands to guarantee stable long-time continuous operation under heavy load.
Our company supports fully customized design according to customers’ technical drawings. We can adjust the forming width, material thickness range and punching layout to satisfy different specifications of ladder cable tray side rails. This production line is widely applied in metal processing factories, electrical supporting manufacturers, real estate construction and infrastructure engineering projects all over the world. The finished side rails can be assembled with cross bars to form complete ladder cable trays used for power transmission and wiring in factories, commercial buildings and industrial parks.
Hebei Xinnuo Roll Forming Machinery Co., Ltd is a professional manufacturer engaged in all kinds of cold roll forming equipment. We have standardized production workshops, advanced CNC processing equipment and strict multi-stage quality inspection system. Every machine will be fully tested with raw materials before delivery to eliminate potential faults. Except cable tray forming machines, we also supply roof panel roll forming machines, C/Z purlin machines, highway guardrail equipment and various customized special profile forming lines.
We provide standard seaworthy export packaging and comprehensive professional after-sales service. Professional engineers support overseas video installation guidance and long-term technical consultation. We offer 2-year warranty for the whole machine and lifelong technical support. Spare parts can be supplied at factory price in the long term. Our sales team can communicate fluently with overseas customers and provide professional project solutions. Welcome global customers to visit our factory, send technical drawings for detailed evaluation and get competitive factory direct quotation.
Main Technical Parameters：
| Item |
Specification |
| Applicable material |
Galvanized steel / Carbon steel |
| Material thickness range |
1.2mm–3.0mm |
| Forming speed |
8–15 m/min (adjustable) |
| Control system |
PLC + Touch Screen |
| Working voltage |
380V 50Hz 3Phase (Customizable) |
| Main roller material |
GCr15, quenching treatment |
| Cutting mode |
Hydraulic post cutting |
| Warranty period |
2 years |
| Delivery time |
50–60 working days |
| Payment term |
30% T/T deposit, 70% balance before shipment |
