Ladder Cable Tray Roll Forming Machine

Ladder Cable Tray Roll Forming Machine：

High-Performance Manufacturing for Industrial Cable Support Systems

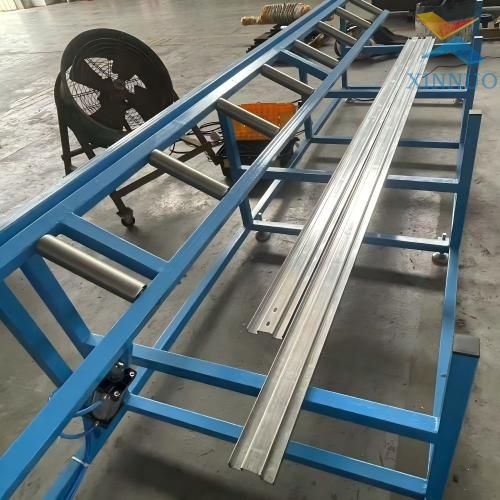

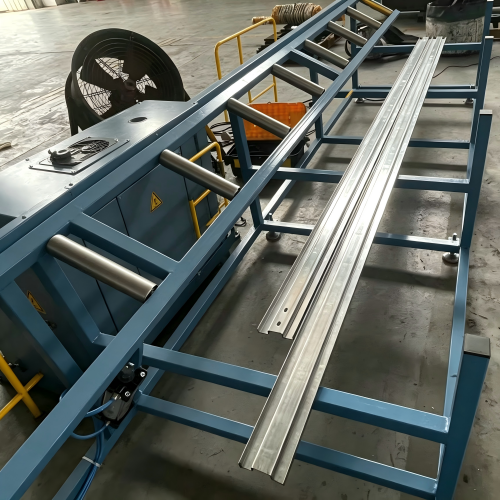

The Xinnuo Ladder Cable Tray Roll Forming Machine is an advanced industrial solution specifically engineered for the high-precision production of ladder-type cable trays. Ladder cable trays are essential components in large-scale electrical infrastructure, power plants, and industrial facilities, providing superior ventilation and heavy-duty support for high-voltage power cables. This machine is designed to process galvanized steel, stainless steel, or aluminum strips into rigid, perforated side rails that form the primary structure of the ladder system. The Xinnuo standard ensures that every profile meets strict load-bearing and dimensional tolerances required for international cable management standards.

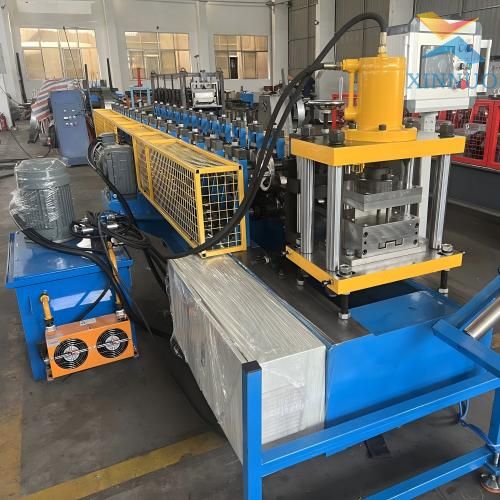

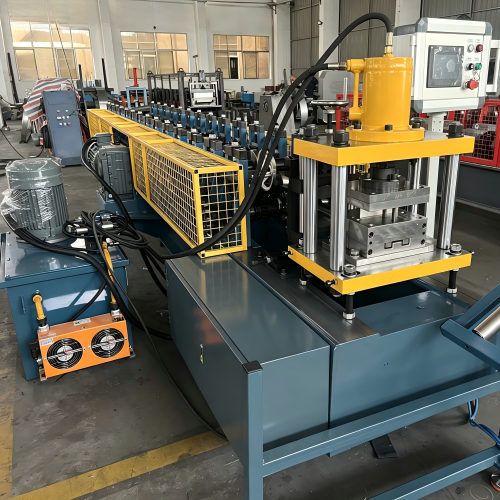

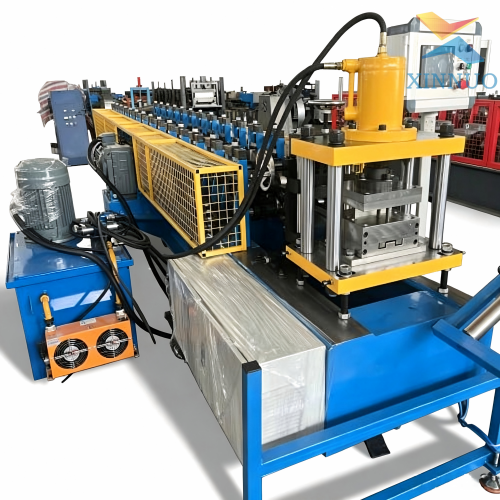

A standout feature of this production line is the integrated high-speed hydraulic punching system. As visible in the technical assembly images, the machine is equipped with a robust yellow hydraulic cylinder unit that performs precise hole patterns on the metal strip before or during the forming process. These holes are critical for rung attachment and cable ventilation. The punching dies are fabricated from high-grade tool steel (Cr12MoV), ensuring millions of cycles with minimal maintenance. This automated synchronization between punching and forming significantly reduces production time and labor costs compared to traditional manual methods.

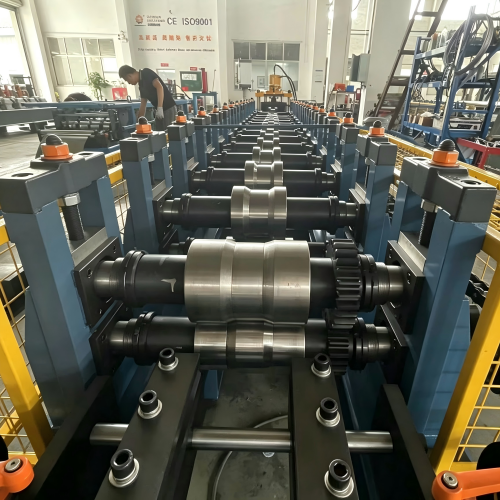

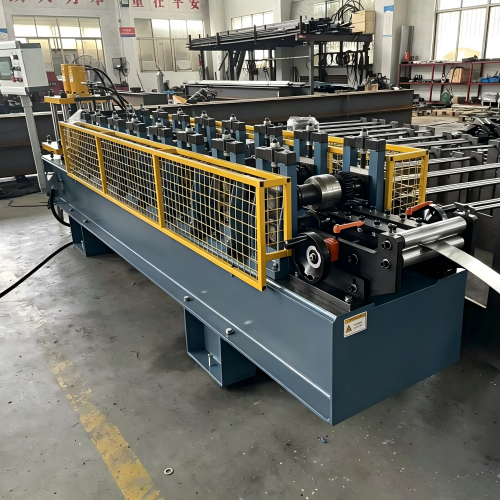

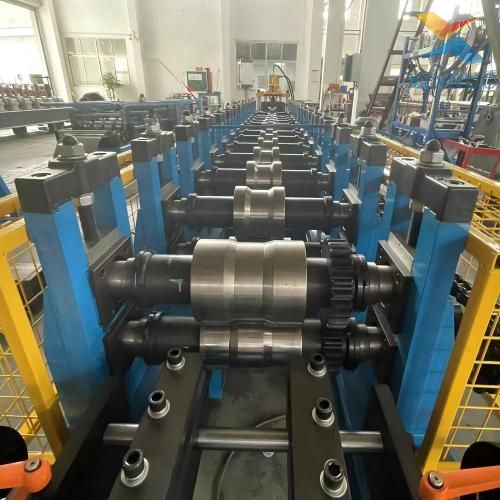

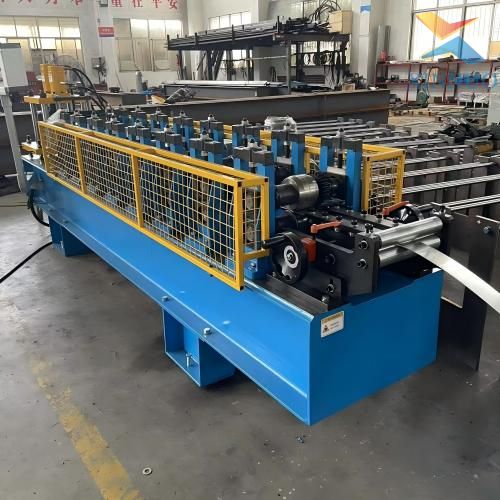

The forming section consists of a multi-stage roller array, meticulously designed to maintain profile consistency across different material thicknesses. The rollers are precision-machined and hard-chrome plated to prevent surface scratching on the galvanized coating, which is essential for maintaining the corrosion resistance of the finished cable tray. The machine frame utilizes a heavy-duty welded H-beam structure, providing the necessary rigidity to handle continuous, high-volume production without vibration. This structural integrity is a hallmark of Xinnuo's "Industrial Excellence" philosophy, guaranteeing long-term operational stability in demanding factory environments.

Operation is centralized through an intuitive PLC control system with a high-definition touch screen. This allows operators to easily input production parameters such as tray length, batch quantity, and punching intervals. The system supports multi-language interfaces and real-time monitoring of machine status, ensuring immediate identification of any operational discrepancies. Furthermore, the inclusion of a high-efficiency hydraulic power station with an integrated cooling fan ensures that the system maintains optimal pressure and temperature, even during extended shifts in high-ambient-temperature regions.

In terms of versatility, the Xinnuo Ladder Cable Tray Machine can be customized to accommodate various profile widths and side rail heights. This flexibility allows manufacturers to respond quickly to diverse project requirements, from lightweight commercial cabling to heavy-industrial power distribution. Xinnuo provides comprehensive after-sales support, including installation guidance, technical training, and a reliable supply of precision-matched spare parts. By investing in this dedicated line, companies can secure a competitive edge in the global infrastructure market through superior product quality and production efficiency.
