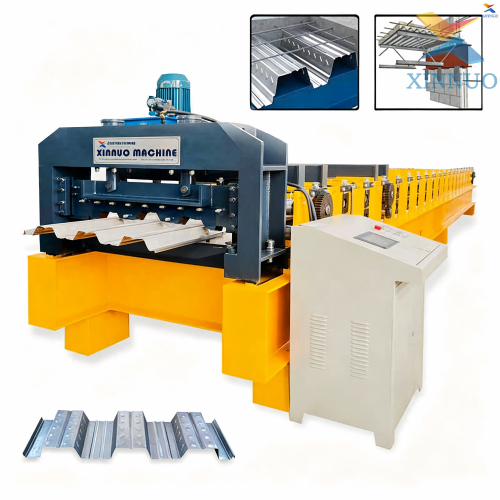

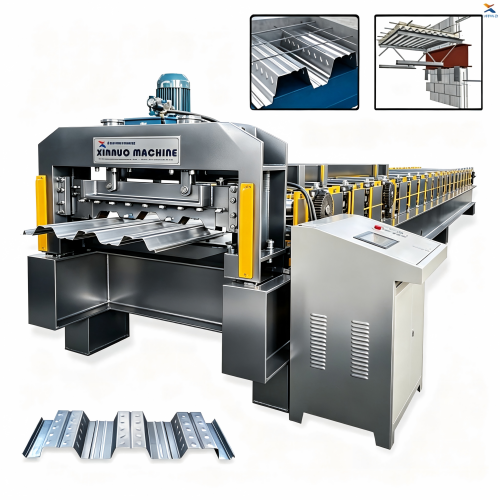

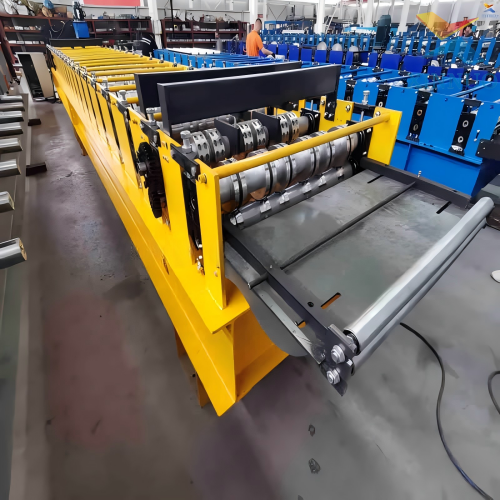

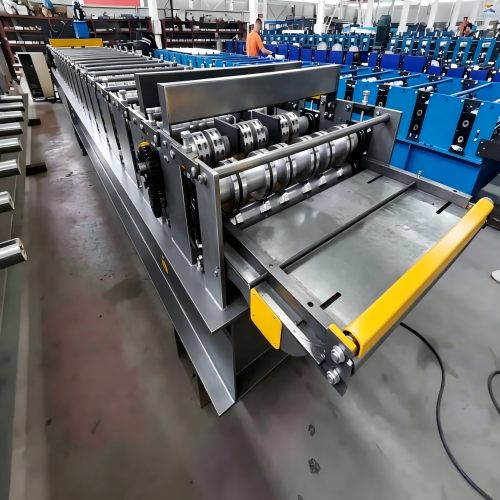

Floor Deck Roll Forming Machine
This floor deck roll forming machine is categorized under Floor Deck Roll Forming Machine, dedicated cold bending equipment for steel composite floor decks. It automatically produces open & closed metal bearing floor decks with stiffening ribs. The finished sheets interlock tightly with concrete to enhance overall load capacity, widely applied for cast-in-place floors of high-rise office buildings, shopping malls, industrial workshops, steel parking garages and large exhibition centers. It is core profile processing equipment for large steel structure projects, and can form full automatic production line matched with uncoiler and slitter.

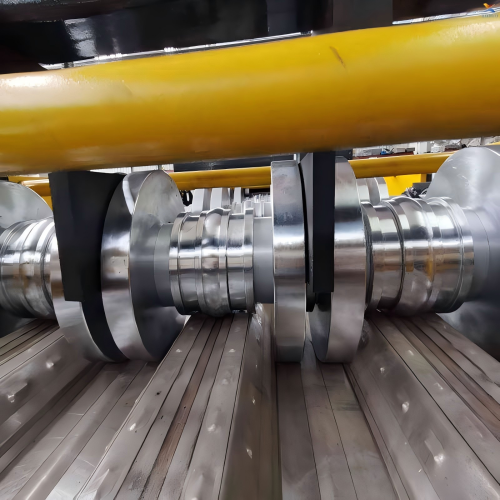

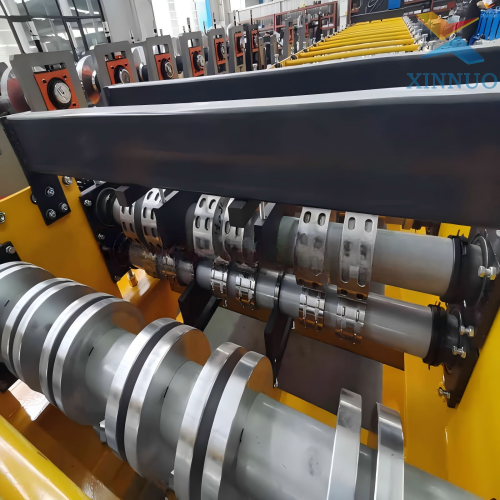

The machine base frame is integrally welded with thick H-beam steel and treated by high-temperature stress relief annealing to eliminate welding internal stress. The long frame runs vibration-free without deformation during long-term heavy-load high-speed forming, guaranteeing consistent straightness and rib dimension of floor decks. All forming rollers are precisely machined from solid 45# carbon steel with quenched thick hard chrome plating, wear and rust resistant without scratching galvanized coating of galvanized & aluzinc coils. Multi-stage progressive stiffening rib rolling forms standard concave-convex bearing patterns in one pass, with strong interlock performance to prevent concrete slipping & cracking during pouring. It processes hot-dip galvanized steel coils from 0.8mm to 1.5mm thick, standard forming widths 688/720/1025mm, rib height and pitch customizable according to global construction drawings.

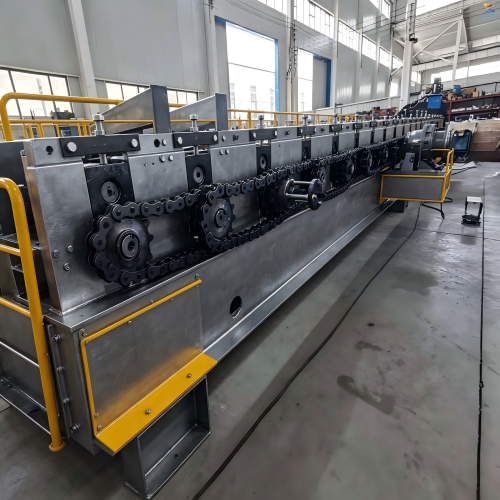

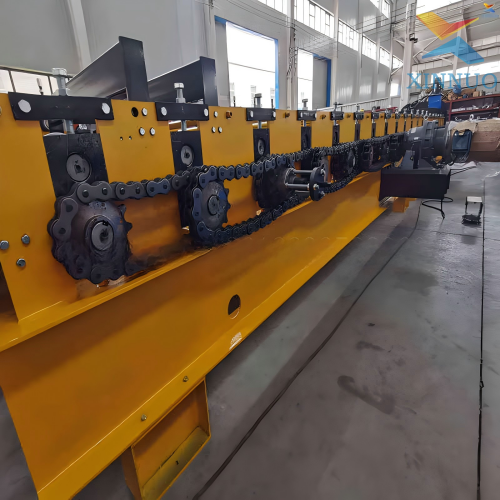

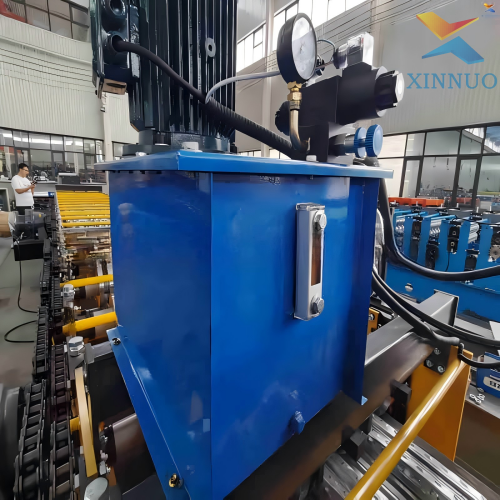

Equipped with high-power variable frequency main motor and heavy-duty synchronous chain transmission, the machine features strong load capacity and smooth low-noise operation, forming speed steplessly adjustable from 5 m/min to 12 m/min. Servo automatic deviation corrector at feeding inlet adjusts steel strip position in real time to reduce waste. Servo hydraulic flying shear at the tail delivers stable cutting force for burr-free smooth cuts, dimensional tolerance controlled within ±0.5mm. Independent PLC touch screen control cabinet allows presetting sheet length and total output quantity. The machine automatically completes feeding, multi-pass roll forming, fixed-length cutting and counting without extra labor. Only one worker can realize 24-hour non-stop continuous production, greatly cutting labor cost.
Every floor deck roll forming machine undergoes a 72-hour full-load coil endurance test before delivery to calibrate forming section and cutting tolerance. A full set of spare forming rollers, hydraulic sealing parts, Chinese-English bilingual operation drawings and manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty, local voltage customization service available for all countries. Remote CNC debugging and on-site installation training by professional engineers are accessible. This high-strength high-precision floor deck machine gains consistent repeat orders from large global steel structure building material manufacturers.
| Parameter Item |
Specification |
| Model Name |
Floor Deck Roll Forming Machine / Metal Composite Floor Deck Making Machine |
| Category |
Floor Deck Roll Forming Machine |
| Processable Materials |
Hot-dip galvanized steel coil, aluzinc alloy coil |
| Applicable Sheet Thickness |
0.8–1.5mm |
| Standard Forming Width |
688/720/1025mm (customizable profile) |
| Roller Material |
45# carbon steel, quenched & thick hard chrome plated |
| Number of Forming Stands |
22–28 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
5–12 m/min |
| Main Motor Power |
15kW |
| Cutting System |
Servo hydraulic flying shear fixed-length cutting |
| Cutting Dimensional Tolerance |
≤±0.5mm |
| Control System |
Independent full-automatic PLC touch screen control |
| Overall Dimension |
9200×1550×1680mm |
| Total Machine Weight |
6.2 Tons |
| Warranty Period |
2 years for complete machine |
