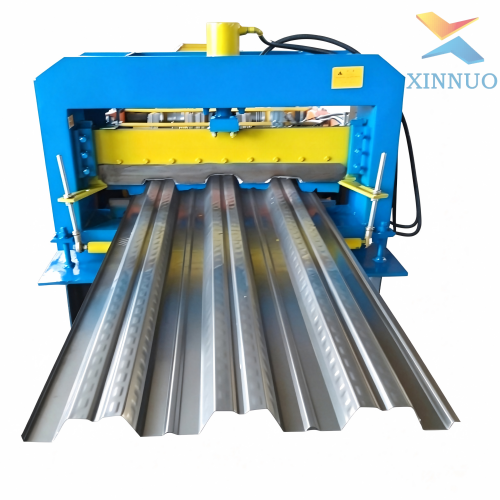

Metal Floor Deck Roll Forming Machine

Metal Floor Deck Roll Forming Machine

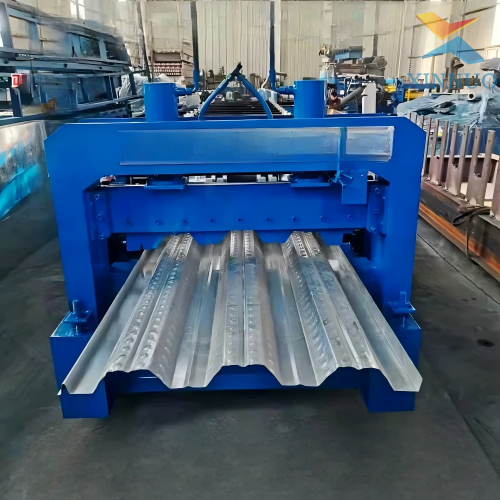

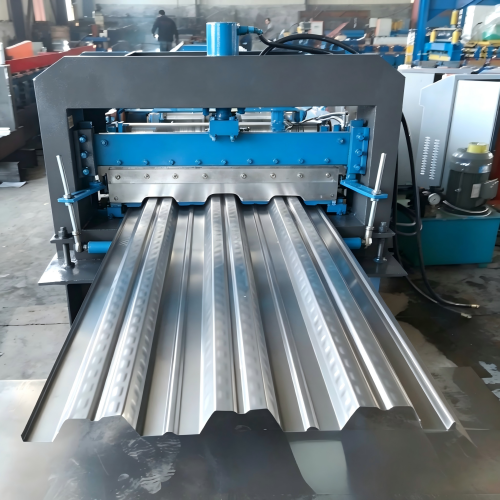

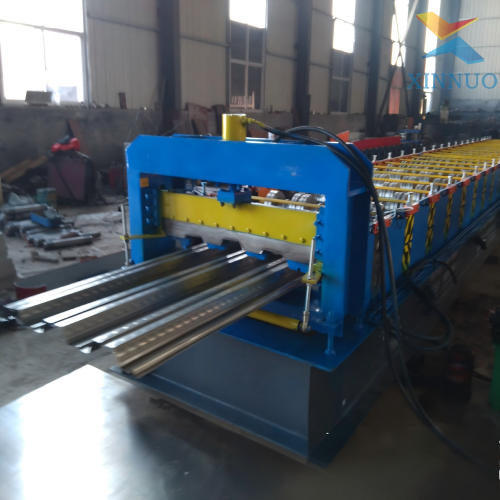

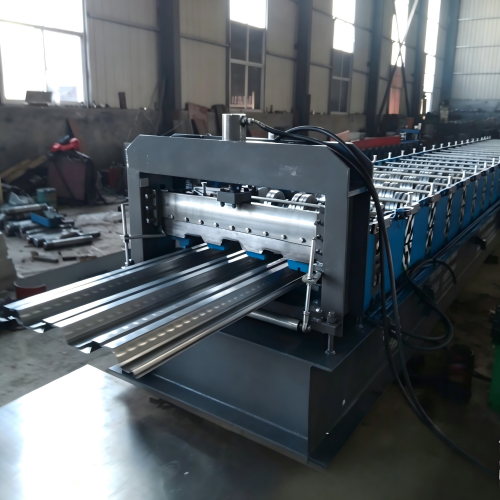

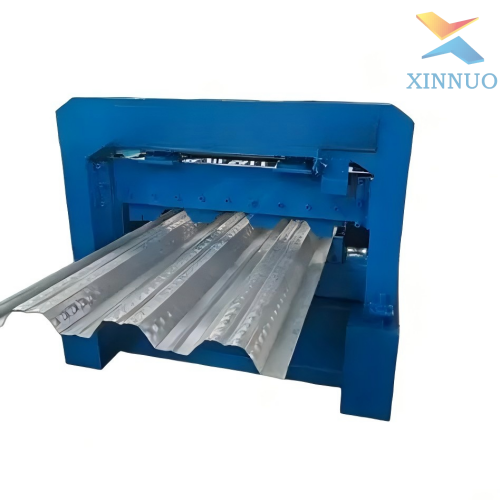

A floor deck is not an ordinary roofing sheet. It is a structural steel panel used as permanent formwork for concrete floor slabs in steel-frame buildings. During construction, the deck supports wet concrete and construction loads. After the concrete cures, the formed ribs and embossments help create mechanical interaction between the steel panel and the concrete slab. For this reason, a floor deck roll forming machine requires a heavier forming structure and more controlled material feeding than a conventional roof panel machine.

Hebei Xinnuo Roll Forming Machinery Co., Ltd. designs metal floor deck roll forming machines for manufacturers producing steel decking panels for warehouses, industrial buildings, composite floors, parking structures, commercial projects and prefabricated steel construction. The line can be configured for open-deck or closed-deck profiles according to the required structural design, effective width, rib height, embossment pattern and material thickness.

The finished floor deck profile determines the machine configuration. Before quotation, customers should provide the profile drawing or confirm the effective width, rib height, deck type, feed width, material thickness, steel grade and required output. Common floor deck profiles may include approximately 688 mm, 750 mm, 870 mm, 900 mm, 915 mm, 1000 mm or 1025 mm effective widths, but the final profile must be confirmed by drawing rather than selected only by a product number.

Open-deck floor panels normally use trapezoidal ribs and are widely used for composite concrete floors. Closed-deck panels use a re-entrant or dovetail-style section to improve concrete interlocking in applications where the project requires a different composite floor design. Profile depth, rib geometry and embossment position directly affect the number of forming stations, roller design, shaft size and drive requirements.

Compared with a standard roof sheet machine, a floor deck line generally uses a heavier frame, larger shafts, stronger transmission and more forming stations. A typical reference configuration may include a 400H or 450H frame, approximately 20–34 forming stations, 90–115 mm shafts, two 11 kW main motors and heavy-duty chain or gearbox transmission. These values are reference configurations only; the final specification depends on the selected deck profile, material thickness and production speed.

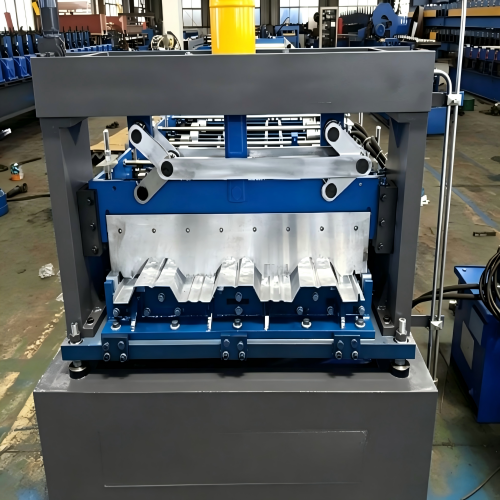

The forming rollers progressively shape the steel coil through multiple stages to reduce deformation stress and maintain profile accuracy. The machine can be equipped with a leveling and feeding section, embossment or dimple-forming section, roll forming unit, hydraulic cutting system, output table and PLC control cabinet. A decoiler, pre-cutting unit, automatic stacking system or other auxiliary equipment can be added when required by the production plan.

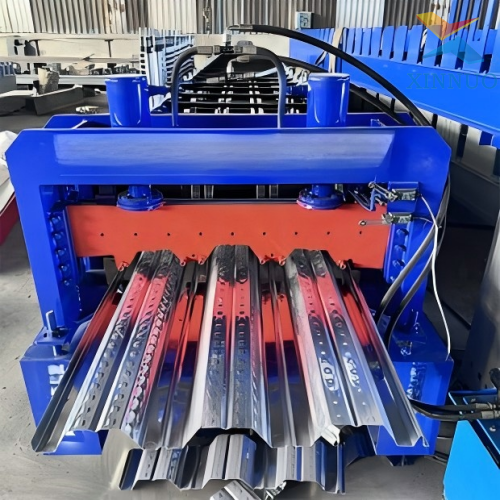

Embossments are important features of many floor deck profiles because they help improve the mechanical connection between the steel deck and concrete. The embossment-forming section must be matched with the downstream forming speed and material path. A properly designed clutch, bearing-supported forming wheel, pressure reinforcement structure and gear transmission can help reduce material jamming, surface scratching and unstable feeding during deep-rib forming.

The metal floor deck roll forming machine is suitable for:

• Composite steel-concrete floors
• Industrial workshops and steel warehouses
• Commercial and multi-story steel buildings
• Parking structures and infrastructure projects
• Prefabricated construction systems
• Floor deck panel manufacturers and steel service centers

The line supports continuous production of specified-length floor deck panels. A PLC control system can manage feeding, forming, length measurement and cutting according to the confirmed configuration. Hydraulic cutting and output handling options can be selected for different panel thicknesses, production speeds and factory layouts.

To recommend a suitable floor decking machine, please send your profile drawing, effective width, rib height, deck type, material thickness, steel grade, required panel length, target output and local voltage. Hebei Xinnuo Roll Forming Machinery Co., Ltd. will review the profile and confirm the forming stations, roller structure, shaft diameter, drive system, embossment section, cutting method and factory layout before quotation.

The machine can be supplied with technical documentation, operating instructions, spare parts and commissioning support according to the confirmed order. The final warranty, installation, training and remote service scope should be stated according to the actual quotation and contract.

Important: The values in these tables are reference ranges for a general floor deck machine. They must not replace the final technical proposal for a specific profile.
