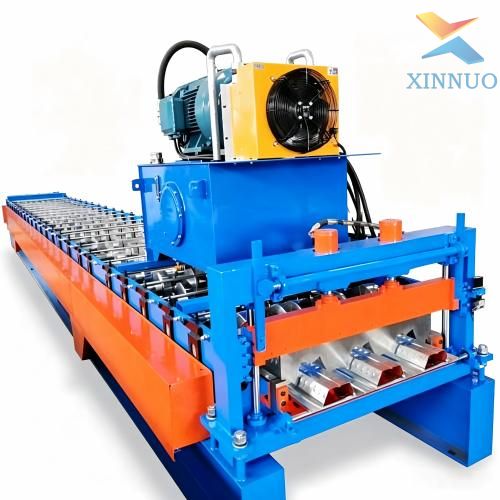

Heavy Duty Composite Floor Decking Roll Forming Machine

Heavy Duty Composite Floor Decking Roll Forming Machine：

Structural Integrity for Modern Steel-Frame Architecture The Floor Decking Roll Forming Machine from Hebei Xinnuo Roll Forming Machinery Co., Ltd. is a high-performance production line specifically engineered for the construction of multi-story steel buildings and high-rise commercial structures. Floor decks (also known as composite metal decks) serve as the permanent formwork for concrete floor slabs, providing both a working platform during construction and tensile reinforcement for the cured composite slab. Due to the significant material thickness (up to 1.5mm) and the extreme depth of the ribs (typically 50-153mm), these machines require far greater structural rigidity and driving force than standard roof panel machines. XINNUO’s engineering team has optimized every component to ensure that the produced panels meet international structural codes for load-bearing and mechanical bonding.

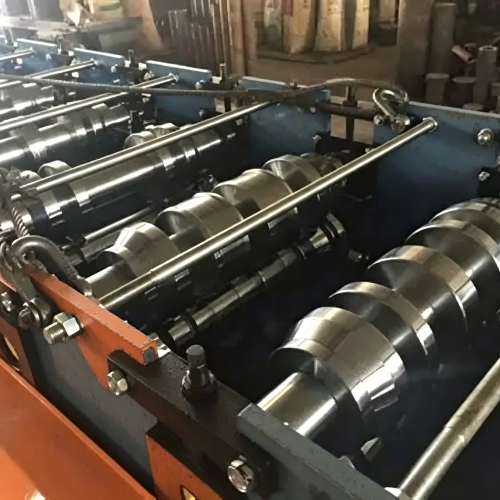

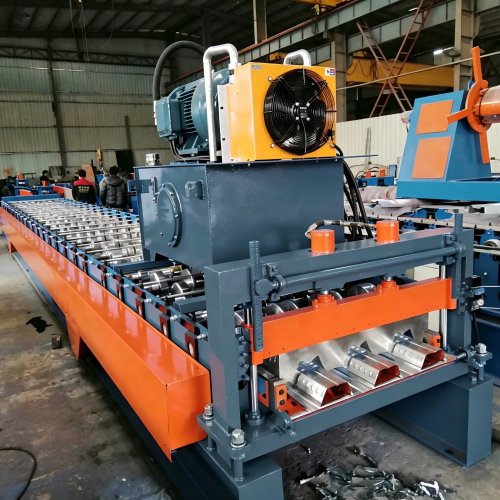

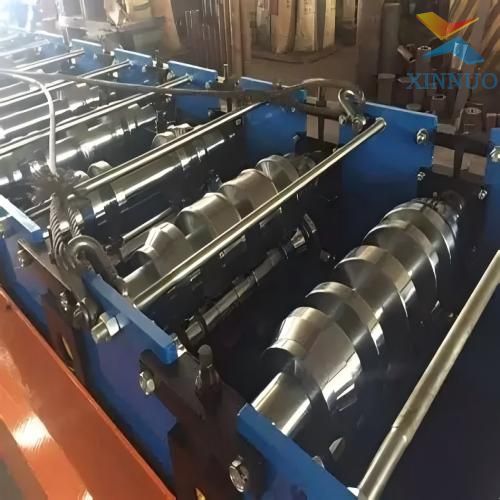

Revolutionary 5-Step Anti-Pooling Technology Material jamming, or "pooling," is the most common technical failure in floor deck production due to the immense friction generated by forming deep trapezoidal ribs. To address this, XINNUO has integrated five proprietary anti-pooling mechanisms. First, a specialized clutch system is installed after the dimple wheels to synchronize rotation and prevent material bunching. Second, the rear 10 forming stations utilize bearing-mounted oversized wheels, converting the friction from "pulling" to "pushing," which protects the galvanized surface from scratching. Additionally, we use reinforced pressure bars and dual-motor drive systems (2×11kW or 2×15KW) with 2.0-inch heavy-duty chains to provide consistent torque, ensuring smooth material flow through the most complex sections of the profile.

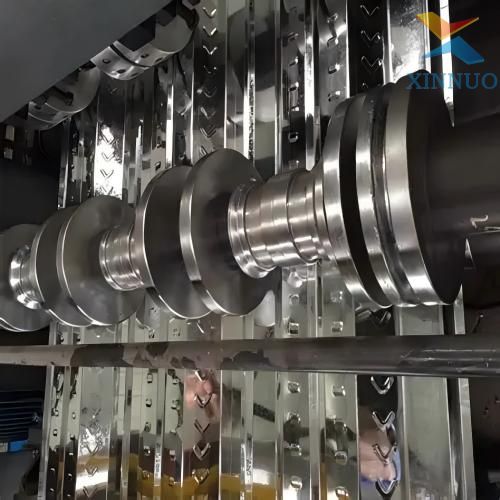

Mechanical Bonding and Embossment Precision The primary function of a composite floor deck is to create a strong mechanical bond with the concrete slab. Our machine features high-precision embossment rollers (dimple wheels) that press distinct, uniform indentations into the webs of the profile. These embossments increase the horizontal shear resistance of the slab, preventing slippage between the steel and concrete. The rollers are manufactured from premium 45# forged steel, undergoing a 7-step process including vacuum quenching (HRC 58-62) and surface hard chrome plating. This ensures the embossing patterns remain sharp and consistent over millions of production cycles, providing the critical interlock required for structural safety in industrial and residential high-rises.

Heavy-Duty Construction and Global Support XINNUO floor deck machines are built for the harshest industrial environments. The main frame is constructed from 450H industrial H-beam steel with a 10mm wing thickness, providing a vibration-free foundation for continuous high-speed production. The production line is governed by a high-speed PLC automation system (Siemens or Delta), allowing operators to control length, quantity, and punching precision via a multi-language touch screen. With a global installation base spanning 138 countries, including Russia, Mexico, Brazil, and Indonesia, Hebei Xinnuo provides comprehensive after-sales support, from remote diagnostics to prompt spare part logistics, ensuring your investment remains a cornerstone of your structural manufacturing capability.
