The XINNUO Cargo Box Panel Roll Forming Machine is designed for the continuous cold forming of profiled steel panels used in cargo boxes, truck compartments, trailers, container structures, and modular buildings. The machine forms steel coils into customized panel profiles through a series of precision roller stations, producing panels with consistent ribs, stable dimensions, and a uniform finished appearance.

Cargo box panels are widely used for the exterior walls, side panels, roof sections, and enclosure structures of commercial vehicles and transport containers. Compared with ordinary flat steel sheets, profiled panels provide improved stiffness and structural performance while maintaining a practical metal thickness. The final profile may include raised ribs, recessed sections, formed edges, side folds, or other customized structures according to the customer’s application and vehicle design.

The machine adopts a progressive roll forming process. During production, the steel strip passes through multiple forming stations, and each station performs a controlled forming operation. The material gradually develops the required profile instead of being forced into its final shape in a single step. This forming method helps reduce excessive deformation, surface damage, profile distortion, and dimensional variation during continuous production.

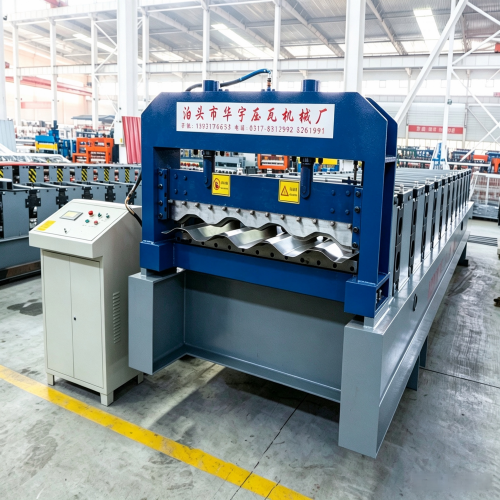

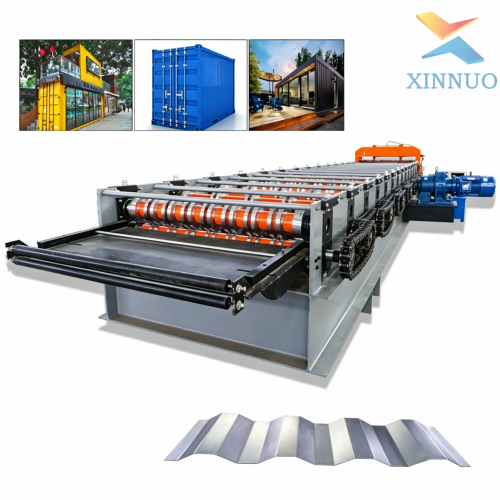

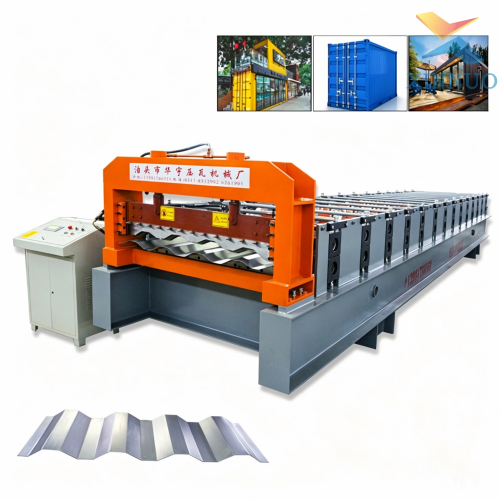

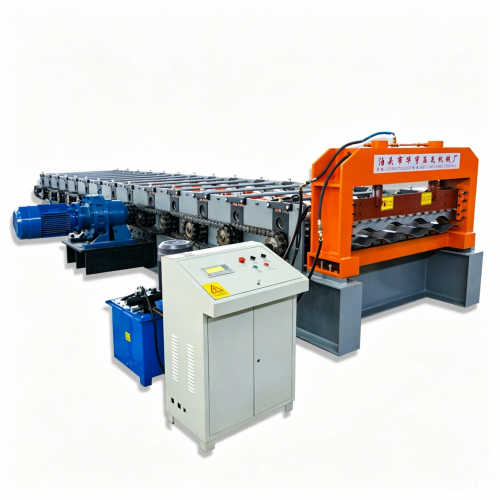

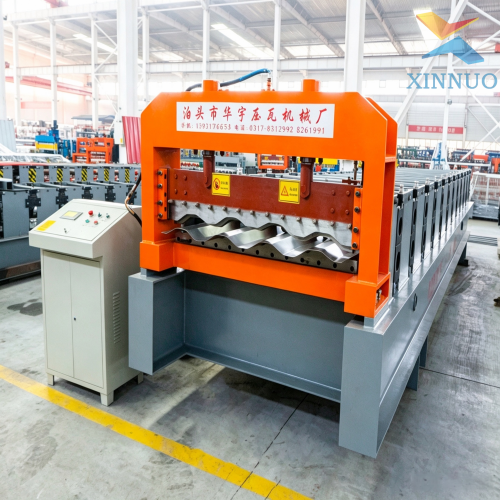

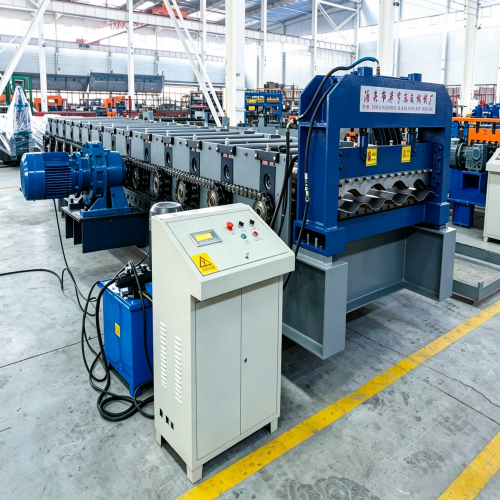

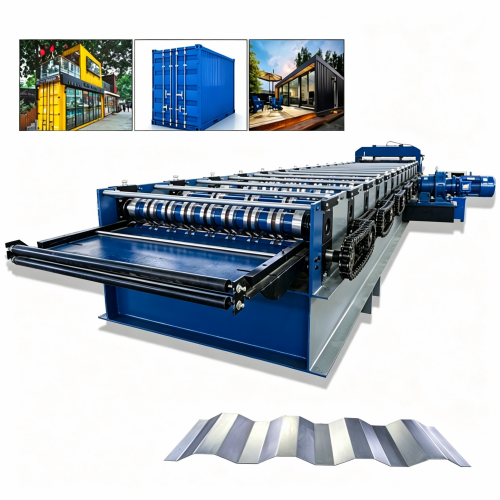

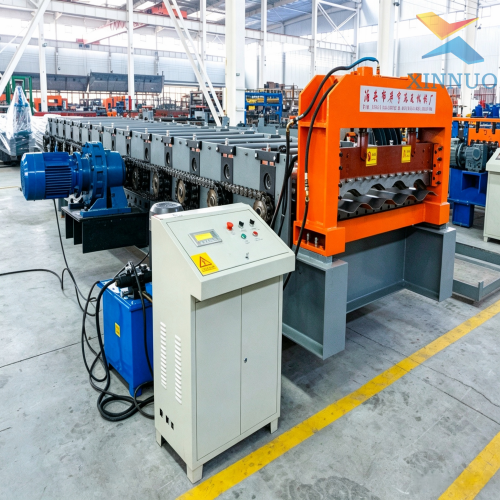

The forming section is built around a rigid machine frame, precision forming rollers, transmission components, guide devices, and supporting shafts. The supplied images show a long forming line with a side transmission arrangement and a dedicated control cabinet. The forming rollers are arranged according to the approved panel drawing, while the drive system keeps the forming stations working in coordination. The final number of stations, roller material, shaft dimensions, motor configuration, and transmission structure should be confirmed according to the customer’s technical requirements.

The Cargo Box Panel Roll Forming Machine can be configured for galvanized steel coils or pre-painted steel coils after confirming the material grade, thickness, yield strength, coil width, and surface coating. The feeding section guides the steel strip into the forming path and helps maintain stable material entry. Correct alignment of the guide system, rollers, shafts, and frame is important for producing panels with consistent rib spacing, edge quality, and profile accuracy.

A control cabinet is provided for centralized machine operation and production management. Depending on the required automation level, the system can be configured for machine start and stop, production monitoring, panel length setting, counting, and cutting coordination. PLC control, touch-screen operation, encoder feedback, and automatic length measurement can be selected according to the customer’s production plan and local electrical standard. Exact electrical components should be confirmed before manufacturing.

The cutting section is installed after the forming process to produce finished panels according to the required length. The cutting method, blade material, cutting tolerance, and synchronization mode should be selected according to the final panel profile and production requirements. The cutting solution may be customized for different panel lengths, production speeds, and operating methods.

This machine is suitable for producing cargo box side panels, truck compartment panels, trailer panels, container wall panels, modular building cladding, mobile workshop panels, storage unit panels, and other customized industrial enclosure panels. It is suitable for manufacturers that need repeatable production, customized panel lengths, and flexible supply for different vehicle or container projects.

In-house production with a Cargo Box Panel Roll Forming Machine can help manufacturers improve production planning, reduce dependence on external panel suppliers, and respond more quickly to customized orders. The complete line can be arranged with decoiling, feeding, guiding, roll forming, cutting, electrical control, and finished-panel collection sections according to the workshop layout.

Hebei Xinnuo Roll Forming Machinery Co., Ltd. provides profile drawing review, machine configuration, production planning, installation guidance, commissioning support, operator training, and remote technical service for international customers. Before production, customers should confirm the panel drawing, material information, finished width, cutting length, electrical standard, and required automation level. This ensures that the supplied Cargo Box Panel Roll Forming Machine is correctly matched with the intended product and application.
