Tent Roof Beam Equipment
This tent roof beam equipment is classified under Customized Roll Forming Machine, specially developed for large steel & aluminum alloy tents, event marquees, storage temporary shelters and construction greenhouses. It continuously forms load-bearing roof beams for tents with high bending resistance and easy assembly. The finished profiles are widely applied for wedding marquees, logistics storage tents, exhibition halls and site protective shelters. Section size and punching stations can be fully customized according to clients’ drawings, making it core dedicated equipment for outdoor tent profile manufacturers.

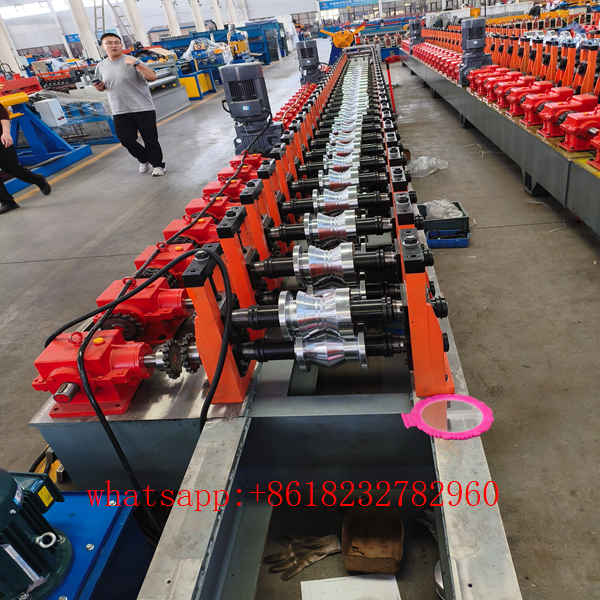

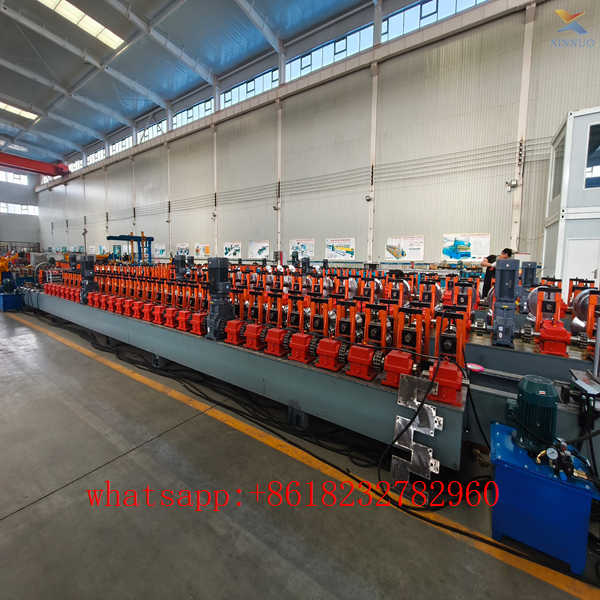

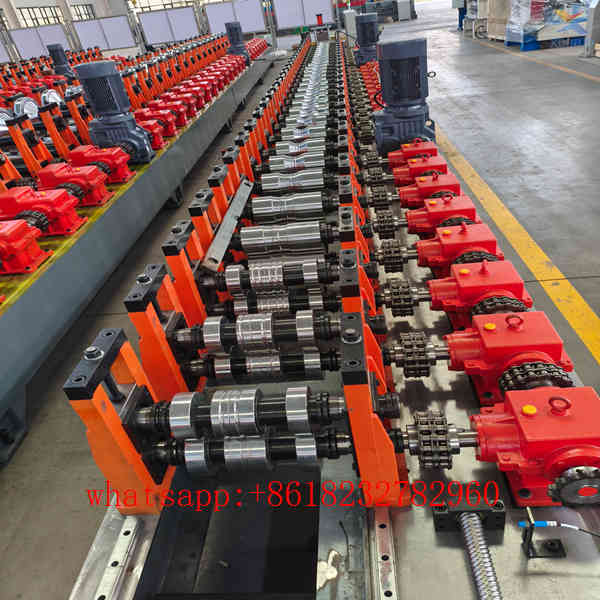

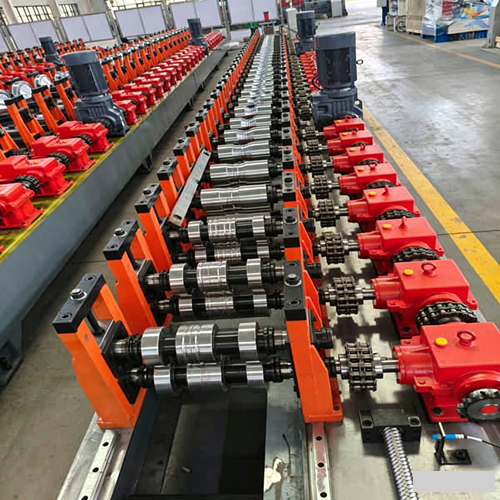

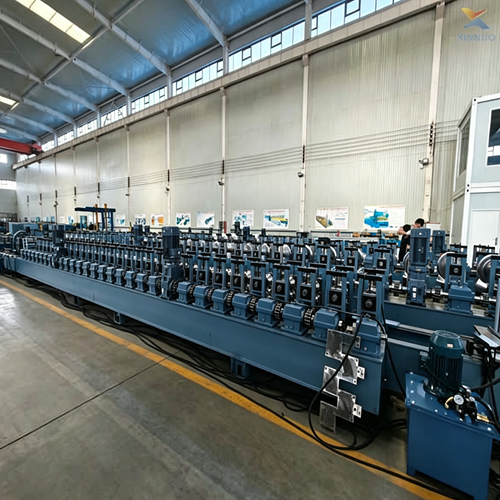

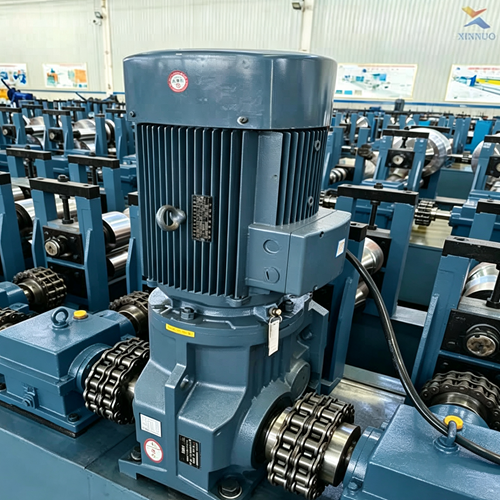

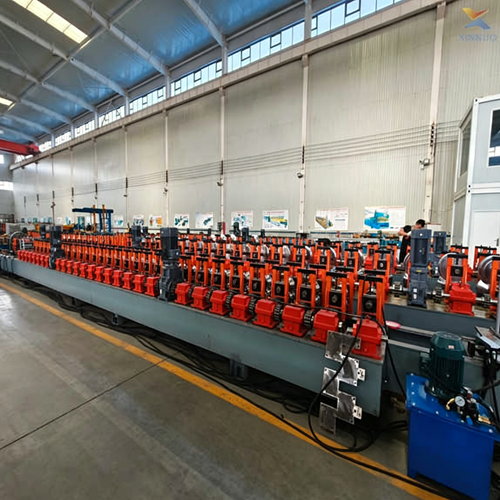

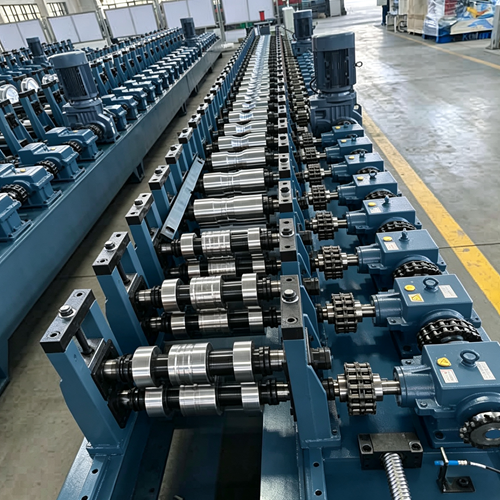

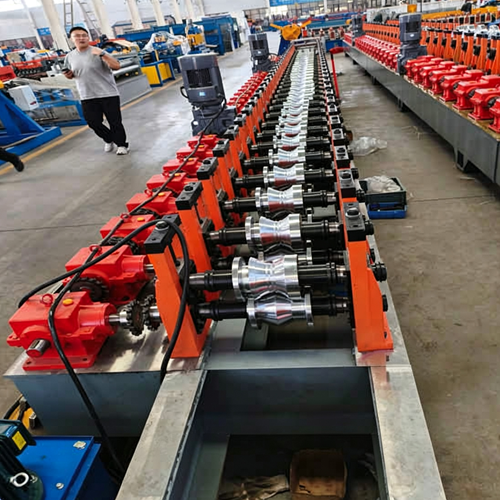

The machine frame is integrally welded with thick H-beam steel and treated by high-temperature stress relief annealing to eliminate welding internal stress, so the long frame runs vibration-free without deformation during long high-speed production, guaranteeing straightness of long profiles. All forming rollers are precisely machined from solid 45# carbon steel with quenched thick hard chrome plating, wear-resistant without scratching galvanized, Al-Mg-Mn or color steel coils. Multi-stage progressive roller stands accurately form special concave-convex sections for tent beams, and integrated on-line hydraulic punching stations punch mounting holes simultaneously to skip secondary processing and boost production efficiency greatly. It processes galvanized steel and aluminum alloy coils from 1.0mm to 3.0mm thick, raw width and finished section fully customized based on tent drawings.

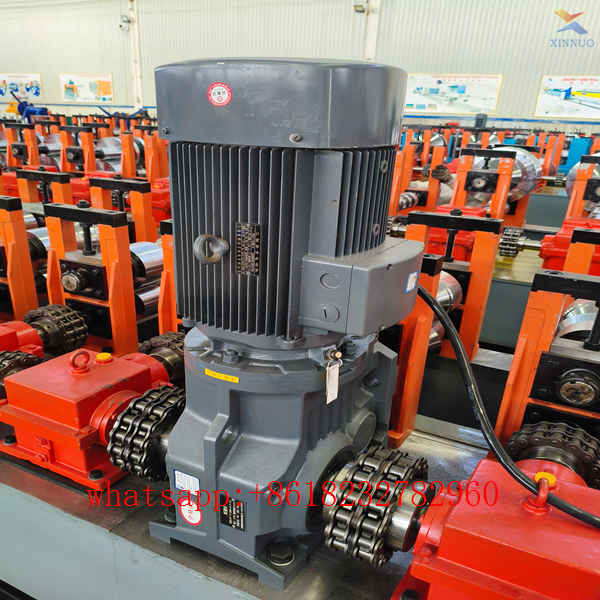

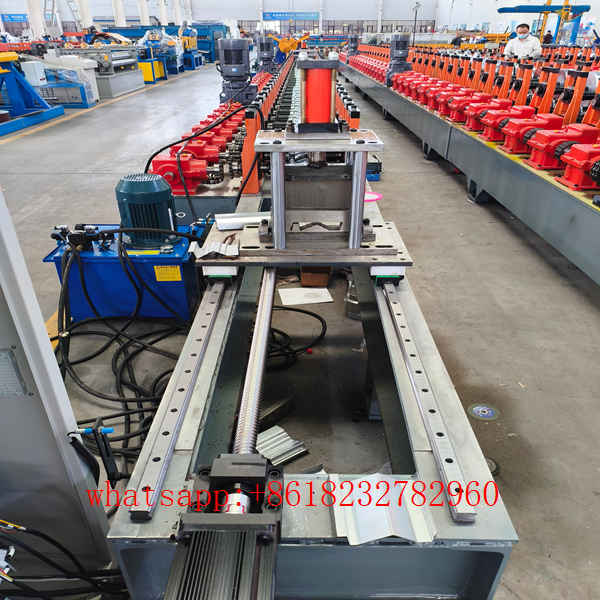

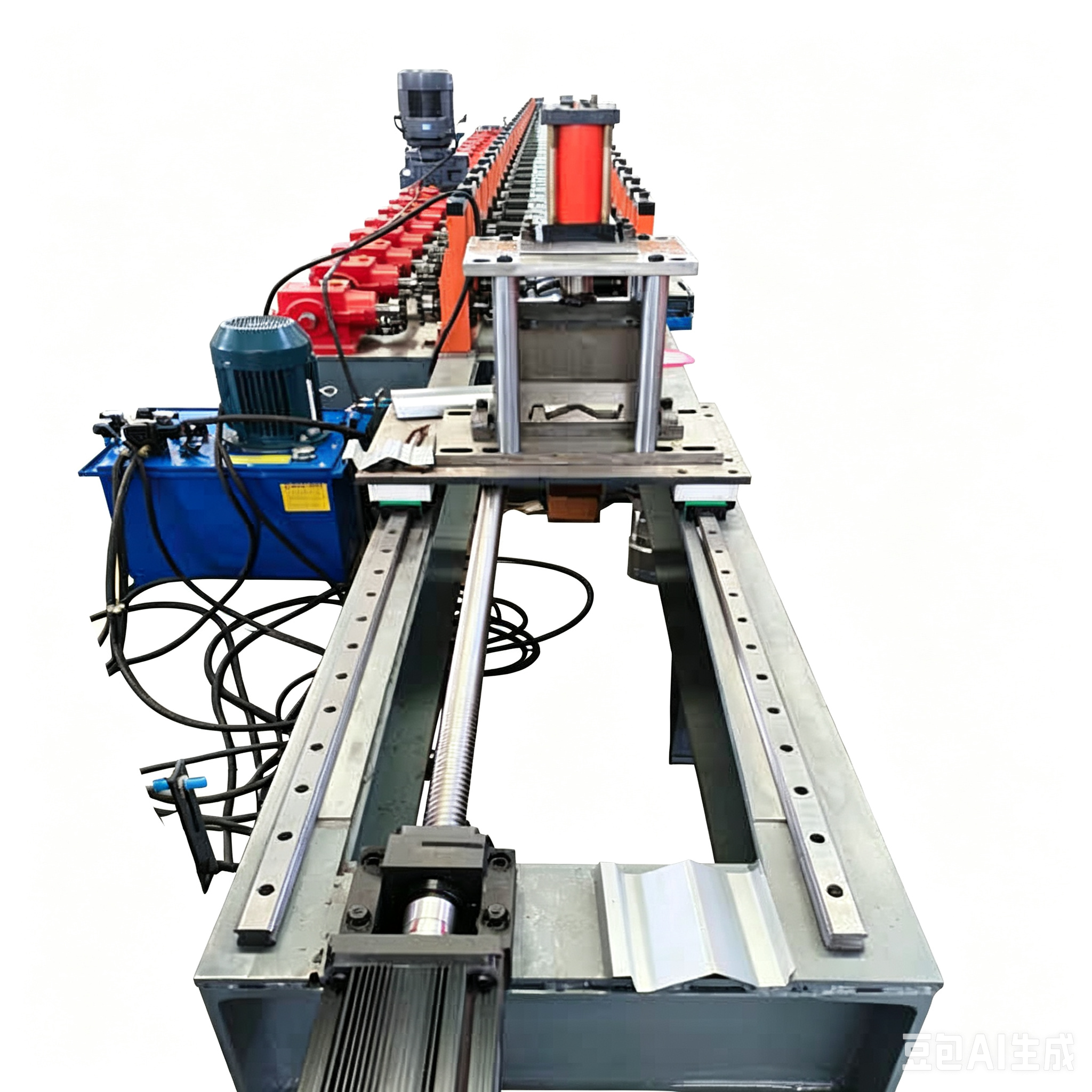

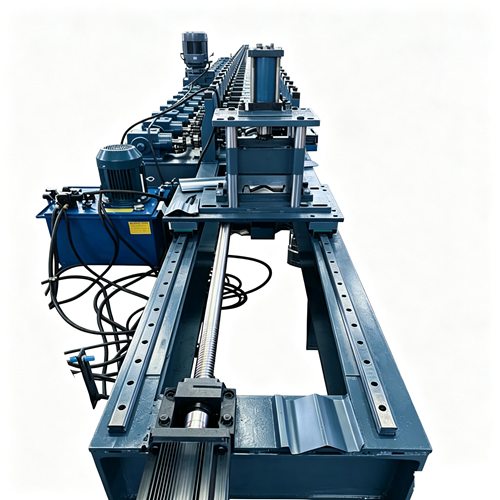

Equipped with high-power variable frequency main drive and heavy-duty synchronous chain transmission, the machine runs smoothly with strong load capacity, forming speed steplessly adjustable from 5 m/min to 12 m/min. Servo automatic deviation corrector at feeding inlet adjusts steel strip position in real time to avoid defective profiles. Servo hydraulic flying shear at the tail delivers clean burr-free cuts with dimensional tolerance controlled within ±0.5mm. The suspended cantilever PLC touch screen control system allows presetting profile length, punching spacing and total output quantity. The machine automatically completes feeding, multi-pass roll forming, on-line punching, fixed-length cutting and counting without extra labor. Only one worker can realize 24-hour non-stop continuous production, cutting secondary processing labor cost significantly.
Every tent roof beam forming machine undergoes a 72-hour full-load coil test before delivery to calibrate forming section, punching positioning and cutting tolerance. A full set of spare forming rollers, punching dies, hydraulic sealing parts and bilingual operation manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, electrical system voltage customization available for all countries. Overseas buyers get remote CNC debugging and on-site installation training by professional engineers. This customized high-precision tent frame equipment gains consistent recognition from tent manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Tent Roof Beam Equipment / Tent Frame Purlin Roll Forming Machine |
| Category |
Customized Roll Forming Machine |
| Processable Materials |
Galvanized steel coil, aluminum alloy coil, aluzinc sheet |
| Applicable Sheet Thickness |
1.0–3.0mm (customizable) |
| Finished Product |
Tent load-bearing roof beam, section customized per customer drawings |
| Optional Function |
On-line hydraulic punching station (extra punching dies available) |
| Roller Material |
45# carbon steel, quenched & thick hard chrome plated |
| Number of Forming Stands |
22–30 roller stations (adjusted by section complexity) |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
5–12 m/min |
| Main Motor Power |
15–22kW (selected by sheet thickness) |
| Cutting System |
Servo hydraulic flying shear fixed-length cutting |
| Cutting Dimensional Tolerance |
≤±0.5mm |
| Control System |
Suspended cantilever full-automatic PLC touch screen control |
| Overall Dimension |
9500–13000×1600×1700mm (varies by profile) |
| Total Machine Weight |
6.5–9 Tons |
| Warranty Period |
2 years for complete machine |
