Octagonal Tube Roll Forming Machine

Octagonal Tube Roll Forming Machine：

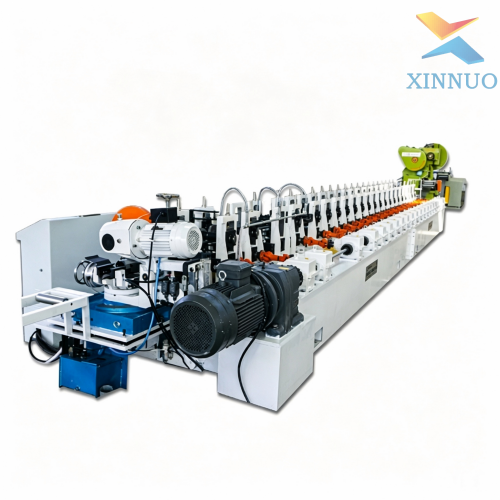

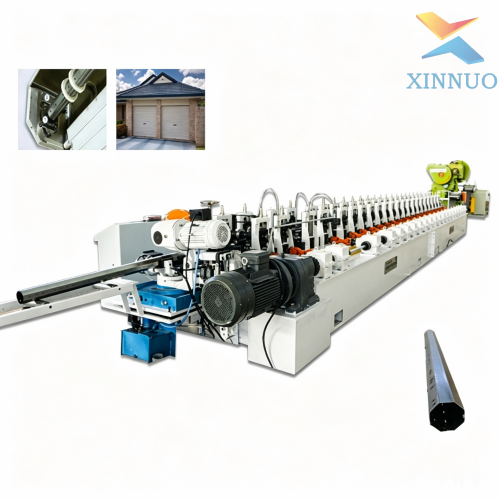

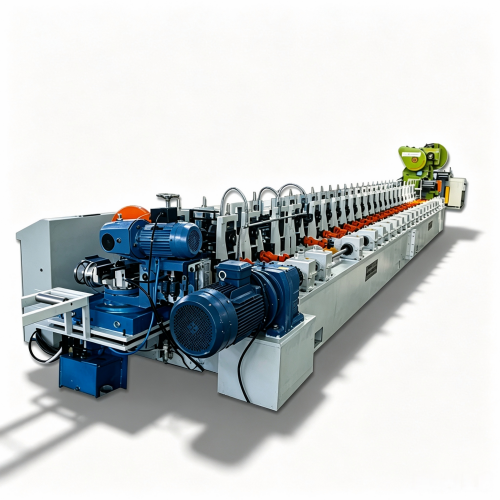

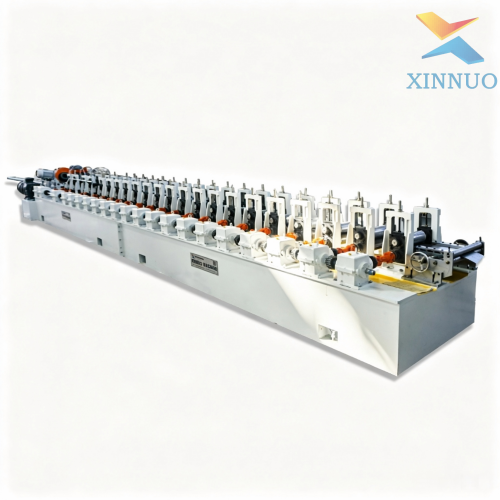

The XINNUO Octagonal Tube Roll Forming Machine is designed for the continuous cold forming of octagonal steel tubes and customized octagonal metal profiles. The supplied images show a long multi-station forming line with a dedicated cutting section arranged at the end of the equipment. The machine gradually forms strip steel into an octagonal cross-section through a sequence of calibrated rollers, creating a consistent profile for further fabrication, assembly, or structural use.

An octagonal tube requires accurate control of several forming surfaces and corner transitions. Unlike a simple flat strip, the material must pass through multiple forming stages so that each side and corner develops progressively without excessive distortion. The roller arrangement is engineered according to the customer’s approved cross-sectional drawing, target outside dimensions, corner geometry, material thickness, and required surface condition. This profile-based design helps maintain a uniform octagonal appearance along the full length of the finished tube.

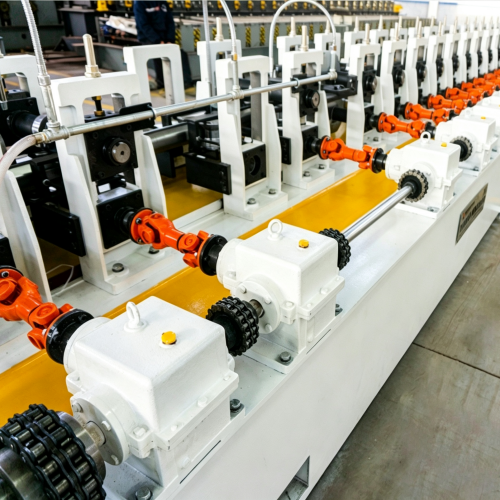

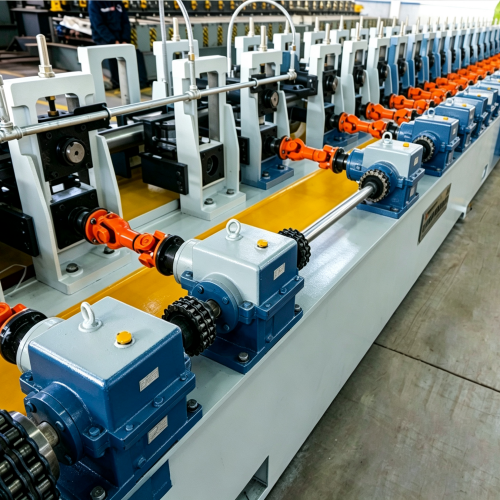

The progressive cold forming process supports stable profile development and controlled material movement. Each roller station performs a specific forming task, gradually adjusting the strip from its initial flat condition toward the final octagonal section. Proper alignment between the forming rollers, shafts, guides, and drive components is important for reducing profile deviation and protecting the finished surface. The actual number of forming stations and the roller design should be finalized only after the tube drawing and raw-material specifications have been reviewed.

The equipment can be engineered for suitable pre-painted steel, galvanized steel, or other approved strip materials, subject to confirmation of the material grade, thickness range, strip width, yield strength, and coating requirements. The entry section guides the coil or strip into the forming path, while the synchronized transmission system keeps the forming stations operating in a coordinated sequence. A stable frame and correctly aligned shafts support repeatable production and help reduce dimensional variation during continuous operation.

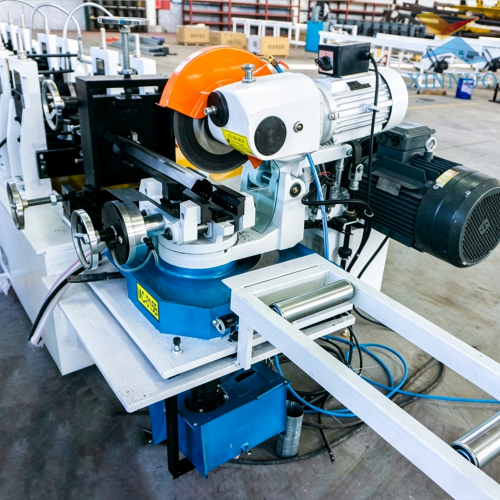

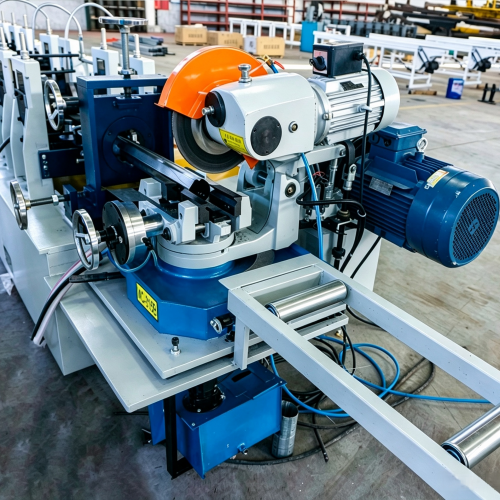

The cutting section shown in the supplied images is arranged to separate the formed octagonal tube into required lengths. The final cutting method may be selected according to the material, profile geometry, length tolerance, production speed, and downstream handling requirements. Depending on the approved technical design, the line may use an appropriate saw-cutting or other engineering-approved cutting solution. The saw type, blade specification, cutting control, automatic measuring method, and finished-product collection arrangement must be confirmed before production.

XINNUO supports customized octagonal tube solutions for different structural, architectural, equipment, and fabrication requirements. Customers can provide a cross-sectional drawing, sample tube, target dimensions, or application description for technical evaluation. The engineering team can review the number of sides, corner transitions, external dimensions, wall thickness, connection method, cutting length, and required production arrangement. This prevents the common mistake of selecting a forming machine only by a general tube name without checking the actual profile.

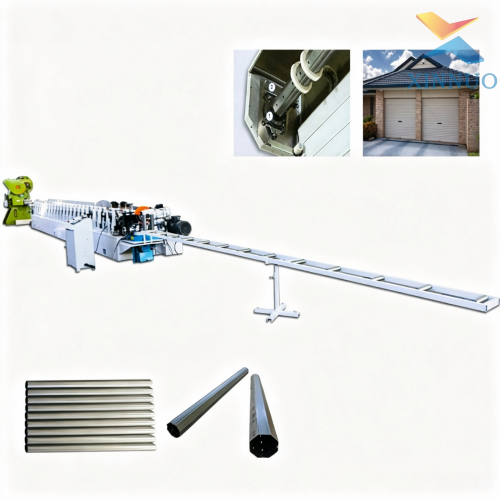

The Octagonal Tube Roll Forming Machine is suitable for manufacturers that require a repeatable in-house supply of special steel profiles. Producing tubes according to project requirements can improve scheduling flexibility, reduce dependence on outside forming suppliers, and support customized lengths for different orders. The line layout can be planned according to the available workshop space, coil-handling method, forming direction, cutting process, finished-tube collection, and connection with downstream welding, punching, coating, or assembly operations.
