The XINNUO Truck Body Panel Roll Forming Machine is designed for the continuous cold forming of profiled steel panels used in truck bodies, cargo boxes, trailers, container structures, and modular construction. The machine processes a prepared steel coil through multiple forming stations and gradually develops the required panel profile. This progressive forming method supports stable panel geometry, consistent rib spacing, and repeatable production quality.

Truck body panels are different from ordinary roofing sheets. Their profile may include reinforced ribs, formed edges, connection sections, and customized surface structures. These features are used to improve panel stiffness, installation performance, and compatibility with the vehicle or container frame. Therefore, the machine must be engineered according to the customer’s approved cross-sectional drawing, material specification, coil width, effective panel width, and finished product requirements.

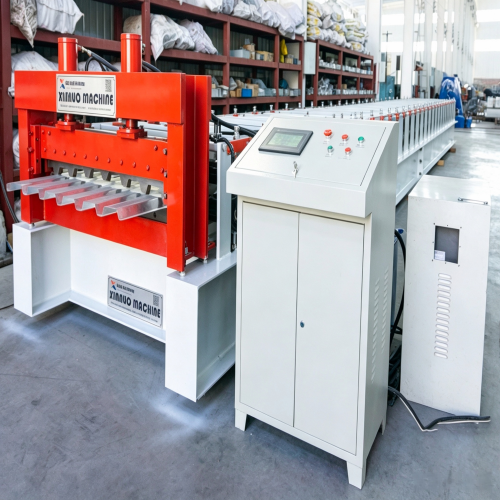

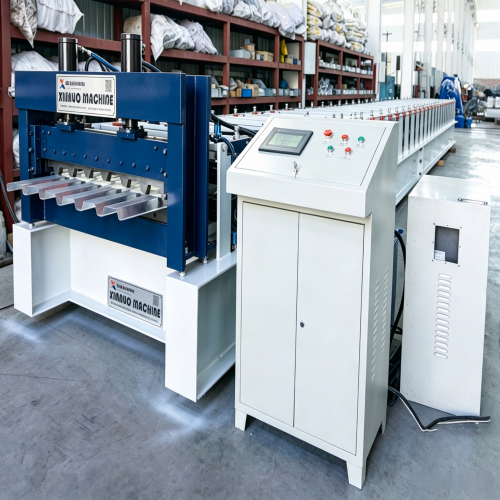

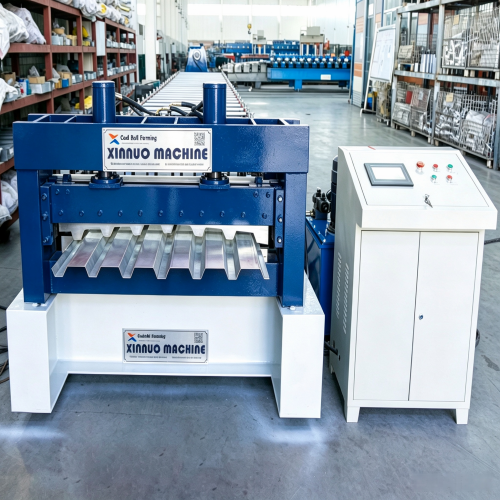

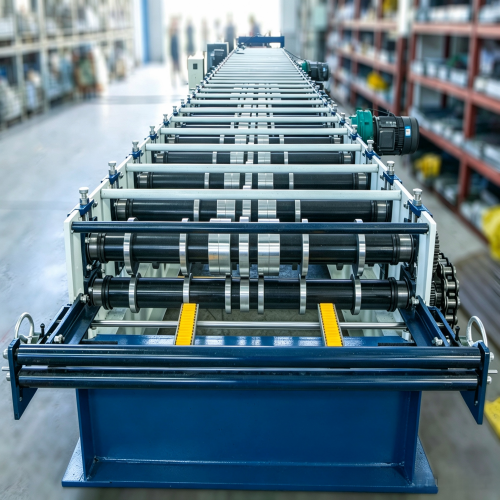

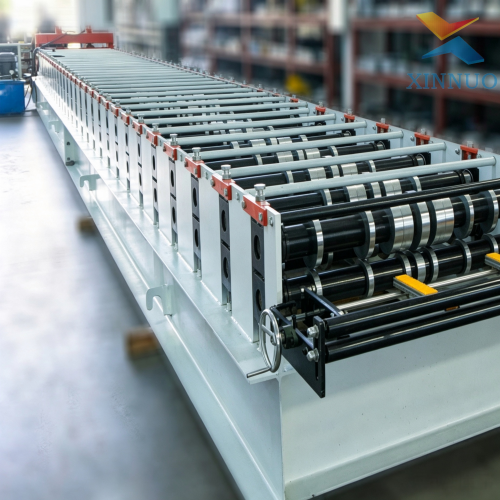

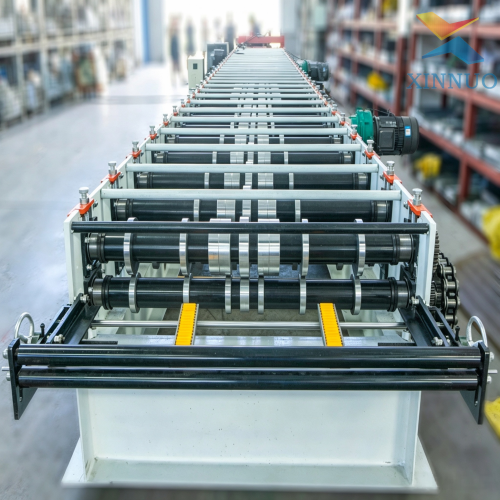

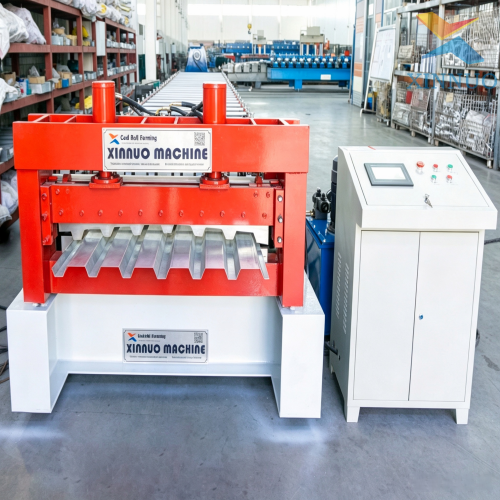

The forming machine consists of a robust frame, forming rollers, transmission components, guiding sections, a cutting unit, an electrical control cabinet, and a finished-panel output section. The forming rollers are arranged in sequence so that the steel strip is shaped gradually instead of being forced into the final profile in one operation. This reduces excessive deformation and helps maintain a clean panel surface and accurate profile dimensions.

The roller arrangement, shaft design, forming station quantity, and drive configuration should be determined according to the actual panel profile. Different truck body and cargo box designs may require different rib heights, wave pitches, edge structures, and connection details. For this reason, XINNUO provides profile-based engineering instead of applying one standard machine design to every customer.

The machine can be configured to process galvanized steel or pre-painted steel coils, subject to confirmation of the material grade, thickness, yield strength, and coil width. The feeding section guides the coil into the forming line, while the transmission system keeps the forming rollers synchronized during operation. Proper alignment of the frame, shafts, and rollers helps reduce profile deviation during long-term production.

The electrical control cabinet provides an operating interface for machine start, stop, production adjustment, panel length setting, and operating-status monitoring. A PLC, HMI, encoder, and automatic length-control system can be selected according to the customer’s automation requirements. The exact electrical components and control functions should be confirmed in the final technical proposal.

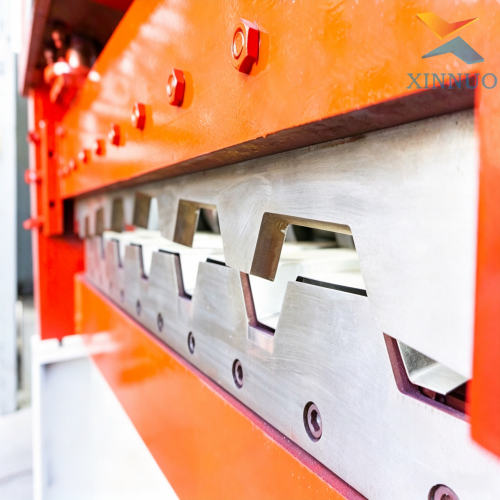

The cutting system can be selected according to the required panel length, cutting tolerance, production speed, and application. Stop-to-cut or other customized cutting solutions may be considered after the profile drawing and production requirements have been reviewed. The cutting blade material, cutting structure, and synchronization method should not be finalized only from product photographs.

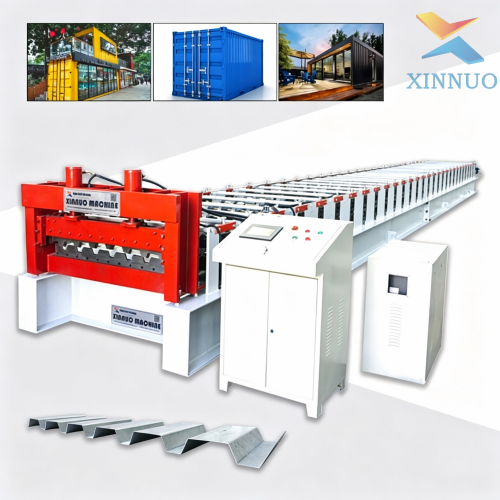

The Truck Body Panel Roll Forming Machine is suitable for producing truck side panels, cargo box panels, trailer panels, container wall panels, and other customized industrial enclosure panels. It can also be used for modular buildings, container houses, mobile workshops, storage units, and prefabricated structures requiring profiled metal panels.

For manufacturers, in-house production can improve scheduling flexibility and reduce dependence on external panel suppliers. Adjustable panel lengths also make it easier to produce panels for different vehicle bodies, cargo boxes, or container dimensions. The final line layout may include decoiling, guiding, roll forming, cutting, control, and finished-panel collection sections according to the workshop plan.

Hebei Xinnuo Roll Forming Machinery Co., Ltd. supports profile drawing review, machine configuration, production planning, installation guidance, commissioning assistance, operator training, and remote technical service. Before manufacturing, all critical parameters should be confirmed in the technical confirmation sheet to ensure that the machine matches the customer’s panel profile, raw material, production requirements, electrical standard, and workshop conditions.
