Office cabinet parts forming machine
This office cabinet parts forming machine belongs to Customized Roll Forming Machine series, non-standard customized cold bending equipment dedicated to metal profiles for steel office filing cabinets, storage lockers and electrical distribution cabinets. It produces cabinet uprights, cross beams, shelf supports, door frames and lock brackets by replacing roller dies. All bending shapes are finished in one pass with precise dimensional tolerance, widely adopted by office furniture, electrical cabinet and storage equipment factories.

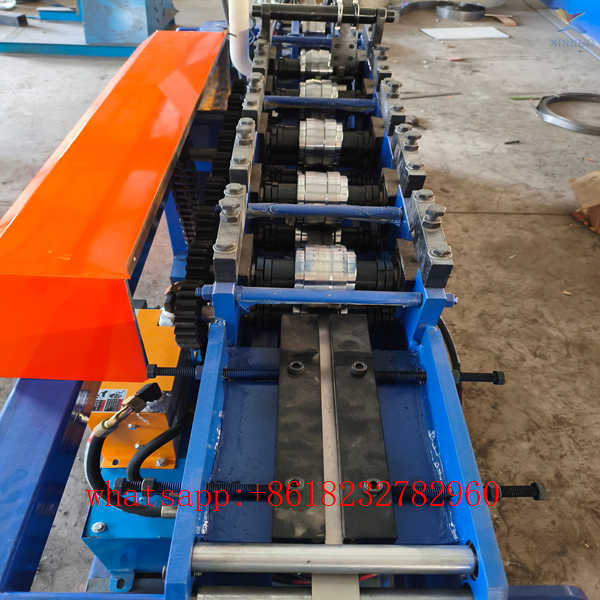

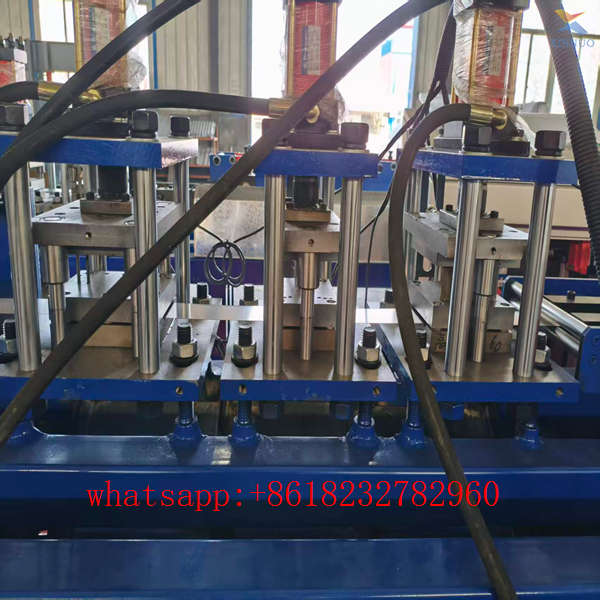

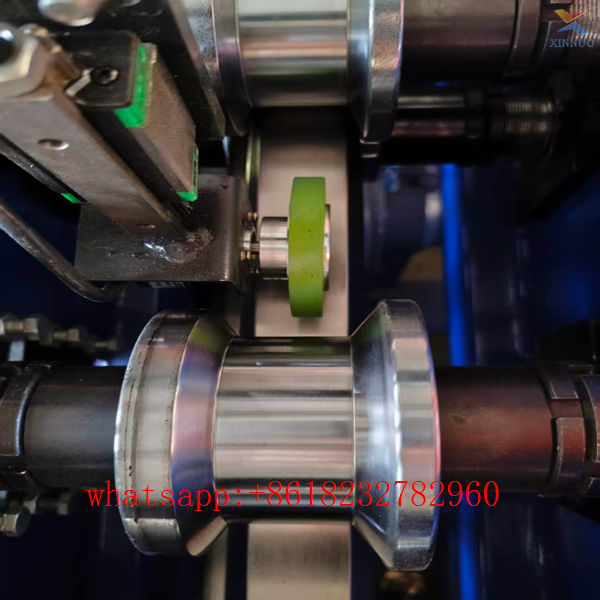

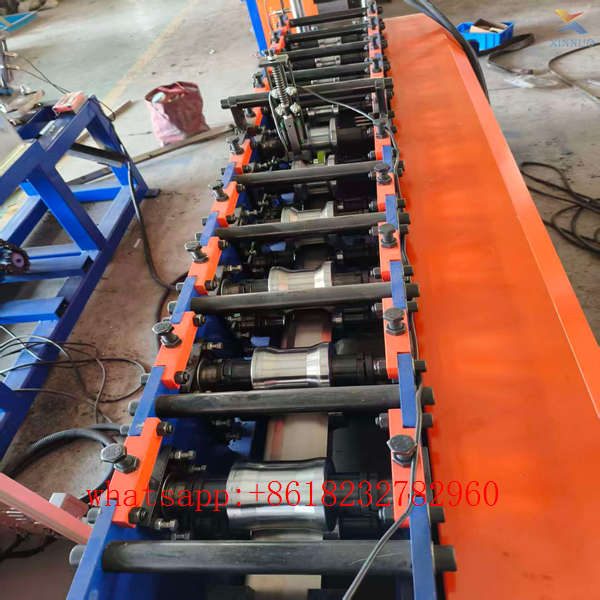

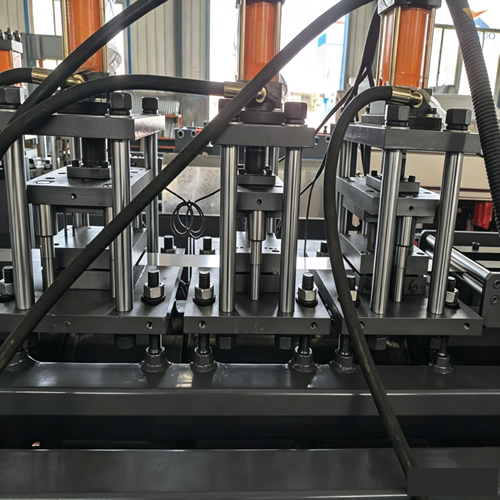

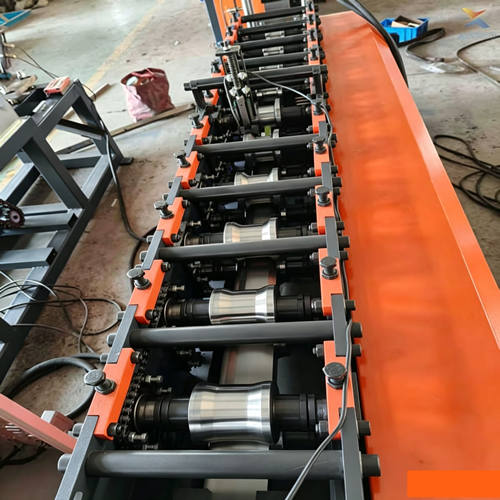

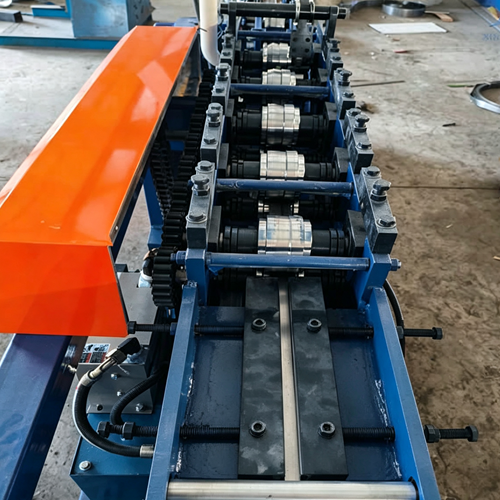

The machine base is integrally welded with thick channel steel and stress-relieved after welding for stable rigidity, free of vibration and deformation during long continuous forming. All forming rollers are precision turned from 45# steel with surface hard chrome plating after quenching for superior wear and rust resistance, processing cold rolled and galvanized strips 0.5–1.5mm thick. Multi-stage progressive bending roller stands accurately form complex concave-convex grooves of cabinet parts, integrated with on-line hydraulic punching and cutting stations to complete bending, hole drilling and fixed-length cutting in one feeding stroke, eliminating multiple secondary processing steps and greatly boosting production efficiency. Profile size and cross-section can be fully customized according to clients’ cabinet drawings.

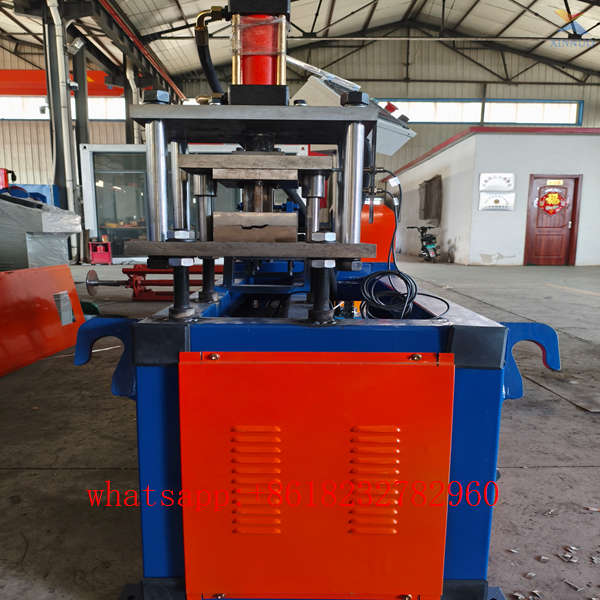

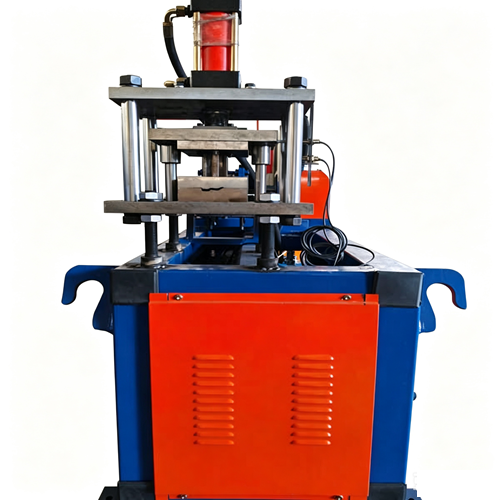

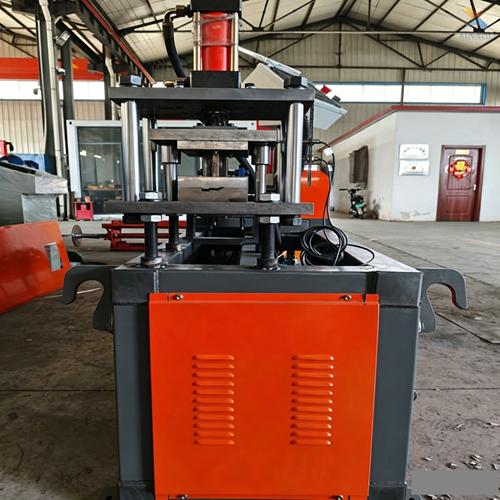

Equipped with variable frequency main motor and synchronous chain transmission, the machine runs smoothly with low noise, forming speed steplessly adjustable from 6 m/min to 18 m/min. Servo automatic deviation corrector at feeding inlet realigns steel strips to reduce material waste. Vertical hydraulic cutting unit at the tail delivers clean burr-free cuts, finished length tolerance ≤±0.8mm. Suspended cantilever PLC touch screen control system stores multiple sets of cabinet part programs for one-click style switching. The machine automatically completes feeding, roll forming, punching, fixed-length cutting and yield counting without extra labor. Only one operator can realize 24-hour non-stop mass production.
Every cabinet profile forming machine undergoes a 72-hour full-coil test before delivery to calibrate forming cross-section, punching position and cutting tolerance. Matching forming rollers, punching dies, hydraulic sealing parts and bilingual operation manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customization available for all countries, delivery lead time 50–60 days. Remote CNC debugging and on-site installation training by professional engineers are accessible for overseas buyers. This custom cabinet profile roll forming machine gains consistent repeat orders from office furniture and electrical equipment manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Office cabinet parts forming machine / Custom Cabinet Profile Roll Former |
| Category |
Customized Roll Forming Machine |
| Processable Materials |
Cold rolled steel strip, hot-dip galvanized thin sheet |
| Applicable Sheet Thickness |
0.5–1.5mm |
| Produced Parts |
Cabinet uprights, cross beams, shelf brackets, door frames, electrical supports (custom cross-section) |
| Roller Material |
45# steel, precision turned + quenched hard chrome plating wear-resistant treatment |
| Integrated Functions |
On-line hydraulic punching + servo fixed-length cutting all-in-one |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
6–18 m/min |
| Main Motor Power |
5.5–7.5kW |
| Cutting System |
Vertical hydraulic cutting |
| Dimensional Tolerance |
Finished length error ≤±0.8mm |
| Control System |
Cantilever PLC touch screen, multi recipes stored for one-click switch |
| Overall Dimension |
6800×1050×1300mm (adjustable by profile length) |
| Total Machine Weight |
2.3 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
