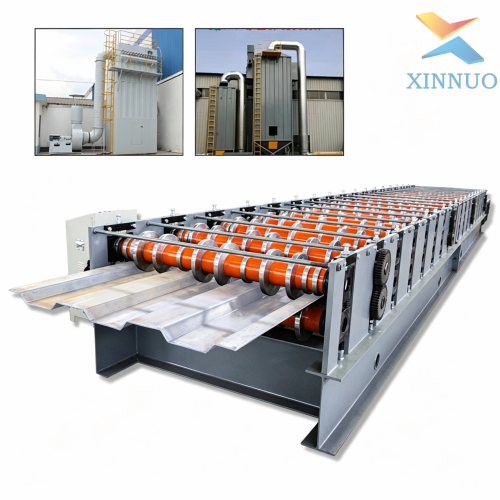

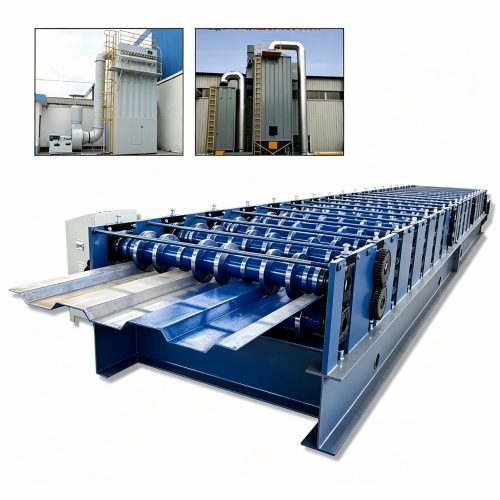

The XINNUO Dust Collector Panel Roll Forming Machine is designed for the continuous cold forming of profiled steel panels used in industrial dust collectors, dust extraction systems, air filtration equipment, environmental protection machinery, and large equipment enclosures. Based on the supplied images, the machine produces a wide profiled panel with repeated ribs and a formed edge structure. The finished panels can be used as wall sections, enclosure panels, protective covers, or structural cladding for dust collection equipment.

Dust collector panels require a stable and repeatable profile to support equipment assembly, panel connection, structural stiffness, and external protection. Compared with a flat steel sheet, a profiled panel can provide improved rigidity while maintaining a practical material thickness. The final panel design may include raised ribs, recessed sections, side folds, connection edges, or other customized details according to the dust collector structure and installation method.

The machine uses a progressive roll forming process. During production, the prepared steel coil passes through multiple forming stations. Each roller station performs a controlled forming step, allowing the steel strip to gradually develop the required profile. This process helps reduce sudden deformation and supports consistent rib spacing, stable panel geometry, and a uniform finished appearance during continuous production.

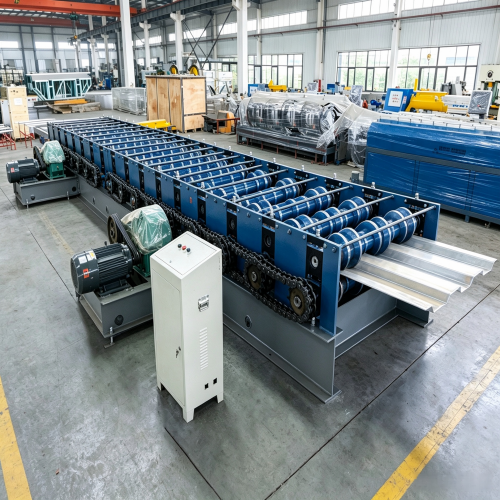

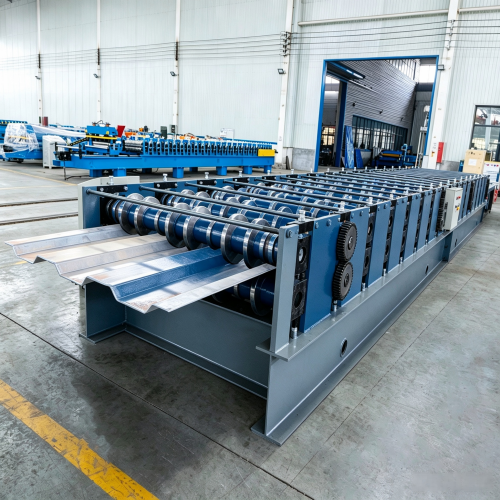

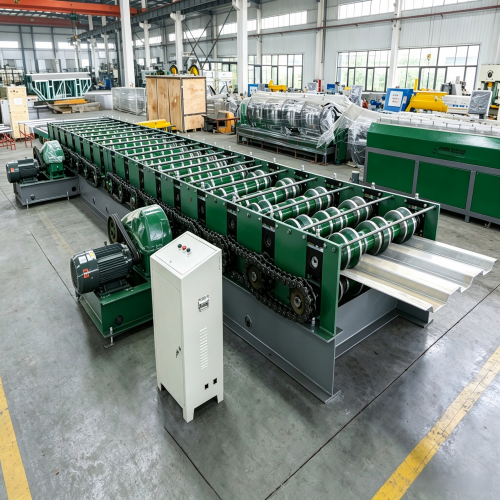

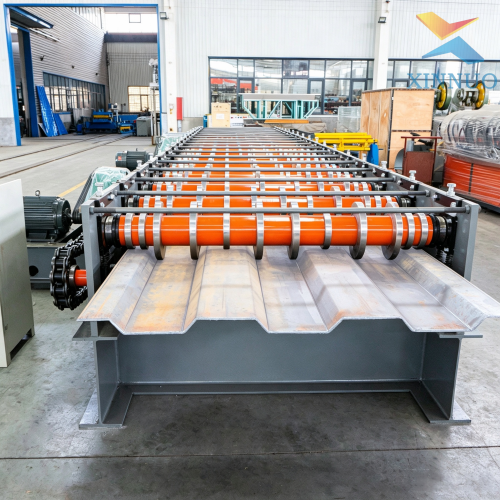

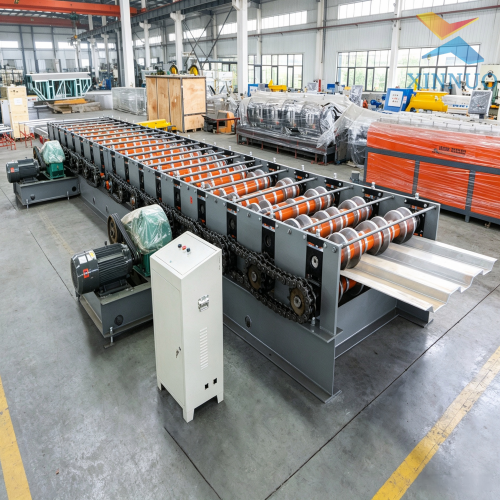

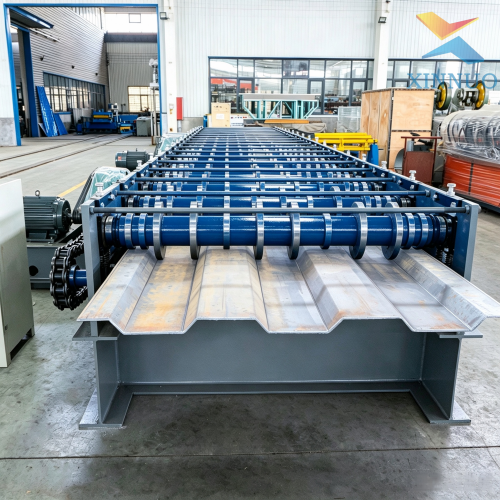

The forming section includes a rigid machine frame, precision forming rollers, supporting shafts, guide components, transmission parts, and an output section for the finished panel. The supplied images show a long forming line with a side transmission arrangement and multiple roller stations. The roller layout is designed according to the approved cross-sectional drawing. The final forming-station quantity, roller material, shaft dimensions, drive arrangement, and motor configuration should be confirmed in the technical proposal.

The Dust Collector Panel Roll Forming Machine can be configured for galvanized steel coils, pre-painted steel coils, or other suitable coil materials after the material grade, thickness, yield strength, coil width, and surface condition have been confirmed. The feeding section guides the coil into the forming path, while the guide devices help maintain stable material alignment. Correct alignment of the frame, shafts, rollers, and feeding components is important for controlling profile deviation and edge quality.

The machine can be equipped with an electrical control cabinet for centralized operation and production management. Depending on the required automation level, the control system may include start and stop control, production monitoring, panel length setting, counting, and cutting coordination. PLC control, touch-screen operation, encoder feedback, and automatic length measurement can be selected according to the customer’s production plan and local electrical requirements. The exact electrical configuration should be confirmed before manufacturing.

A cutting section can be arranged after the forming process to produce panels according to the required length. The cutting method, blade material, cutting tolerance, and synchronization mode should be selected according to the final profile and production requirements. Stop-to-cut or other customized cutting solutions may be considered after the panel drawing and output requirements have been reviewed.

This machine is suitable for producing dust collector wall panels, dust extraction equipment panels, air filtration housing panels, environmental machinery enclosure panels, industrial protective covers, and customized metal cladding panels. It can be used by manufacturers of industrial dust collection systems, environmental equipment, ventilation machinery, filtration units, and prefabricated equipment housings.

In-house panel production can help equipment manufacturers improve production scheduling, reduce dependence on external panel suppliers, and produce customized panel lengths for different dust collector designs. The complete line can be arranged with decoiling, feeding, guiding, roll forming, cutting, electrical control, and finished-panel collection sections according to the available workshop space and production plan.

Hebei Xinnuo Roll Forming Machinery Co., Ltd. provides profile drawing review, machine configuration support, production planning, installation guidance, commissioning assistance, operation training, and remote technical service for international customers. Before manufacturing, the customer should confirm the profile drawing, raw material information, effective width, feeding width, panel length, cutting method, electrical standard, and required automation level. This ensures that the supplied machine is correctly matched with the intended dust collector panel and equipment structure.
