Circular Ridge Cap Roll Forming Machine

Circular Ridge Cap Roll Forming Machine：

Circular Ridge Cap Roll Forming Machine for Accurate Roofing Components

The XINNUO Circular Ridge Cap Roll Forming Machine is designed to produce continuous circular or arc-shaped metal ridge caps for pitched roofing systems. A ridge cap is installed along the highest junction of a roof, where it covers the meeting line between two roof slopes and helps create a clean, weather-resistant finish. Unlike a roof panel roll former, this machine is intended for a narrower ridge component rather than a full-width roof sheet. Its forming concept is therefore focused on controlled curvature, symmetrical shaping, stable feeding, and consistent finished geometry.

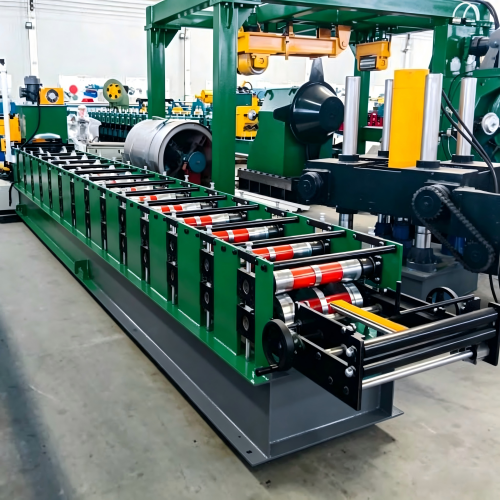

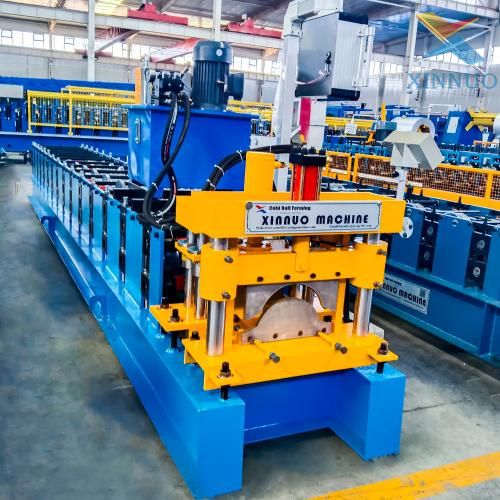

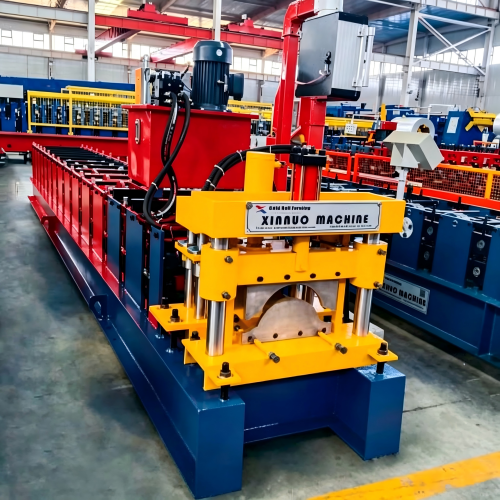

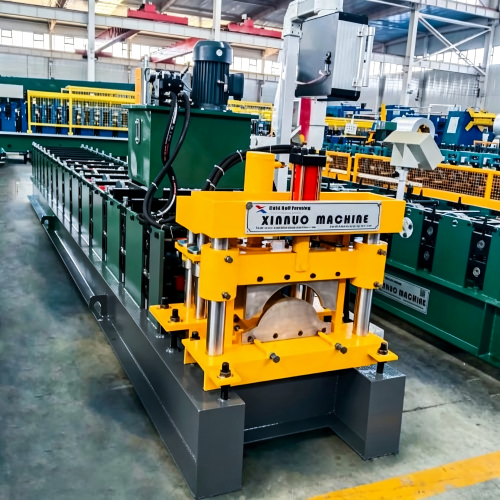

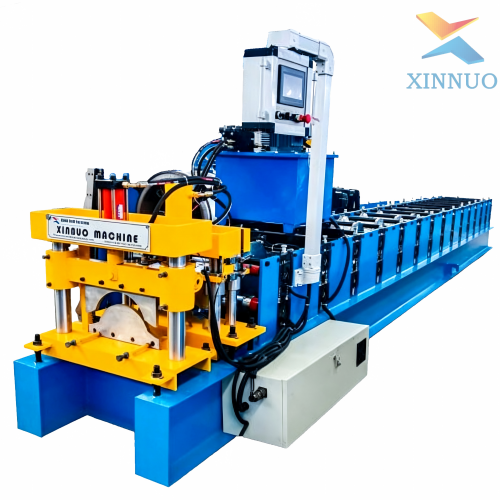

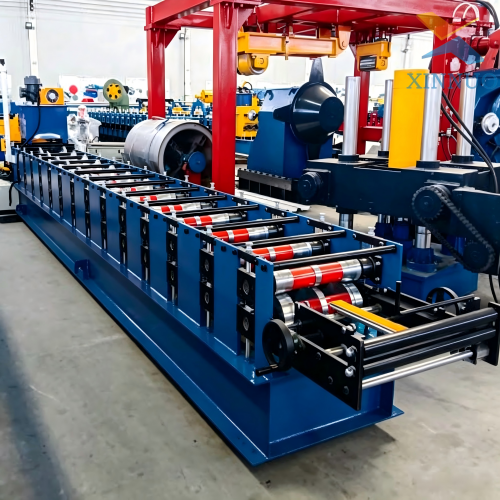

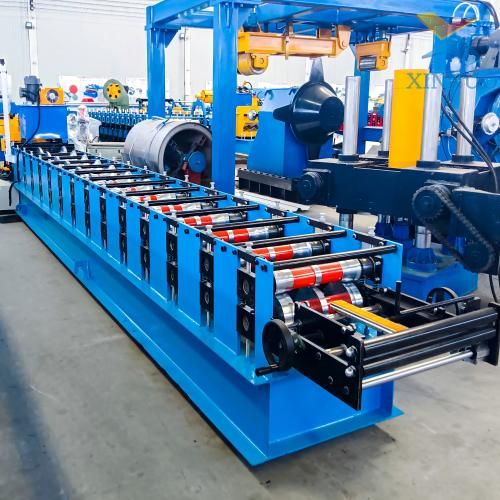

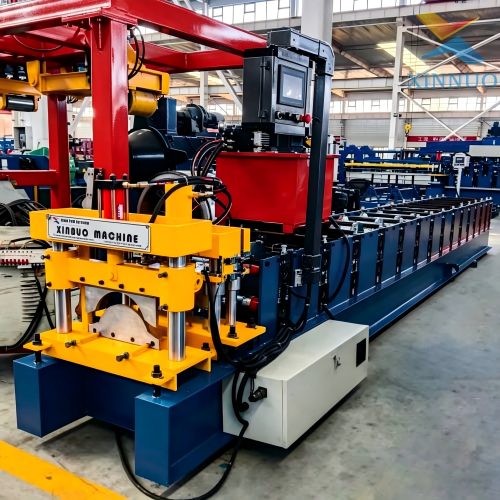

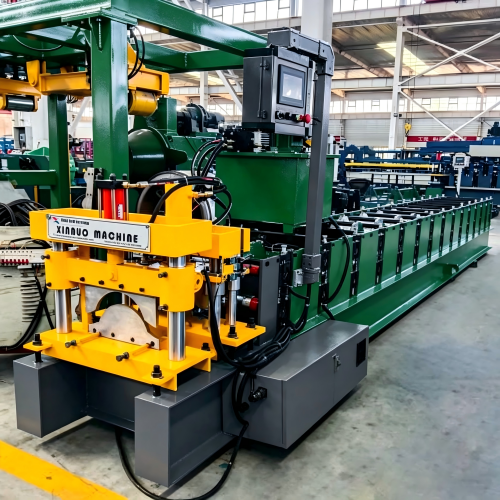

The supplied machine images show a robust welded frame, a long forming section, guided material entry, multiple forming roller stands, a powered drive assembly, a hydraulic cutting station, and an electrical control cabinet. These assemblies work together as a continuous production line. The metal strip is guided into the forming section, gradually shaped through successive roller stations, and cut into required lengths after the circular ridge cap profile is formed. This progressive process reduces sudden deformation and supports repeatable profile quality when the tooling, material, and operating parameters are correctly matched.

The machine can be configured around the customer’s required ridge profile, covering width, arc geometry, sheet thickness, material grade, and finished length. Because circular ridge caps must match the roof panel and roof pitch, profile confirmation is an essential part of the engineering process. XINNUO can review the customer’s roof panel drawing, sample, or dimensional requirements before finalizing the roller design. This approach helps prevent an unsuitable combination of ridge width, arc radius, and side overlap during installation.

A dedicated hydraulic cutting arrangement supports practical production management by separating continuous forming from finished-piece cutting. The control cabinet provides a centralized operating interface for line operation, while the drive and guide assemblies maintain coordinated material movement through the machine. Depending on the confirmed configuration, the line can be specified for different automation levels and production requirements. Final values for forming stations, main motor power, hydraulic power, line speed, voltage, and control-system brand should be confirmed against the approved technical proposal rather than estimated from photographs.

The circular ridge cap machine is suitable for roofing component manufacturers, steel-building contractors, roofing distributors, and metal fabrication plants that need dedicated production of curved ridge accessories. Typical applications include industrial workshops, warehouses, agricultural buildings, commercial roofing, prefabricated structures, and other pitched-roof projects requiring a coordinated ridge finish. By producing the ridge cap in-house, users can improve profile consistency, shorten accessory lead times, and coordinate ridge dimensions with their own roof panel range. This supports dependable project scheduling.

XINNUO emphasizes practical engineering support throughout the project. Before production, the technical team can confirm the profile drawing, feeding direction, material range, cutting method, electrical standard, and machine layout. During delivery, commissioning guidance and operating instructions can be provided according to the agreed configuration. For long-term operation, after-sales support can cover installation questions, production adjustment, wear-part identification, and routine maintenance guidance. The final machine specification, roller material, shaft diameter, machine dimensions, weight, warranty terms, and spare-parts package should be listed in the commercial and technical contract before order confirmation.

Choose the XINNUO Circular Ridge Cap Roll Forming Machine when your production requires a dedicated, stable, and configurable solution for circular metal ridge caps. Share the required profile drawing or a sample with XINNUO to receive a confirmed configuration and technical quotation.
