Hebei Xinnuo Cold Roll Forming Machinery Co., Ltd. specializes in manufacturing complete cold roll forming equipment for metal building materials, and our ridge cap roll forming machine is a matched auxiliary machine classified under the Ridge Cap Roll Forming Machine category. This fully automatic equipment is designed to produce V-shaped metal ridge caps, which are essential waterproof accessories for steel structure factories, storage warehouses, breeding farms and commercial buildings, perfectly matching trapezoidal roof panels, standing seam roof panels and glazed tiles for complete roof construction solutions.

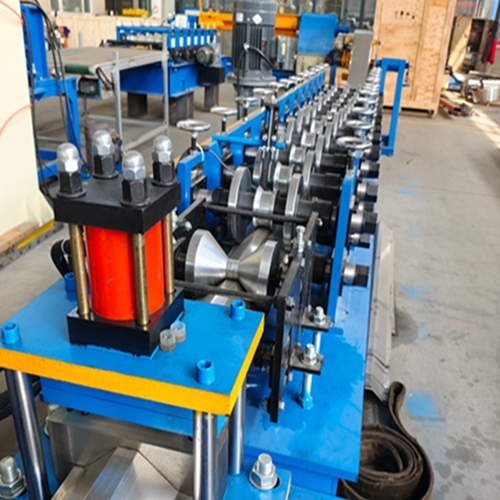

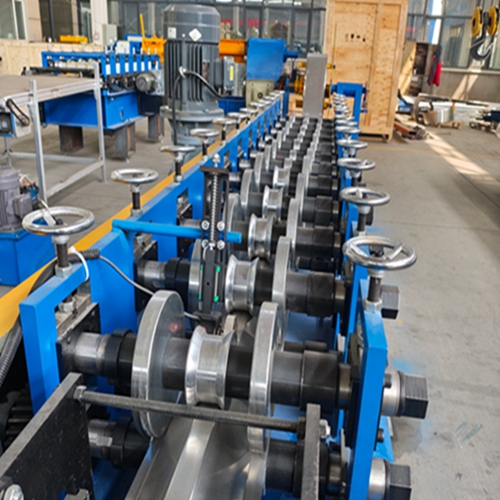

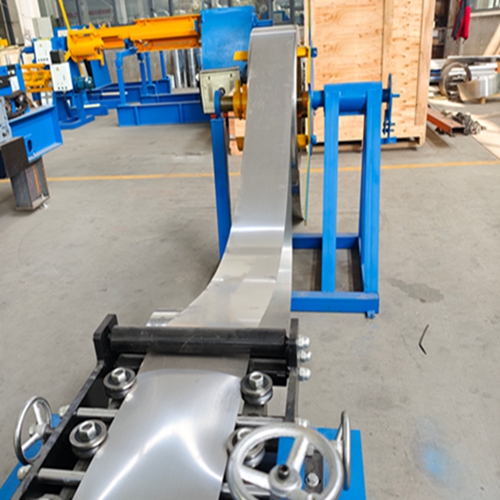

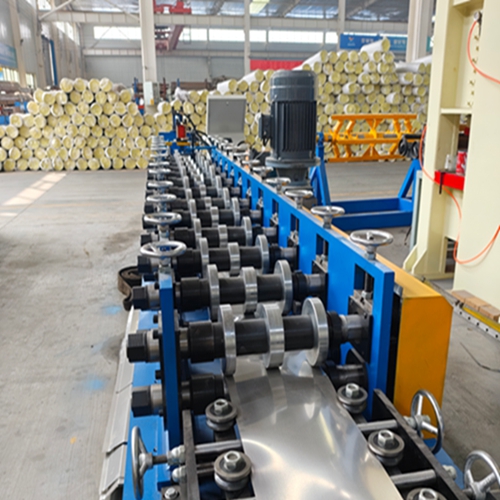

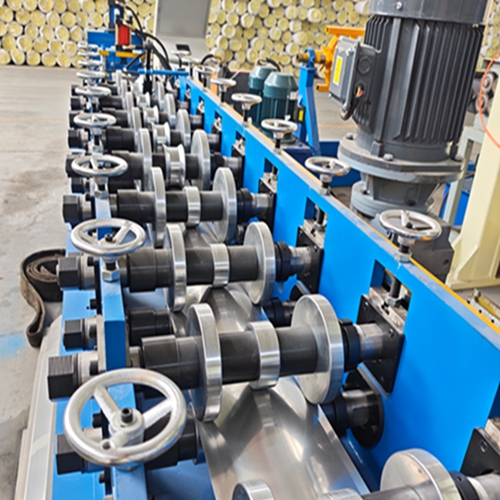

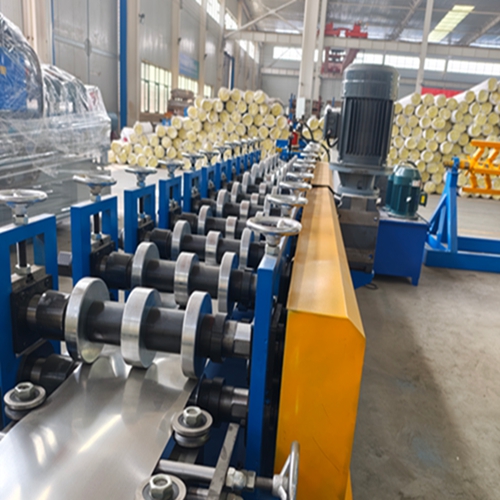

The whole machine frame is integrally welded with thickened carbon steel plates, which greatly improves structural rigidity and effectively eliminates vibration during long-term continuous operation. All forming rollers are forged from high-quality Cr12MoV alloy steel and processed by vacuum quenching treatment, with high surface hardness and excellent wear resistance to extend service life. Each roller group undergoes precise CNC calibration to ensure uniform bending angle and width of finished ridge caps, so the ridge tiles can closely fit the top of roof sheets and block rainwater penetration from roof joints. Multi-pass rolling stations can complete feeding, leveling, bending and forming in one continuous procedure, cutting manual operation and boosting daily production output.

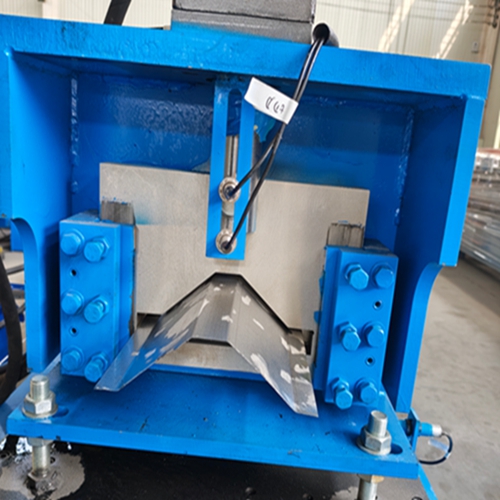

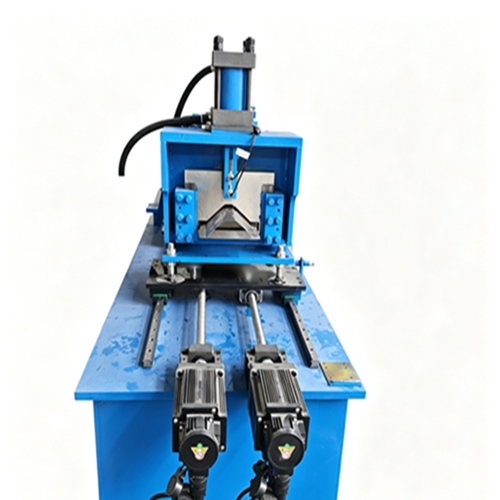

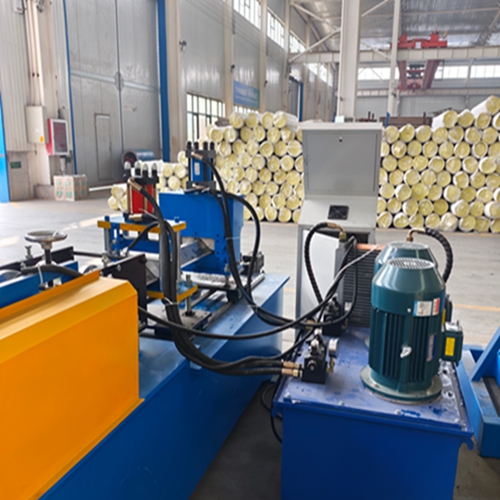

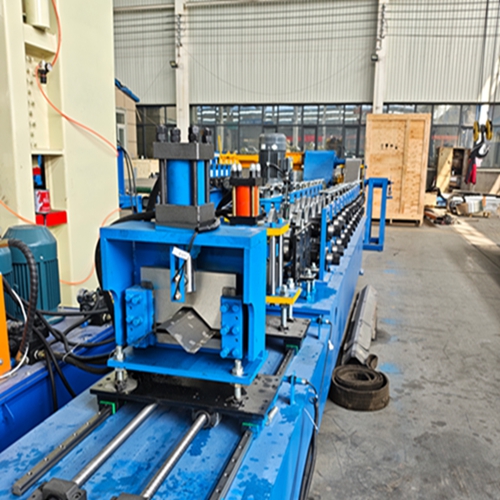

This ridge cap roll forming machine adopts dual servo motor drive structure shown on the main product picture, which realizes automatic width adjustment without manual disassembly of rollers. The hydraulic cutting station is equipped with a thickened cutting die and pressure cylinder to finish fixed-length blanking automatically, the cutting surface is smooth without burrs and no secondary trimming is required. It supports raw material coils with thickness of 0.3mm to 0.7mm, including color coated steel, galvanized steel and aluminum coils, adapting to different climate markets in Europe, Southeast Asia, Africa and the Americas.
The production line is equipped with an intelligent PLC touch screen control system with multi-language operation interface. Operators can easily set production length, cutting quantity and running speed without professional technical training. The standard running speed reaches 8–12 meters per minute for stable mass production. The standard power supply is 380V 50Hz three-phase electricity, and customized voltage specifications such as 220V, 415V and 440V are available to match local power grid standards of different countries.
For safe daily operation, emergency stop buttons and safety warning labels are installed on the hydraulic cutting head and roller area. The independent heat dissipation electric cabinet reduces dust accumulation and avoids circuit aging. Our factory provides a full 2-year machinery warranty covering core components including forming rollers, hydraulic cylinders, servo motors and PLC control system. Damaged main spare parts can be replaced free of charge within the warranty period, and our professional technical team offers 24-hour remote online guidance.
The standard delivery cycle is 50–60 working days after receiving 30% T/T deposit, and the remaining 70% balance needs to be paid before shipment. Every ridge cap roll forming machine will pass a 72-hour continuous running test before delivery, and complete test videos can be sent to customers for confirmation before packaging. Waterproof plastic film and fumigation-free wooden cases are used for packaging to prevent rust and collision damage during long-distance sea transportation.
We provide flexible personalized customization service: customers can adjust the V-angle, covering width and production speed of ridge caps according to local mainstream roof styles. We can also supply matched main roof panel forming machines, decoilers and sheet crimping machines to build a full set of roof material production line.
If you are looking for a reliable manufacturer of ridge cap roll forming machine, feel free to contact us via WhatsApp or email to get detailed technical parameters, factory ex-factory quotation and machine operation test videos. Our sales and engineering team provides round-the-clock online consulting service to solve all your problems about metal roof accessory forming equipment.
