Ridge Tile Machine

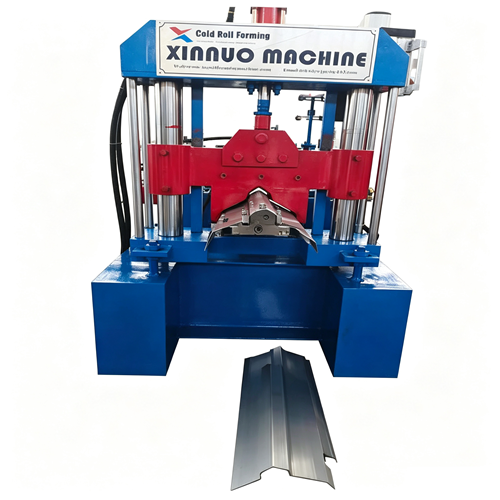

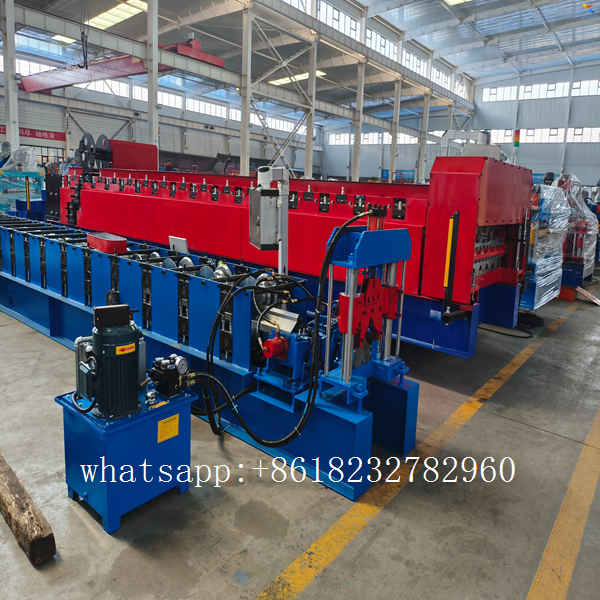

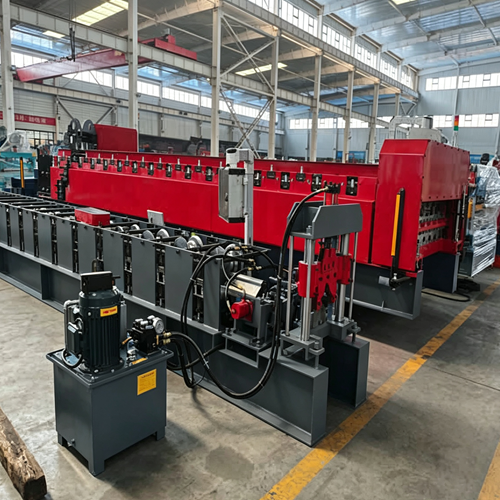

This ridge tile machine belongs to Ridge Cap Roll Forming Machine category, dedicated cold bending equipment for roof waterproof ridge caps, matched with color steel roof tile roll formers. It produces top sealing ridge panels compatible with mainstream profiles 820/840/900. Formed ridge tiles achieve tight overlap to prevent rainwater leakage through roof joints, widely applied for steel workshops, warehouses, homestays, photovoltaic roofs and prefab houses.

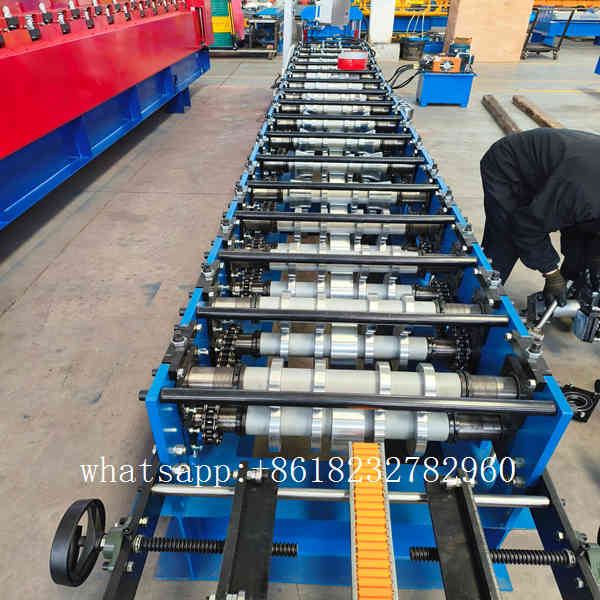

The machine base is integrally welded with thick channel steel and stress-relieved by annealing after welding to eliminate deformation stress. The compact frame runs vibration-free at high speed, ensuring consistent ridge height and bending angle. All forming rollers are precision turned from 45# steel with hard chrome plating after surface quenching for superior wear and rust resistance, processing color coated & galvanized strips 0.3–0.7mm thick. Multi-stage progressive bending roller stands form triangular snap grooves in one pass without surface scratch or bending crack. Ridge width and height can be fully customized to match client roof panel profiles.

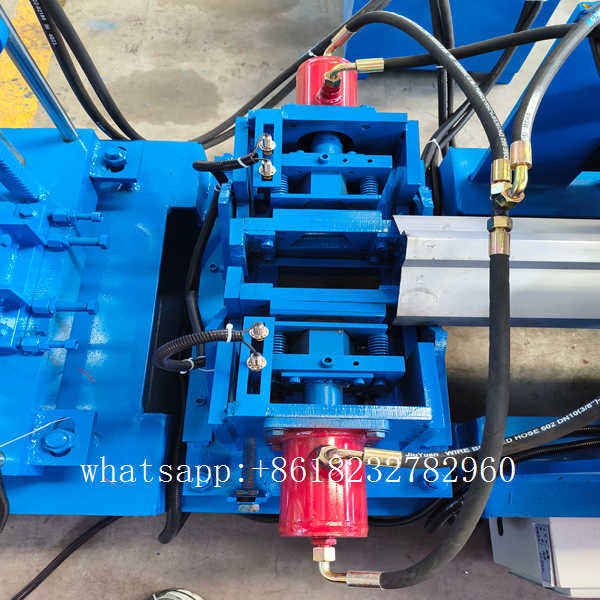

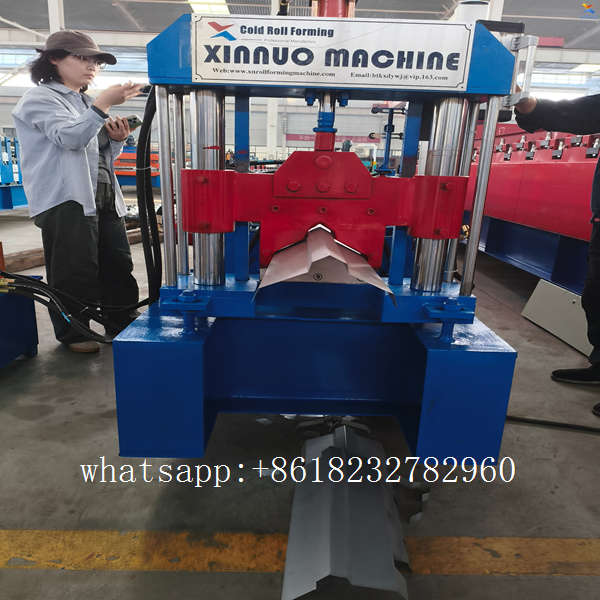

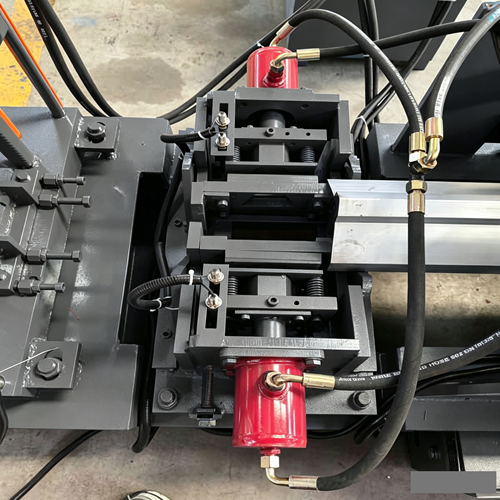

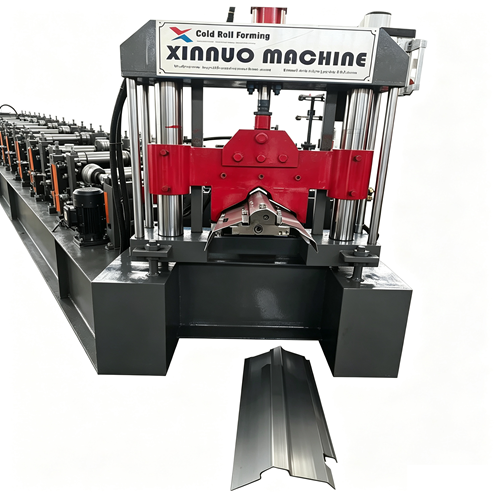

Equipped with variable frequency synchronous chain transmission, the machine operates smoothly with low noise, forming speed steplessly adjustable from 7 m/min to 20 m/min. Simple manual deviation corrector at feeding inlet easily centers steel strips to reduce waste. Vertical hydraulic cutting unit at tail delivers clean burr-free cuts, finished length tolerance ≤±1mm. Suspended cantilever PLC touch screen control system stores multiple standard ridge length programs, automatically completing feeding, roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop mass production.
Every ridge cap forming machine undergoes a 72-hour full-coil continuous test before delivery to calibrate bending angle and cutting dimensional tolerance. Complete spare forming rollers, cutting blades, hydraulic sealing parts and bilingual operation manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customization available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This compact auxiliary ridge forming machine is widely purchased as supporting equipment by global building material manufacturers.
| Parameter Item |
Specification |
| Model Name |
Ridge Tile Machine / Ridge Cap Roll Forming Machine |
| Category |
Ridge Cap Roll Forming Machine |
| Processable Materials |
Color coated steel coil, thin galvanized strip |
| Applicable Sheet Thickness |
0.3–0.7mm |
| Compatible Roof Profiles |
820/840/900 series (custom ridge dimension available) |
| Roller Material |
45# carbon steel, precision turned + quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
14–20 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
7–20 m/min |
| Main Motor Power |
4kW |
| Cutting System |
Vertical hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
Suspended cantilever full-automatic PLC touch screen control |
| Overall Dimension |
5800×950×1200mm |
| Total Machine Weight |
1.8 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
