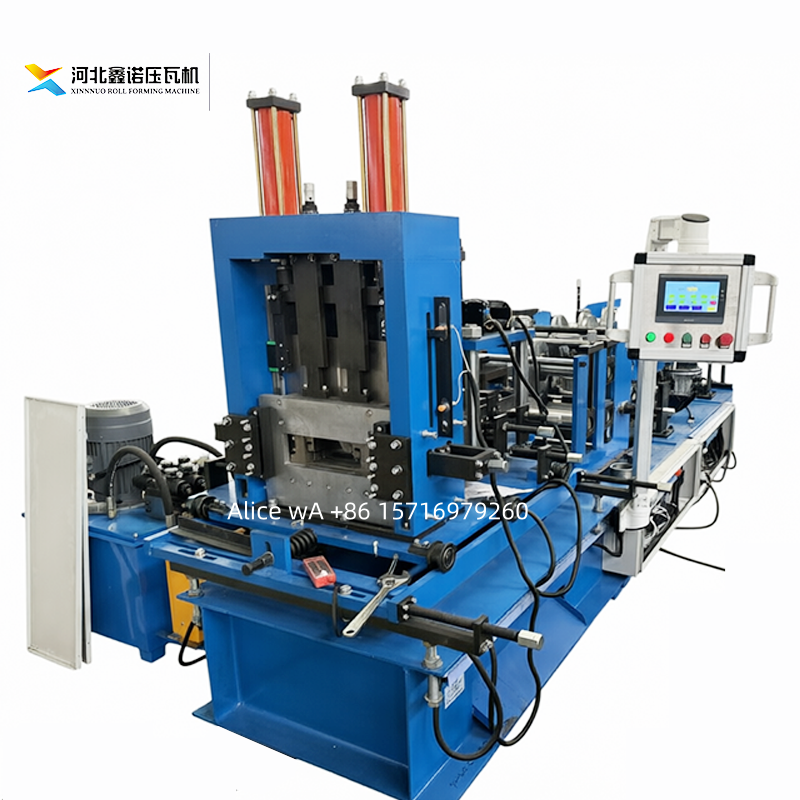

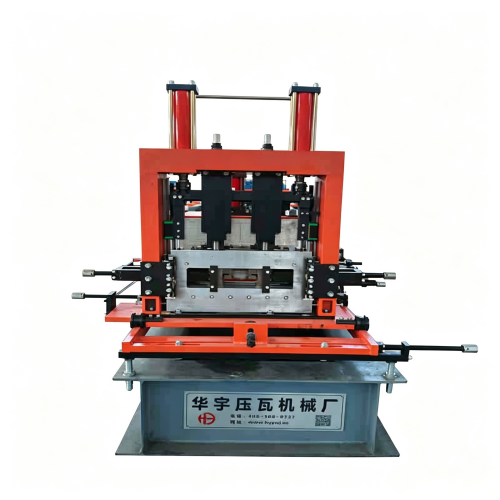

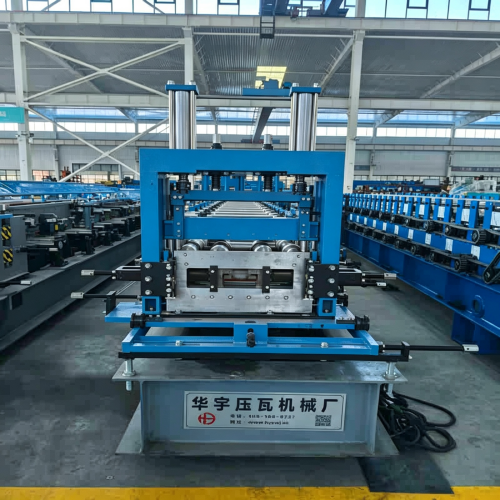

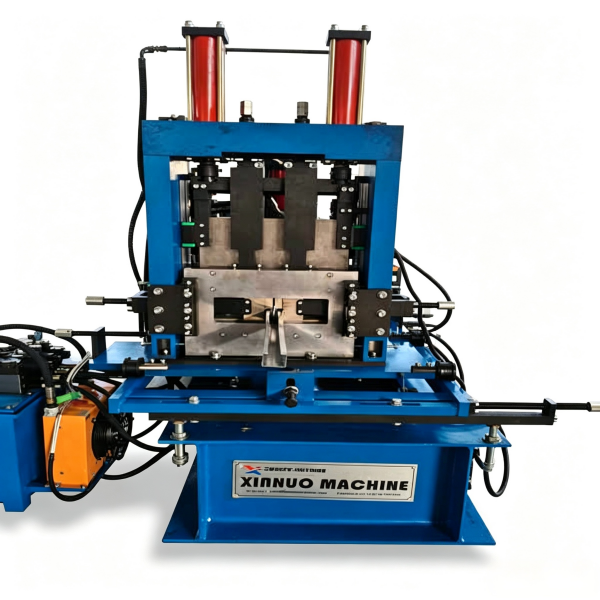

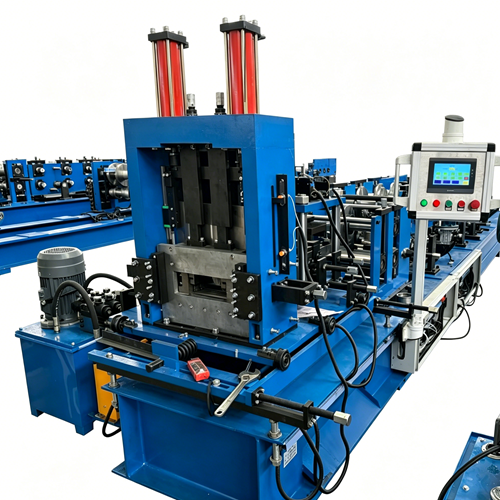

C Purlin Roll Forming Machine
This C purlin roll forming machine belongs to C/Z purlin roll forming machine category, full automatic cold bending equipment for load-bearing C channel steel used on steel structure building roof and wall. It realizes stepless online adjustment of C purlin depth, flange width and lip size, producing multiple sizes without roller replacement, greatly cutting equipment investment and model change downtime compared with traditional fixed-size purlin machines.
Finished C channels are widely applied as secondary roof beams and wall keels for steel workshops, warehouses, shopping malls and prefabricated buildings. Compatible with 1.2–3.0mm hot-dip galvanized & high zinc coating steel strips.

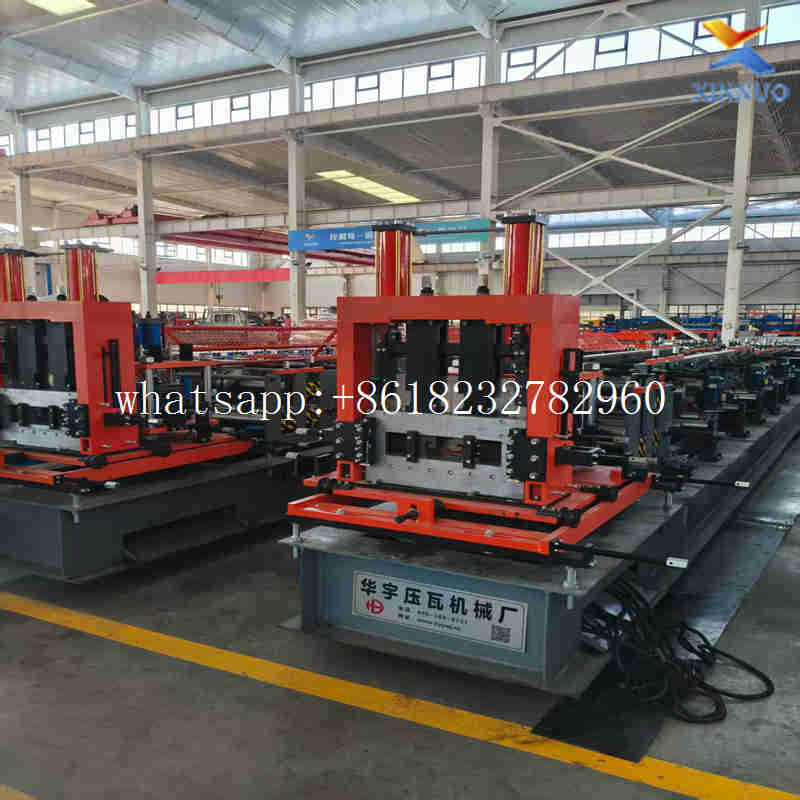

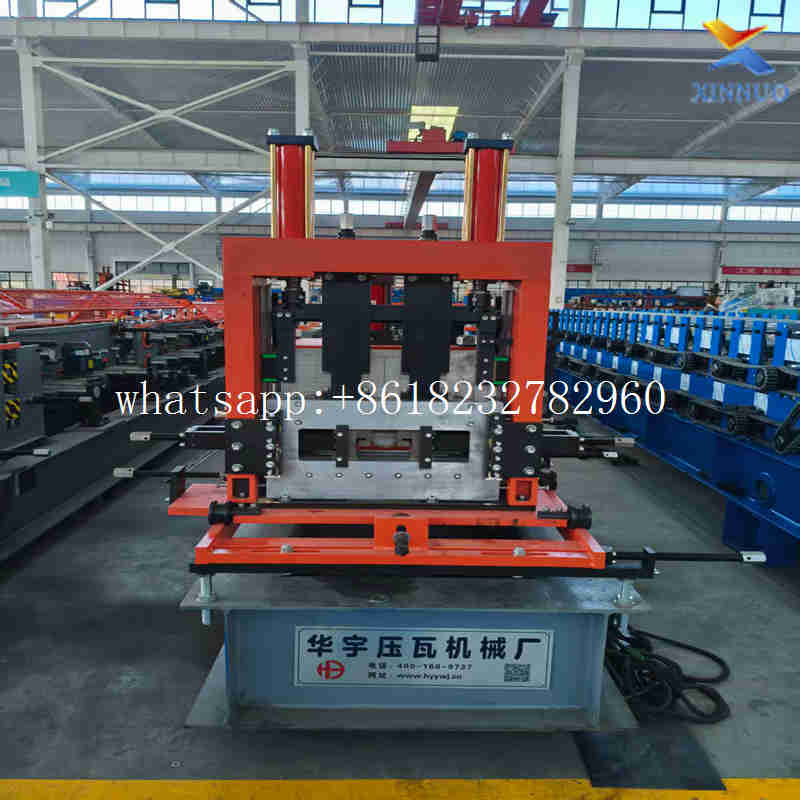

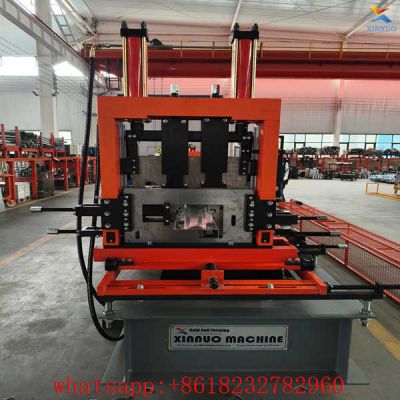

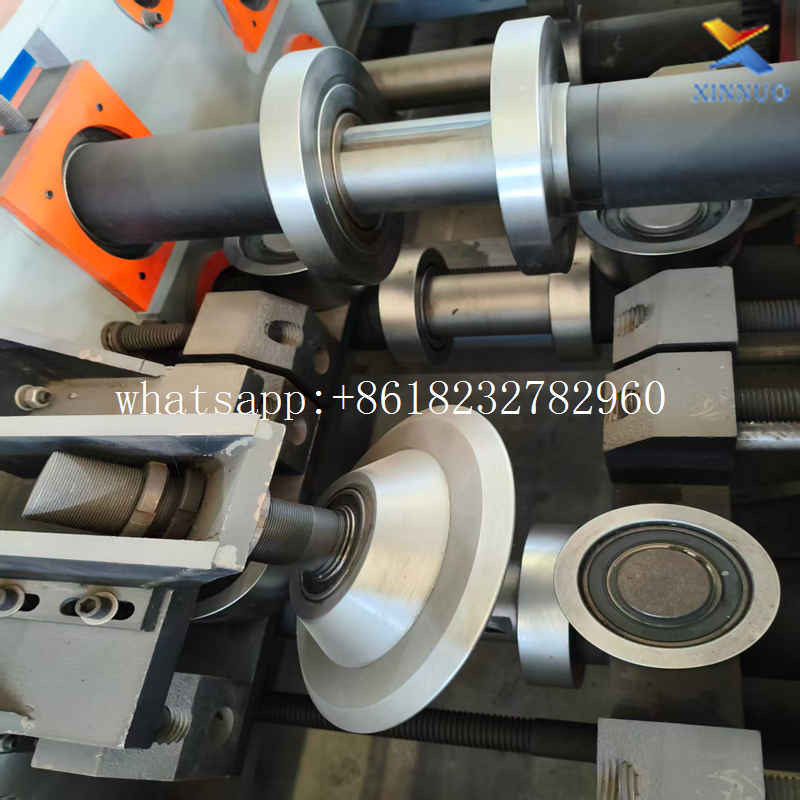

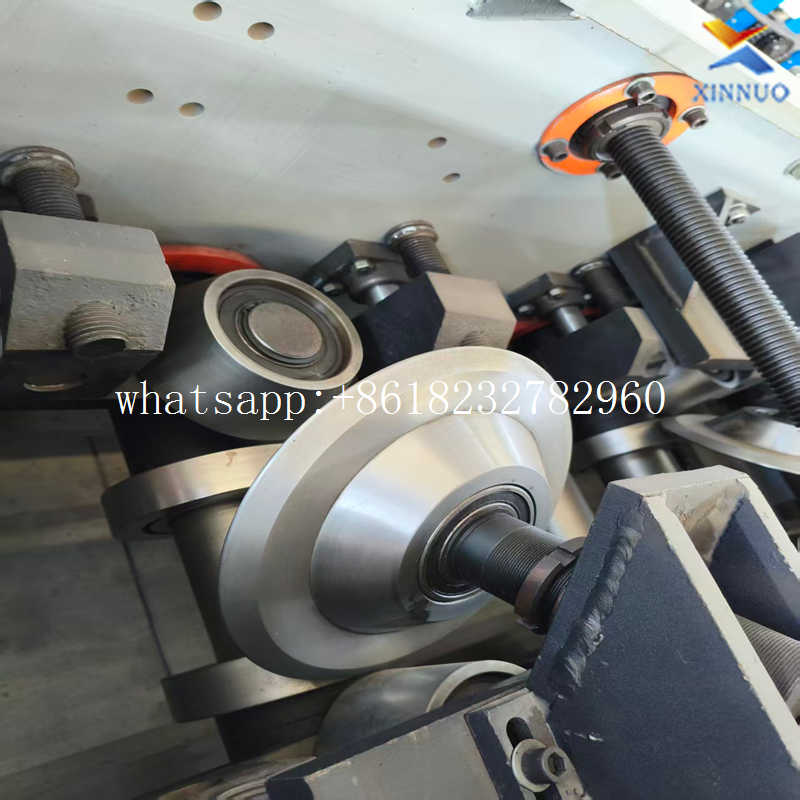

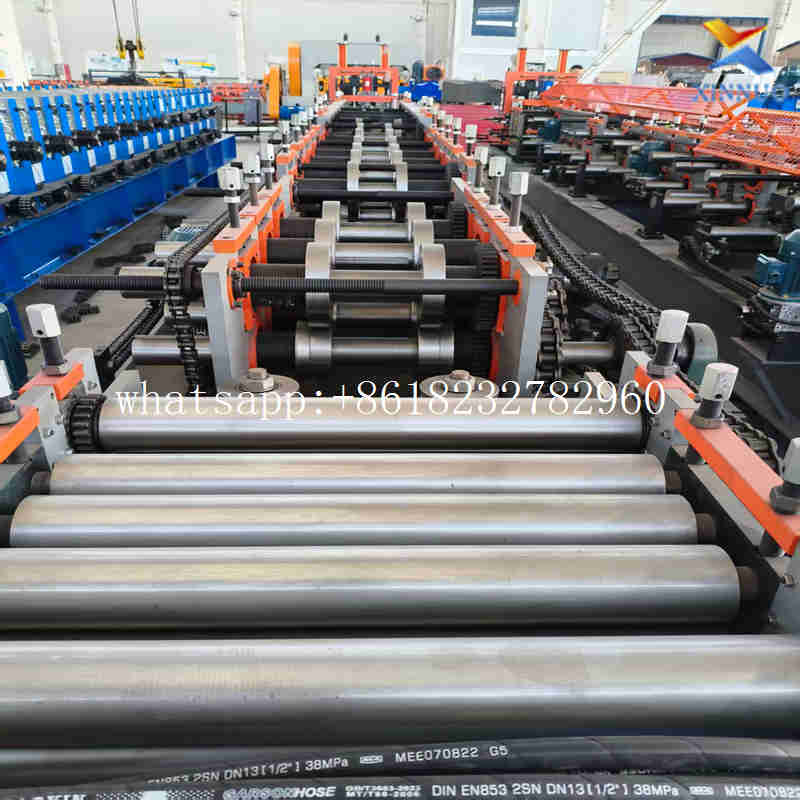

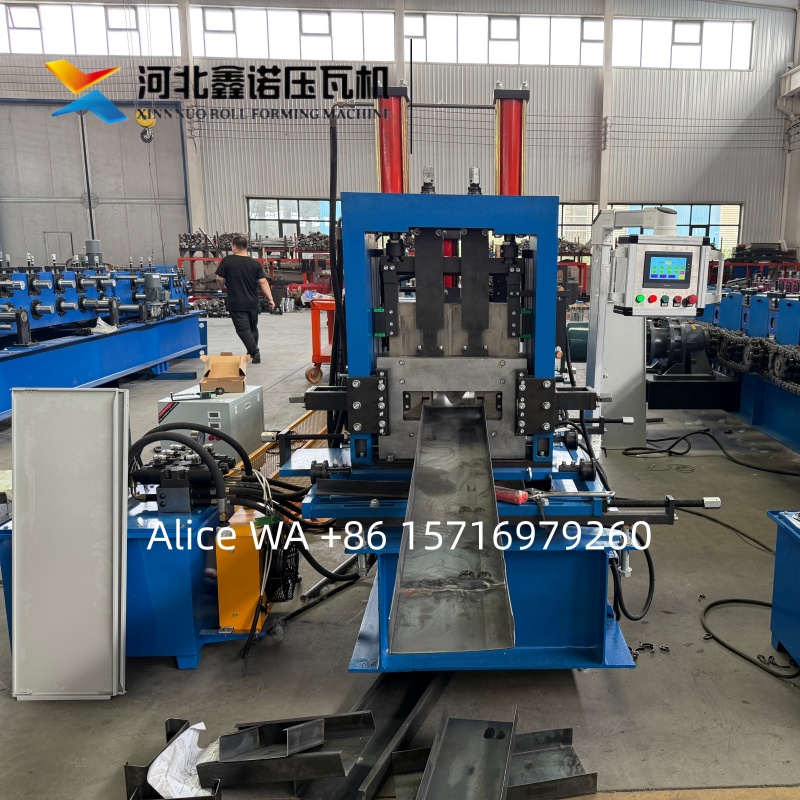

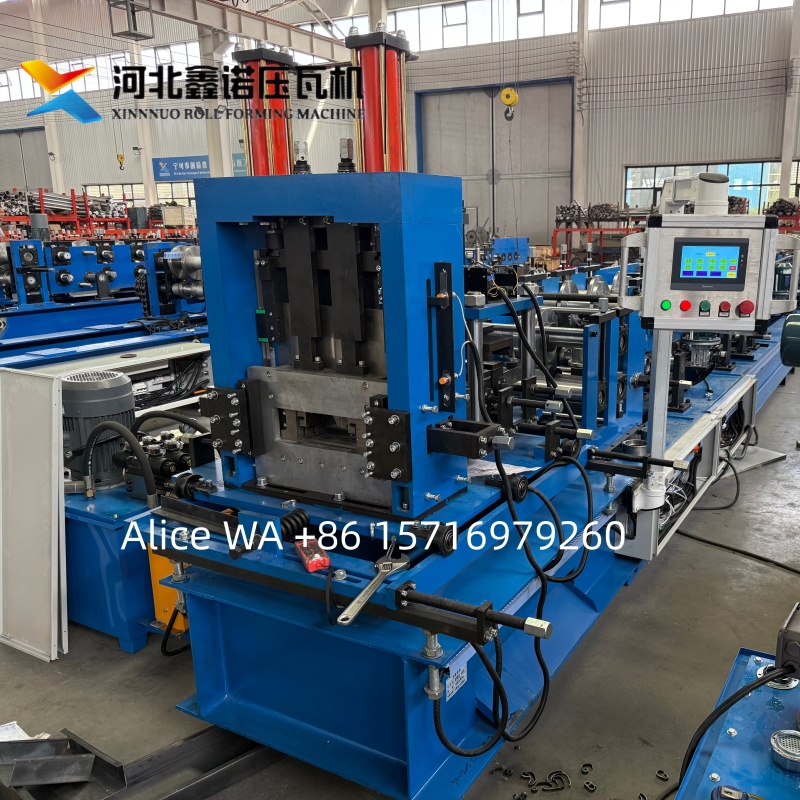

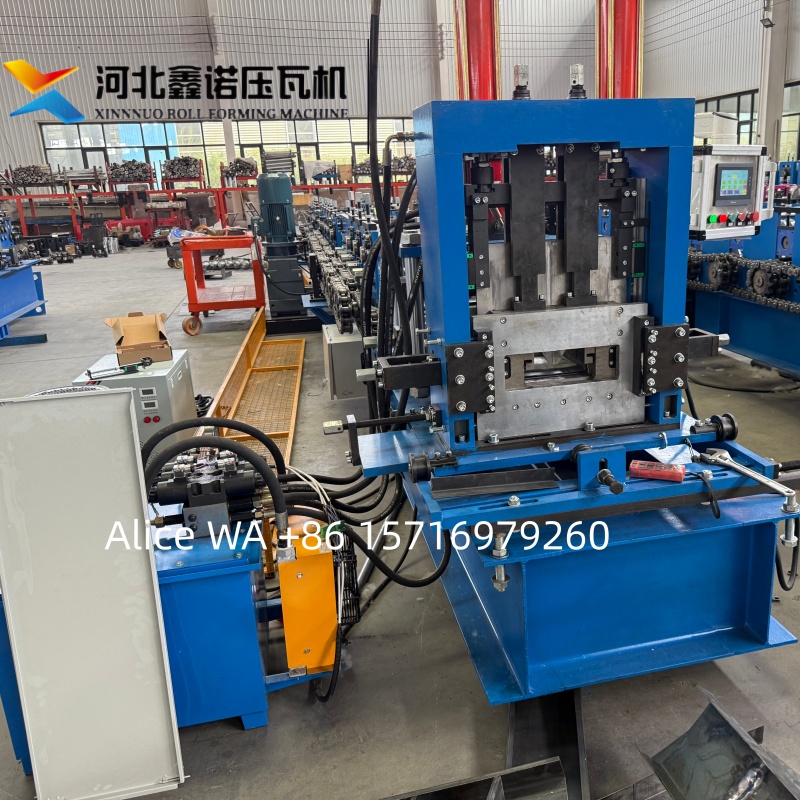

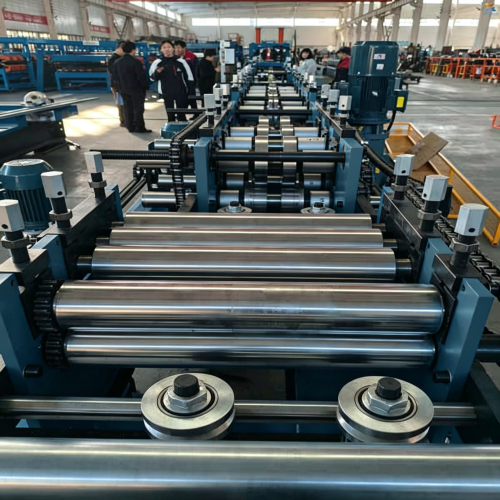

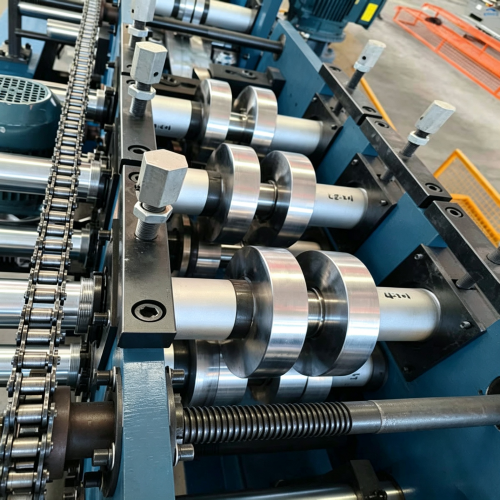

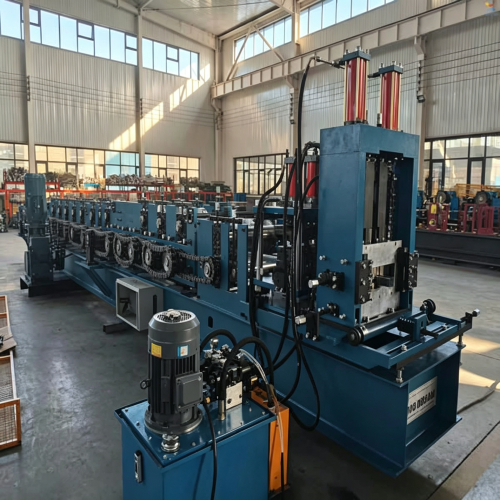

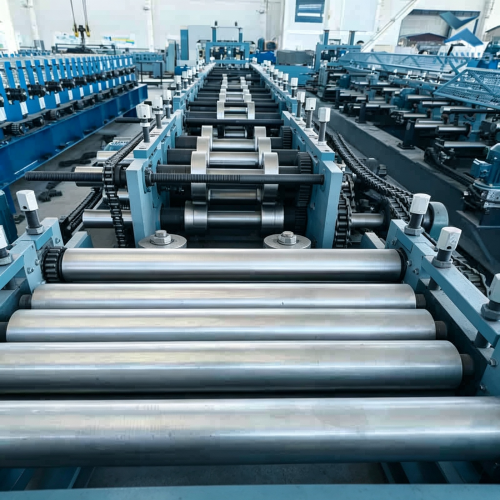

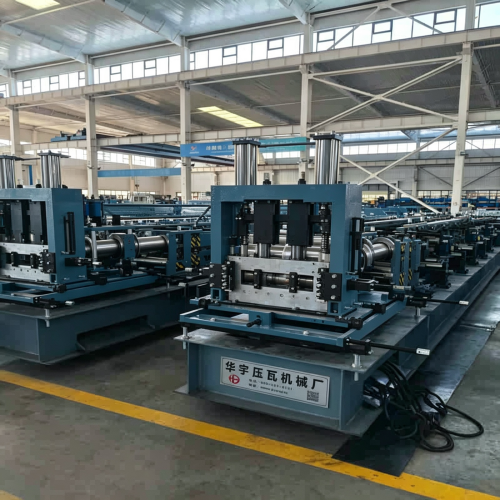

The machine frame is integrally welded with heavy thick square tube gantry structure and stress-relieved by high-temperature annealing after welding to eliminate welding deformation stress, running without vibration during heavy-load continuous forming with high dimensional adjustment accuracy, straightness and torsion fully meeting construction standards. All forming rollers are integrally forged solid 45# carbon steel with surface hard chrome plating after quenching for superior wear & compression resistance. Multi-pass progressive bending roller stands fully complete closed C-channel bending in one feeding stroke, scratch-free sheet surface with minimal spring-back. Equipped with online punching unit to stamp mounting & connecting holes synchronously, realizing integrated punching, forming and fixed-length cutting.

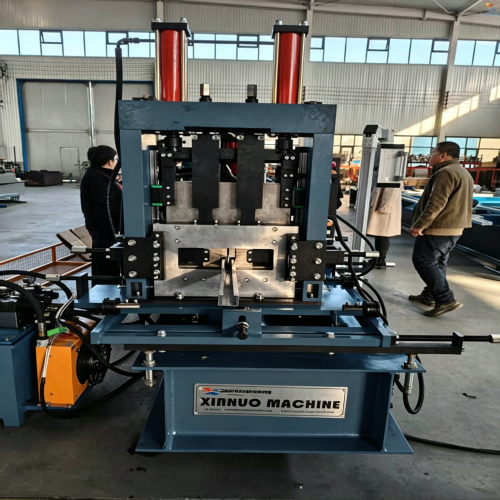

Web depth, flange width and lip size of C purlins are fully numerically controlled stepless adjustable, standard adjusting range C80–C300, parameters editable and switched directly on touch screen.

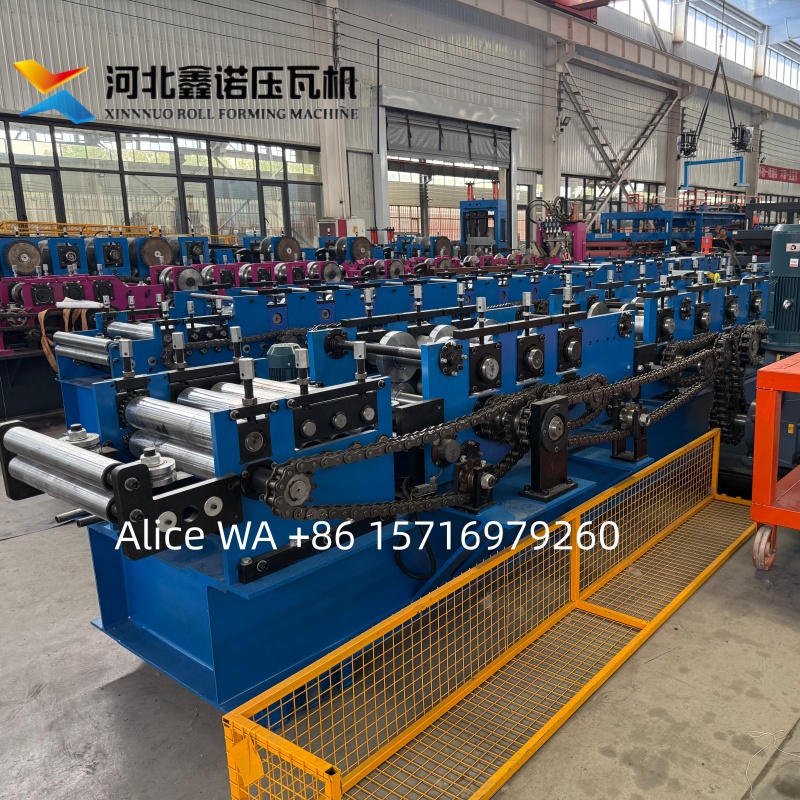

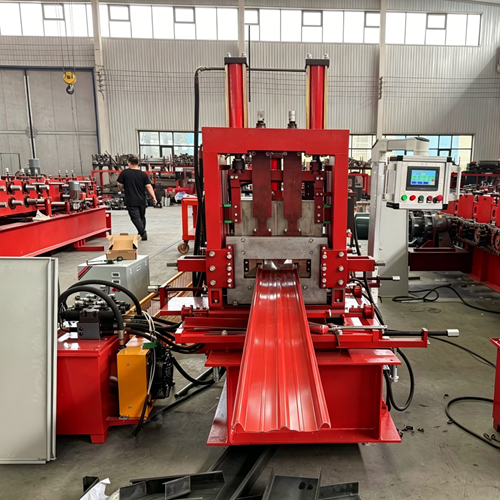

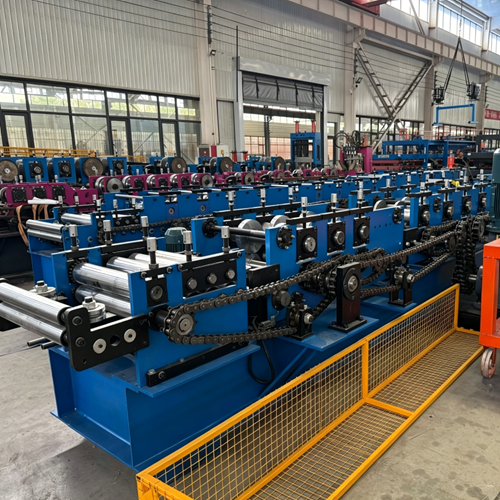

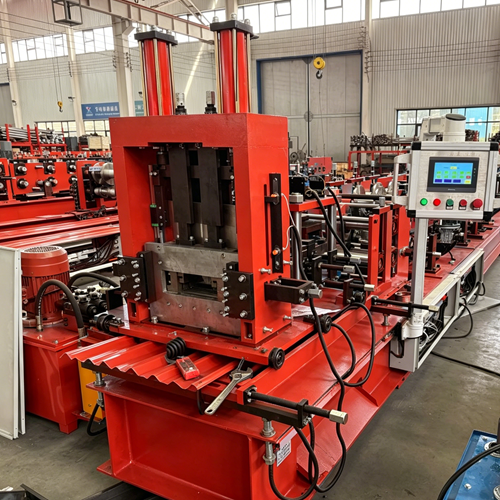

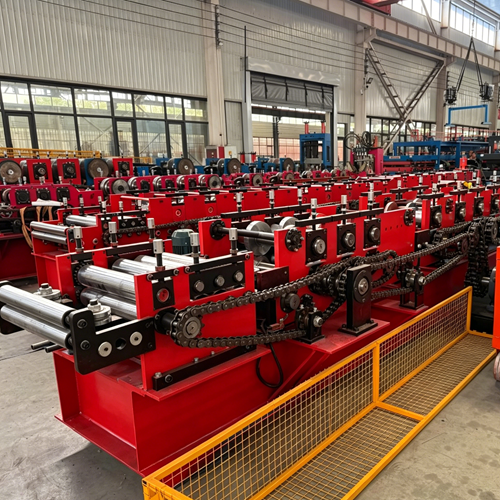

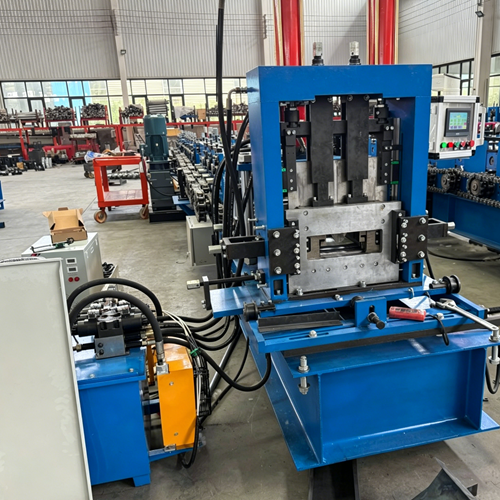

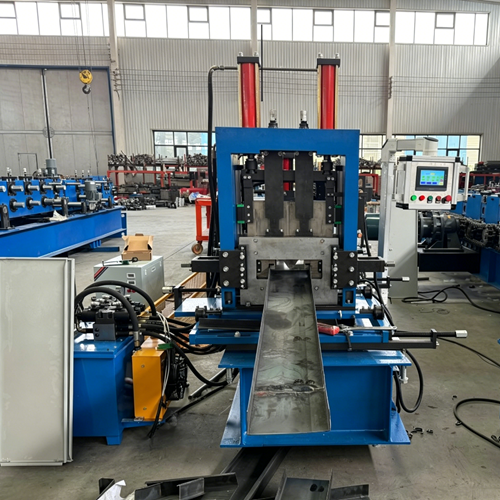

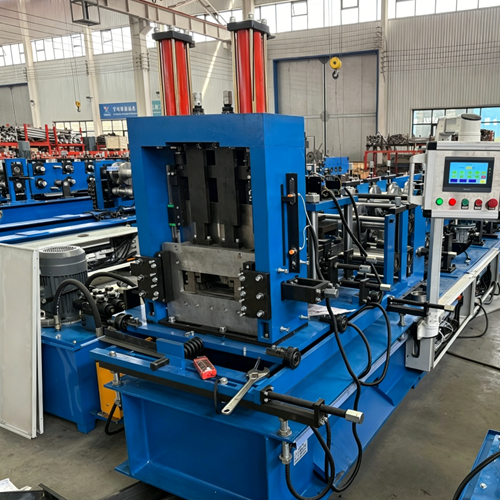

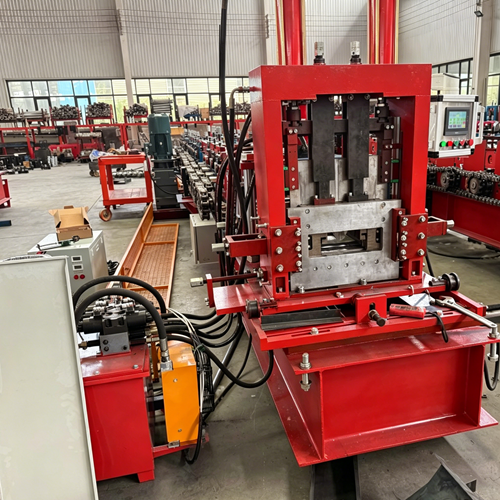

Equipped with dual variable frequency synchronous chain transmission, no slipping during thick galvanized strip forming, running smoothly with low noise, forming speed steplessly adjustable from 8 m/min to 25 m/min. Heavy-duty double-side deviation correction at feeding inlet keeps thick sheets centered without offset. Dual-cylinder heavy hydraulic cutting unit at tail with thickened wear-resistant blades fits thick gauge material, burr-free & distortion-free cutting, finished length tolerance ≤±0.8mm. Integrated PLC touch screen control system stores hundreds of C-channel profile recipes for one-click size switch, automatically completing uncoiling, punching, roll forming, fixed-length cutting, counting and discharging. Only one operator can realize 24-hour continuous production.
Every C purlin forming machine undergoes a 72-hour full-load thick coil endurance test before delivery to calibrate multi-size dimension, punching precision and cutting tolerance. Complete spare forming rollers, punching dies, hydraulic sealing parts and bilingual machine operation & maintenance manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, customized three-phase industrial voltage available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This steel structure C channel keel forming equipment receives bulk orders from construction engineering manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
C Purlin Roll Forming Machine / Auto Adjustable C Channel Steel Forming Equipment |
| Category |
C/Z Purlin Roll Forming Machine |
| Processable Materials |
Hot-dip galvanized steel strip, high zinc coating load-bearing galvanized coil |
| Applicable Sheet Thickness |
1.2–3.0mm |
| Adjustable C Purlin Range |
C80–C300 stepless adjustable (custom wider & higher model) |
| Roller Material |
Integrally forged 45# carbon steel + surface quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
22–32 roller stations |
| Integrated Functions |
Online hydraulic punching, CNC stepless size adjustment |
| Speed Control Mode |
Dual independent synchronous variable frequency stepless speed regulation |
| Forming Running Speed |
8–25 m/min |
| Total Main Motor Power |
11kW |
| Cutting System |
Dual-cylinder heavy hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±0.8mm |
| Control System |
Integrated PLC touch screen full-automatic NC, hundreds of profiles stored for one-click switch |
| Overall Dimension |
8600×1400×1500mm |
| Total Machine Weight |
4.5 Tons |
| Warranty Period |
2 years full machine warranty |
| Delivery Lead Time |
50–60 days |
