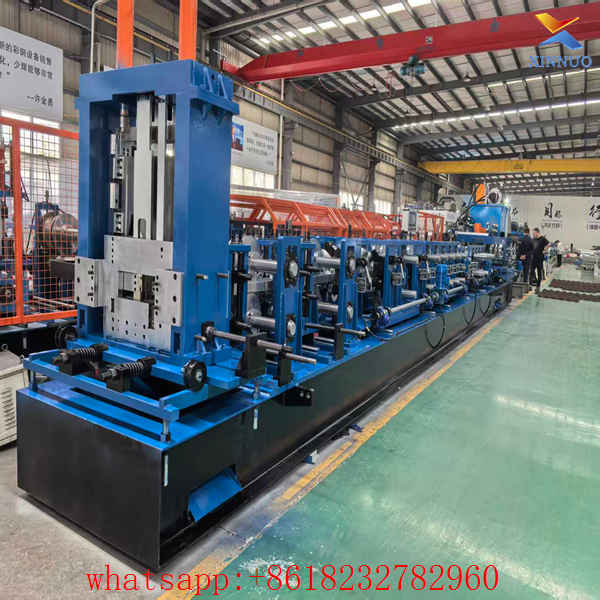

C/Z Purlin Roll Forming Machine Photos:

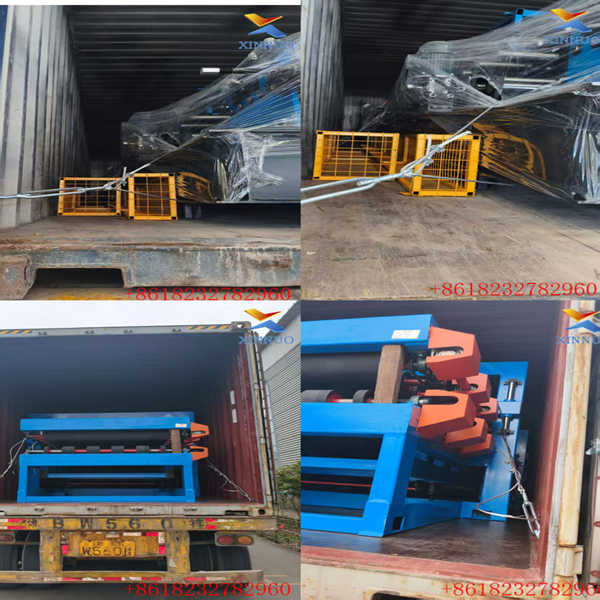

C/Z Purlin Roll Forming Machine Packing&Shipping :
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
About us -HEBEI XINNUO
We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !
This C/Z purlin roll forming machine belongs to C/Z Purlin Roll Forming Machine series, automatic all-in-one equipment that switches between C and Z channel purlins with one CNC click without roller replacement. It manufactures load-bearing purlins for steel workshops, storage greenhouses and photovoltaic support roofs. One machine handles two profiles to cut equipment investment and factory space occupation, making it a top-selling core model for steel structure and photovoltaic profile factories. It can form full automatic production line matched with uncoiler and slitter.

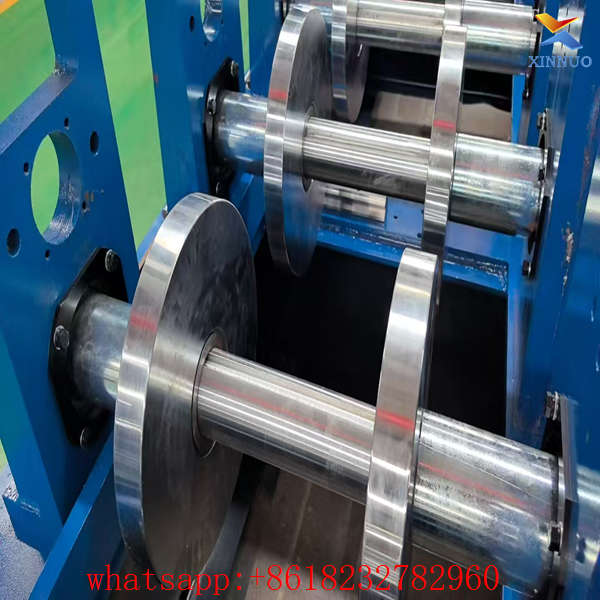

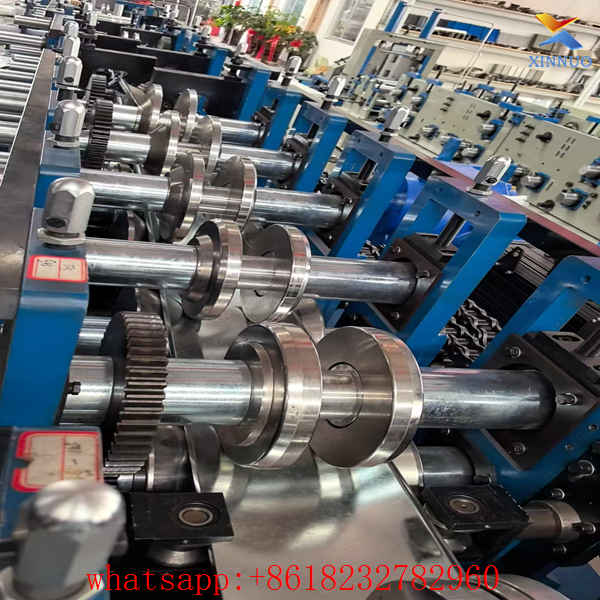

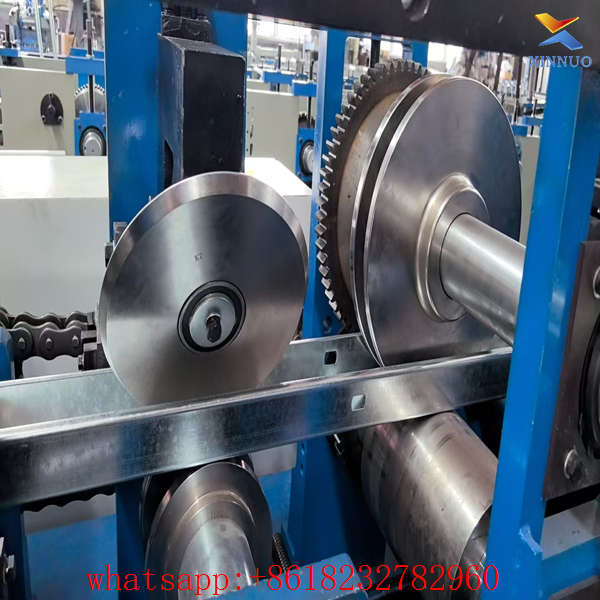

The machine frame is integrally welded with thick H-beam steel and stress-relieved by high-temperature annealing after welding, avoiding vibration and deformation during long heavy-load high-speed production to guarantee straightness and precise cross-section of purlins. All forming rollers are precision-machined solid 45# carbon steel with quenched thick hard chrome plating, wear and rust resistant without damaging anti-corrosion coating on hot-dip galvanized & aluzinc coils 1.2–3.0mm thick. Multi-stage progressive bending roller stands integrate on-line hydraulic punching stations to punch mounting holes synchronously during forming, eliminating secondary punching procedures and boosting production efficiency. Sizes from C80 to Z300 are electrically adjustable within full range, no full mold disassembly required, size change finished within several minutes.
Equipped with high-power variable frequency main drive and heavy-duty synchronous chain transmission, the machine delivers strong load capacity and quiet operation, forming speed stepless adjustable from 6 m/min to 15 m/min. Servo automatic deviation corrector at inlet realigns steel strips to reduce waste. Dual-cylinder servo hydraulic flying shear at the tail produces clean burr-free cuts with finished length tolerance ≤±0.5mm. Independent suspended cantilever PLC touch screen stores multiple profile parameter recipes for one-click C/Z size switching. The machine automatically completes feeding, roll forming, on-line punching, fixed-length cutting and counting. Only one operator is required for 24-hour non-stop continuous production, saving downtime and labor cost during size change.
Every auto C/Z purlin machine undergoes a 72-hour full-load coil endurance test before delivery to calibrate forming section, punching position and cutting tolerance. Complete spare rollers, punching dies, hydraulic seals and bilingual operation manuals are included. Xinnuo offers a 2-year full machine warranty, industrial voltage customization available for all countries, delivery lead time 50–60 days. Overseas buyers receive remote CNC programming support and on-site installation training. This high-efficiency multi-size C/Z integrated machine gains consistent repeat orders from global steel structure and photovoltaic manufacturers.
